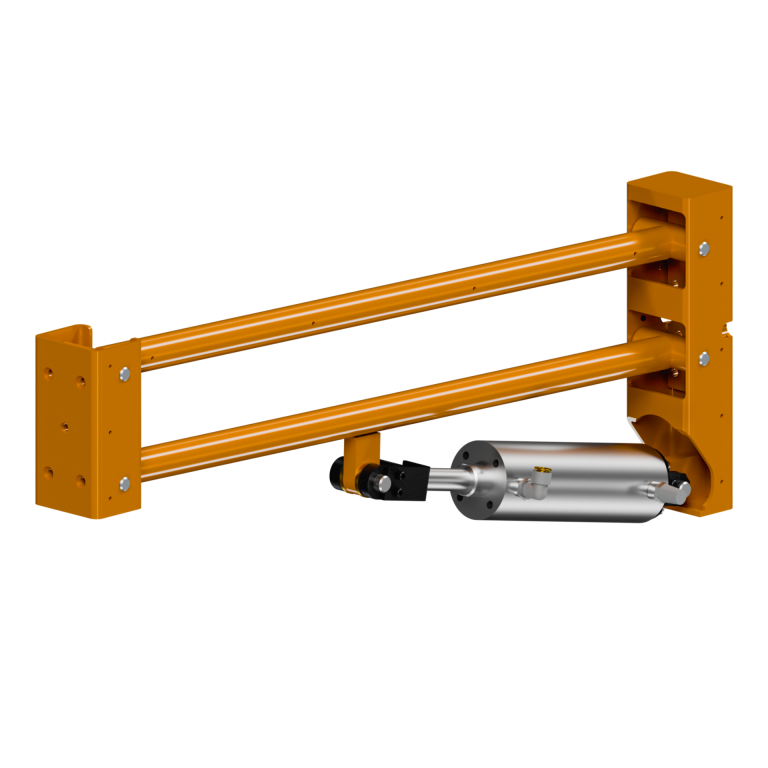

AAA4000 - Tổng Quan Sản Phẩm
AAA4000 - product overview

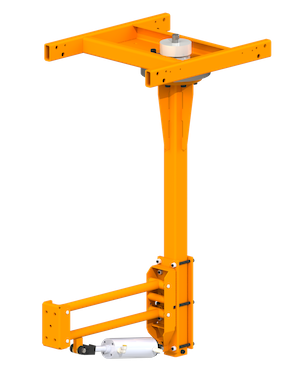

AAA4000 - Cánh Tay Treo Trần
AAA4000 - ceiling-mounted arm

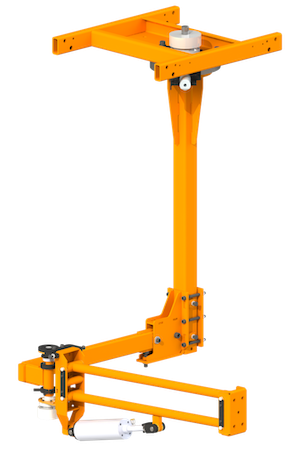

AAA4000 - Lắp Trên Cao (Overhead)
AAA4000 - overhead mounted

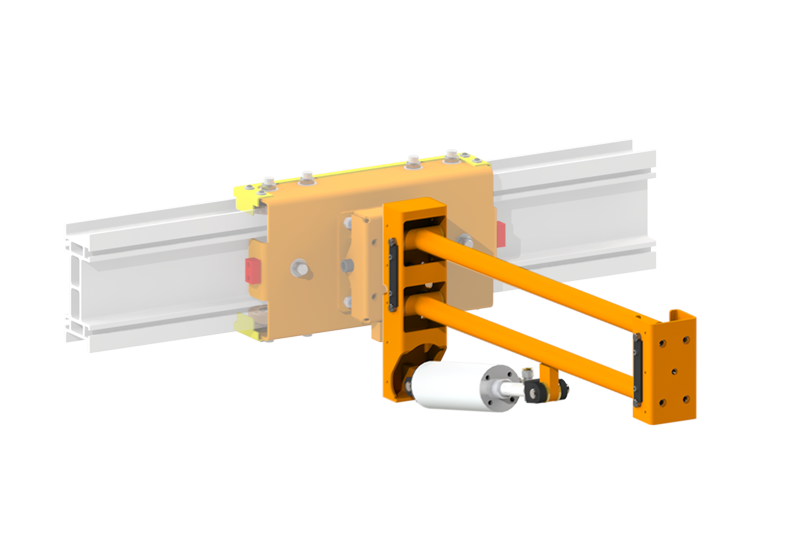

AAA4000 - Lắp Ray Thẳng (Linear)
AAA4000 - linear mounted

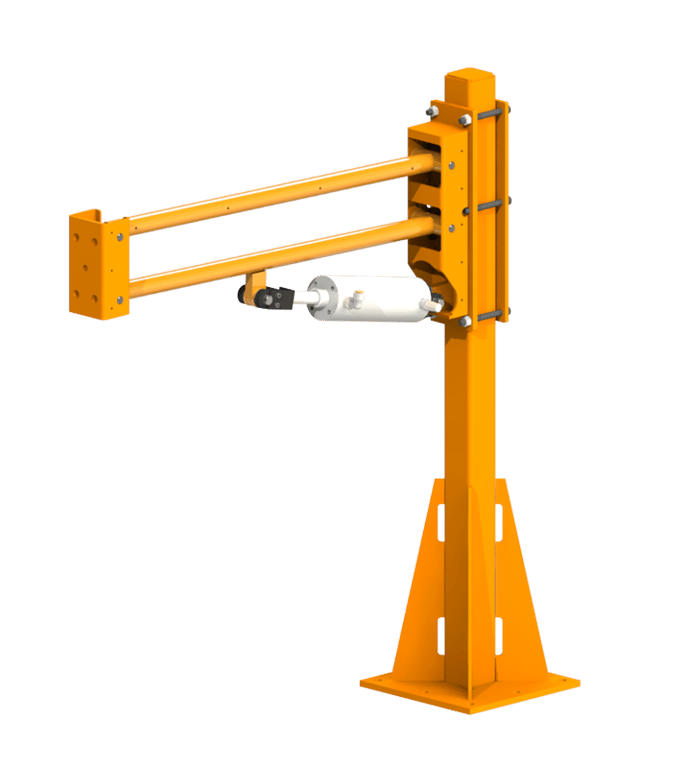

AAA4000 - Cánh Tay Trụ Đứng
AAA4000 - floor-standing arm

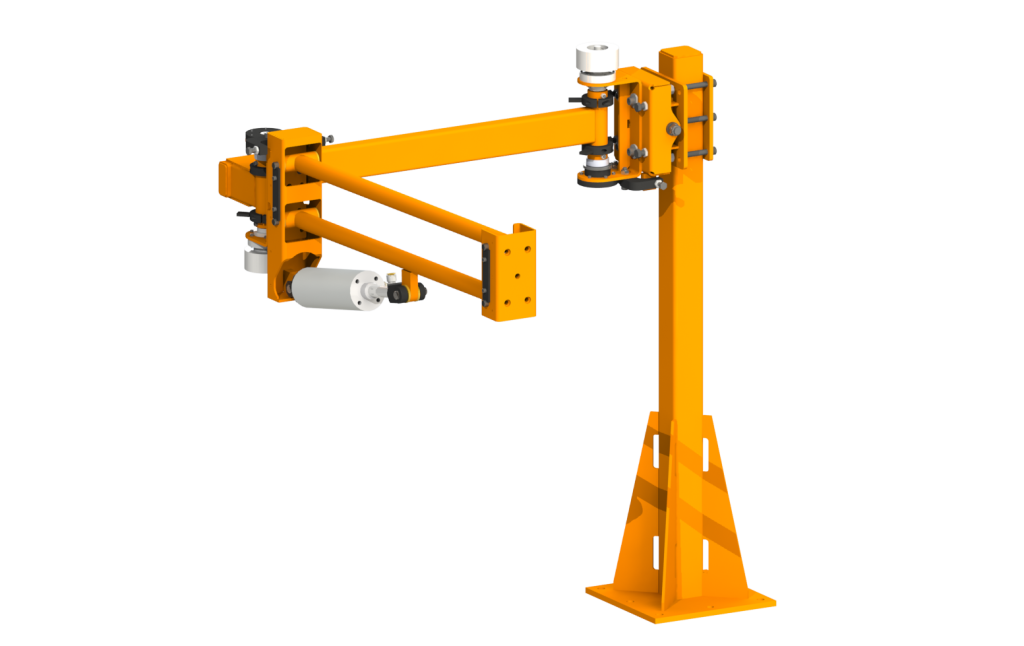

AAA4000 - Trụ Đứng (Pedestal)
AAA4000 - pedestal mounted

Light duty articulating pneumatic arm

P/N: AAA4000

The AAA4000 light duty articulating pneumatic arm is a parallelogram arm designed to lift, rotate, balance and move parts from conveyors, dunnage, assembly lines and many other applications.

The AAA4000 uses a single rear-mounted cylinder to achieve higher lifting capacity. By absorbing torque reaction, it reduces operator fatigue and makes lifting and handling parts easy.

The overhead AAA4000 travels inside RAD4110, RAD6110 or RAD7510 aluminum rail systems along the "X", "Y" and "Z" axes, with a wide range of control configurations. The Linear Mounted Arm version runs on the LRD9500 rail system.

FULLSHARP supplies the AAA4000 in all three mounting styles: overhead, floor pedestal and linear rail. Maximum balancing capacity is up to 80 lbs. [36 kg] with a 24 in. arm and 65 lbs. [29 kg] with a 36 in. arm, at a minimum of 60 psi. Capacity varies with reach.

Note: The carriage pan and extension boom shown in the illustrations are not included with the standard product.

Features & benefits

Features

  • Travels inside Knight RAD4110, RAD6110 or RAD7510 rail systems.
  • Lifts, rotates, balances and manipulates parts with minimal effort.
  • Wide range of control configurations.
  • Overhead carriage pan size: 24 in. [609 mm] or 36 in. [914 mm].
  • Maximum arm length: up to 36 in. [914 mm].
  • Maximum extension boom length: up to 36 in. [914 mm].
  • Maximum vertical stroke: up to 36 in. [914 mm].
  • Maximum mast height: up to 9 ft. [2.743 mm].
  • Maximum pedestal height: up to 6 ft. [1.828 mm].
  • Maximum lift/balance capacity: 80 lbs. [36 kg] with a 24 in. arm and 65 lbs. [29 kg] with a 36 in. arm, at 60 psi.

Benefits

  • Three mounting styles: overhead, floor mounted or linear rail mounted.
  • Floor mounted version eliminates the need for an overhead rail system.
  • Adjustable arm height.
  • Reduces operator fatigue.
  • Arm moves along all three "X", "Y" and "Z" axes.
  • Effectively absorbs torque reaction.
  • Optional pivot brake.
  • Optional parking brake.
  • Optional clutch brake.
  • Suited to automotive, electronics and mechanical assembly lines.

Technical specifications

Part numberAAA4000 (Overhead / Pedestal / Linear)
Arm typeArticulating Parallelogram Arm
Mounting styleOverhead / Floor pedestal / Linear rail
Power sourcePneumatic - minimum 60 psi [4,1 bar]
Cylinder typeSingle Rear Cylinder
Maximum balance capacity (24 in. arm)80 lbs. [36 kg] @ 60 psi
Maximum balance capacity (36 in. arm)65 lbs. [29 kg] @ 60 psi
Maximum reach (without extension boom)36 in. [914 mm]
Maximum extension boom length36 in. [914 mm]
Maximum vertical stroke36 in. [914 mm]
Carriage pan size24 in. [609 mm] or 36 in. [914 mm]
Mast heightUp to 9 ft. [2.743 mm]
Pedestal heightUp to 6 ft. [1.828 mm]
Compatible rail systemsRAD4110 / RAD6110 / RAD7510 (aluminum) - LRD9500 (Linear version)
Travel axesX, Y, Z
Brake optionsPivot Brake / Parking Brake / Clutch Brake
Tổng hợp các ứng dụng thực tếTổng hợp các ứng dụng thực tế Hỗ trợ siết bu-lông trên ray thẳngHỗ trợ siết bu-lông trên ray thẳng Máy siết bu-lông dầm ngang - ray thẳngMáy siết bu-lông dầm ngang - ray thẳng

Compatible accessories

General accessories

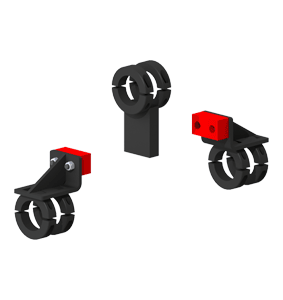

Cụm chặn hành trình tay máy<br /> Khối lượng: 3,9 lbs [1,79 kg]
Arm travel stop assembly
Weight: 3,9 lbs [1,79 kg]AAA4005
Phanh đỗ khí nén (Parking Brake)<br /> Hành trình 0,75 in. [19,1 mm]
Pneumatic parking brake
Stroke 0,75 in. [19,1 mm]ASA9510
Phanh ly hợp ổ bi (Clutch Brake)<br /> Mô-men tĩnh 102-411 Nm
Bearing clutch brake
Static torque 102-411 NmASA9522

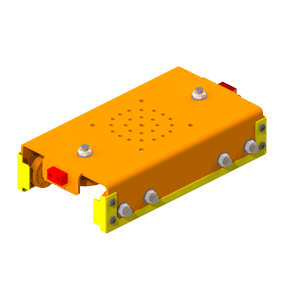

Xe di chuyển ray thẳng - LRD9500<br /> Khối lượng: 35,9 lbs [16,28 kg]
Linear rail carriage - LRD9500
Weight: 35,9 lbs [16,28 kg]MLRA9501

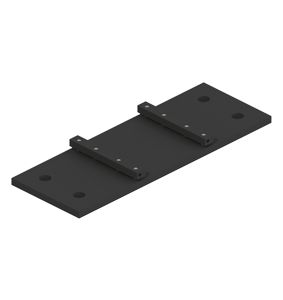

Cụm tấm gắn ray LRD9500<br /> Khối lượng: 15,4 lbs [6,99 kg]
