When metal sheets are stacked, picking up the top one means reaching a hand under its edge - slow and easy to cut yourself. Carrying it with several people causes the sheet to shake and rub against others, scratching the surface.

FullSharp installs a pneumatic jib crane with a vacuum lifting pad. The suction frame sets onto the top sheet, grips firmly and lifts it straight up without touching the sheet's edge. The swing arm then carries it to the machine table, and the whole task needs only one person.

Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets

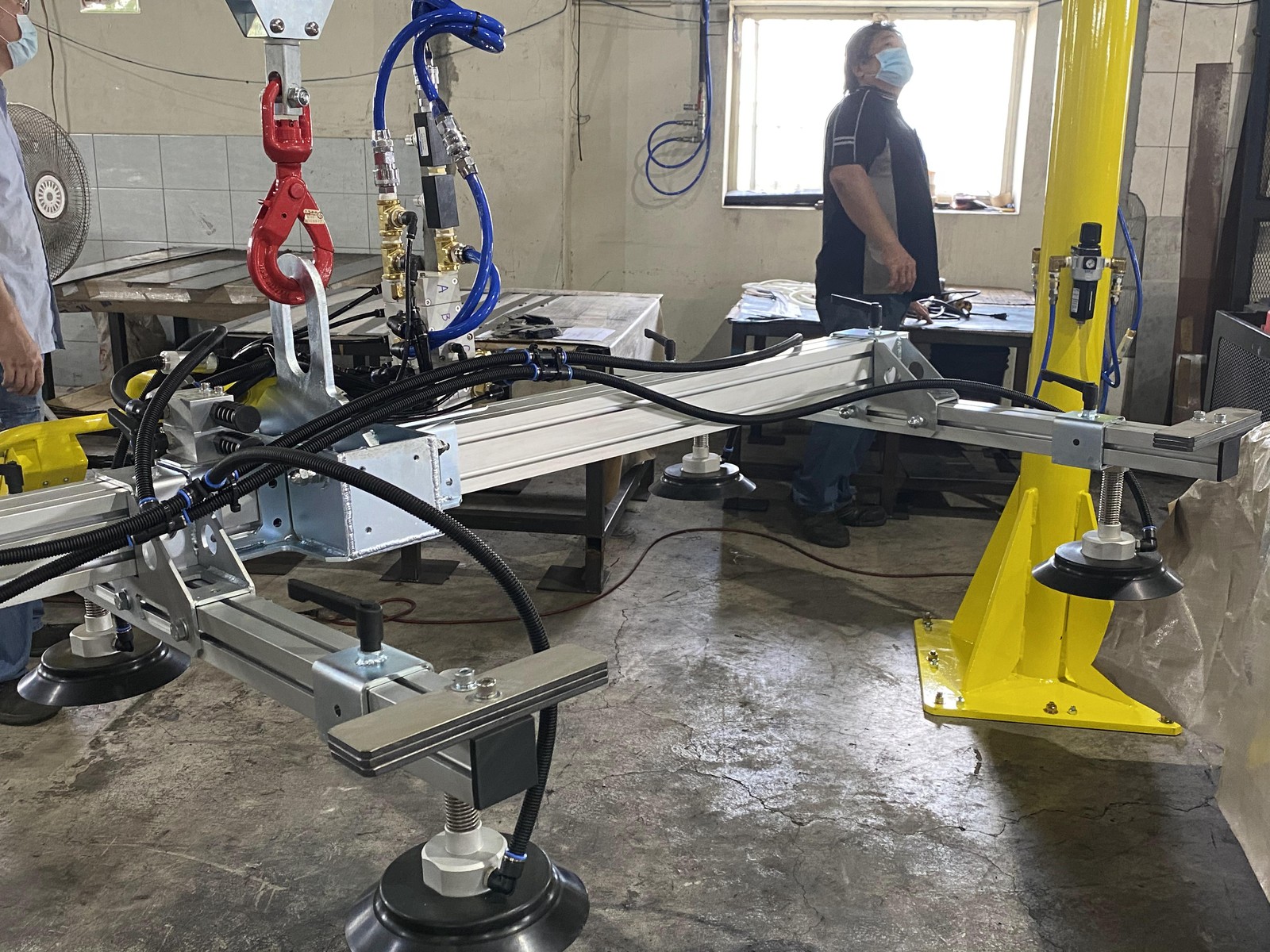

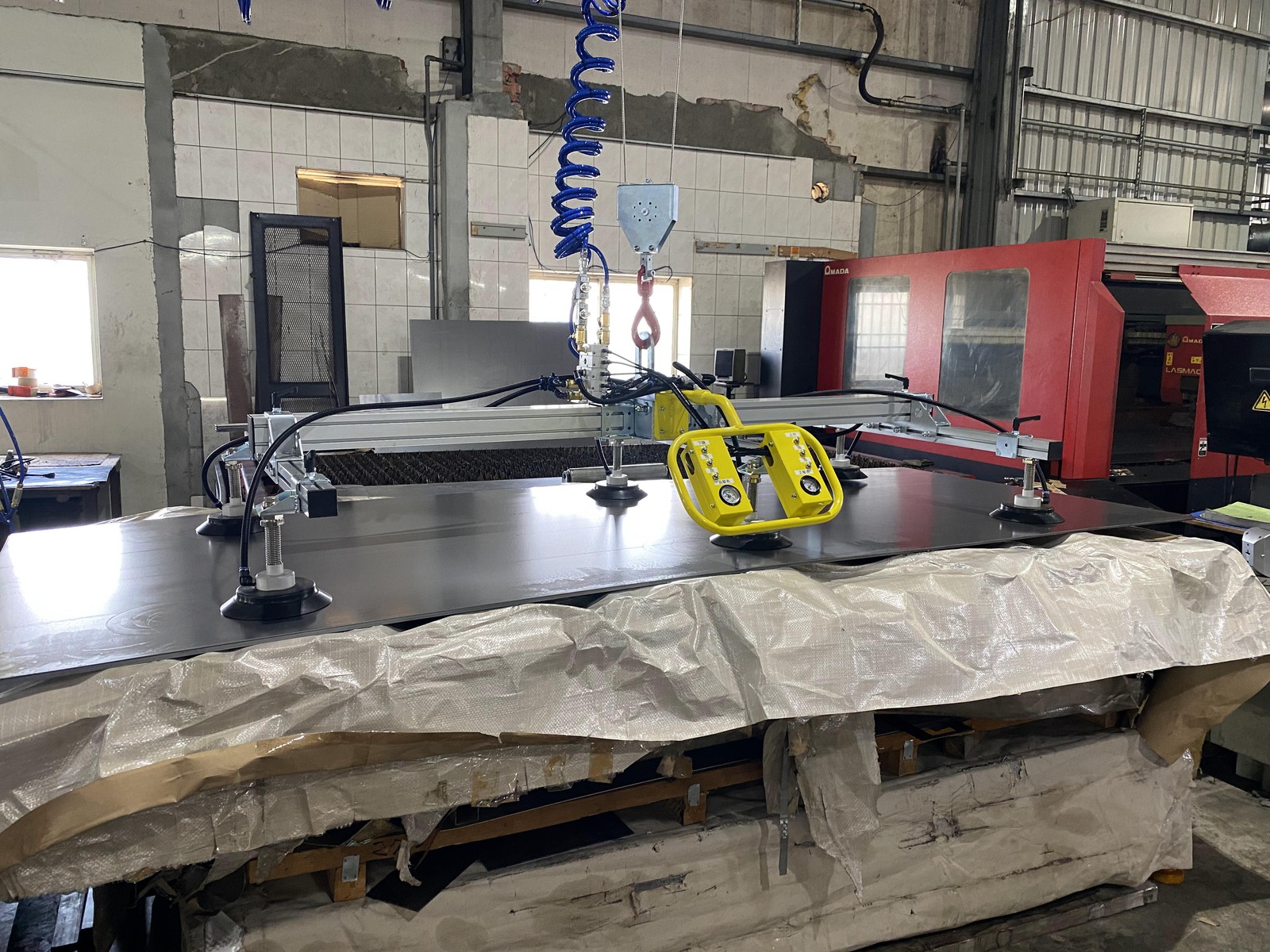

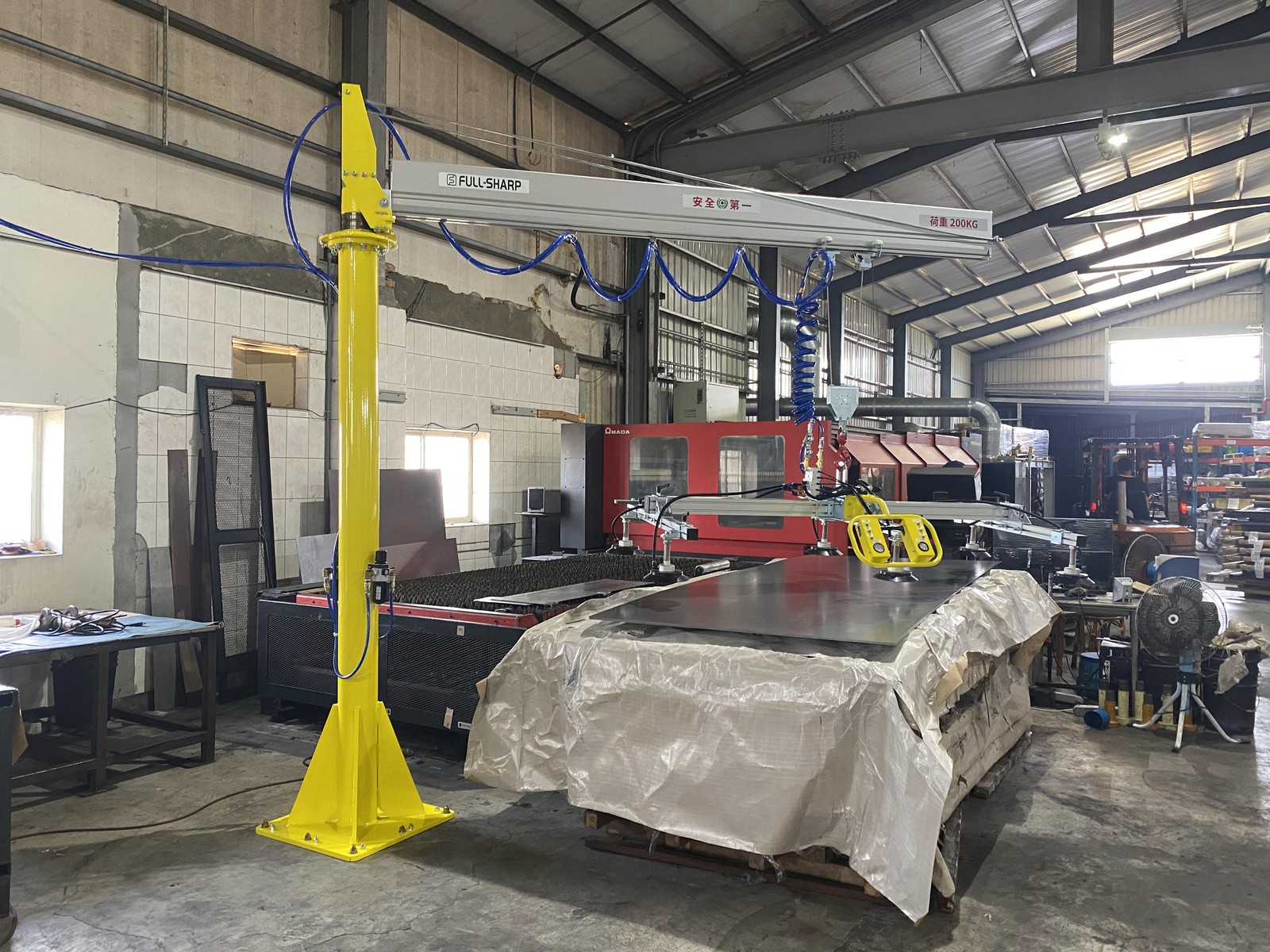

Vacuum lifting pad mounted on a pneumatic jib crane, used for metal sheets in the workshop.

Equipment Installed

  • Vacuum lifting pad: suction cups spread evenly across the sheet, limiting sag when it's lifted.

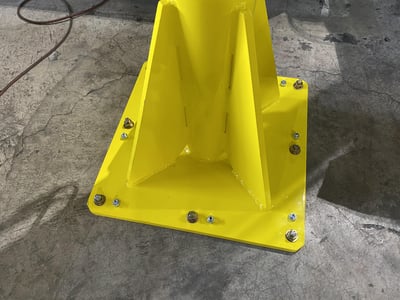

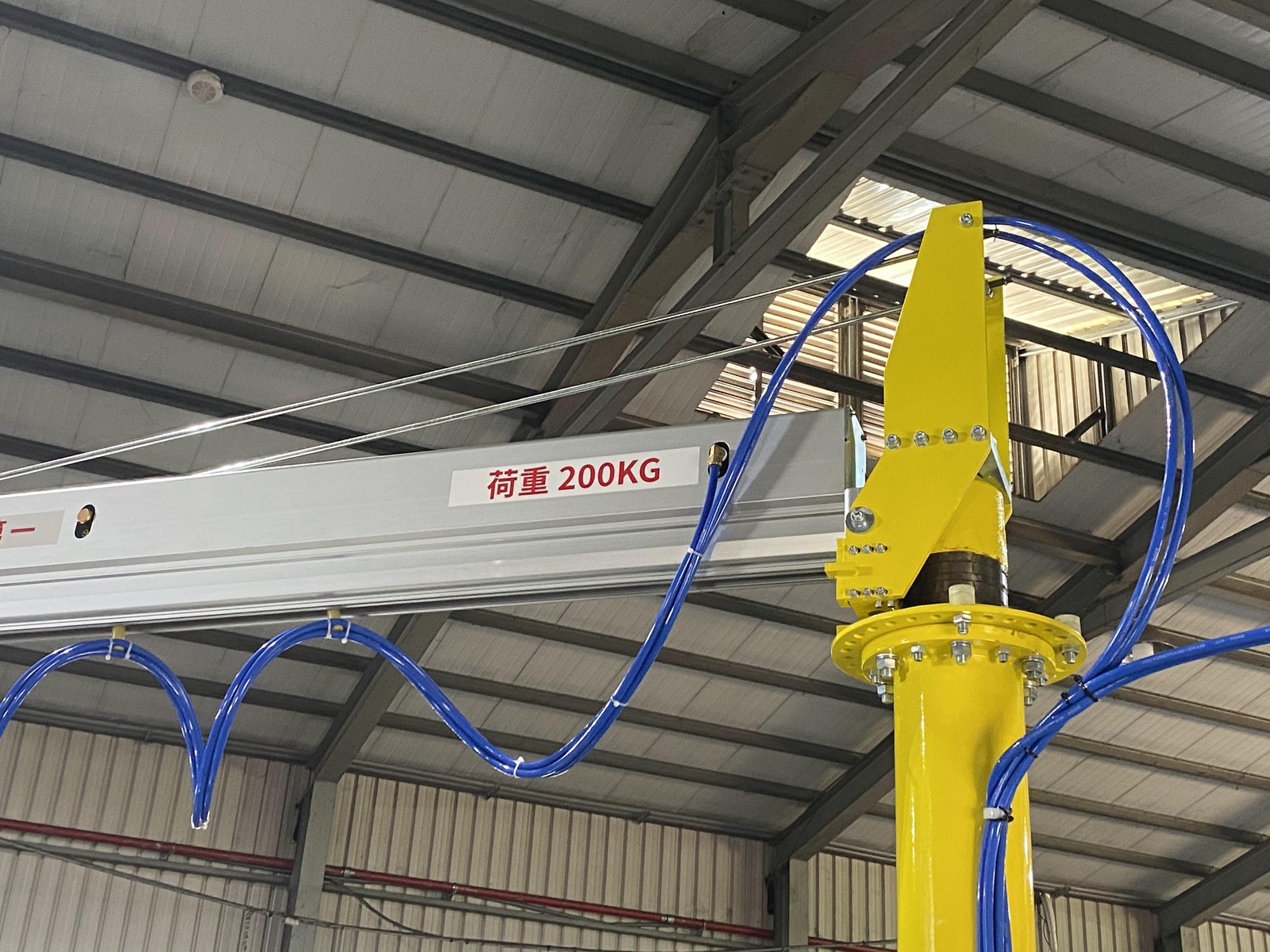

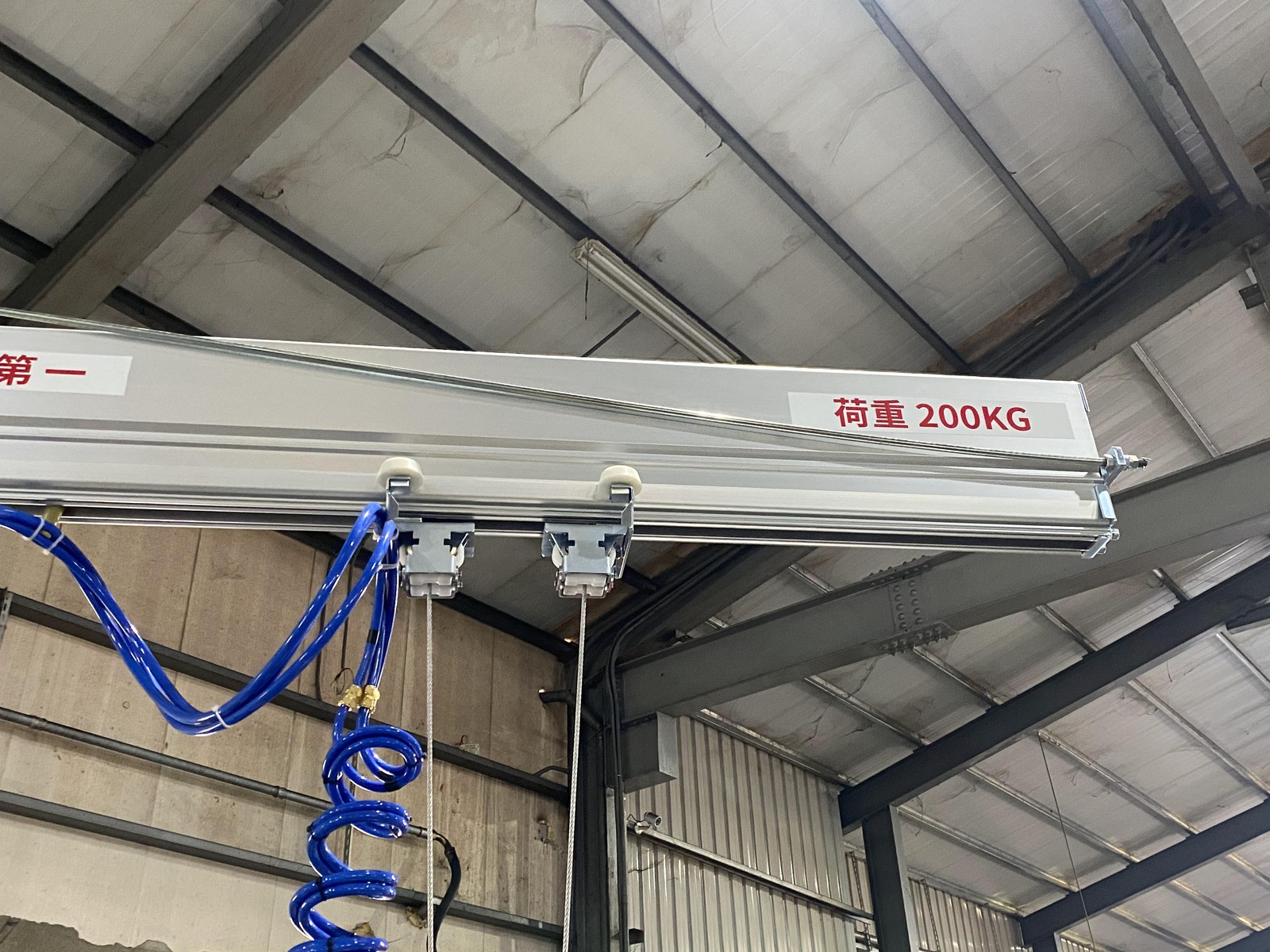

  • Pneumatic jib crane: the arm swings around the column, covering the area between the sheet stack and the machine table.

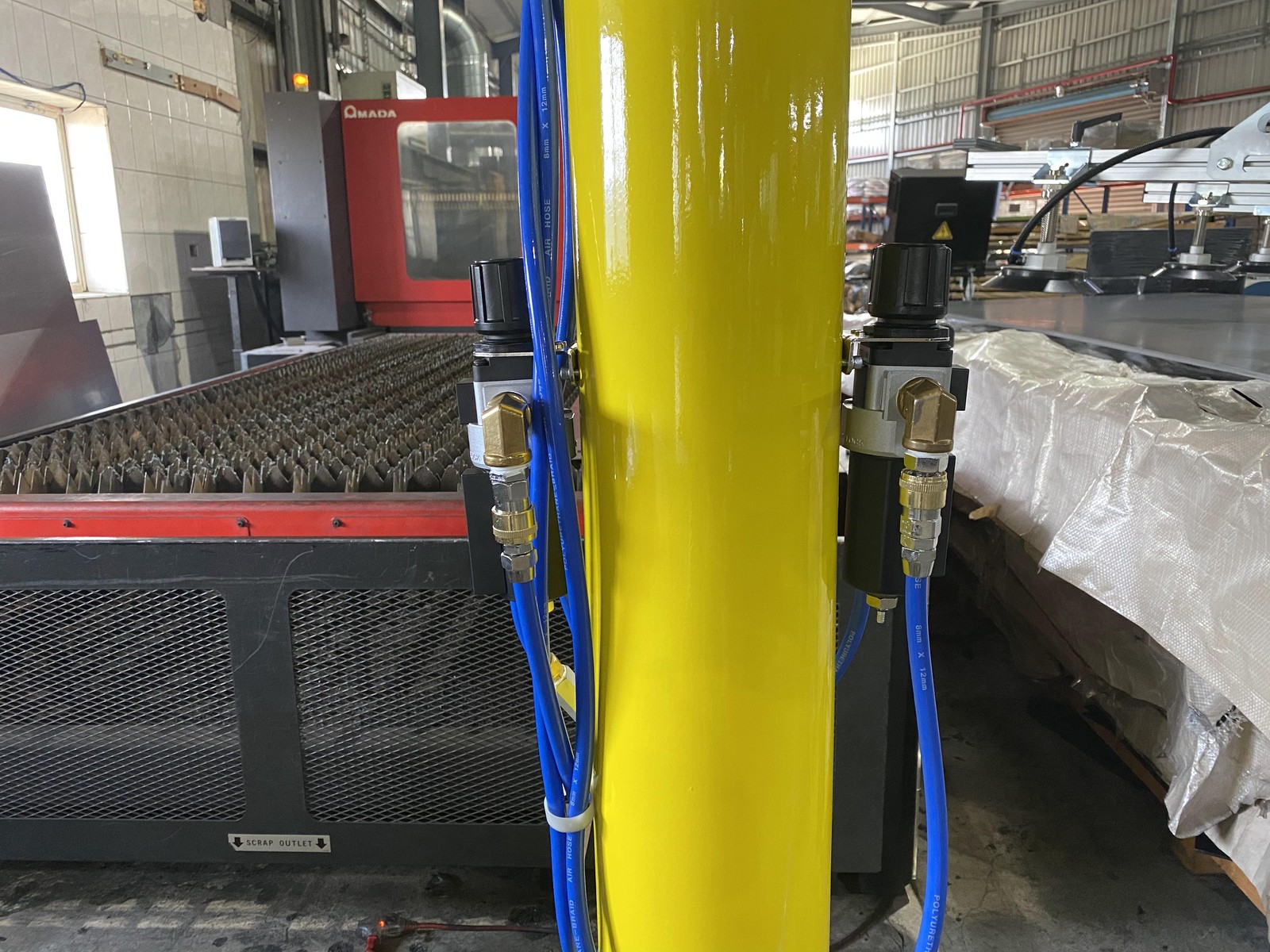

  • Pneumatic vacuum generator: draws air from the existing supply, with no extra control panel needed.

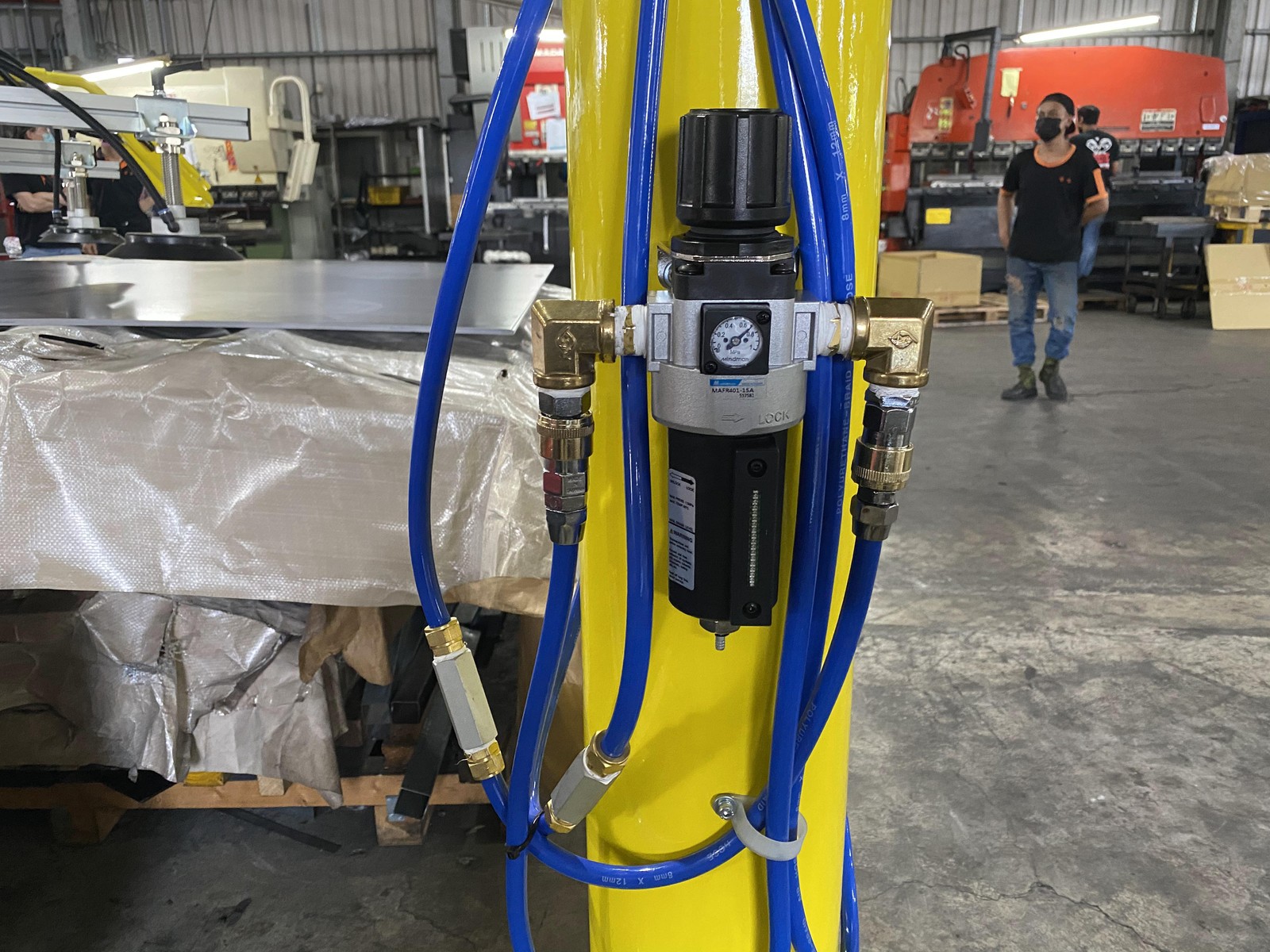

  • Holding valve and vacuum gauge: monitors vacuum level and seals the suction chamber if pressure drops suddenly.

Benefits for Your Facility

Fast pickup from a stack

Suction grips straight from the top - no prying the edge or reaching underneath.

Keeps the sheet surface clean

Soft suction pads leave no marks the way clamps or hooks would.

Fewer people needed

One operator replaces a carrying team, cutting the risk of collisions.

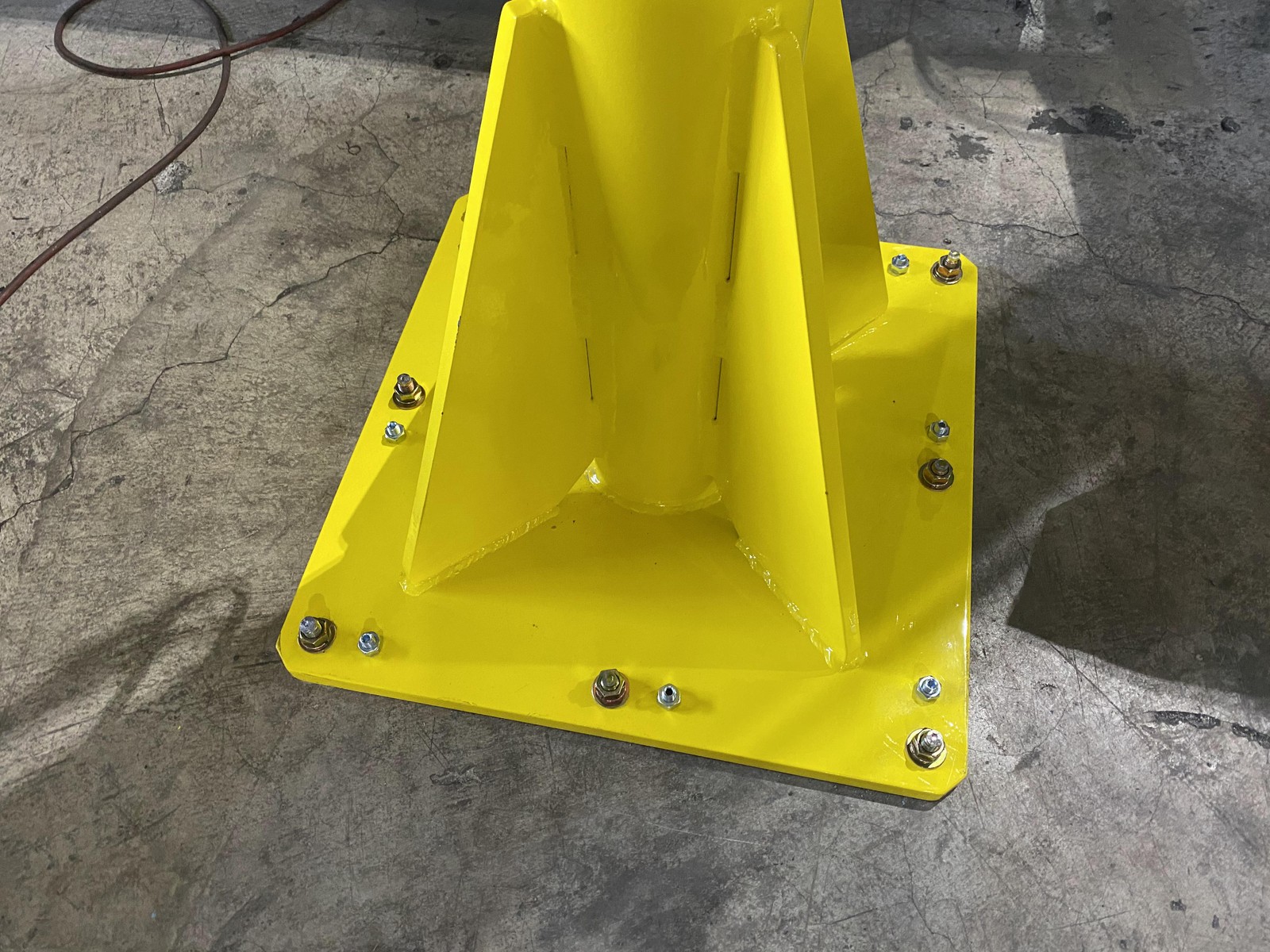

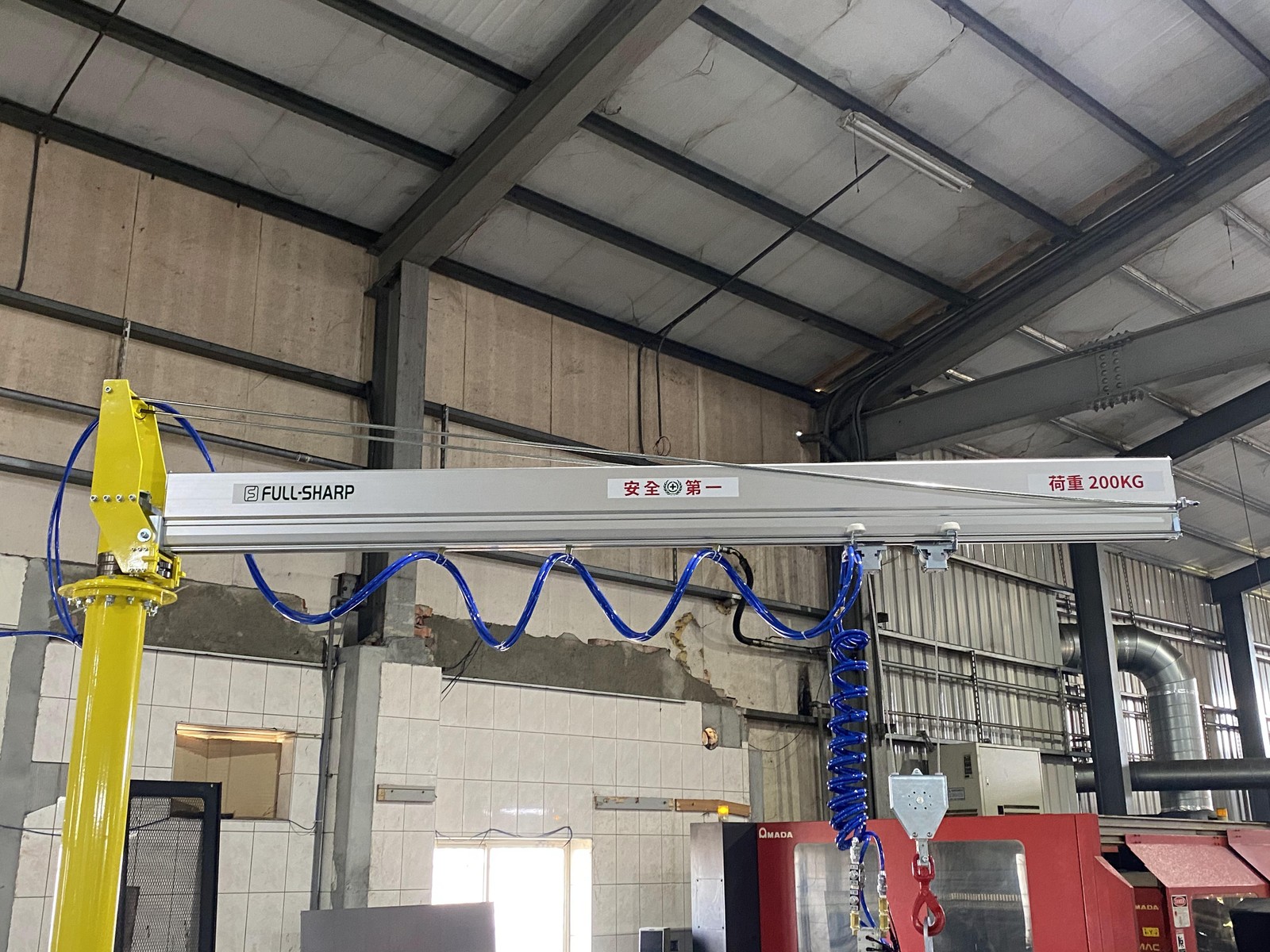

Actual Installation Photos

Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 1 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 2 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 3 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 4 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 5 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 6 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 7 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 8 Pneumatic Jib Crane with Vacuum Lifting Pad for Metal Sheets - ảnh 9

Click a photo to enlarge. Album of 9 photos taken on site.

Suitable Applications

  • Sheet metal fabrication workshops
  • Material feeding areas for cutting machines
  • Metal sheet warehouses
  • Cabinet and enclosure production lines

Related Products and Projects

Installation Consulting for Your Facility

FullSharp takes the largest sheet size, thickness, weight and surface condition to select the number of suction cups and the safety factor. Our engineers determine the column position, reach and compressed air supply. Contact FullSharp to schedule a workshop survey.
