WilsonX190A-SCA2

FULLSHARP · GOODLIFTA

Lifting equipment for
server / GPU
WilsonX190A-SCA2

Vertical column lifter with an integrated multi-joint swivel crane arm — lift, install and precisely position servers, GPUs and racks in cleanroom environments; electric operation, safe for one person.

Load capacity 110 kg 1900 mm lifting column Cleanroom ESD protection
Model WilsonX190A-SCA2
110kg
Lifting capacity
1900mm
Column height (H)
125mm/s
Lifting speed
IP41
Protection rating

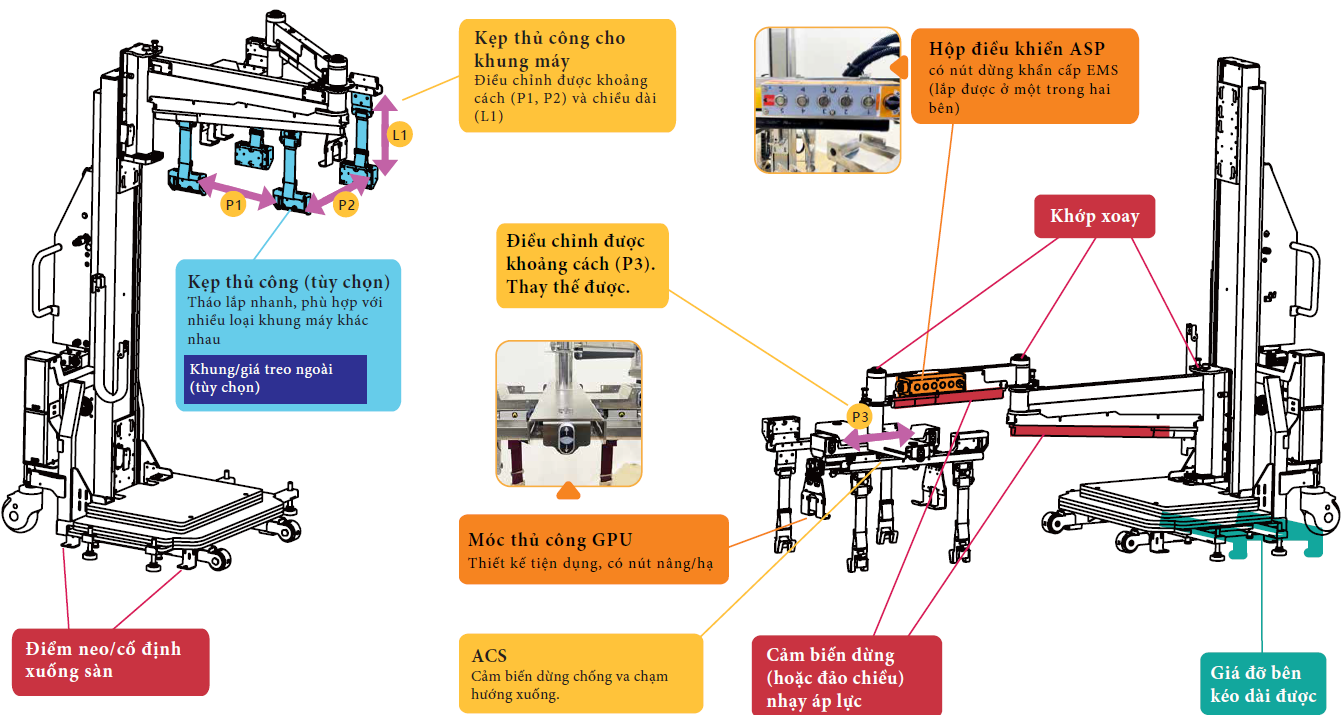

Design & highlights

LIFTElectric lifting — 125 mm/s with soft start & stop; ACS anti-collision sensor for added safety.
ARMMulti-joint swivel crane arm — with a manual hook-n-lift arm designed specifically for GPUs, LED indicator for hook position.
ASPASP auto positioning — programmable auto run up/down with 3 workstations × 5 height levels for fast, accurate positioning.
ESDCleanroom & ESD protection — electropolished 304 stainless steel body, cleanroom-ready with ESD protection.
WilsonX190A-SCA2 – hình ảnh sản phẩm

Dimensions

WilsonX190A-SCA2 – bản vẽ kích thước
Main height specifications (unit: mm) — refer to the FULLSHARP technical drawing.
Lifting height (R) 1350
Column height (H) 1900 (reinforced linear guides)
Hook height (M) — GPU 350 – 1700

Technical Specifications

Lifting height (R)mm 1350 mm
Column height (H)mm 1900 mm* Reinforced linear guides
Hook height (M)mm 350 – 1700 mm* For GPU
Lifting capacity 110 kg
Lifting speed 125 mm/s · soft start & stop* ACS (Anti-Collision Stop) sensor
IP rating IP41
Battery Built-in Lithium battery DC24V20AH
Charging voltage 100 – 240V AC, 50/60 Hz
Material 304 stainless steel, electropolished — suitable for cleanroom applications
Easy operation
  • Motorized lifting
  • Multi-joint swivel crane arm
  • Manual hook-n-lift arm designed specifically for GPUs
  • LED indicator for hook arm position
Auto Run ASP (Advanced Sensor Positioning) system
  • Programmable auto run up/down with 3 workstations × 5 height levels
  • Fast, accurate height positioning of the lifting arm

Applications

Server Rack GPU Chassis Battery packs Test equipment

Interested in the WilsonX190A-SCA2?

Contact FULLSHARP for advice on configuring the WilsonX190A-SCA2 server/GPU lifter for your cleanroom application.

Contact FULLSHARP View all Server Lifters
Product code: WilsonX190A-SCA2. Specifications are subject to change without notice.
