Column-Mounted Pneumatic Manipulator for Drill

Large concrete drills are heavy and vibrate strongly, forcing the operator to use both arms to hold the drill steady at the exact point. Working continuously numbs the hands, the drill bit tends to wander off-center, and in a steel plant, drilling overhead or sideways makes it even harder to keep the drill steady.

FullSharp builds a column-mounted pneumatic manipulator to carry the full weight of the Hitachi drill. The operator only pushes the drill into position and drills; the arm rotates 360 degrees around the column and adjusts in height, so it can work at multiple points without being reinstalled.

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support

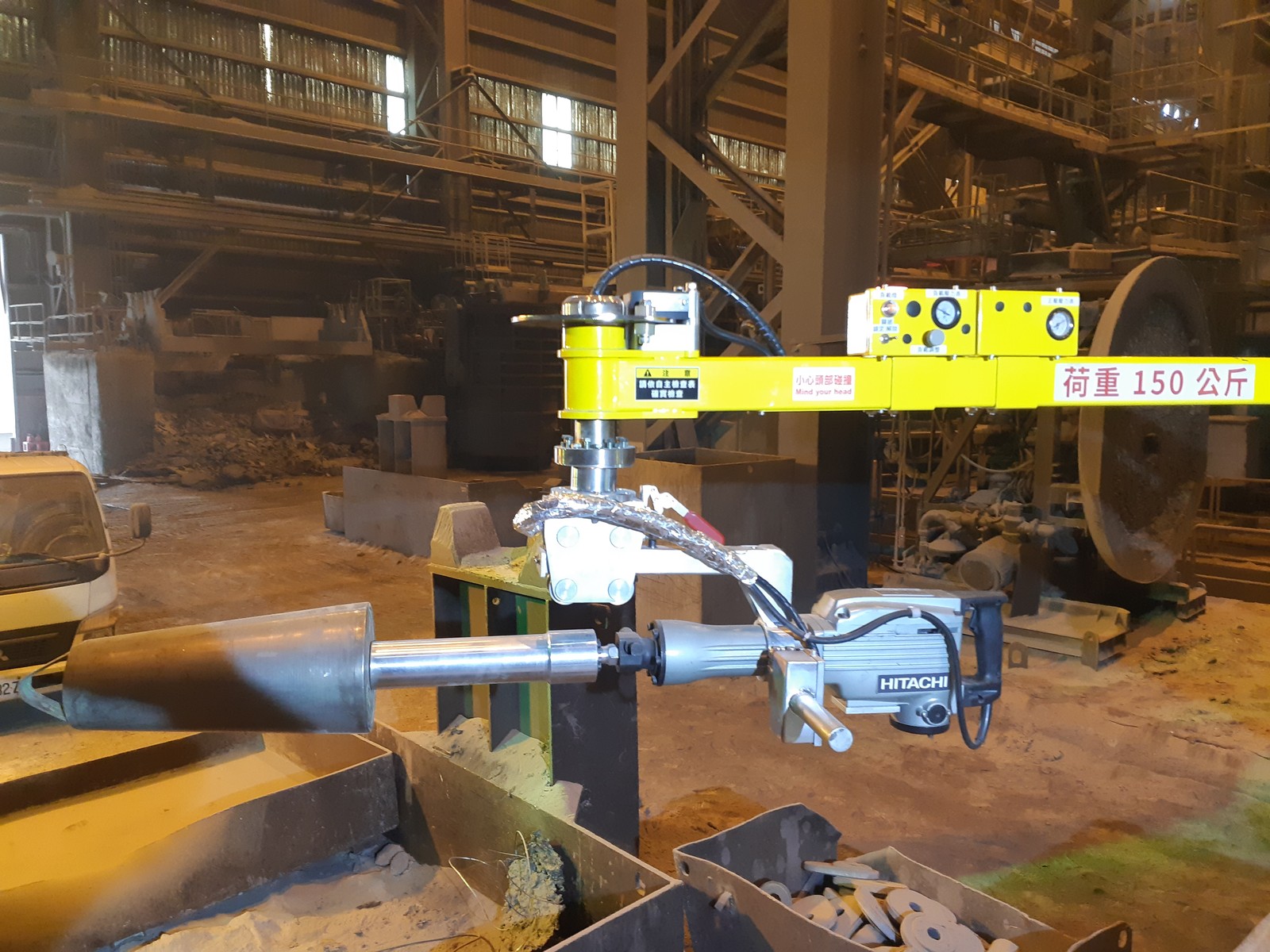

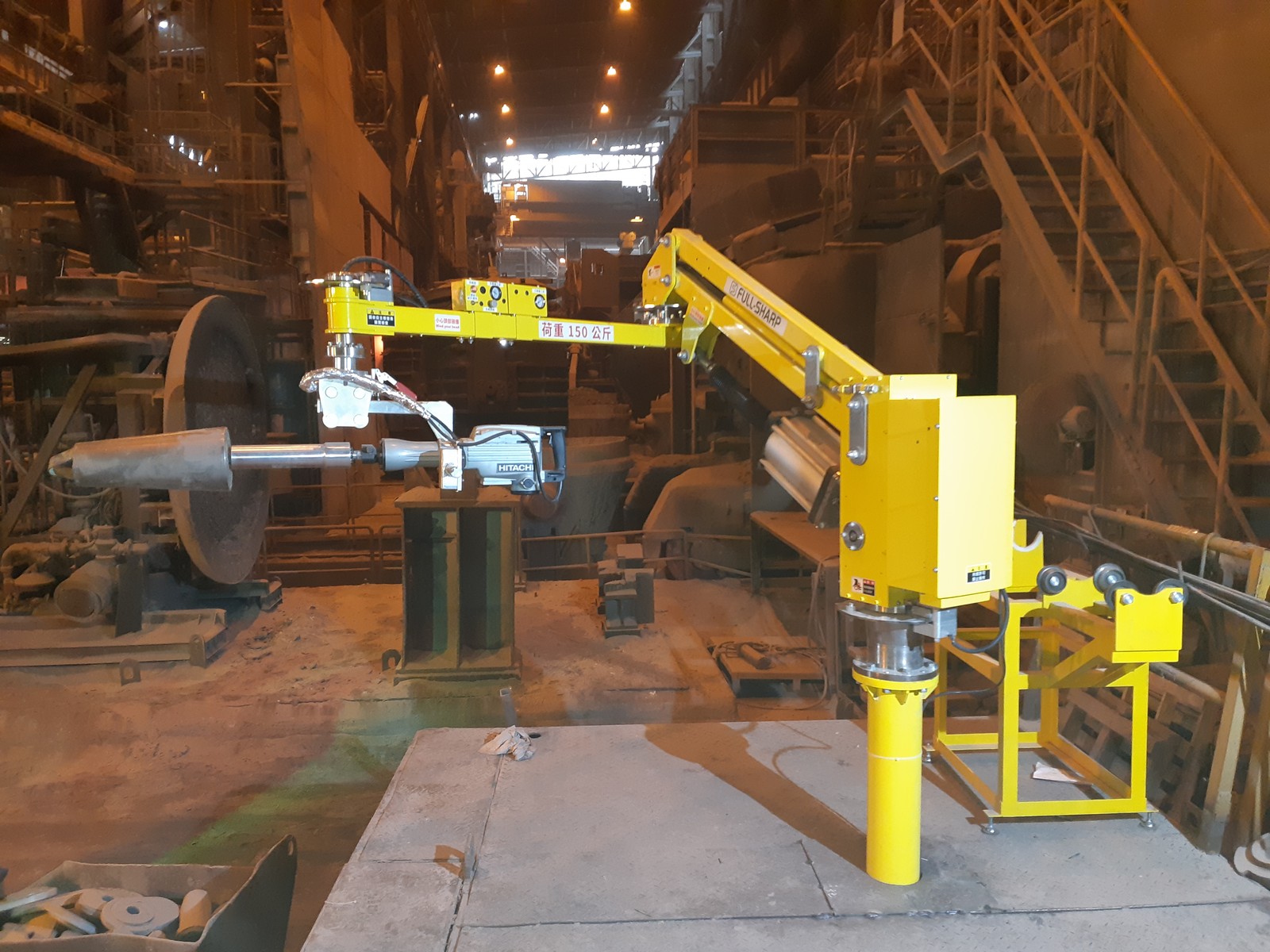

A column-mounted pneumatic manipulator holding a Hitachi drill in a steel plant.

Equipment Installed

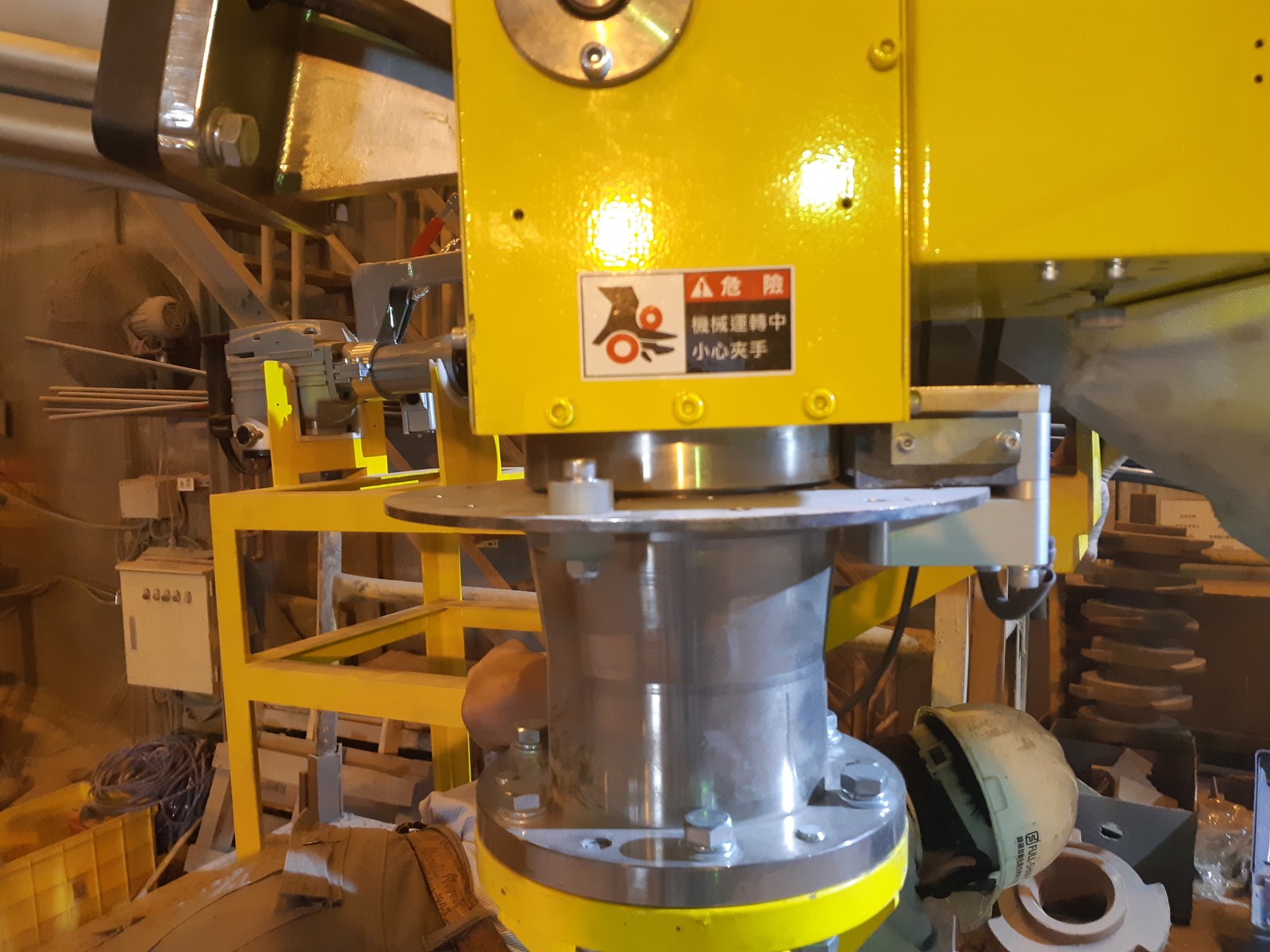

Load-bearing column: fixed permanently at the work area, withstanding vibration and push force during drilling.

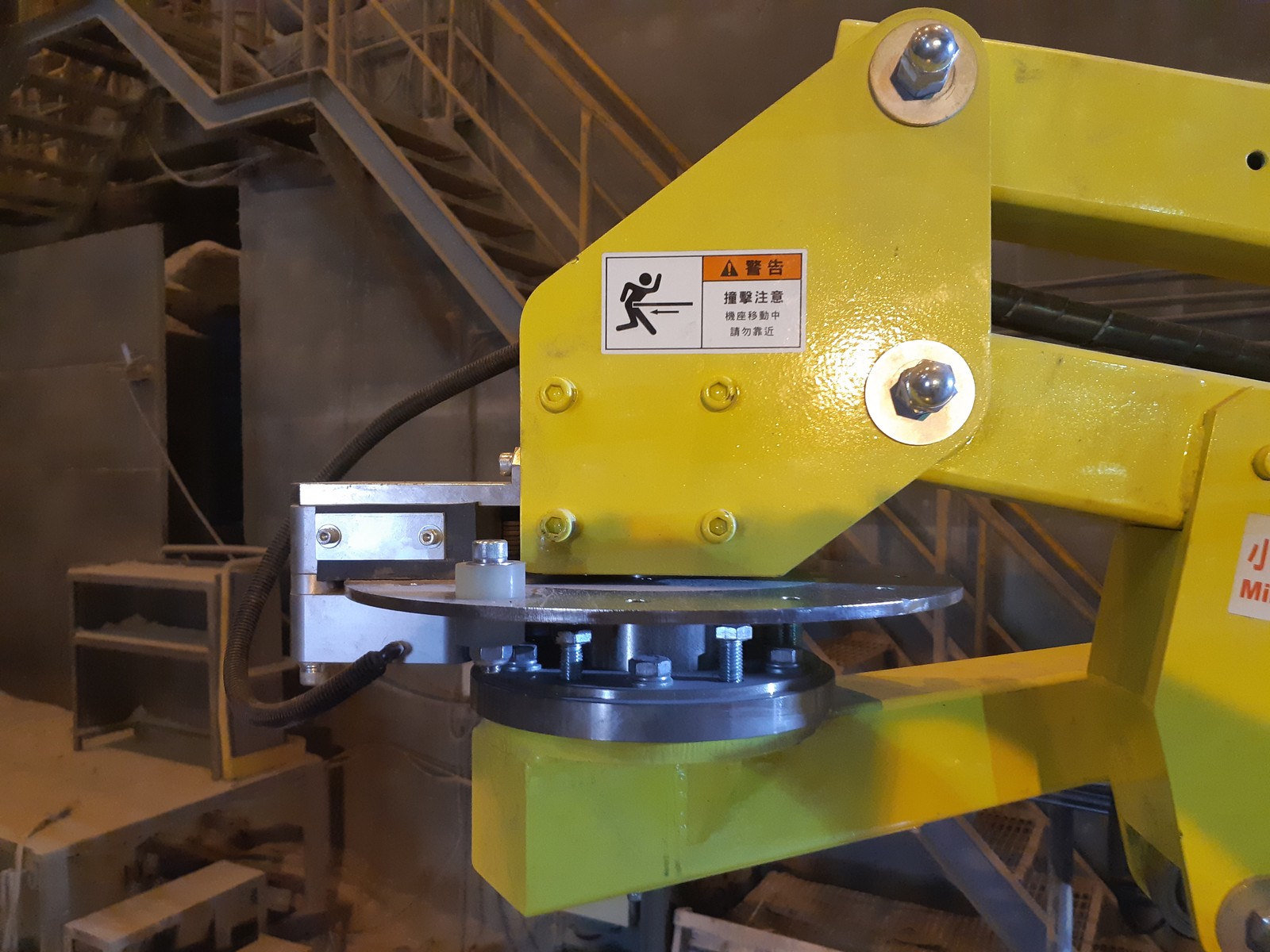

360-degree rotating arm: swings fully around the column to cover multiple drilling points without moving the base.
Pneumatic assist unit: holds the drill suspended in air, staying steady at the drilling position even when the operator lets go.

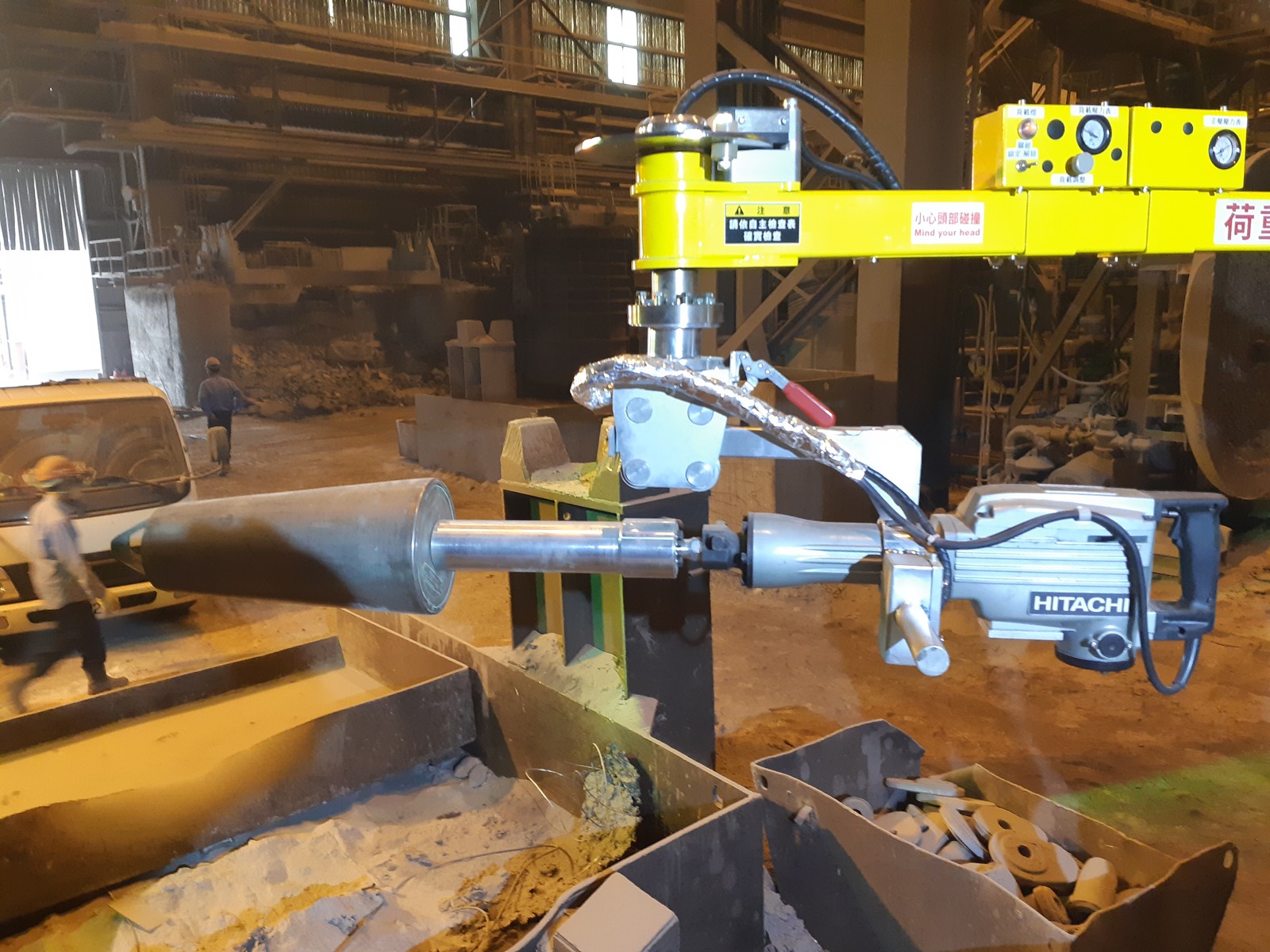

Drill mounting bracket: grips the drill body securely and can be detached when the drill is needed elsewhere.
Height adjustment mechanism: raises and lowers the drill to match the drilling point, with no need for a platform or temporary scaffolding.

Key Specifications

Rotation Angle360 degrees

Benefits for Your Plant

Less arm fatigue

The equipment carries the drill's weight, leaving the operator to guide direction and control only.

Fewer off-center holes

The drill is held steady, keeping holes straight and reducing broken bits and rework.

Covers multiple points

Rotating around the column and adjusting height lets one setup drill many holes.

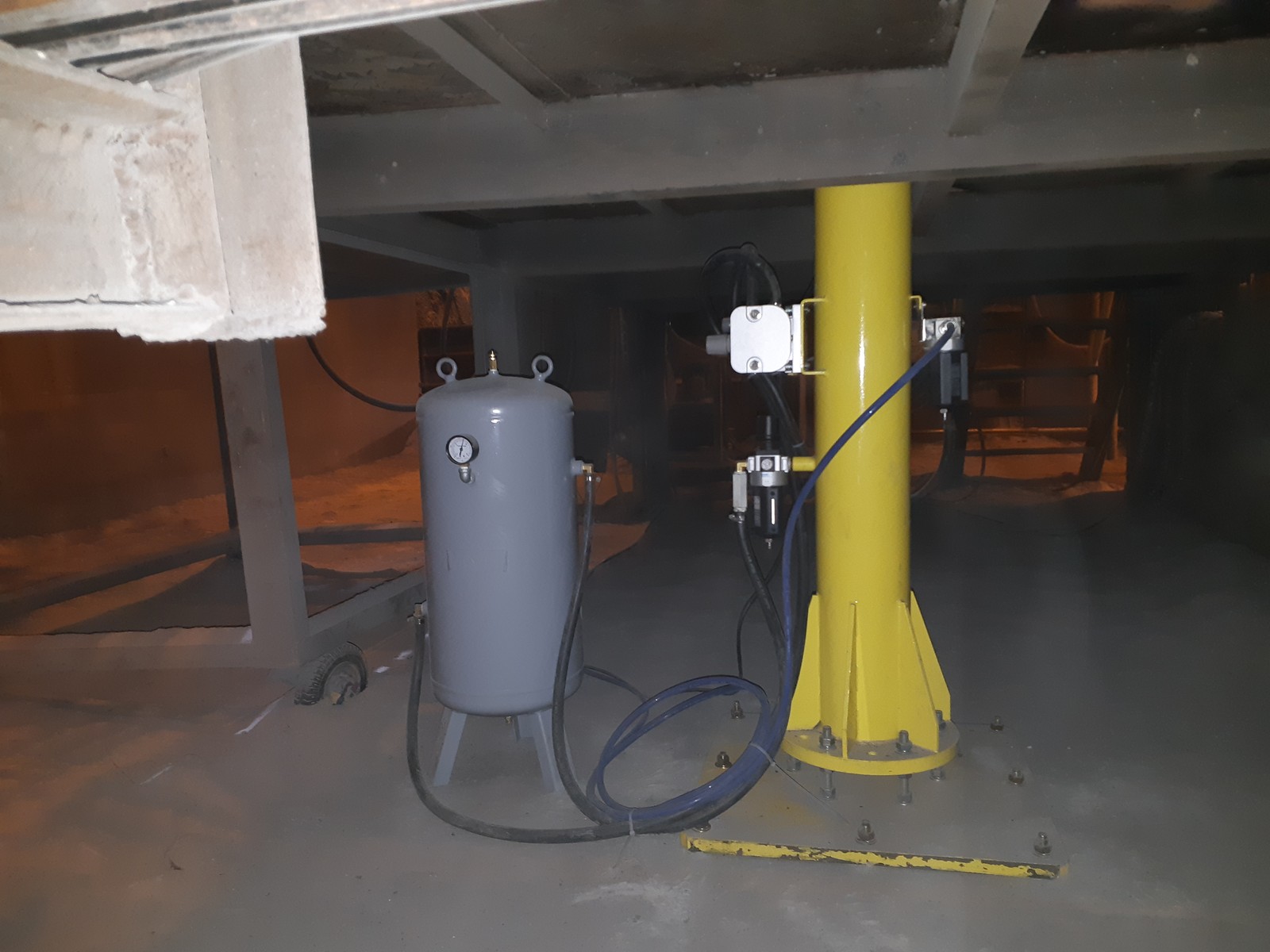

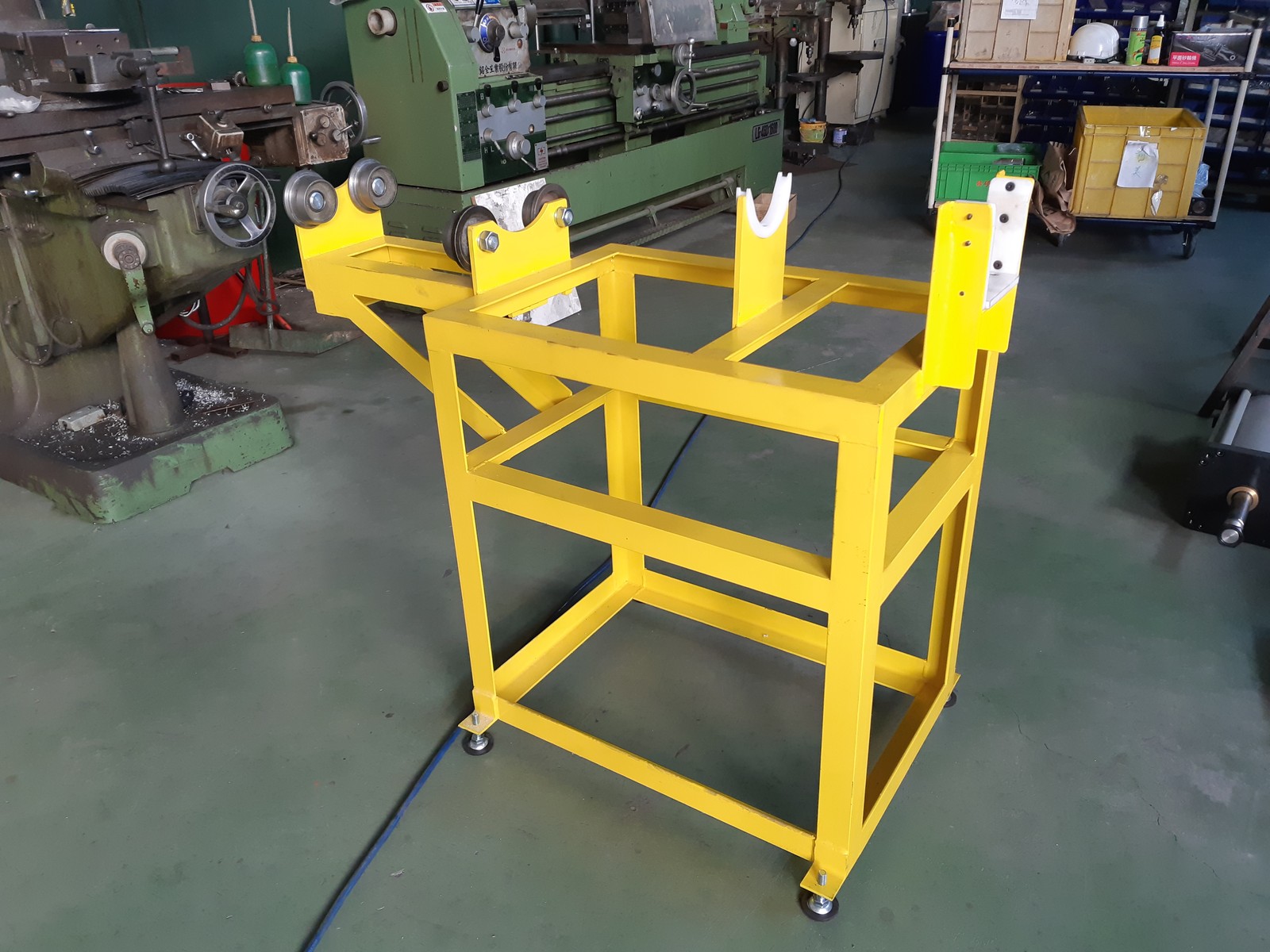

Actual Installation Photos

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 1

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 2

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 3

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 4

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 5

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 6

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 7

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 8

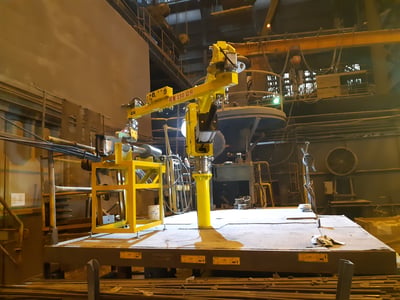

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 9

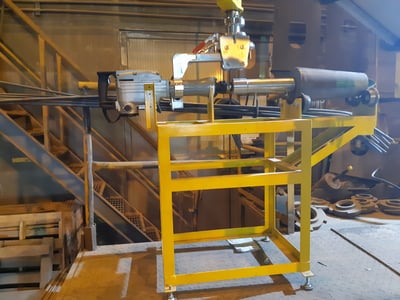

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 10

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 11

Column-Mounted Pneumatic Manipulator for Hitachi Drill Support - ảnh 12

Click a photo to enlarge. Album of 12 photos taken on site.

Suitable Applications

Steel plants drilling structural steel on site
Steel structure and heavy fabrication workshops
Repeated reinforced-concrete drilling with multiple holes
Machine maintenance stations in factories

Consultation for Your Plant Installation

FullSharp reviews the drill's weight, drilling direction, and the range of points to be drilled to calculate the column height and arm reach. Our engineers fabricate a mounting bracket to match your exact drill model, then install and test it on-site at your installation location.
