FS4 Intelligent Balancing Electric Hoist

FS4 INTELLIGENT

BALANCING ELECTRIC HOIST

PRODUCT DESCRIPTION

Product Description

The FS4 intelligent balancing electric hoist uses a cast aluminum housing that is light yet rugged, and incorporates proprietary technology. Its servo drive system is controlled by an industrial processor, delivering outstanding lifting speed and assembly precision. Combining advanced technology with hand-motion control commands, the operator can guide the load directly in balance mode to lift, lower, and move it to the desired position – so that even female operators can move and position heavy loads accurately with ease. The intelligent balancing hoist maximizes productivity, reduces physical strain on production staff, lowers product damage rates, and minimizes workplace injuries caused by handling heavy loads.

PRODUCT FEATURES

Product Features

Dual Mode: Handle Mode / Float Mode

Handle Mode:
Ergonomic design: a single operator can raise and lower the load with one hand under precise control.

Float Mode:
Fingertip control moves the load fast or slow as the operator wishes, with instant, effortless response. The operator can also hold the load directly with both hands; it rises or lowers following the speed of the operator's hand movement for accurate positioning.

Stepless Speed Control / Controllable Speed

The intelligent balancing hoist moves fast or slow according to the operator's input, allowing completely free movement. It is especially suited to assembly applications that need both fast travel and precise alignment at low speed.

Precision Alignment Function

Highly precise alignment control lets the operator handle delicate and fragile items steadily and accurately.

Safe & Reliable

Multiple built-in safety protections: automatic slowdown at the upper limit, overload protection, power-loss protection, photoelectric sensor, and anti-rebound.

HANDLE OPTIONS

Adapt Handle

FSB4 Coaxial Slide Handle Standard

The coaxial slide handle adjusts lifting speed directly through the handle's travel – the greater the travel, the faster the speed – responding quickly in situations that call for fast lifting and moving of loads.

FSB6 Coaxial Force-Sensing Handle Optional

The coaxial force-sensing handle delivers a completely new operating experience through force-sensing technology. Unlike a conventional slide handle, it accurately detects the operator's upward/downward pressure and converts it directly into steplessly adjusted lifting speed. This ergonomic design greatly improves intuitive, precise control and is easily compatible with a wide range of grippers, making material handling more efficient and less tiring.

Note: See page 15 for other handle configurations.

SPECIFICATIONS

Product Specifications

Item	FS4L012	FS4L025	FS4L050
Maximum load (kg)	125	250	500
Lifting speed (m/min)	0~16	0~16	0~10
Rated power (kW)	0.75	0.75	1.1
Standard lift (m)	2.8 (customizable)
Control mode	Manual fine-adjustment handle
Self weight (kg)	27	27	33
Chain size (mm)	5.0	5.0	5.0
Power supply	Standard 380V (220V optional)
Mechanism duty class	3m / M6	3m / M6	3m / M6
Operating temperature (°C)	-10°C ~ 55°C

* The above data are for reference only; actual values are based on the actual unit.

DIMENSIONS

Product Dimensions

Outline dimensions (unit: mm)

Model	A	B	C	D	E	F	G	H	I	J	K	L
FS4L012	18	424	993	90	296	R21	19	Ø32	38	174	205	151
FS4L025	18	424	993	90	296	R21	19	Ø32	38	174	205	151
FS4L050	18	468	998	90	321	R21	19	Ø32	38	192	208	171

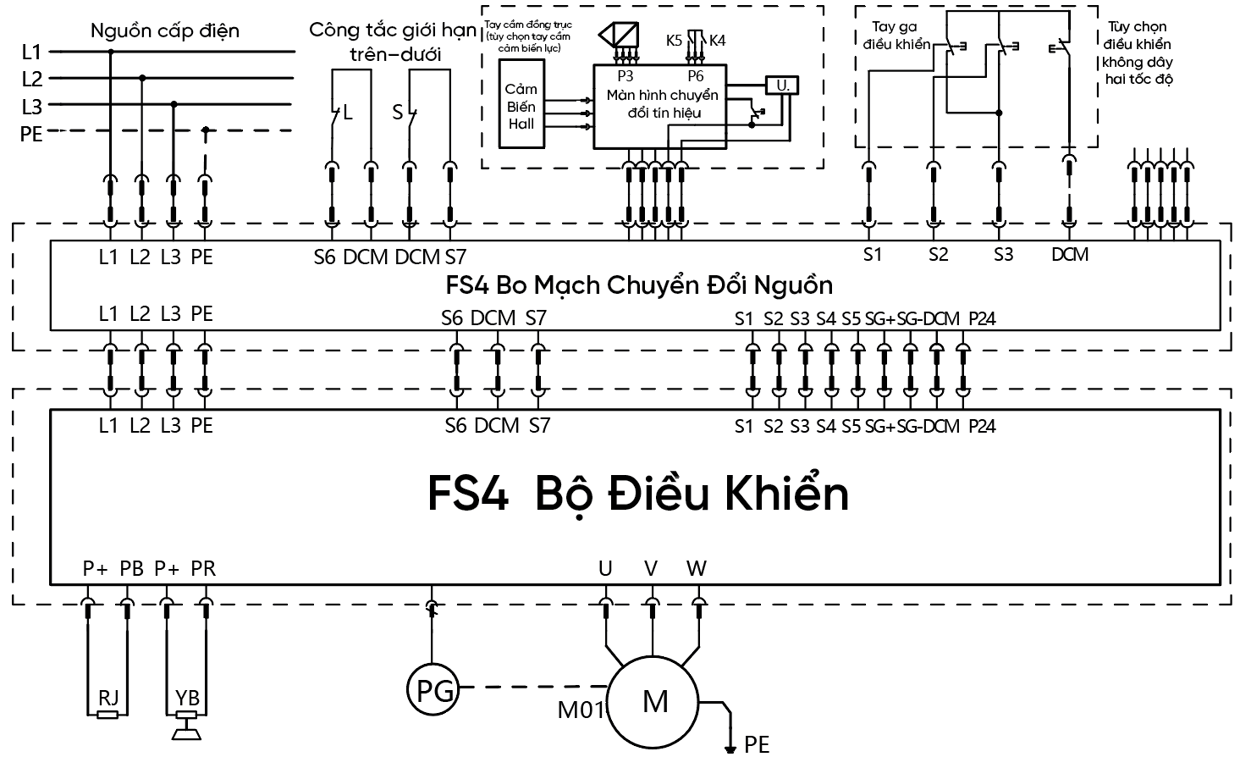

WIRING DIAGRAM

Wiring Diagram

* For reference only; the actual wiring diagram is given in the product manual.
