Mandy220DM

youtube.com/watch?v=OGph8FSqo40

FULLSHARP · GOODLIFTA

Dual & single platform
server lifter

The Mandy220DM series with two platform configurations — lift, install and position servers, GPUs, racks & battery packs precisely in cleanroom environments, operated by just one person.

DDA dual platform RCA single platform Cleanroom ESD protection

Series Mandy220DM-DDA-CCD / -RCA-CCD

200kg

Lifting capacity

2440mm

Max. stroke

125mm/s

Lifting speed

IP41

Protection rating

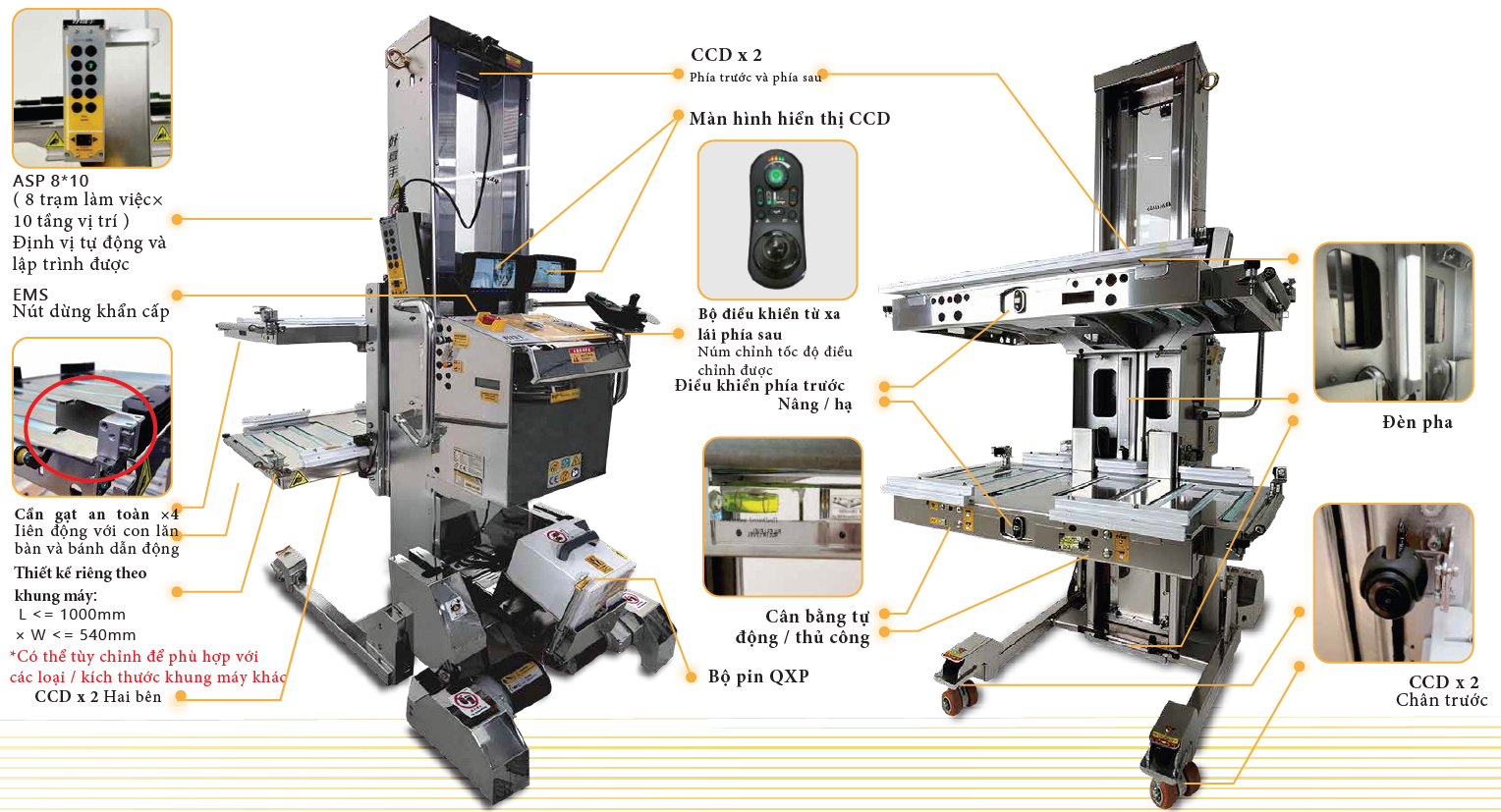

Design & key features

QXPQuick-swap battery pack — Taiwan: Lithium DC24V20AH × 2 (8 kg each); International: VRLA DC24V22AH × 2 (15 kg each), fast replacement without interrupting operation.

ASPAdvanced sensor positioning — choose one of two: 15 stations × 8 levels or 8 stations × 10 levels, with programmable, lockable position memory.

DRIVEElectric self-propelled drive — forward 0–3 km/h, reverse 0–1.5 km/h; soft start/stop, STA safe turning assist.

ESDCleanroom & anti-static — meets cleanroom requirements; easy-push, wear-resistant, non-shedding materials.

Two platform versions

Mandy220DM-DDA-CCD · Dual platform

Lower platform (Rb): 240 – 1900 mm
Upper platform (Rt): 780 – 2440 mm
Ideal for 48U racks
Lower platform fits chassis H ≤ 420 mm / 9U
Net weight 373 kg / 600 lbs

Mandy220DM-RCA-CCD · Single platform

Lifting stroke: 240 – 1900 mm
Customizable to rack requirements
Compact configuration, one working platform
Net weight 230 kg / 506 lbs

Dimensions

Main dimensions (unit: mm) — refer to the FULLSHARP technical drawing.

Overall dimensions (L × W × H)	1345 × 1050 × 2208
Mast height (H)	2208
DDA lifting stroke — lower platform (Rb)	240 – 1900
DDA lifting stroke — upper platform (Rt)	780 – 2440
RCA lifting stroke (R)	240 – 1900

Specifications

Specification	Mandy220DM-DDA-CCDDual platform · 114111601A	Mandy220DM-RCA-CCDSingle platform · 114082701A
Overall dimensions	L1345 × W1050 × H2208 mm
Lifting stroke (R)mm	Lower platform (Rb): 240 – 1900 mm Upper platform (Rt): 780 – 2440 mm* Ideal for 48U racks. Lower platform fits chassis H ≤ 420 mm / 9U	240 – 1900 mm* Customizable to different rack requirements
Mast height (H)mm	2208 mm
Lifting capacity	200 kg* Total weight on lower + upper platforms	200 kg
Net weight	373 kg / 600 lbs	230 kg / 506 lbs
Lifting speed	125 mm/s, soft start & stop
IP rating	IP41
Battery	QXP quick-swap battery pack: Taiwan — Lithium battery DC24V20AH × 2 (8 kg each) International — VRLA battery DC24V22AH × 2 (15 kg each) * The Lithium battery version is distributed in the Taiwan market only
Charging voltage	110 – 240V AC, 50/60 Hz
Material	SUS304 stainless steel
Control panel	Push-button control panel — bilingual Traditional Chinese / English with icons: Power switch Battery level indicator / status LED Manual up/down confirmation button ASP advanced sensor positioning system — lift lock / automatic sensing count of positioning points (choose one of two): 15 stations × 8 levels or 8 stations × 10 levels EMS emergency stop button
Travel speed	Forward 0 – 3 km/h · Reverse 0 – 1.5 km/h* Soft start/stop · STA – safe turning assist
Cleanroom technology	Meets cleanroom requirements Durable, easy-push, wear-resistant, non-shedding materials Electrostatic discharge (ESD) protection

↔ Swipe horizontally to view the full table

Applications

Servers Racks GPUs Chassis Battery packs Test equipment

Interested in the Mandy220DM?

Contact FULLSHARP for advice on choosing the dual platform (DDA) or single platform (RCA) configuration that suits your application.

Contact FULLSHARP View all Server Lifters

Model: Mandy220DM-DDA-CCD (dual platform · 114111601A) / Mandy220DM-RCA-CCD (single platform · 114082701A). Specifications are subject to change without notice. The Lithium battery configuration is distributed in the Taiwan market only.
