Standard Modular Vacuum Lifting Frame
Series: M / L / LG — Made in USA
The ANVER Modular Vacuum Lifting Frame system delivers an efficient material handling solution, combining performance, safety and ergonomics for a wide range of applications and materials (steel, stainless steel, aluminum, glass, wood, stone, composite, plastic, etc.).
The product is modular by design, with hundreds of standard configurations — from a single pad up to 14 pads, with load capacity from 500 lb (227 kg) up to 25,600 lb (11,612 kg) — for sheets and panels ranging from 5×5 ft up to 50 ft.
*Note: All ANVER lifting frames comply with ANSI/ASME B30.20 (below-the-hook lifting devices), meeting OSHA requirements and most European standards. Contact FULLSHARP for advice on the configuration that fits your plant's application.
Hundreds of Configurations — Choose in 3 Steps
Step 1
Choose the Vacuum Generator
Mechanical
(Mechanical)
(Mechanical)
Air / Electric
/ Pin
/ Pin
Step 2
Choose the Suction Component
Pad
(Pad)
(Pad)
Frame
(Frame)
(Frame)
Step 3
Choose Accessories

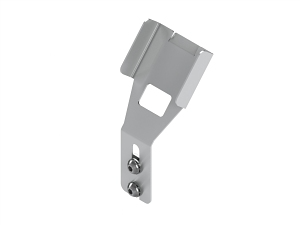

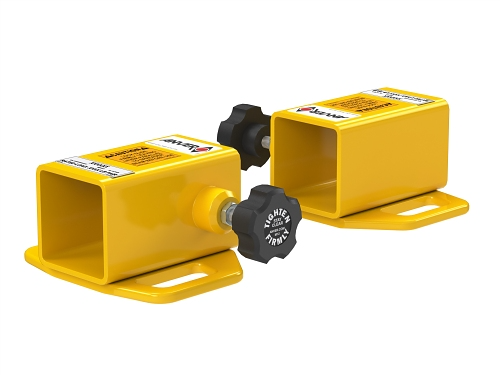

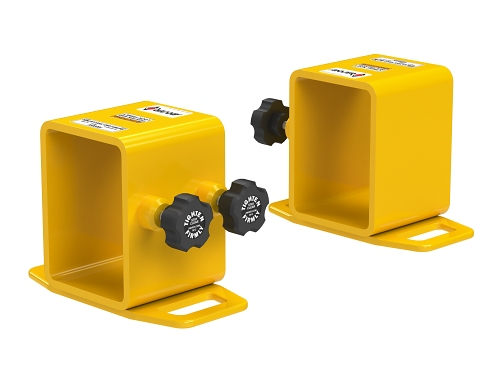

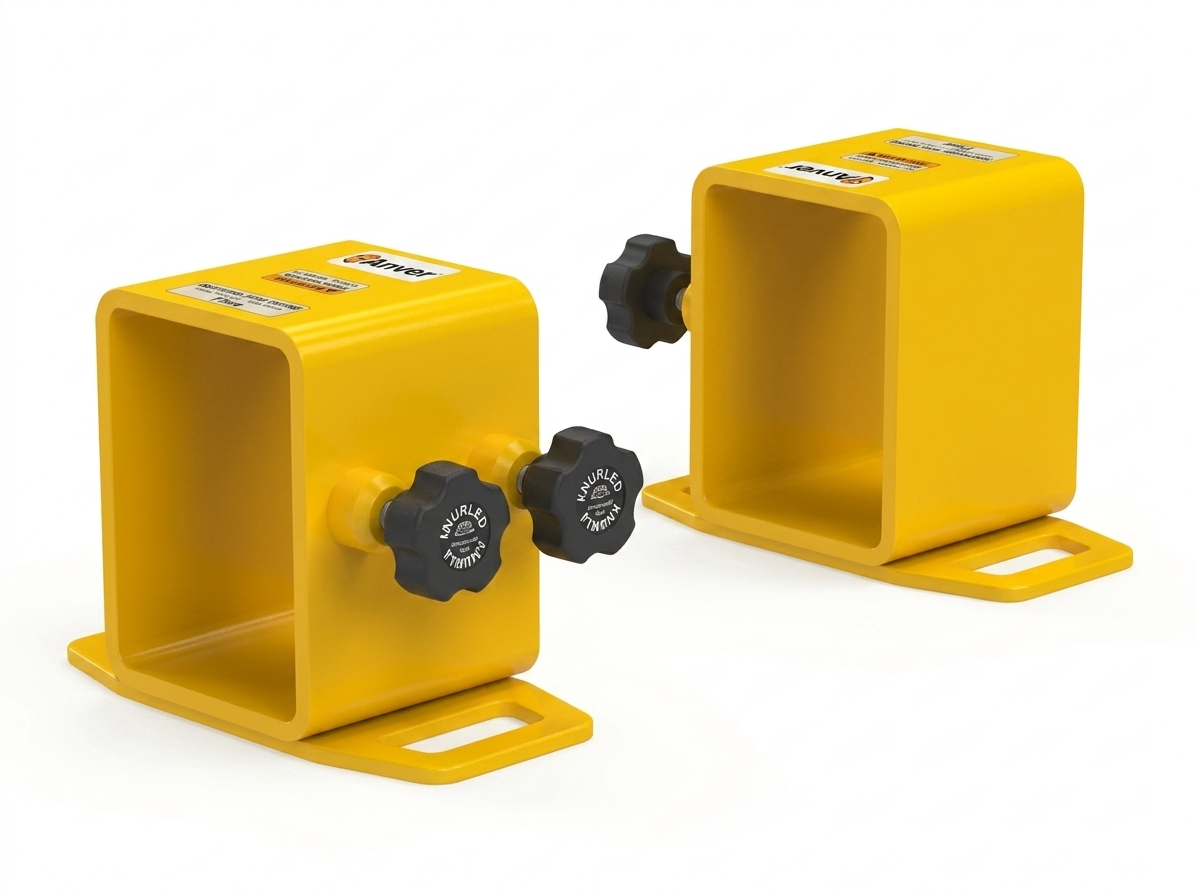

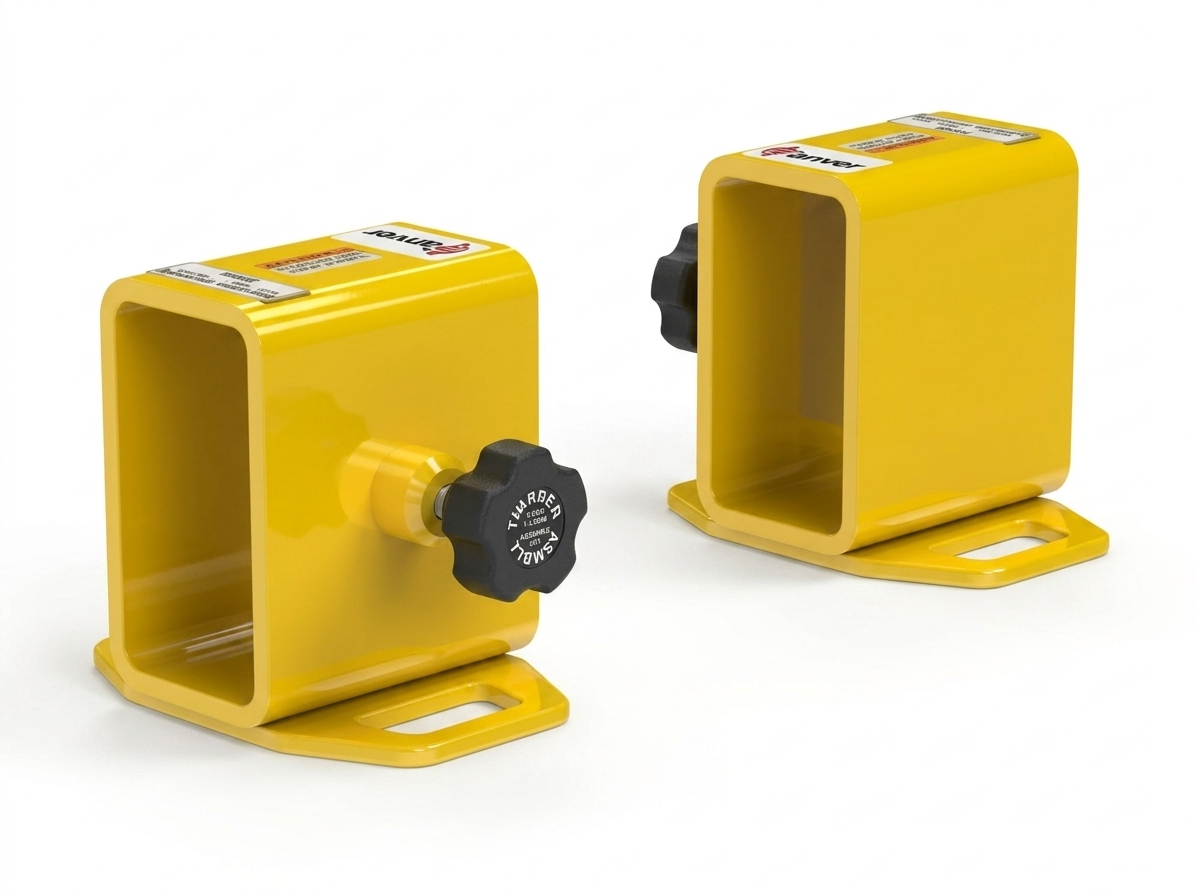

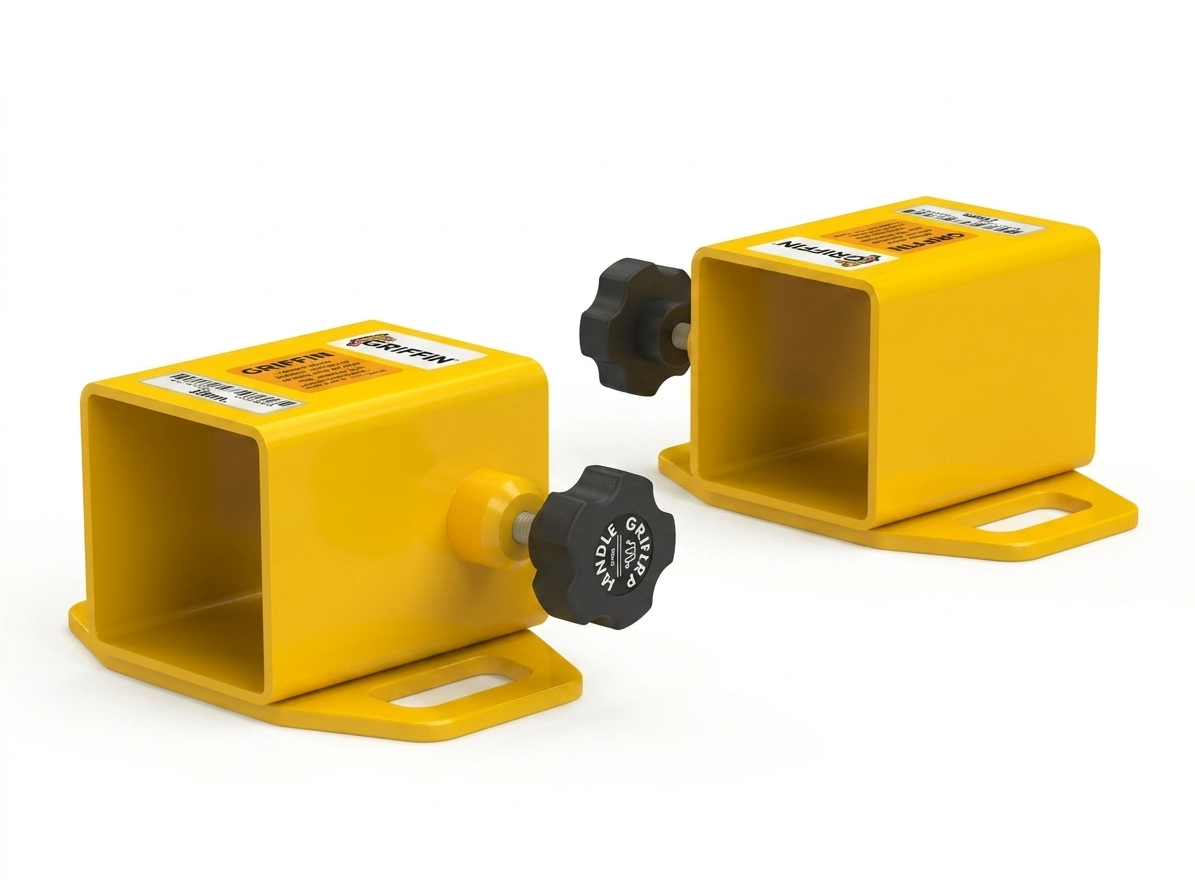

Parking Stand

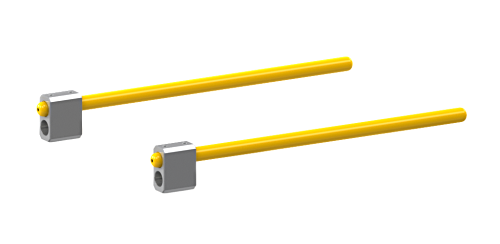

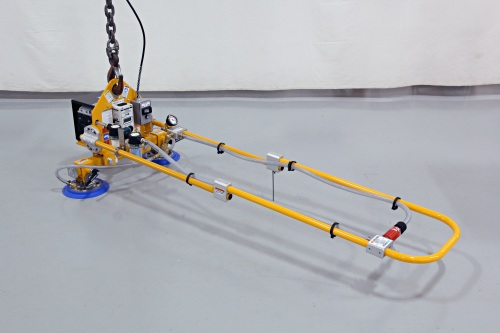

Handle

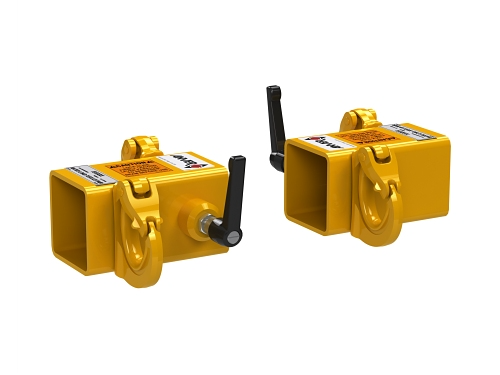

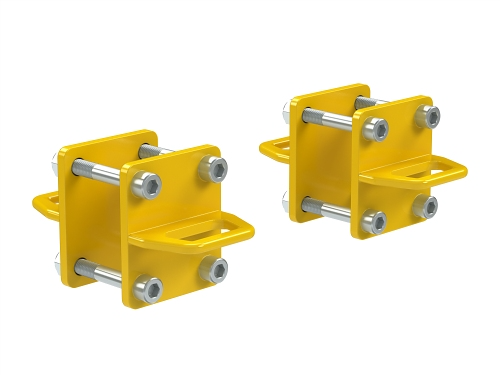

Fork Truck Mount

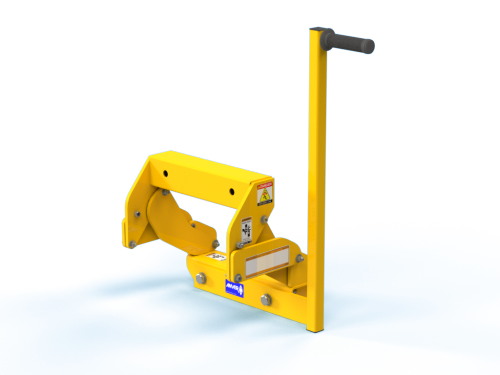

EZTILT Mounting Kit
Lifting Frame Specification Tables — By Number of Pads
1 Pad — Mechanical / Powered Single Pad
A single-pad model for small sheets (~5×5 ft), light loads, manual or air/electric operation.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| M75S | 5×5 | 750 | 340 |
| M150S | 5×5 | 1.550 | 703 |
2 Pads — Standard Lifting Frame
A popular 2-pad frame for 6×6, 8×6, 12×6 ft sheets. Load capacity 500–6,400 lb (227–2,903 kg).
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| L50M2- | 6×6 / 8×6 / 12×6 | 500 | 227 |
| L100M2- | 6×6 / 8×6 / 12×6 | 1.000 | 454 |
| L150M2- | 6×6 / 8×6 / 12×6 | 1.500 | 680 |
| L200M2- | 6×6 / 8×6 / 12×6 | 2.000 | 907 |
| L220M2- | 6×6 / 8×6 / 12×6 | 2.200 | 998 |
| L300M2- | 8×6 / 12×6 / 16×6 | 3.000 | 1.364 |
| L400M2- | 8×6 / 12×6 | 4.000 | 1.814 |
| L420M2- | 12×6 | 4.200 | 1.900 |
| L460M2- | 12×6 | 4.600 | 2.087 |
| L560M2- | 12×6 / 12×8 | 5.600 | 2.540 |
| L640M2- | 12×6 / 12×8 | 6.400 | 2.903 |
3 Pads — Standard Lifting Frame
A 3-pad configuration for long sheets with even load distribution. Load capacity from 750 lb to 9,600 lb.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| L75M3- | 6×5 / 7×5 / 10×5 / 12×5 | 750 | 340 |
| L150M3- | 7×6 / 10×6 / 12×6 / 16×6 | 1.500 | 680 |
| L220M3- | 7×6 / 10×6 / 12×6 | 2.200 | 998 |
| L300M3- | 7×6 | 3.000 | 1.364 |
| L330M3- | 10×6 / 12×6 / 16×6 | 3.300 | 1.497 |
| L420M3- | 10×6 / 12×6 | 4.200 | 1.900 |
| L690M3- | 10×6 / 12×6 | 6.900 | 3.130 |
| L840M3- | 10×6 / 12×6 / 16×6 | 8.400 | 3.810 |
| L960M3- | 10×6 / 12×6 / 16×6 | 9.600 | 4.355 |
4 Pads In-line
A 4-pad in-line configuration for long bars/sheets (up to 30 ft). Load capacity 1,000–12,800 lb.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| L100M4- | 9×5 / 12×5 | 1.000 | 454 |
| L100M4-WT (Whippletree) | 20×3 | 1.000 | 454 |
| L200M4- | 9×6 / 12×6 / 16×6 / 20×6 | 2.000 | 907 |
| L400M4- | 12×6 | 4.000 | 1.814 |
| L440M4- | 12×6 / 16×6 / 20×6 / 25×6 | 4.400 | 1.996 |
| LG920M4- | 16–30 × 6 | 9.200 | 4.173 |
| LG1120M4- | 16–30 × 6 | 11.200 | 5.080 |
| LG1280M4- | 16–30 × 6 | 12.800 | 5.806 |
4 Pads Crossarm
A 4-pad configuration distributed over 2 crossarms — optimal for medium square/flat sheets. Load 500–4,400 lb.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| L50M4- | 8×6 / 12×6 | 500 | 227 |
| L100M4- | 8×6 / 12×6 | 1.000 | 454 |
| L200M4- | 8×6 / 12×6 | 2.000 | 907 |
| L300M4- | 12×6 | 3.000 | 1.361 |
| L400M4- | 8×6 / 12×6 | 4.000 | 1.814 |
| L440M4- | 12×6 | 4.400 | 1.996 |
6 Pads Crossarm
A 6-pad configuration on 3 crossarms — suited to medium-length sheets. Load capacity 900–3,000 lb.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| L90M6- | 7×6 / 10×6 / 12×6 | 900 | 410 |
| L120M6- | 10×6 / 12×6 | 1.200 | 544 |
| L150M6- | 10×6 / 12×6 / 16×8 | 1.500 | 680 |
| L300M6- | 10×6 / 12×6 / 16×8 | 3.000 | 1.364 |
8 Pads Crossarm — Popular for Large Sheets
An 8-pad configuration on 4 crossarms — the most popular choice for steel plate, large glass and panels. Load 800–25,600 lb (LG series).
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| L80M8- | 9×6 / 12×6 | 800 | 363 |
| L120M8- | 9×6 / 12×6 / 16×8 / 20×8 | 1.200 | 544 |
| L160M8- | 9×6 / 12×6 | 1.600 | 730 |
| L200M8- | 9×6 / 16×8 / 20×8 / 25×8 | 2.000 | 900 |
| L210M8- | 12×6 | 2.100 | 953 |
| L400M8- | 12×6 / 16×8 / 20×8 / 25×8 | 4.000 | 1.814 |
| L600M8- | 12–30 × 8 / 12–30 × 10 | 6.000 | 2.722 |
| L800M8- | 12–25 × 8 / 12–25 × 10 | 8.000 | 3.629 |
| LG600M8- | 30–40 × 8–10 | 6.000 | 2.722 |
| LG800M8- | 30–40 × 8–10 | 8.000 | 3.629 |
| LG1040M8- | 20–40 × 8–10 | 10.400 | 4.717 |
| LG1240M8- | 20–40 × 8–10 | 12.400 | 5.625 |
| LG1600M8- | 20–40 × 8–10 | 16.000 | 7.257 |
| LG1840M8- | 20–40 × 8–10 | 18.400 | 8.346 |
| LG2240M8- | 20–45 × 8–10 | 22.400 | 10.160 |
| LG2560M8- | 20–45 × 8–10 | 25.600 | 11.612 |
10 Pads — Very Large / Very Heavy Sheets
A 10-pad configuration for extremely large sheets (up to 50 ft) and loads up to 23,000 lb. Some models require technical consultation.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| M100M10- | 12×8 / 12×10 / 20×8 / 20×10 | 1.000 | 454 |
| L300M10-* | Technical consultation | 3.000 | 1.364 |
| L500M10-* | Technical consultation | 5.000 | 2.268 |
| LG750M10- | 25–50 × 8–10 | 7.500 | 3.402 |
| LG1000M10- | 25–50 × 8–10 | 10.000 | 4.536 |
| M1000M10- | 20×8 / 20×10 / 20×12 | 10.000 | 4.536 |
| LG1300M10- | 25–50 × 8–10 | 13.000 | 5.897 |
| LG1550M10- | 25–45 × 8–10 | 15.500 | 7.031 |
| M1700M10- | 35×12 | 17.000 | 7.711 |
| M1800M10- | 40×12 | 18.000 | 8.165 |
| LG2000M10- | 25–40 × 8–10 | 20.000 | 9.072 |
| LG2300M10- | 25–35 × 8–10 | 23.000 | 10.433 |
12 Pads — Maximum Length Sheets
A 12-pad configuration (LG series) for sheets up to 50 ft long. Load capacity 3,000–24,000 lb.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| LG300M12- | 30–50 × 8–10 | 3.000 | 1.361 |
| LG600M12- | 30–50 × 8–10 | 6.000 | 2.722 |
| LG900M12- | 25–45 × 8–10 | 9.000 | 4.082 |
| LG1200M12- | 25–45 × 8–10 | 12.000 | 5.443 |
| LG1560M12- | 25–45 × 8–10 | 15.600 | 7.076 |
| LG1860M12- | 25–45 × 8–10 | 18.600 | 8.436 |
| LG2400M12- | 25–45 × 8–10 | 24.000 | 10.886 |
14 Pads — Premium Configuration for Extra-Long Sheets
A 14-pad configuration (LG series) for sheets 30–50 ft long. Load capacity 3,500–21,000 lb.
| Model | Sheet Size (ft) | Load Capacity (lb) | Load Capacity (kg) |
|---|---|---|---|
| LG350M14- | 30–50 × 8–10 | 3.500 | 1.588 |
| LG700M14- | 30–50 × 8–10 | 7.000 | 3.175 |
| LG1050M14- | 25–40 × 8–10 | 10.500 | 4.763 |
| LG1400M14- | 25–40 × 8–10 | 14.000 | 6.350 |
| LG1820M14- | 25–40 × 8–10 | 18.200 | 8.255 |
| LG2100M14- | 25–40 × 8–10 | 21.000 | 9.525 |
*How to read the table: Model codes carry suffixes for crossarm/spacing dimensions: e.g. L200M2-86-2/44 = 2,000 lb frame, 2 pads, 86-inch beam length, 2 crossarms, 44-inch crossarm width. The exact suffix is configured by FULLSHARP to match the customer's actual sheet size.
Custom Lifting Frames (Custom Vacuum Lifters)
Flexible Modular Design
ANVER designs vacuum lifting frames on a modular architecture. Standard components are selected to fit each specific application — thanks to a broad, readily available component inventory, ANVER can quickly build a lifting frame for almost any requirement.
Available Custom Series
- Mechanical Models — Mechanical, no air/electric power needed
- Air Powered Models — Uses plant compressed air
- Electric Powered Models — 220V/380V electric
- High Flow (VPHF) — For porous/perforated surfaces
- Battery Powered — Rechargeable battery
Quality Commitment & Safety Standards
Made in USA
Made in the USA
ISO 9001:2015
Quality Certification
ANVER vacuum lifting frames fully comply with the ANSI/ASME B30.20 standard for below-the-hook lifting devices, meeting OSHA and most European requirements. Over 58 years of manufacturing experience in the USA.
Vacuum Lifters with 90° Powered Tilting
Powered Tilting & Upending Powered Vacuum Lifters with Powered Tilting / Upending

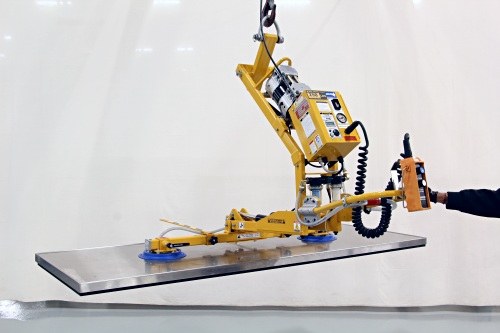

Vacuum lifters with a powered tilting mechanism (powered upenders) let a single operator handle tilting needs with ease. The tilting motion is designed to stop at any intermediate angle.

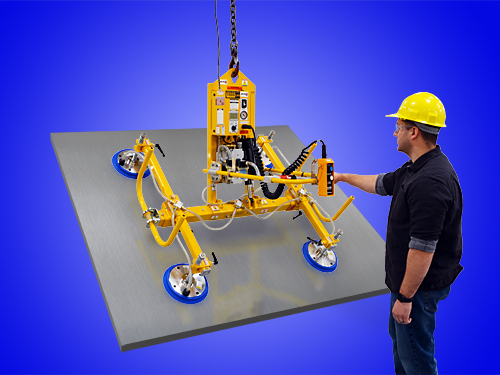

The electric ET/ETL and air-powered AT/ATL lifter/tilter series are designed to significantly cut the effort of tilting heavy loads, while providing strong suction and 90° tilting capability. The product is built with safety as the top priority, featuring multiple protective functions: a VLS vacuum-loss alarm system with 9V battery, a locking attach/release slide valve, and locking knobs on adjustable pads/slides/crossarms. Rated capacity is based on a maximum vacuum of 24 in. Hg (609.6 mm Hg) with a 4:1 safety factor for vacuum retention.
The dual filter/reservoir assembly on both electric and air versions delivers clean, reliable vacuum retention even in harsh environments. The ergonomic handle, rugged welded steel frame, and positioning handle at the beam end make the unit easy and comfortable to operate across a wide range of loads and applications.
*Note: Load weight and thickness affect the final tilt angle the lifter can reach. Please contact FULLSHARP for loads thicker than 1.18 in. (3 cm) for ET/AT and thicker than 2 in. (51 mm) for ETL/ATL due to center-of-gravity offset. Unit weight excludes optional accessories.
▸ ET/ETL Series
F Features
- VPF-07UP vacuum generator with vacuum gauge & master on/off switch (ET Only)
- EP1001UP vacuum generator with vacuum gauge & master on/off switch (ETL Only)
- Electric drive unit with anti-coast brake for 90° tilting
- VLS system — vacuum-loss sensor and alarm, 9V battery powered
- Re-settable circuit breaker for the pump and drive unit
- Tilt control pendant with 10 ft (3.5 m) coiled cord + holster
- Attach/release slide valve with safety lock
- 4 ft (1.2 m) power cord with twist-lock plug and receptacle
- Check valve holds vacuum during a power failure
S Specifications
- Maximum load: 500–2000 lbs (227–907 kg) for ET; 250 lbs (113 kg) for ETL (unless otherwise specified)
- Power supply: 115V/60Hz/1ph, 11–15 A (ET) / 11 A (ETL). A 15 A circuit is required for both ET and ETL
- Tilt speed: 8 seconds (500 lbs/227 kg) for ET & ETL; 22 seconds (1,000 lbs/454 kg), 22 seconds (1,500 lbs/680 kg), 14 seconds (2,000 lbs/907 kg) for ET only
- Tilt cycles/hour: 56 (500 lbs) for ET & ETL; 20 (1,000 lbs), 20 (1,500 lbs), 32 (2,000 lbs) for ET only
- High-performance vacuum pump with thermal overload protection on both ET & ETL; 100% duty cycle on ETL only
▸ AT/ATL Series
F Features
- APF-07UP vacuum generator with vacuum and pressure gauges (AT Only)
- AL1001UP vacuum generator with vacuum and pressure gauges (ATL Only)
- 3/8 NPT air inlet with lockable slide valve
- VLS system — vacuum-loss sensor and alarm, 9V battery powered
- Pre-set pressure regulator allows the lifter to run on a higher-pressure air line
- Single-stage venturi with check valve, preventing vacuum loss if the air supply fails
- Heavy-duty air cylinder for 90° tilting
- Flow control valve to regulate tilting speed
- Handle-mounted lever valve for tilt control
- Attach/release slide valve with safety lock
S Specifications
- Maximum load: 500–2000 lbs (227–907 kg) for AT; 250 lbs (113 kg) for ATL (unless otherwise specified)
- Air requirement: 90–120 psi; clean, dry air, 10.5 SCFM (297.3 l/min)
- Energy Air Saver: a vacuum control valve cuts air supply to the pump once the set point is reached → maximum air savings
- Tilt speed: variable, with a 100% duty cycle and no overheating
▸ Technical Features
01
VLS system — Vacuum-loss sensor and alarm, 9V battery powered
02
Attach/release slide valve with safety lock
03
Re-settable circuit breaker for the pump and drive unit
04
Check valve holds vacuum during a power failure
05
Locking knobs on the adjustable pad and crossarm
06
Control pendant with 10 ft (3.5 m) cable
▸ Single Pad — Powered Tilt
| Single Pad Powered Tilt | ||
|---|---|---|
| Lifter Model | Sheet Size | Load Capacity |
| 8S | 4×2 ft | 80 lb (36 kg) |
| 11.5S | 4×2 ft | 115 lb (52 kg) |
| 22.5S | 4×2 ft | 225 lb (102 kg) |
| 25S | 4×4 ft | 250 lb (113 kg) |
| 37.5S | 5×5 ft | 375 lb (170 kg) |
| 50S | 5×5 ft | 500 lb (227 kg) |
| 100S | 5×5 ft | 1000 lb (454 kg) |
▸ Multi-Pad (2/3/4/8 Pads)
| Multi-Pad Powered Tilt | ||
|---|---|---|
| Lifter Model | Sheet Size | Load Capacity |
| 25M2- (2 pad) | 5×4 / 8×4 / 12×4 | 250 lb (113 kg) |
| 50M2- (2 pad) | 6×6 / 8×6 / 12×6 | 500 lb (227 kg) |
| 100M2- (2 pad) | 6×6 / 8×6 / 12×6 | 1000 lb (454 kg) |
| 75M3- (3 pad) | 8×6 / 10×6 / 12×6 | 750 lb (340 kg) |
| 150M3- (3 pad) | 8×6 / 10×6 / 12×6 | 1500 lb (680 kg) |
| 100M4- (4 pad) | 10×6 / 12×6 | 1000 lb (454 kg) |
| 150M4- (4 pad) | 10×6 / 12×6 | 1500 lb (680 kg) |
| 200M4- (4 pad) | 10×6 / 12×6 | 2000 lb (907 kg) |
| 100M8- (8 pad) | 10×6 / 12×6 | 1000 lb (454 kg) |
| 200M8- (8 pad) | 10×6 / 12×6 | 2000 lb (907 kg) |
Note: Load weight and thickness affect the final tilt angle. Contact FULLSHARP for loads thicker than 3 cm (ET/AT) or 51 mm (ETL/ATL) due to center-of-gravity offset.
▸ Representative Custom Tilt Models
ET50M12-110-6/30
ETL20S-5518V
AT40M4-86F-FP
AT25M4-61-2/24SP
AT50M4-61-2/41HD
AT50M8-82-4/36SP
ETL15M2-18FX
ET50M4-48-2/44SP
ETH1000M8-130-4/80

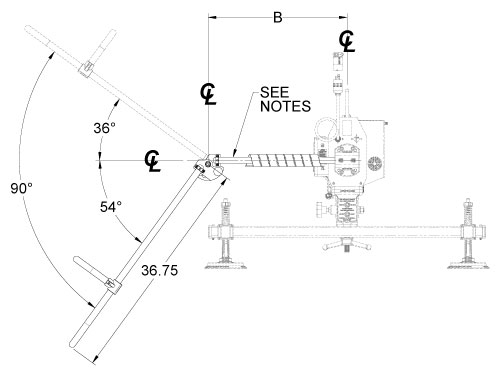

Vacuum Lifting System with Manual EZ-Tilt
EZ-Tilt — Manual Tilting for Horizontal & Vertical Loads Powered Vacuum Lifters with EZ-Tilt for One-Person Manipulation
ANVER's EZ-Tilt Vacuum Lifters are designed to tilt and hold loads horizontally or vertically by hand. Ideal for quickly and efficiently handling small, thin loads with a single operator.
A unique quadro-link mechanism provides mechanical advantage, so the operator needs very little effort to tilt in either direction. The lifter has an attach/release valve with a safety lock, and a long handle that keeps the operator at a safe distance.
▸ Load Chart by Tilt Direction (Lifting Charts)
▸ EZ-TILT-3X3 Technical Features
01
Maximum load: 500 lb (227 kg)
02
Maximum load thickness: 1 inch (25.4 mm)
03
Note: Pad rating must be derated by 50% for vertical/tilting applications
04
Saves labor, damage-free to the load
3-Step Modular System (Thousands of Combinations) Modular System: 3 Steps to Configure
Step 1: Choose the Vac-Pack
- VPFL4 — Air / Electric
- VPF-57-AIR — Air
- VPF-57-AC — Electric
- VPF-57-DC — Pin
Step 2: Choose the Pad / Frame
- Single Round pad (rubber)
- Single Rectangular pad
- Foam Round / Rectangular pad
- Lifting Frames L100M2/M4
Step 3: Choose the Adapter
- EZTILT-3X3 — Adapter 3"×3"
- OBA-1 — Offset Bail
- EZTILT-CW — Counterweight

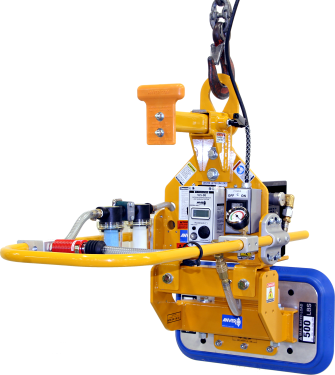

▸ Vertical Lifting Adapter — EZV-3X3
This adapter converts a standard horizontal lifter into a vertical lifter, for one-person vertical lifting.
- Maximum load: 2200 lbs (998 kg)
- Unit weight: 18 lbs (8 kg)
- Pad & frame must be specifically designed for vertical applications
- Horizontal pads must be derated by 50% when used vertically
- Compatible with: VPFL4 Series, VPF-57 Series
▸ EZTILT Adapter & Accessories
Part Number
Description
EZTILT-3X3
EZ-Tilt Adapter for manual horizontal & vertical tilting Manual Vertical and Horizontal Tilting
OBA-1
Offset Bail Attachment — adjustable for standard Vac-Packs Adjustable for Standard Vac-Packs
EZTILT-CW
Counterweight Assembly for the EZ-TILT Adapter — works with all single round / oval pads up to 500 lbs (227 kg) For: single round / oval pads ≤ 500 lbs
Lifting Equipment for the Stone Industry
Lifting Granite, Marble, Limestone & Concrete Vacuum Lifters for Stone Handling — All Types
ANVER offers production-grade steel-frame vacuum lifters for handling polished and/or rough stone. The lifters are ruggedly built, safe, and designed for daily use.
Built to a vacuum safety factor of 4:1 vertically and 2:1 horizontally. Structural safety factor of 3:1 or better. Fully compliant with US safety regulations ANSI, ASME and UL.
▸ Stone Types Handled
Granite
Granite
Marble
Marble
Limestone
Limestone
Sandstone
Sandstone
Concrete
Concrete
Bluestone
Bluestone
Slate
Slate
Ceramic
Ceramic
Countertop
Countertop
▸ Real-World Application Photos
Handling Granite Steps
Stone Staircase Installation
AT150M4-110FP CNC Loading
▸ Product Lines for the Stone Industry
Air Powered Gravity Tilter
- Tilts stone with its bottom edge touching the ground
- 6 tilt locking positions
- Load up to 2000 lb (909 kg)
Standard Horizontal
- Standard vacuum lifter
- Air or electric powered
- Rugged welded steel frame
Powered Tilter
- 90° powered tilting
- Suited to loading CNC machines
- Optional rotation available
EZ-Tilt for Stone
- For lighter loads
- Manual tilting via quadro-link
- Load up to 500 lb (227 kg)
Air Powered Lifter with Gravity Tilt
GUP Series — For the Stone Industry Air Powered Vacuum Lifters with Gravity Tilt
Designed to lift polished or rough stone from near-vertical racks onto a table and back. These are made-in-USA quality lifters with a rugged structure and a unique filter/reservoir system.
The ANVER-built air pump at the core of the system has no moving parts — no electric motor, no switches to burn out.
▸ GUP Series Technical Features
01
JE25H — anti-clog, high-flow air-powered vacuum generator (9.2 SCFM @ 72.5 PSI)
02
Large dual filter / reservoir resists stone dust & moisture
03
90° gravity tilt with 6 locking positions
04
Pivoting handle with 6 adjustable locking positions
05
Attach/release valve with safety lock on the handle
06
Pad with a replaceable sealing gasket (foam gasket sold separately)

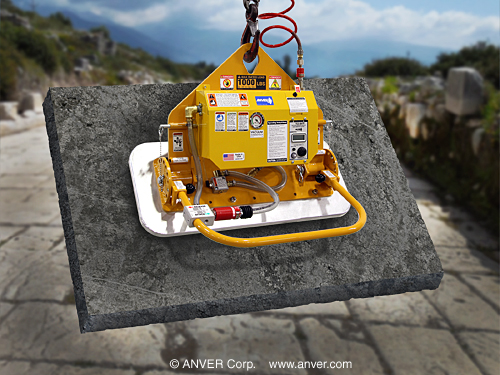

▸ GUP Single Pad
| GUP Single Pad Models | |||
|---|---|---|---|
| Model | Load Capacity | Pad Size | Weight |
| GUP-A50S-1025 | 500 lb (227 kg) | 10.13 × 25.13 in | 94 lb (43 kg) |
| GUP-A55S-1220 | 550 lb (250 kg) | 12.13 × 20.5 in | 88 lb (40 kg) |
| GUP-A75S-1229 | 750 lb (340 kg) | 12.13 × 29.13 in | 104 lb (48 kg) |
| GUP-A100S-1432 | 1000 lb (454 kg) | 14.13 × 32.13 in | 110 lb (50 kg) |
▸ GUP Two Pad
| GUP Double Pad Models | |||
|---|---|---|---|
| Model | Load Capacity | Size per Pad | Weight |
| GUP-A100M2-1025 | 1000 lb (454 kg) | 10.13 × 25.13 in | 166 lb (76 kg) |
| GUP-A110M2-1220 | 1100 lb (499 kg) | 12.13 × 20.5 in | 106 lb (48 kg) |
| GUP-A150M2-1229 | 1500 lb (680 kg) | 12.13 × 29.13 in | 182 lb (83 kg) |
| GUP-A200M2-1432 | 2000 lb (909 kg) | 14.13 × 32.13 in | 202 lb (92 kg) |
Gravity Tilters for stone tilt with the bottom edge touching the ground. Suited to slabs from polished stone to rough sawn and thermal-finished stone.
Vertical Load Lifters (Vertical Vacuum Lifters)
One-Person Vertical Load Lifting Powered Vacuum Lifters for One-Person Vertical Lifting
The lightweight electric Vertical Vacuum Lifter is designed to significantly reduce the effort of vertical lifting. It includes the following protective features:
- VLS system — 9V vacuum-loss sensor
- Pendant control for attach/release
- Locking knob on the adjustable pad
- Maximum vacuum level of 24 in. Hg
- Safety factor of 4:1
▸ EV200M8-110X44 Specifications (8-Pad Lifter for Large Glass)
| Model EV200M8-110X44 | |
|---|---|
| Specification | Value |
| Rated Load | 2000 lb (907 kg) |
| Unit Weight | 430 lb (195 kg) |
| A — Outer Pad Spacing Min / Max | 67 / 115 in (1702 / 2921 mm) |
| B — Beam Length | 112 in (2845 mm) |
| C — Inner Pad Spacing Min / Max | 26 / 46 in (661 / 1168 mm) |
| D — Pad Spacing Min / Max | 38 / 53 in (966 / 1346 mm) |
| E — Pad Size | 12,6 in (320 mm) |
| F — Lifter Depth | 15 in (381 mm) |
| G — Headroom Min / Max | 60 / 75 in (1524 / 1905 mm) |
| Maximum Sheet Size | 12 × 10 ft (3,7 × 3,1 m) |
| Pad Number | VP126 |
▸ EVL/AVL Series with Manual Rotation
The lightweight electric EVL and air-powered AVL Vertical Lifters are designed to significantly reduce the effort of vertical lifting. The product is built with safety as the top priority, including: a VLS vacuum-loss sensor with 9V battery and audible alarm; a locking attach/release slide valve (EVL series only); and locking knobs on the adjustable pad, slide assembly and crossarm (where fitted).
The EVL and AVL series have a maximum rated load based on a vacuum level of 24 in. Hg (609.6 mm Hg) at sea level, with a 4:1 safety factor for vacuum retention (unless otherwise specified).
Built with an ergonomic handle and a rugged welded steel frame, the unit is easy and comfortable for operators to use across a wide range of loads and applications.
| Specification Table — AVL25M2 Series (360° Manual Rotation) | |||
|---|---|---|---|
| Lifter Model | AVL25M2-24MR | AVL25M2-36MR | AVL25M2-48MR |
| Rated Load [lb (kg)] | 250 (113) | 250 (113) | 250 (113) |
| Unit Weight [lb (kg)] | 90 (41) | 95 (44) | 100 (46) |
| A — Maximum Pad Spacing [in. (mm)] | 26 (660) | 38 (965) | 50 (1.270) |
| A — Minimum Pad Spacing [in. (mm)] | 24 (610) | 24 (610) | 24 (610) |
| B — Beam Length [in. (mm)] | 24 (610) | 36 (914) | 48 (1.219) |
| C — Pad Size [in. (mm)] | 9,25 (235) | 9,25 (235) | 9,25 (235) |
| D — Handle Length [in. (mm)] | 33 (838) | 33 (838) | 33 (838) |
| E — Pad-to-Bail Distance [in. (mm)] | 7,5 (191) | 7,5 (191) | 7,5 (191) |
| F — Pad-to-Frame Distance [in. (mm)] | 5,5 (140) | 5,5 (140) | 5,5 (140) |
| G — Maximum Headroom [in. (mm)] | 47 (1.194) | 59 (1.499) | 71 (1.803) |
| Recommended Maximum Load Size [ft (m)] | 8×4 (2,4×1,2) | 8×4 (2,4×1,2) | 8×4 (2,4×1,2) |
| Pad Number | VP92 | VP92 | VP92 |
| Specification Table — EVL25M2 Series (Electric — 360° Manual Rotation) | |||
|---|---|---|---|
| Lifter Model | EVL25M2-24MR | EVL25M2-36MR | EVL25M2-48MR |
| Rated Load [lb (kg)] | 250 (113) | 250 (113) | 250 (113) |
| Unit Weight [lb (kg)] | 106 (48) | 111 (51) | 116 (53) |
| A — Maximum Pad Spacing [in. (mm)] | 26 (660) | 38 (965) | 50 (1.270) |
| A — Minimum Pad Spacing [in. (mm)] | 24 (610) | 24 (610) | 24 (610) |
| B — Beam Length [in. (mm)] | 24 (610) | 36 (914) | 48 (1.219) |
| C — Pad Size [in. (mm)] | 9,25 (235) | 9,25 (235) | 9,25 (235) |
| D — Handle Length [in. (mm)] | 33 (838) | 33 (838) | 33 (838) |
| E — Pad-to-Bail Distance [in. (mm)] | 7,5 (191) | 7,5 (191) | 7,5 (191) |
| F — Pad-to-Frame Distance [in. (mm)] | 5,5 (140) | 5,5 (140) | 5,5 (140) |
| G — Maximum Headroom [in. (mm)] | 47 (1.194) | 59 (1.499) | 71 (1.803) |
| Recommended Maximum Load Size [ft (m)] | 8×4 (2,4×1,2) | 8×4 (2,4×1,2) | 8×4 (2,4×1,2) |
| Pad Number | VP92 | VP92 | VP92 |
*Note: Load weight and thickness affect the final tilt angle the lifter can reach. Contact FULLSHARP for loads thicker than 2 in. (51 mm) due to center-of-gravity offset. Unit weight excludes optional accessories.
▸ EVL & AVL Series Features
F EVL — Electric Powered
- EP1001 vacuum generator with vacuum gauge & master on/off switch
- Power required: 115V/60Hz/1ph/5A. A 15-amp service circuit is required
- 4.3 SCFM vacuum pump/motor (121.8 l/min), 1/2 HP; with thermal overload protection and 100% duty cycle
- VLS — vacuum-loss sensor and alarm, 9V battery powered
- Re-settable circuit breaker for the vacuum pump
- Power cord with twist-lock plug, male and female receptacles
- Check valve holds vacuum during a power failure
F AVL — Air Powered
- AL1001 vacuum generator with vacuum and pressure gauges, housing-mounted
- Air required: 90 psi; clean, dry air, 6.1 SCFM (172.7 l/min)
- 3/8 NPT air inlet with lockable slide valve, 100% duty cycle
- VLS — vacuum-loss sensor and alarm, 9V battery powered
- Pre-set pressure regulator allows the lifter to run on a higher-pressure air line
- Single-stage venturi with check valve, preventing vacuum loss if the air supply fails
▸ Custom Vertical Configurations
EV20S-36C-OC — Metal Cabinet
E25M2-36V — 6×5 Glass
E150M6 — 12×5 Metal
A25M4-30 — Framed Door
A40M4-86V — Limestone
AVL200M2 — Granite
▸ Vertical Lifter with Powered Rotation
EV50M4 — 360° Rotation
EV100M4-86PR360
EV200M4 — 2000 lb Sheet
Side-Grip Vacuum Lifting Frames & Rotators
Two-Pad Side-Gripping Lifting Frame Powered Vacuum Lifters with Side-Gripping Pad Attachments
L16M2
L27.5M2
L50M2
ANVER's side-grip lifting frames use a spreader beam with adjustable crossarms, fitted with pads on both sides to handle products that cannot be lifted from the top. Ideal for loading and unloading shipping containers or pallets.
ANVER's side-grip frames eliminate the need for multiple workers. Typical applications include metal cabinets with vented tops, filing cabinets, HVAC equipment, and other products whose top surface is not sufficient for safe lifting.
*Note: The frame shown includes a vacuum generator and/or optional accessories — not included with the standard product. Unit weight excludes optional equipment.
The load's side panels, hardware and assembly structure must be strong enough to be lifted from both sides. The customer is responsible for ensuring the product can be lifted without damage.
The load's side panels, hardware and assembly structure must be strong enough to be lifted from both sides. The customer is responsible for ensuring the product can be lifted without damage.
▸ General Features
01
Compatible with most standard ANVER vacuum generators
02
Adjustable crossarms along the spreader beam
03
Lockable shut-off valve and vacuum gauge mounted on the pivoting crossarm
04
Crossarm positioning handle for easy adjustment
05
Positioning handle at the beam end
06
Can be disassembled for packing into a smaller crate for shipping
▸ L16M2 Series — Maximum Rated Load 160 lb (73 kg)
| L16M2 Side Grip Series — 160 lb (73 kg) | |||
|---|---|---|---|
| Specification | L16M2-48SG | L16M2-61SG | L16M2-86SG |
| Rated Load | 160 lb (73 kg) | 160 lb (73 kg) | 160 lb (73 kg) |
| Unit Weight | 70 lb (32 kg) | 85 lb (39 kg) | 100 lb (46 kg) |
| A — Pad Diameter | 7,00 in (178 mm) | 7,00 in (178 mm) | 7,00 in (178 mm) |
| B — Headroom | 26 in (660 mm) | 26 in (660 mm) | 26 in (660 mm) |
| C — Beam Length | 50 in (1270 mm) | 63 in (1600 mm) | 88 in (2235 mm) |
| D — Hardware Mounting Center | 9 in (229 mm) | 9 in (229 mm) | 9 in (229 mm) |
| E — Pad Spacing Min / Max | 18 / 37 in (457 / 939 mm) | 18 / 50 in (457 / 1270 mm) | 18 / 75 in (457 / 1905 mm) |
| F — Maximum Lifter Reach | 20 in (508 mm) | 20 in (508 mm) | 20 in (508 mm) |
| G — Maximum Arm Rotation Angle | 10° | 10° | 10° |
| Sealing Gasket Number | SSR-72 | SSR-72 | SSR-72 |
▸ L27.5M2 Series — Maximum Rated Load 275 lb (125 kg)
| L27.5M2 Side Grip Series — 275 lb (125 kg) | |||
|---|---|---|---|
| Specification | L27.5M2-48SG | L27.5M2-61SG | L27.5M2-86SG |
| Rated Load | 275 lb (125 kg) | 275 lb (125 kg) | 275 lb (125 kg) |
| Unit Weight | 70 lb (32 kg) | 85 lb (39 kg) | 100 lb (46 kg) |
| A — Pad Diameter | 9,25 in (235 mm) | 9,25 in (235 mm) | 9,25 in (235 mm) |
| B — Headroom | 28 in (712 mm) | 28 in (712 mm) | 28 in (712 mm) |
| C — Beam Length | 50 in (1270 mm) | 63 in (1600 mm) | 88 in (2235 mm) |
| D — Hardware Mounting Center | 9 in (229 mm) | 9 in (229 mm) | 9 in (229 mm) |
| E — Pad Spacing Min / Max | 18 / 37 in (457 / 939 mm) | 18 / 50 in (457 / 1270 mm) | 18 / 75 in (457 / 1905 mm) |
| F — Maximum Lifter Reach | 20 in (508 mm) | 20 in (508 mm) | 20 in (508 mm) |
| G — Maximum Arm Rotation Angle | 10° | 10° | 10° |
| Sealing Gasket Number | SSR-92 | SSR-92 | SSR-92 |
▸ L50M2 Series — Maximum Rated Load 500 lb (227 kg)
| L50M2 Side Grip Series — 500 lb (227 kg) | |||
|---|---|---|---|
| Specification | L50M2-48SG | L50M2-61SG | L50M2-86SG |
| Rated Load | 500 lb (227 kg) | 500 lb (227 kg) | 500 lb (227 kg) |
| Unit Weight | 75 lb (34 kg) | 90 lb (41 kg) | 105 lb (48 kg) |
| A — Pad Diameter | 12,6 in (321 mm) | 12,6 in (321 mm) | 12,6 in (321 mm) |
| B — Headroom | 28 in (712 mm) | 28 in (712 mm) | 28 in (712 mm) |
| C — Beam Length | 50 in (1270 mm) | 63 in (1600 mm) | 88 in (2235 mm) |
| D — Hardware Mounting Center | 9 in (229 mm) | 9 in (229 mm) | 9 in (229 mm) |
| E — Pad Spacing Min / Max | 18 / 36 in (457 / 914 mm) | 18 / 49 in (457 / 1244 mm) | 18 / 74 in (457 / 1879 mm) |
| F — Maximum Lifter Reach | 22 in (558 mm) | 22 in (558 mm) | 22 in (558 mm) |
| G — Maximum Arm Rotation Angle | 10° | 10° | 10° |
| Sealing Gasket Number | SSR-126 | SSR-126 | SSR-126 |
▸ Compatible Vacuum Generators
VPFL4 Series
- Up to 2,200 lb (998 kg) for a 3″ (76 mm) square beam
- Energy saving / Quiet automatic shut-off
- Lightweight, low profile, rugged construction
- Easy access to the dual vacuum filter
- Front-mounted gauge
- Ergonomic front handle
- Control slide valve with safety lock
- Vacuum check valve
- Vacuum-loss sensor system
VPF-57 Series
- Up to 4,400 lb (1,996 kg)
- Mounting configuration: 3″ × 3″ beam [2,200 lb / 998 kg] or 3″ × 6″ beam [4,400 lb / 1,996 kg]
- Energy saving / Quiet automatic shut-off
- Front-mounted controls and gauge
- Ergonomic front handle
- Control slide valve with safety lock
- Vacuum check valve and reservoir
- Vacuum-loss sensor system
VPE1-GEN3 Series
- Up to 4,600 lb (2,090 kg)
- Mounting configuration: 3″×3″ beam [2,200 lb / 998 kg], 3″×6″ [4,600 lb / 2,087 kg], 5″×7″ [4,600 lb / 2,087 kg]
- Voltage: 115V/1PH/60Hz or 220-240V/1PH/50-60Hz
- Vacuum control with Energy Saver / Quiet Automatic Shut-off
- Load-sensing lifting shackle with safety lock
- 4 control modes: Powered auto-cycle / Pendant / Radio / Customer radio integration
- Front control panel and gauge with indicator lights
- Vacuum hold, thermal overload protection
- Adjustable ergonomic front handle
- Twist-lock plug
- Audible vacuum-loss alarm system
BAE1-GEN3 Series
- Up to 4,600 lb (2,090 kg)
- Power source: Rechargeable battery — no external power needed
- Mounting configuration: 3″×3″ beam [2,200 lb / 998 kg], 3″×6″ [4,600 lb / 2,087 kg], 5″×7″ [4,600 lb / 2,087 kg]
- Vacuum control with Energy Saver / Quiet Automatic Shut-off
- Load-sensing lifting shackle with safety lock
- 4 control modes: Powered auto-cycle / Pendant / Radio / Customer radio integration
- Front control panel and gauge with indicator lights
- Vacuum hold, thermal overload protection
- Adjustable ergonomic front handle
- Twist-lock plug, audible vacuum-loss alarm system
- Removable battery cover, battery cable connector
Extended Custom Side-Grip Configurations
Beyond the standard L16M2 / L27.5M2 / L50M2 series, ANVER offers many custom side-grip configurations for special applications — including versions with manual rotation, powered rotation, or combined with a vacuum tube lifter system (VT/VM/VB Series).
▸ 3 Main Configuration Groups
Basic Side-Grip
Powered Side Gripping Vacuum Lifters
- E20M2-24SGOC
- E22M2-48SG
- A25M2-45SG
- E50M2-36SG / -45SG / -48ASG
- E50M2-60-SG / -61SG / -75SG / -86SG
- A50M2-61-SG-SP
- E50M2-110ASG
- A120M2-72-SG
- VPE1-FV with LB60M6-36SG
- VPF-57-AC with PAOC32-150-6-SG
+ Manual Rotation
With Manual Rotation
- E10M2-SGMR
- A10M2-40SGMROT
- E15M2-52-ASG-MR
- E30M2-52-ASG-MR
- E30M2ASG-ROT
- E50M2-61-SG-MR
- A50M2-61SG-MR
- E50M2-94ASG / -100ASG
- E50M2-136SGMROT
- E60M4-48-SGMR
- E80M2-126-SGMR
- E100M4-ASG-SP
+ Powered Rotation
With Powered Rotation
- E10-PROT-CA-SP
- E25M2-40-ASG-PR
- E50M2-98SG-PR
- E60M2-184SG-PR
- E60M4-170-SGPROT-SP
- E150M2-60-SGPROT
- E310M2-86-SGPROT
- E80M4-160-2/75-ASG-PROT
Contact FULLSHARP for advice on the side-grip configuration that fits your specific application — our team will respond to your request as quickly as possible.
180° Lifter (Powered Flipper / Upender)
Electric Lifter with 180° Powered Flip Electric Powered Vacuum Lifter with 180° Powered Flip
The ANVER 180° Upender Flipper is a C-frame lifter that lets a single operator lift sheets and panels, flip them 180°, inspect the other side, then place them into a jig for assembly.
Fitted with two dual vacuum pads to ensure even loading and stress-free handling of the load.
▸ Technical Features
01
EP1001 + vacuum gauge + master on/off switch
02
Tilt control pendant with a 10 ft (3 m) coiled cable
03
Power: 115V/60Hz/1ph/5A — requires an 18A service circuit
04
Pump/motor: 4.3 SCFM (121.8 l/min), 1/2 HP; thermal sensor & 100% duty cycle
05
VLS — 9V battery vacuum-loss sensor & re-settable circuit breaker for the pump
06
Twist-lock power cord, check valve to hold vacuum on power loss, self-balancing shackle & load positioning marks
▸ EF25M2-C180 Series Specifications
| EF25M2 Powered Flipper Series — 250 lb (113 kg) | |||||
|---|---|---|---|---|---|
| Specification | EF25M2-36C180 | EF25M2-48C180 | EF25M2-60C180 | EF25M2-72C180 | EF25M2-84C180 |
| Rated Load | 250 lb (113 kg) | 250 lb (113 kg) | 250 lb (113 kg) | 250 lb (113 kg) | 250 lb (113 kg) |
| Unit Weight | 178 lb (81 kg) | 183 lb (83 kg) | 188 lb (86 kg) | 193 lb (88 kg) | 198 lb (90 kg) |
| A — Maximum Pad Spacing | 43 in (1092 mm) | 55 in (1397 mm) | 67 in (1701 mm) | 79 in (2006 mm) | 91 in (2311 mm) |
| A — Minimum Pad Spacing | 28 in (712 mm) | 28 in (712 mm) | 28 in (712 mm) | 28 in (712 mm) | 28 in (712 mm) |
| B — Beam Length | 36 in (914 mm) | 48 in (1219 mm) | 60 in (1524 mm) | 72 in (1829 mm) | 84 in (2134 mm) |
| C — Pad Size | 9,25 in (235 mm) | 9,25 in (235 mm) | 9,25 in (235 mm) | 9,25 in (235 mm) | 9,25 in (235 mm) |
| D — Maximum Headroom | 47 in (1194 mm) | 47 in (1194 mm) | 47 in (1194 mm) | 47 in (1194 mm) | 47 in (1194 mm) |
| Maximum Load Size (L×W) | 5 × 4 ft (1,5 × 1,2 m) | 6 × 4 ft (1,8 × 1,2 m) | 8 × 4 ft (2,4 × 1,2 m) | 10 × 4 ft (3,0 × 1,2 m) | 12 × 4 ft (3,7 × 1,2 m) |
| Maximum Load Thickness | 1 in (25,4 mm) | 1 in (25,4 mm) | 1 in (25,4 mm) | 1 in (25,4 mm) | 1 in (25,4 mm) |
| Pad Number | VP92 | VP92 | VP92 | VP92 | VP92 |
Electric 180° Lifter — 4 Pads Powered Vacuum Lifters for One-Person Flipping of Loads — Four Pad
The ANVER 180° Upender Flipper is a C-frame lifter that lets a single operator lift sheets and panels, flip them 180°, inspect the other side, and then place them into a jig for assembly or secondary operations.
Fitted with four double vacuum suction pads to ensure even loading and stress-free handling — suited to medium-to-large sheets/panels that require high stability while flipping.
▸ Technical Features
01
VPE1-GEN3 vacuum generator with a vacuum control module, vacuum gauge, and vacuum-loss sensor & alarm system
02
Attach/Release pendant with tilt control & safety lock-out
03
Power required: 120V / 1PH / 60Hz, 20 Amps
04
4.3 SCFM vacuum pump/motor (121.8 l/min), 1/2 HP; with thermal overload protection and a 100% duty cycle
05
Re-settable circuit breaker for the vacuum pump
06
Power cord with twist-lock plug, male and female connectors
07
Check valve prevents vacuum loss during a power failure
08
Heavy-duty helical worm gearbox and motor
09
3-position lifting shackle — adjusts the center of gravity to suit the load
| EF50M4 Heavy Duty Powered Flipper — 500 lb (227 kg) | |
|---|---|
| Specification | EF50M4-86C180-2/44 |
| Rated Load | 500 lb (227 kg) |
| Unit Weight | 1.050 lb (476 kg) |
| A — Pad Spacing Max / Min | 94 / 40 in (2.387 / 1.016 mm) |
| B — Beam Length | 86 in (2.184 mm) |
| C — Pad Size | 9,13 in (232 mm) |
| D — Crossarm Length | 44 in (1.123 mm) |
| E — Pad Spacing on Crossarm Max / Min | 49 / 24 in (1.244 / 610 mm) |
| F — Handle Length | 53 in (1.346 mm) |
| G — Handle Height Max / Min | 52 / 22 in (1.321 / 559 mm) |
| H — Maximum Lifter Headroom | 81 in (2.058 mm) |
| Maximum Load Size (L × W) | 12 × 6 ft (3,6 × 1,8 m) |
| Maximum Load Thickness | 1,25 in (31 mm) |
| Pad Number | VP92 |
▸ EF80M12-166C180-6/44 Specifications
| EF80M12 Heavy Duty Powered Flipper — 800 lb (362 kg) | |
|---|---|
| Specification | EF80M12-166C180-6/44 |
| Rated Load | 800 lb (362 kg) |
| Unit Weight | 1.140 lb (517 kg) |
| A — Pad Spacing Max / Min | 174 / 79 in (4.419 / 1.998 mm) |
| B — Beam Length | 166 in (4.216 mm) |
| C — Pad Size | 9,25 in (235 mm) |
| D — Crossarm Length | 44 in (1.123 mm) |
| E — Pad Spacing on Crossarm Max / Min | 49 / 24 in (1.244 / 610 mm) |
| F — Handle Length | 72 in (1.829 mm) |
| G — Handle Height Max / Min | 43 / 22 in (1.092 / 559 mm) |
| H — Maximum Lifter Headroom | 81 in (2.058 mm) |
| Maximum Load Size (L × W) | 16 × 6 ft (4,8 × 1,8 m) |
| Maximum Load Thickness | 1 in (25 mm) |
| Pad Number | VP92 |
▸ Representative Applications
EF80M12-166C180-6/44 — Video
EF80M12 — Application 1
EF80M12 — Application 2
Coil and Roll Lifting Equipment
Damage-Free Coil Lifting Powered Vacuum Lifters for Damage-Free Coil and Roll Handling
Coil Lifting 1
Coil Lifting 2
Coil Lifting 3
Vacuum Coil and Roll Lifters are designed to handle all types of coils and rolls — metal, film, paper or plastic — in both horizontal and vertical orientations.
The vacuum lifter grips the outer surface of the coil — no core insertion, no scratching. Ideal for:
- Aluminum / cold-rolled steel coils
- Plastic film and printing paper rolls
- Technical fabric and non-woven fabric rolls
- Rubber and polymer rolls
▸ Typical Features of Coil Lifters
01
Curved pad matched to the coil diameter
02
Foam seal designed for uneven surfaces
03
Two symmetric pads keep the coil balanced
04
Lifting capacity up to 40,000 lb (18,000 kg)
05
Adjustable frame for a range of coil diameters
06
90° powered tilt to reorient the coil
▸ Guide to Selecting the Right Coil Lifter
To select the coil lifter that fits your application, please provide FULLSHARP with the following information — hover over each lamp to see the criteria in detail:
01
Weight
Load weight (kg / lb) — determines the lifter size and vacuum generator.
02
Material
Material type and thickness (steel, aluminum, paper, film, fabric, etc.) — determines the pad type and foam seal.
03
Coil Width
The coil's width — affects pad size and lifting stability.
04
Diameter
Inner diameter (ID) and outer diameter (OD) of the coil — determines the curvature of the pad.
05
Vacuum Chambers
Number of vacuum chambers required — depends on the coil's size, weight and balance.
06
Center Position
The coil's center or center-hole position — important for designing the lifting mechanism and load balance.
07
Power Source
Power available at your plant (220V / 380V / compressed air / battery) — determines the VPE / AVL / BAE series.
08
Control
Preferred control method (pendant / radio / auto-cycle / customer PLC integration).
▸ Industry Applications
Cold-Rolled Steel
Cold-Rolled Steel
Aluminum Coils
Aluminum Coils
Plastic Film
Plastic Film
Paper Rolls
Paper Rolls
Technical Fabric
Technical Fabric
Cao Su / Polymer
Rubber / Polymer
▸ Representative Models
Model 1 — Metal Coil
Model 2 — Paper / Film Roll
Model 3 — Heavy-Duty Coil
Contact FULLSHARP with your specific parameters (diameter, width, weight, material) for a configuration recommendation.
Multi-Configuration Lifters with 90° Manual Tilt / Gravity
AMC-Series Vacuum Lifters — Capacity from 500 lb (227 kg) to 700 lb (317 kg) AMC-Series Vacuum Lifters– Capacity from 500 lb (227 kg) to 700 lb (317 kg)
Extension 1
Extension 2
Inline 1
Inlline 2
No extension 1
No extension 2
ANVER Vacuum Manual Tilters & Upenders come fully equipped with safety features and have set the standard for safe load tilting. Each generation has been refined over the years to perform better and last longer — pads, vacuum generator, frame, controls, hardware, filters, safety features and handle — all new and improved. Every aspect of the lifter has been redesigned, and the latest version represents the best Tilter line available today.
The standard AMC-Series Compressed Air Powered Vacuum Lifters are designed to significantly reduce the effort of tilting heavy loads, while providing strong suction along with 90° manual tilting and 360° manual rotation.
*Note: Load weight and thickness affect the final tilt angle the lifter can reach. Please contact FULLSHARP for loads thicker than 1.18 in. (3 cm) due to center-of-gravity offset.
▸ Load Chart by Tilt Direction (Application Chart)
▸ AMC-Series Technical Features (Air Powered Specifications)
01
VLS system — 9V battery vacuum-loss sensor and alarm
02
Attach/Release slide valve with a safety lock
03
Maximum vacuum level of 24 in. Hg (609.6 mm Hg) — 4:1 safety factor
04
Removable pad extensions — fitted in-line for long loads, removed for short loads
05
Ergonomic handle + rugged welded steel frame
06
Dual filter/reservoir keeps vacuum clean in harsh environments
▸ Specification Table — AMC-Series Air Powered
| Specification Table — AMC M4 Series (Air Powered) | ||
|---|---|---|
| Lifter Model | AMC50M4-46E-MTR | AMC70M4-46E-MTR |
| Rated Load [lb (kg)] | 500 (227) | 700 (317) |
| Unit Weight [lb (kg)] | 225 (102) | 265 (121) |
| Air Supply Required (Incoming Power) [psi] | 90 | 90 |
| A — Headroom with Extension [in. (mm)] | 84 (2.134) | 86 (2.185) |
| B — Pad Spacing with Extension [in. (mm)] | 47 (1.194) | 50 (1.270) |
| C — Pad Spacing with Extension [in. (mm)] | 65 (1.651) | 69 (1.753) |
| D — Lifter Standing Depth [in. (mm)] | 32 (813) | 32 (813) |
| E — Pad Size [in. (mm)] | 9,13 (232) | 12 (305) |
| F — In-line Pad Spacing [in. (mm)] | 14 (356) | 17 (432) |
| G — In-line Pad Spacing [in. (mm)] | 76 (1.931) | 80 (2.032) |
| H — Pad Spacing without Extension [in. (mm)] | 27 (686) | 30 (762) |
| J — Pad Spacing without Extension [in. (mm)] | 31 (788) | 34 (864) |
| K — Headroom without Extension [in. (mm)] | 64 (1.646) | 66 (1.677) |
| Maximum Sheet Size [ft (m)] | 10×5 (3,0×1,5) | 10×5 (3,0×1,5) |
| Pad Number | VP92 | VP122 |
How to read the model code: AMC = Air, 50 = 500 lb load / 70 = 700 lb load, M4 = 4 pads, 46E = 46-inch beam spacing + Extension, MTR = Manual Tilt & Rotation. AMC advantage: Runs on existing plant compressed air — no electric power needed, ideal for dusty/oily environments.
EMC-Series Vacuum Lifters — Capacity from 500 lb (227 kg) to 700 lb (317 kg) EMC-Series Vacuum Lifters– Capacity from 500 lb (227 kg) to 700 lb (317 kg)
Extension 1
Extension 2
Inline 1
Inline 2
No extension 1
No extension 2
The standard EMC-Series Electric Powered Vacuum Lifters are designed to significantly reduce the effort of tilting heavy loads, while providing strong suction along with 90° manual tilting and 360° manual rotation.
*Note: Load weight and thickness affect the final tilt angle the lifter can reach. Please contact FULLSHARP for loads thicker than 1.18 in. (3 cm) due to center-of-gravity offset.
▸ EMC-Series Technical Features (Electric Powered Specifications)
01
EP1001 vacuum generator with vacuum gauge and master on/off switch
02
Power required: 115V / 60Hz / 1ph / 6A — requires a 15 Amp service circuit
03
4.3 SCFM vacuum pump/motor (121.8 l/min), 1/2 HP; with thermal overload protection and a 100% duty cycle
04
VLS system — vacuum-loss sensor and alarm, 9V battery powered
05
Attach/Release slide valve with a safety lock
06
Check valve prevents vacuum loss during a power failure
07
Power cord with twist-lock plug, male and female connectors
08
Maximum vacuum of 24 in. Hg (609.6 mm Hg) — 4:1 safety factor for vacuum retention
09
90° manual tilt + 360° manual rotation — smooth operation thanks to the balancing mechanism
10
Removable pad extensions — fitted in-line for long/narrow loads, removed for short/narrow loads
▸ Specification Table — EMC-Series Electric Powered
| Specification Table — EMC M4 Series (Electric) | ||
|---|---|---|
| Lifter Model | EMC50M4-46E-MTR | EMC70M4-46E-MTR |
| Rated Load [lb (kg)] | 500 (227) | 700 (317) |
| Unit Weight [lb (kg)] | 235 (107) | 275 (125) |
| Power Required (AC) | 115V/1PH/60Hz — 6 Amps | 115V/1PH/60Hz — 6 Amps |
| A — Headroom with Extension [in. (mm)] | 84 (2.134) | 86 (2.185) |
| B — Pad Spacing with Extension [in. (mm)] | 47 (1.194) | 50 (1.270) |
| C — Pad Spacing with Extension [in. (mm)] | 65 (1.651) | 69 (1.753) |
| D — Lifter Standing Depth [in. (mm)] | 32 (813) | 32 (813) |
| E — Pad Size [in. (mm)] | 9,13 (232) | 12 (305) |
| F — In-line Pad Spacing [in. (mm)] | 14 (356) | 17 (432) |
| G — In-line Pad Spacing [in. (mm)] | 76 (1.931) | 80 (2.032) |
| H — Pad Spacing without Extension [in. (mm)] | 27 (686) | 30 (762) |
| J — Pad Spacing without Extension [in. (mm)] | 31 (788) | 34 (864) |
| K — Headroom without Extension [in. (mm)] | 64 (1.646) | 66 (1.677) |
| Maximum Sheet Size [ft (m)] | 10×5 (3,0×1,5) | 10×5 (3,0×1,5) |
| Pad Number | VP92 | VP122 |
How to read the model code: EMC = Electric, 50 = 500 lb load / 70 = 700 lb load, M4 = 4 pads, 46E = 46-inch beam spacing + Extension, MTR = Manual Tilt & Rotation.
BMC-Series Vacuum Lifters — Capacity from 500 lb (227 kg) to 700 lb (317 kg) BMC-Series Vacuum Lifters – Battery Powered – Capacity from 500 lb (227 kg) to 700 lb (317 kg)
Extension 1
Extension 2
Inline 1
Inline 2
No extension 1
No extension 2
The standard BMC-Series Battery Powered Vacuum Lifters are designed to significantly reduce the effort of tilting heavy loads, while providing strong suction along with 90° manual tilting and 360° manual rotation.
*Note: Load weight and thickness affect the final tilt angle the lifter can reach. Please contact FULLSHARP for loads thicker than 1.18 in. (3 cm) due to center-of-gravity offset.
▸ BMC-Series Technical Features (Battery Powered Specifications)
01
BP1001 vacuum generator with vacuum gauge and master on/off switch
02
Battery power: 12V DC, 12 Amp Hours — no external power or compressed air needed, fully portable
03
4.3 SCFM vacuum pump/motor (121.8 l/min), 1/2 HP; with thermal overload protection
04
VLS system — vacuum-loss sensor and alarm, 9V battery powered
05
Attach/Release slide valve with a safety lock
06
Check valve holds vacuum when the battery is low or powered off
07
Built-in battery charger with charge status and battery level indicators
08
Maximum vacuum of 24 in. Hg (609.6 mm Hg) — 4:1 safety factor for vacuum retention
09
90° manual tilt + 360° manual rotation — smooth operation thanks to the balancing mechanism
10
Removable pad extensions — fitted in-line for long/narrow loads, removed for short/narrow loads
11
Ideal applications: Construction sites, outdoor storage yards, locations without power or compressed air
12
Ergonomic handle + rugged welded steel frame for comfortable operation
▸ Specification Table — BMC-Series Battery Powered
| Specification Table — BMC M4 Series (Battery Powered) | ||
|---|---|---|
| Lifter Model | BMC50M4-46E-MTR | BMC70M4-46E-MTR |
| Rated Load [lb (kg)] | 500 (227) | 700 (317) |
| Unit Weight [lb (kg)] | 245 (112) | 285 (130) |
| Battery Power (DC Generator Battery Power) | 12V DC, 12 Amp Hours | 12V DC, 12 Amp Hours |
| A — Headroom with Extension [in. (mm)] | 84 (2.134) | 86 (2.185) |
| B — Pad Spacing with Extension [in. (mm)] | 47 (1.194) | 50 (1.270) |
| C — Pad Spacing with Extension [in. (mm)] | 65 (1.651) | 69 (1.753) |
| D — Lifter Standing Depth [in. (mm)] | 32 (813) | 32 (813) |
| E — Pad Size [in. (mm)] | 9,13 (232) | 12 (305) |
| F — In-line Pad Spacing [in. (mm)] | 14 (356) | 17 (432) |
| G — In-line Pad Spacing [in. (mm)] | 76 (1.931) | 80 (2.032) |
| H — Pad Spacing without Extension [in. (mm)] | 27 (686) | 30 (762) |
| J — Pad Spacing without Extension [in. (mm)] | 31 (788) | 34 (864) |
| K — Headroom without Extension [in. (mm)] | 64 (1.646) | 66 (1.677) |
| Maximum Sheet Size [ft (m)] | 10×5 (3,0×1,5) | 10×5 (3,0×1,5) |
| Pad Number | VP92 | VP122 |
How to read the model code: BMC = Battery, 50 = 500 lb load / 70 = 700 lb load, M4 = 4 pads, 46E = 46-inch beam spacing + Extension, MTR = Manual Tilt & Rotation. BMC advantage: Fully portable — no external power or compressed air needed, ideal for construction sites and outdoor storage.
▸ Three Pad Mounting Styles — Flexible for Any Load
With Extensions — Standard Sheets
Without Extensions — Short/Narrow Sheets
In-line Pads — Long/Narrow Sheets
Pad Extensions can be flexibly removed and refitted — letting a single lifter handle 3 different load size ranges without buying new equipment.
Custom Manual Tilt + Rotate Models
▸ Lifters with Manual Tilt + Manual Rotate
A25M2-42-MUPR
E25M2-60MUP/R
A25M6-36/44V-MUPR
E100M4-CG
AV50M4-48X28MR
▸ Electric Lifters with Manual Tilt
E25M2-48MUP
E25M4-48-2/33AMUP
E50M4-40X30FMUP
GT90M6-88E
GT150M6-63E
E300M3-68-FPFXGT
▸ Air Powered Lifters with Manual Tilt
A8M2-VF-GT
A25M2-30VF-MUP (Var. B)
A25M2-30VF-MUP
Contact FULLSHARP for advice on the Manual Tilt lifter configuration that fits your specific application — our Sales Engineer will respond to your request as quickly as possible.
Optional Accessories for Lifting Frames & Vacuum Generators
Upgrade & Customize Your Lifter for Any Application Optional Vacuum Lifting Accessories — Standard Lift Frames & Vacuum Generators
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
ANVER offers a full catalog of genuine optional accessories that let you customize and upgrade your lifter for each specific application.
There are three main groups: the Utility Bar, Handlebar Extension Kits in 3 design styles, and Sliding Hook Assemblies for chain or web slings.
*Note: If you cannot find an accessory that fits your specific lifting frame or vacuum generator, please contact FULLSHARP for assistance.
Group 01 — Utility Bar

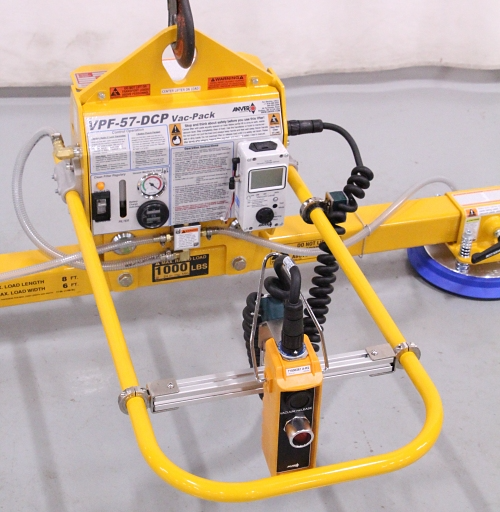

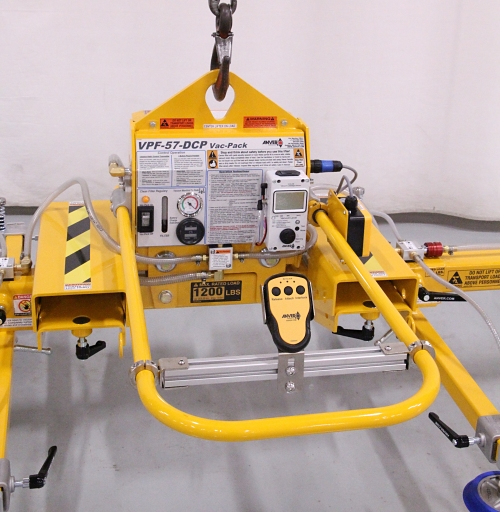

The Utility Bar is an accessory bar mounted to the lifter's front handle, allowing quick, convenient installation of a radio control mount or pendant mount without affecting lifter operation.
Part Number
Description
UB-100

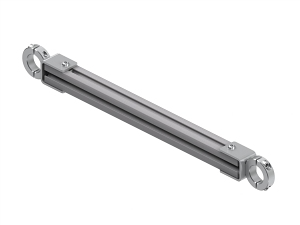

Utility Bar kit for Ø 1 inch (25.4 mm) handles For: VPE1-GEN3, BAE1-GEN3, VPF-57-ACP / DCP
UB-125

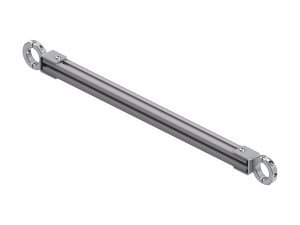

Utility Bar kit for Ø 1.25 inch (31.75 mm) handles For: VPE3-GEN3, BAE3-GEN3, GF Series
21301151
Radio Transmitter Mount — Bolts onto the Utility Bar. Installation hardware included. For: UB-100 / UB-125
21301152

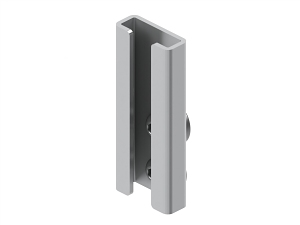

Pendant Mount — Bolts onto the Utility Bar. Installation hardware included. For: UB-100 / UB-125
Group 02 — Handlebar Extension Kits
Handlebar extension kits let the operator control the lifter from a safer distance, especially useful when handling large loads or working near machinery. ANVER offers 3 design styles: Standard, Telescoping, and Pivoting.
*Sold in Pairs. All extension kits require the existing front handle's mounting bracket and hardware. For lifters using VPFL4, VPF-57, ATL, AT, ETL, ET — additional tubing and attach/release valve-compatible fittings must be ordered. Contact FULLSHARP for specific advice.

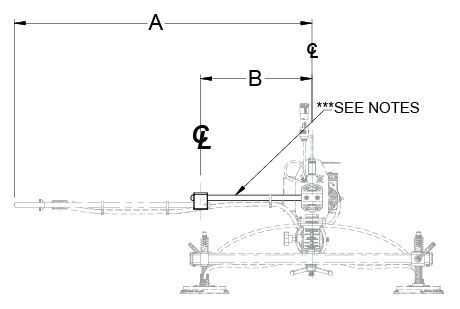

▸ 2A — Standard Extension (HBXK-A Series)
| Specification Table — Standard Extension (HBXK-A Series) — Sold in Pairs | ||||
|---|---|---|---|---|
| Part Number | A — Extended Handle Length Max / Min in. (mm) |
B — Extension Length Max / Min in. (mm) |
Weight / Pair lb (kg) |
Handle Diameter in. (mm) |
| HBXK-24-A | 54 (1.372) / 36 (914) | 20 (508) / 6 (152) | 5 (2.3) | 1 (25.4) |
| HBXK-36-A | 66 (1.676) / 48 (1.219) | 32 (813) / 6 (152) | 9 (4.1) | 1 (25.4) |
| HBXK-24-A-114 | 52 (1.321) / 36 (914) | 18 (457) / 9 (229) | 8 (3.6) | 1.25 (31.75) |
| HBXK-36-A-114 | 64 (1.626) / 48 (1.219) | 30 (762) / 9 (229) | 11 (5.0) | 1.25 (31.75) |
HBXK-24-A / HBXK-36-A: Compatible with M100M, M150M, VPFL4, VPF-57, BAE1, VPE1, ATL, ETL, AT, ET (Ø 1 inch handle).
HBXK-24-A-114 / HBXK-36-A-114: Compatible with M250M, BAE3-GEN3, VPE3-GEN3 (Ø 1.25 inch handle).
HBXK-24-A-114 / HBXK-36-A-114: Compatible with M250M, BAE3-GEN3, VPE3-GEN3 (Ø 1.25 inch handle).

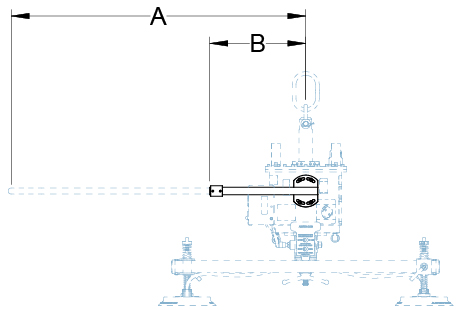

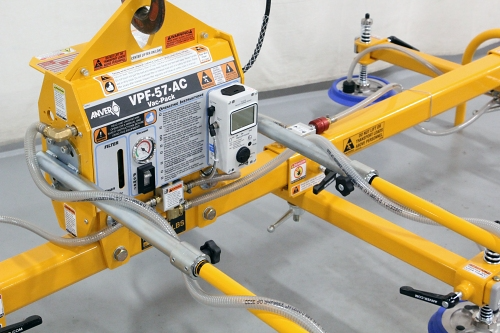

▸ 2B — Telescoping Extension (HBXK-T Series)
| Specification Table — Telescoping Extension (HBXK-T Series) — Sold in Pairs | |||
|---|---|---|---|
| Part Number | A — Maximum Length in. (mm) | A — Minimum Length in. (mm) | B — Extension Length in. (mm) |
| HBXK-18-T | 49 (1.247) | 21 (534) | 16 (406) |
The telescoping design allows continuous length adjustment without disassembly. Accepts Ø 1 or 1.25 inch handles. Compatible with: M100M, M150M, VPFL4, VPF-57, BAE1, VPE1, ATL, ETL, AT, ET. For Ø 1 inch only — not compatible with M250M / VPE3-Series.

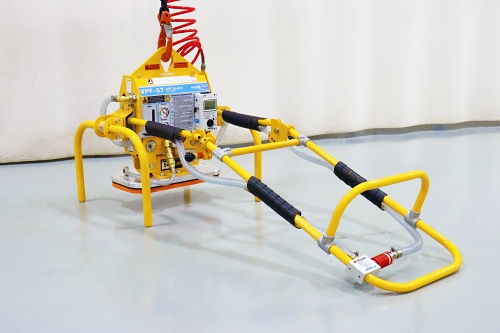

▸ 2C — Pivoting Extension (HBXK-APS Series)
| Specification Table — Pivoting Extension (HBXK-APS Series) — Sold in Pairs | ||
|---|---|---|
| Part Number | A — Extended Handle Length in. (mm) | B — Extension Length in. (mm) |
| HBXK-12-APS | 47.25 (1.200) | 10.5 (266) |
| HBXK-24-APS | 58.75 (1.492) | 22 (558) |
| HBXK-36-APS | 71.75 (1.822) | 35 (889) |
Compatible with: M100M, M150M, VPFL4, VPF-57, BAE1, VPE1, ATL, ETL, AT, ET — for Ø 1 inch (25.4 mm) handles only. Not compatible with M250M or VPE3-Series. Depending on the application, a bolt-on HBXK-CW counterweight may be needed — contact FULLSHARP.
Group 03 — Sliding Hook Assemblies (Chain / Web Sling)
Sliding hook assemblies are designed to hang a chain from the lifting frame, for removing the skeleton from the cutting table after a sheet is cut. Sold and rated in pairs. Two versions are available: for chain and for web slings up to 3 inches wide.

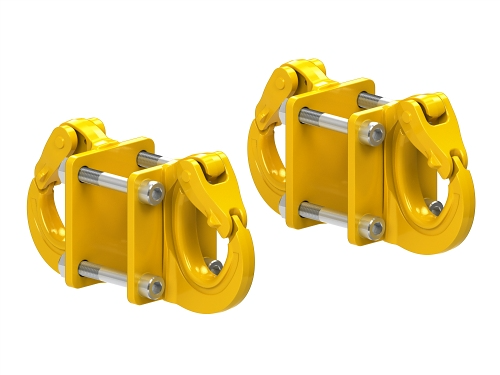

▸ 3A — Sliding Hook for Chain (SHA-Series)
SHA-200F — 500 lb (227 kg)
SHA-300 — 2.000 lb (907 kg)
SHA-400 — 3.000 lb (1.361 kg)
SHA-360 — 4.000 lb (1.814 kg)
SHA-570 — 6.000 lb (2.722 kg)

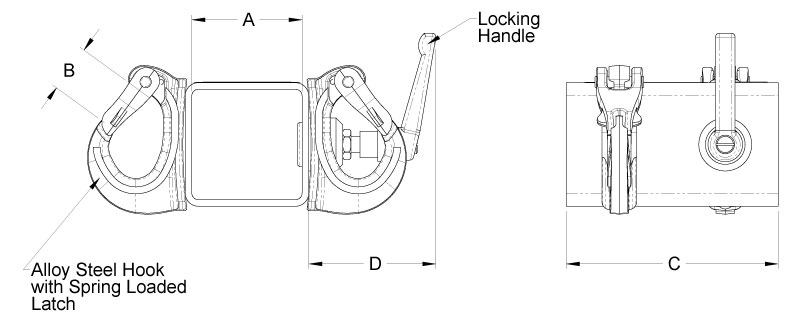

| Specification Table — Sliding Hook for Chain (SHA-Series) — Sold in Pairs | ||||||
|---|---|---|---|---|---|---|
| Part Number | A — Slide Slot in. (mm) | B — Hook Slot in. (mm) | C — Slide Length in. (mm) | D — Handle Protrusion in. (mm) | Rated Load / Pair lb (kg) | Weight / Pair lb (kg) |
| SHA-200F | 2 Square (51) | 1 (25) | 3 (76) | N/A | 500 (227) | 10 (5) |
| SHA-300 | 3 Square (76) | 1 (25) | 6 (153) | 3.72 (95) | 2.000 (907) | 14.2 (7) |
| SHA-400 | 4 Square (102) | 1 (25) | 6 (153) | 3.72 (95) | 3.000 (1.361) | 17 (8) |
| SHA-360 | 3×6 (76×153) | 1 (25) | 6 (153) | 3.53 (90) | 4.000 (1.814) | 30.2 (14) |
| SHA-570 | 5×7 (127×178) | 1 (25) | 6 (153) | T.B.D. | 6.000 (2.722) | 39.5 (18) |
▸ 3B — Sliding Hook for Web Sling (SHA-WS Series)
SHA-200F-WS — 500 lb / Sling ≤ 1.5"
SHA-300-WS — 2,000 lb / Sling ≤ 2.0"
SHA-400-WS — 3,000 lb / Sling ≤ 2.0"
SHA-360-WS — 4,000 lb / Sling ≤ 2.0"
SHA-570-WS — 6,000 lb / Sling ≤ 3.0"
| Specification Table — Sliding Hook for Web Sling (SHA-WS Series) — Sold in Pairs | ||||||
|---|---|---|---|---|---|---|
| Part Number | A — Slide Slot in. (mm) | B — Maximum Sling Width in. (mm) | C — Slide Length in. (mm) | D — Handle Protrusion in. (mm) | Rated Load / Pair lb (kg) | Weight / Pair lb (kg) |
| SHA-200F-WS | 2 Square (51) | 1.5 (38) | 3 (76) | N/A | 500 (227) | 10 (5) |
| SHA-300-WS | 3 Square (76) | 2.0 (50) | 6 (153) | 3.72 (95) | 2.000 (907) | 14.2 (7) |
| SHA-400-WS | 4 Square (102) | 2.0 (50) | 6 (153) | 3.72 (95) | 3.000 (1.361) | 17 (8) |
| SHA-360-WS | 3×6 (76×153) | 2.0 (50) | 6 (153) | 3.53 (90) | 4.000 (1.814) | 30.2 (14) |
| SHA-570-WS | 5×7 (127×178) | 3.0 (76) | 6 (153) | T.B.D. | 6.000 (2.722) | 39.5 (18) |
*Note: The Locking Handle may be omitted on some lifter models and replaced with a short bolt to save headroom. Contact FULLSHARP for details.
Group 04 — Other Additional Accessories
▸
VLS — Vacuum-Loss Sensor: 9V battery, audible alarm when vacuum drops. Standard on ET / AT / EVL / AVL, retrofittable to older lifters
▸
Parking Stands: Hold the lifter when not in use, protecting the pad from a dirty floor. Available in mobile and fixed types
▸
Fork Truck Attachments: Mount the lifter onto a forklift, turning it into a mobile vacuum lifting device for large loads outside the warehouse
▸
OBA-1 Offset Bail: Adjusts the lifting point for load balance. Adjustable for standard Vac-Packs
▸
EZTILT-CW Counterweight: A counterweight assembly for the EZ-Tilt Adapter. Works with all single round / oval pads up to 500 lb (227 kg)
▸
360° Manual Rotator: Fits most standard lifters, requires no power, and significantly reduces load-positioning effort
▸
360° Powered Rotator: Electric or air powered, controlled via pendant or remote. Optional for ET / AT / EVL / AVL
▸
Gaskets & Replacement Parts: SSR-72 / 92 / 126 foam seals, oil-resistant rubber gaskets, tubing, filters, vacuum gauges, pressure sensors
▸ After-Sales Support Services
Parts
Genuine Replacement Parts
- Genuine ANVER parts
- In stock at the US factory
- Imported to order
- Guaranteed full compatibility
Maintenance
Repair & Refurbishment
- Professional on-site repair
- Refurbish older lifters to current standards
- Scheduled maintenance per factory recommendations
- Safety inspection and certification
Consulting
Technical Support
- Sales Engineer advice on accessory selection
- Installation and operation guidance
- Fastest possible response to requests
- Bilingual Vietnamese–English support
Compliance Standards: All ANVER accessories comply with ANSI ASME B30.20, OSHA, and most European requirements. ANVER is ISO 9001:2015 certified and Made in USA.
Quality Commitment & Safety Standards
Made in USA
Made in the USA
ISO 9001:2015
Quality Certification
All ANVER accessories fully comply with the ANSI/ASME B30.20 standard for below-the-hook lifting devices, meeting OSHA and most European requirements. Over 58 years of manufacturing experience in the USA.
Contact FULLSHARP — Official Distributor in Vietnam
FULL-SHARP AUTOMATIZED VN CO., LTD
Address: Factory A1-1, Lot IN3-11*A, VSIP Hai Phong
Technical consulting & quotation: FULLSHARP's Sales Engineer team will respond to your request as quickly as possible.
Authorized distributor for: ANVER, Knight Global, Lifts All, Hero-Lift
