All Types of Vacuum Cups

ANVER now offers more than 350 replacement cups that are direct fit or interchangeable with P-Style products at a lower price. Every part number shares the exact same dimensions for a precise swap.

Made with the highest-grade rubber compounds and the latest molding technology for a premium finish.

ANVER's Silicone (SIT) version is a step above: it uses clear, undyed, food-grade silicone — unlike P-Style's dyed red silicone.

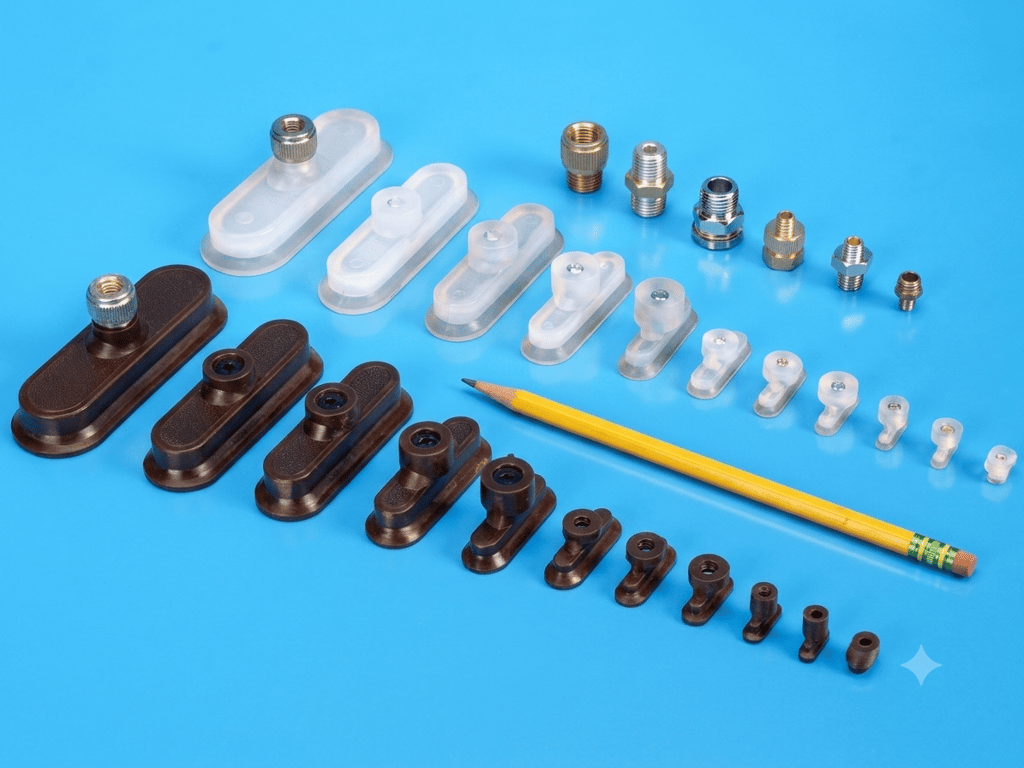

The small oval cup line is purpose-built for handling small, narrow, elongated loads where round cups can't guarantee reliable grip.

Fitted with reusable snap-on fittings and non-rotating stems — keeping the cup's orientation stable during lifting, with no twisting.

Typical applications: Electronic components, phone cases, printed circuit boards (PCBs), labels, paper bags, narrow packaging.

ANVER manufactures a line of cups that are direct equivalents to the CVM brand — ideal for customers running CVM systems who need high-quality replacement parts.

ANVER's CVM-equivalent cups share identical dimensions and technical specifications with the original parts. Available in multiple configurations: flat, bellows, foam.

Advantages: Better price, equal or higher quality, faster delivery thanks to ANVER USA's large factory stock.

Cups purpose-built for the paper and printing industry, designed for fast handling of sheets, cartons and thin materials in high-speed environments.

Key features: Rubber that leaves no marks on printed paper, high resilience for continuous operation over millions of cycles, and stable grip on paper surfaces.

Compatible with: Heidelberg, Komori, Manroland, KBA offset presses; Bobst die-cutters; automated carton packaging machines.

The VC25, VC35, VC45 line consists of small-to-medium cups fitted with a center suspension and an integrated vacuum connection port.

The modular design mounts directly onto a standard lifter frame or crossarm. The center suspension helps distribute the load evenly, preventing tilt during lifting.

Size range: 25 mm (VC25), 35 mm (VC35), 45 mm (VC45). Lifting capacity: 5—25 lb per cup depending on size and lift orientation.

The VP Series consists of mid-size round vacuum cups designed with a removable slip-on foam seal — allowing quick replacement of a worn seal without replacing the whole cup.

The signature AnduraSoft soft foam layer grips well on rough, uneven, lightly perforated surfaces — such as plywood, concrete, stone and textured metal.

Key benefit: Lower maintenance cost — just replace the foam seal (10—20% of the cup's price) instead of the whole assembly.

ANVER offers a complete range of foam pads for every application — from small foam pads for electronic components to oversized foam pads for concrete and rough cast metal.

Foam pads are the ideal solution for surfaces that are: rough, perforated, unevenly textured, ridged/grooved, or where load needs to be distributed evenly across a large area.

Foam material options: Low/high-density polyurethane, EPDM foam, Silicone foam, closed-cell, open-cell — depending on application and environment.

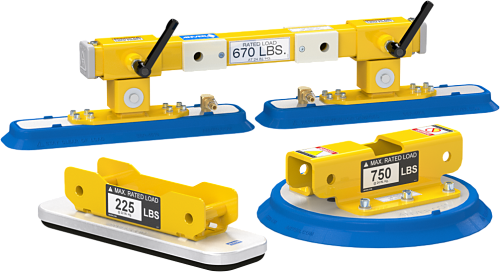

The Modular Pad Attachments line consists of pre-assembled cup units — including the vacuum cup, suspension, shut-off valve and vacuum gauge — ready to mount onto a lifter frame.

The modular design allows flexible configuration of 1, 2, 3, 4, 6, 8, 10, 12 or 14 pad assemblies on the same lifting frame — depending on load size and weight.

Fully compatible with the entire ANVER Vacuum Lifter range: VPFL4, VPF-57, VPE1-GEN3, BAE1-GEN3, AT/ATL, ET/ETL, EVL/AVL, AMC/EMC/BMC.

The High Temperature Glass cup line is made from a special heat-resistant silicone — able to handle glass straight out of a tempering or bending furnace at continuous temperatures up to 250°C (482°F).

The silicone leaves no marks, doesn't react chemically, and won't melt or deform at high temperatures. Ideal for production lines handling automotive glass, tempered architectural glass, and bent glass fresh from a bending furnace.

Note: Cup lifespan depends on load temperature and duty cycle. Continuous operation at maximum temperature will significantly shorten service life.

The Ring Suction Cups line is purpose-built for handling optical media such as CDs, DVDs, Blu-rays and thin wafer discs. The cup has a ring shape that grips the surface without touching the data area at the center.

This special structure evenly distributes grip force around the disc's edge, avoiding deformation or scratching of the recording surface. The soft rubber material leaves no marks and doesn't react with disc coatings.

Applications: CD/DVD production lines, automated packaging, wafer-handling robots in semiconductor manufacturing.

The PFC (Press Feed Cups) line is purpose-built for metal stamping press automation — used on 6-axis robots, transfer presses and tandem presses to pick and place blanks and semi-finished parts during stamping.

PFC cups deliver fast response, strong and stable grip, and long service life — withstanding vibration and the constant acceleration/deceleration of industrial robots.

Standout advantages: Thick, impact-resistant construction that isn't damaged by sharp edges or burrs on the blank. Ideal for automotive, deep-draw and large-panel stamping.

The Egg & Round Object Cups line is designed with a deep, curved concave shape that wraps around the top of a round object to ensure stable grip on curved surfaces such as eggs, fruit, bottles, and spherical objects.

The soft food-grade silicone material ensures no damage to fragile products, meeting FDA standards for direct food contact.

Typical applications: Egg packing lines, fruit sorting, bottle handling, packaging of round products in the food and agriculture industries.
