FLT SERIES HIGH FLOW VACUUM FILTER ASSEMBLIES

Filters for high-flow vacuum – FLT-3 plastic and FLT-4 metal assemblies, and FLT drum filters

Product Overview

ANVER FLT-4 and FLT-3 vacuum filter assemblies

FLT-4 · FLT-3

FLT-3 Plastic Filter Assemblies

ANVER FLT-3 Series Plastic Filters are specifically designed for use with high air flow vacuum lifting systems. By comparing the vacuum level on the filter and the vacuum level on the vacuum attachment head, the operator can monitor the filter status at a glance. A reduction differential in vacuum level provides an indication of when the filter element needs to be cleaned or replaced. The FLT-3 is a lightweight high-flow filter, with replaceable filter elements, and is available with either 1 1/2″ or 2″ slip-in hose ports.

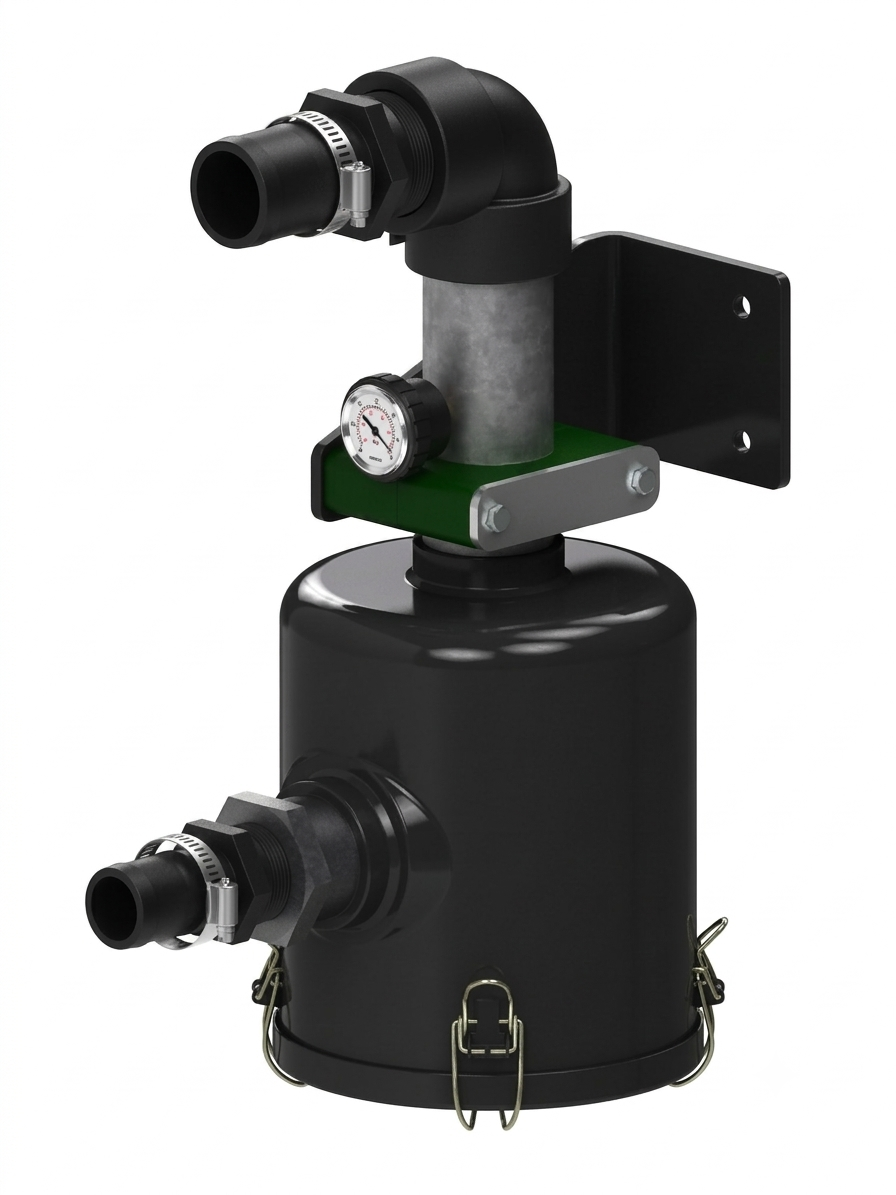

FLT-4 Metal Filter Assemblies

ANVER FLT-4 Series vacuum filters feature durable steel construction and industry-standard filter elements. The filter element protects the vacuum pump under normal operating conditions. These filters are ideally suited for most of today’s material handling equipment applications.

Features

High carbon steel construction
Snap-on fasteners for easy element inspection and replacement
Industry-standard sizes make these filters interchangeable with other brands
Includes a 10 micron standard filter element
Perfect for OEM use
Factory-inspected seals for 100% airtight systems
Includes an ANVER Vacuum Gauge for monitoring the filter status
FLT-3 filters have a Rated Flow of 138 SCFM
FLT-4 filters have a Rated Flow of 175 SCFM

Filter Assemblies and Elements

FLT-3 and FLT-4 Series
Part number	Description
FLT-3 Series
FLT-3-1.5A	Filter Assembly, FLT-3 with Gauge and Adapters for 1.5″ (38.1 mm) Hose
FLT-3-2.0A	Filter Assembly, FLT-3 with Gauge and Adapters for 2″ (50.8 mm) Hose
FLT-3E	Filter Element, for FLT-3 Series Filters, 10 Micron
FLT-4 Series
FLT-4-1.5A	Filter Assembly, FLT-4 with Gauge, Bracket, and Adapters for 1.5″ (38.1 mm) Hose
FLT-4-2.0A	Filter Assembly, FLT-4 with Gauge, Bracket, and Adapters for 2″ (50.8 mm) Hose
FLTME-6	Filter Element, for FLT-4 Series Filters, 10 Micron
FLT-4 Series with vacuum relief valve
FLT-4-1.5A-RV	Filter Assembly, FLT-4 with Vacuum Relief Valve and Hardware for 1.5″ (38.1 mm) Hose
FLT-4-2.0A-RV	Filter Assembly, FLT-4 with Vacuum Relief Valve and Hardware for 2″ (50.8 mm) Hose

Vacuum Filters and Stands

Drum Filters for Vacuum Tube Lift Systems and other High Flow Applications – FLT Series

Drum filter on generator stand

ANVER Drum Filters are specially designed for use with vacuum tube lift systems but are suitable for many other applications. The drums are constructed of very heavy-gauge material to withstand the high vacuum levels typical with a vacuum system. A hose cuff slips inside the fitting on the filter cover. Suitable for vacuum levels up to 18″ of Hg.

Rugged steel stands that accommodate the filters and the pumps are available. An optional base with casters is available to facilitate moving the filter.

Note: Do not place these drum filter heads on other drums in your facility, as they may not have heavy-duty walls as do the ANVER drum filters. This may cause the drums to implode, causing sudden vacuum loss.

ST-W1 & ST-3 now painted black, not yellow as shown.

Drum filters, elements, bases and stands
Part number	Description
FLT-30	Filter, Drum 30 Gallon, 2″ Vacuum Ports
FLT-30-SS	Filter, Drum 30 Gallon, Stainless Steel
FLT-55E	Filter Element, for FLT-55 & FLT-30 (10 Micron)
FLT-55E-PFB	Filter Bag for FLT-55E
FLT-DBC-30	Drum Base with Casters for FLT-30
ST-3	Floor Mount Generator Stand
ST-W1	Generator Wall Mount Bracket
ST-P1	Generator Pillar Mount Bracket
