VP SERIES LARGE VACUUM PADS WITH BOLT-ON SEALS
Quad mount and swivel mount steel pads with protective clamping rings – 750 to 2,300 lb
Product Overview
Bolt-on vacuum pads
ANVER bolt-on vacuum pads use heavy duty steel construction with easily replaceable rubber seals. They are excellent for handling semi-rigid to rigid loads such as metal sheet or plate, and have become an industry standard.
A variety of mounting styles makes these pads suitable for a wide range of vacuum lifting applications – quad mount lugs for bolting to a frame, or a swivel suspension for a single pad.
The extended steel bolt-on ring protects the seal from damage caused by side collisions, which is what makes these pads suited to mill duty work.
Design Features
01 – Rugged steel construction
Built for years of service in mill duty applications.
02 – Three sealing edges
The new M series seals have three vacuum sealing edges, for safety.
03 – Anti over-tightening spacers
Special spacers prevent the vacuum seal being over tightened.
04 – Secure lifting points
Swivel or quad mounting lugs provide secure lifting points.
05 – Seals from stock
Nitrile rubber from stock, with red silicone in some sizes.
06 – Protective clamping ring
The extended steel bolt-on ring shields the seal from side impacts.
07 – Vacuum gauge included
The metric series includes a vacuum gauge – useful on multi-pad lifters with shut-off valves, to confirm every pad has made contact and reached full vacuum before lifting.
Metric Quad Mount Pads with Vacuum Gauge

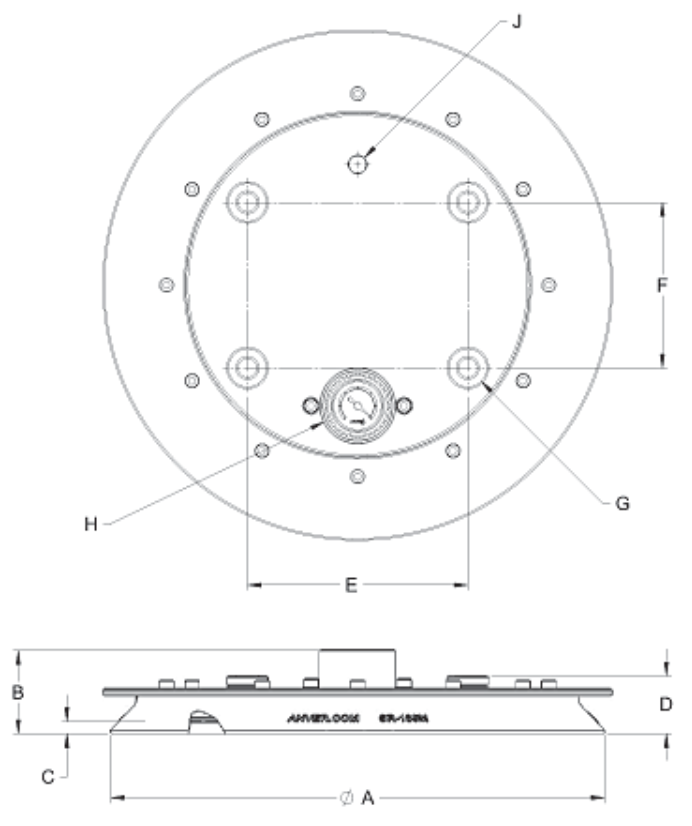

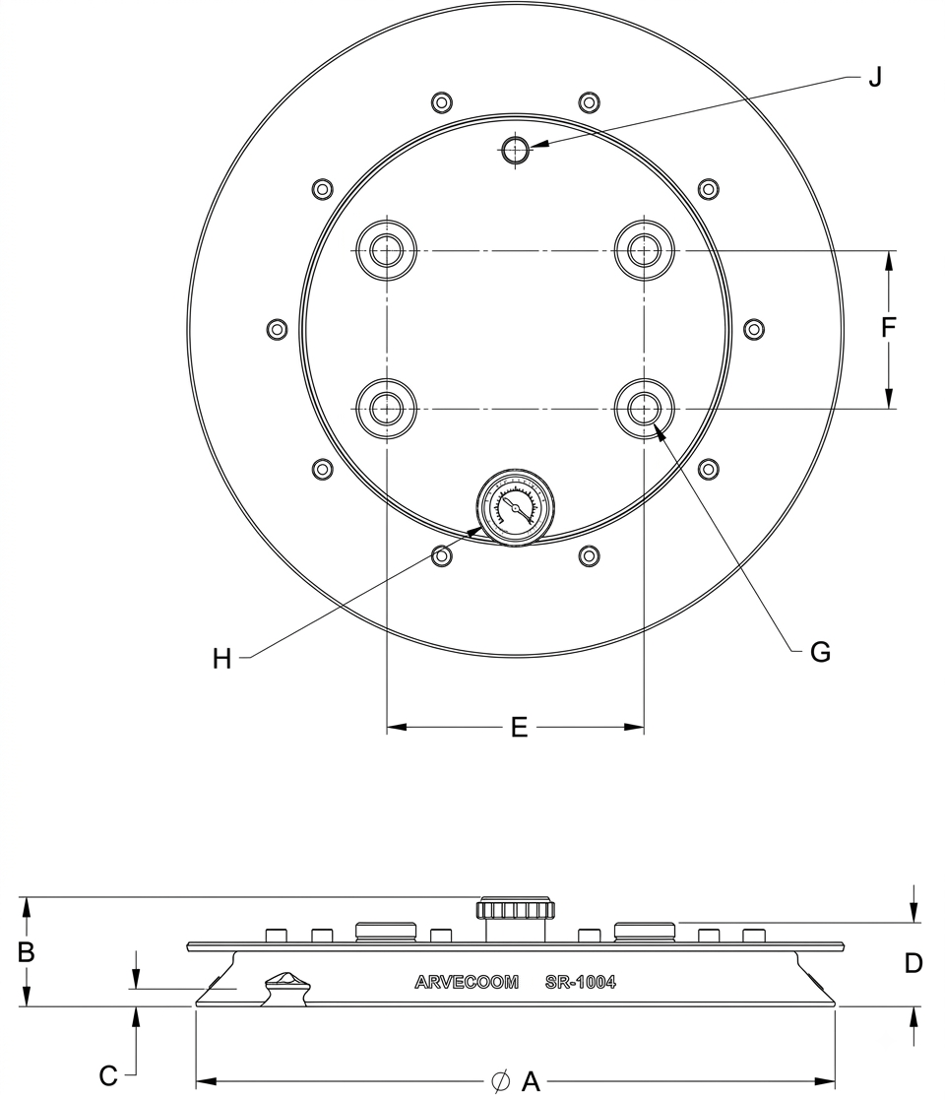

VP145MQ · VP155MQ dimensions

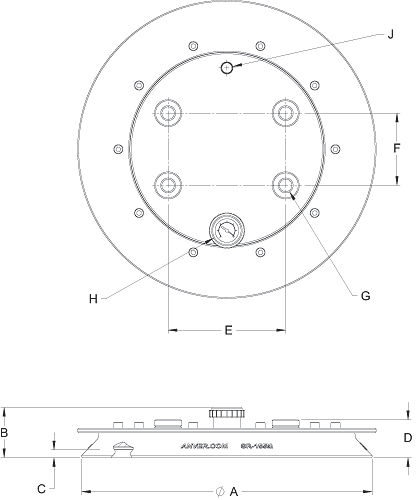

VP185MQ · VP195MQ · VP215MQ · VP235MQ dimensions
| Metric VP series vacuum pads – quad mount, gauge fitted | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pad number (nitrile) [drawing no.] | Horizontal capacity | Replacement seal | A – seal dia. (flared) | B – pad height with gauge | C – height | D – mounting height | E – mounting length | F – mounting width | G – mounting holes | H – gauge (plug) part no. | J – vacuum port | Item weight lb (kg) |
| VP145MQ and VP155MQ | ||||||||||||
| VP145MQ-NBR-M [76201091] | 750 lb (341 kg) | SR-145M | 14.5 in. (368 mm) | 2.75 in. (70 mm) | 0.38 in. (9 mm) | 1.96 in. (50 mm) | 6.5 in. (165 mm) | 4 in. (102 mm) | M20 × 2.5 | VG150-18PBM [219P-2] | 3/8″ NPT | 28.66 (13) |
| VP155MQ-NBR-M [76201092] | 1,000 lb (455 kg) | SR-155M | 17.25 in. (438 mm) | 2.88 in. (73 mm) | 0.53 in. (13 mm) | 2.09 in. (53 mm) | 6.5 in. (165 mm) | 4 in. (102 mm) | M20 × 2.5 | VG150-18PBM [219P-2] | 3/8″ NPT | 39.68 (18) |
| VP185MQ to VP235MQ | ||||||||||||
| VP185MQ-NBR-M [76201093] | 1,300 lb (591 kg) | SR-185M | 18.5 in. (470 mm) | 3.03 in. (77 mm) | 0.54 in. (14 mm) | 2.09 in. (53 mm) | 8 in. (203 mm) | 6 in. (162 mm) | M20 × 2.5 | 78000018 [78000021] | 3/8″ NPT | 46 (21) |
| VP195MQ-NBR-M [76201094] | 1,550 lb (705 kg) | SR-195M | 19.5 in. (495 mm) | 3.04 in. (77 mm) | 0.54 in. (14 mm) | 2.10 in. (53 mm) | 8 in. (203 mm) | 6 in. (162 mm) | M20 × 2.5 | 78000018 [78000021] | 3/8″ NPT | 51 (23) |
| VP215MQ-NBR-M [76201095] | 2,000 lb (909 kg) | SR-215M | 22 in. (559 mm) | 3.15 in. (80 mm) | 0.65 in. (17 mm) | 2.21 in. (56 mm) | 8 in. (203 mm) | 6 in. (162 mm) | M20 × 2.5 | 78000018 [78000021] | 3/4″ NPT | 60 (27) |
| VP235MQ-NBR-M [76201096] | 2,300 lb (1,045 kg) | SR-235M | 24 in. (610 mm) | 3.15 in. (80 mm) | 0.65 in. (17 mm) | 2.21 in. (56 mm) | 8 in. (203 mm) | 6 in. (162 mm) | M20 × 2.5 | 78000018 [78000021] | 3/4″ NPT | 67 (30) |
Silicone versions (special order) share the same dimensions and capacity: VP145MQ-SI-M (SR-145M-SI), VP155MQ-SI-M (SR-155M-SI), VP185MQ-SI-M (SR-185M-SI) and VP195MQ-SI-M (SR-195M-SI). The VP215MQ-SI-M (SR-215M-SI) and VP235MQ-SI-M (SR-235M-SI) use extreme high heat silicone.
Gauge kit – the vacuum gauge kit is installed on the pad, and a plug kit is included so the gauge and gauge guard can be removed. See dimension H for the part numbers.
Swivel Mount Pads

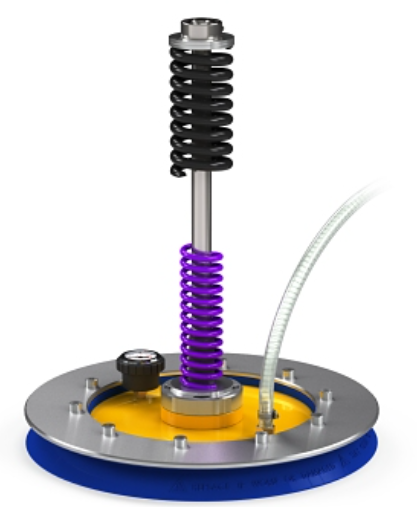

VP145S · VP155S pad (NBR and SI)

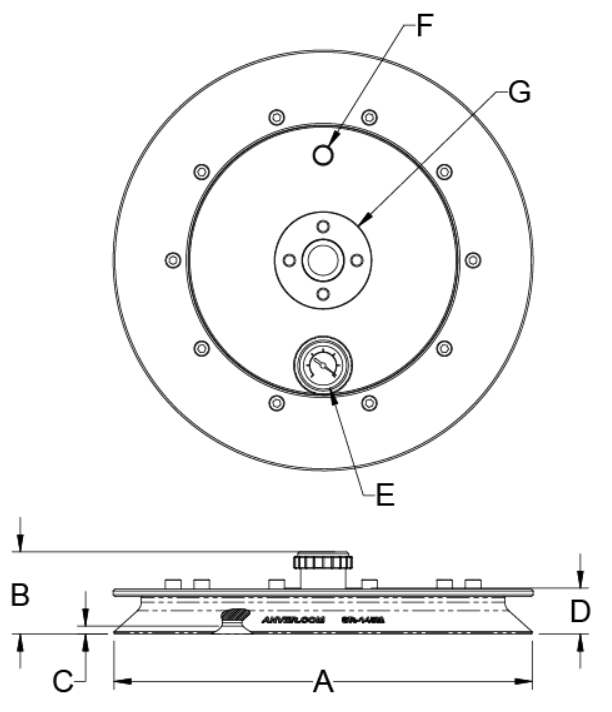

VP145S · VP155S dimensions

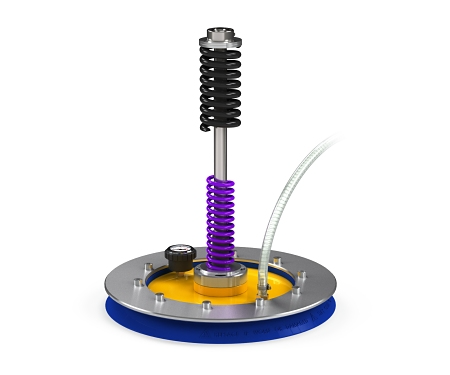

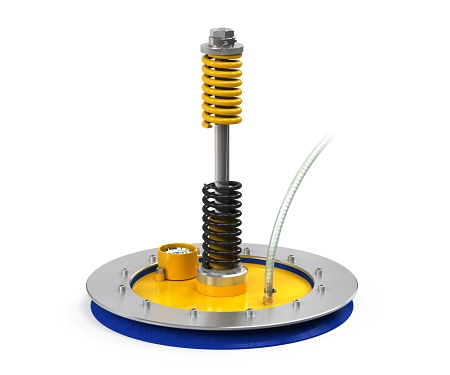

VP185S · VP195S · VP215S · VP235S pad (NBR and SI)

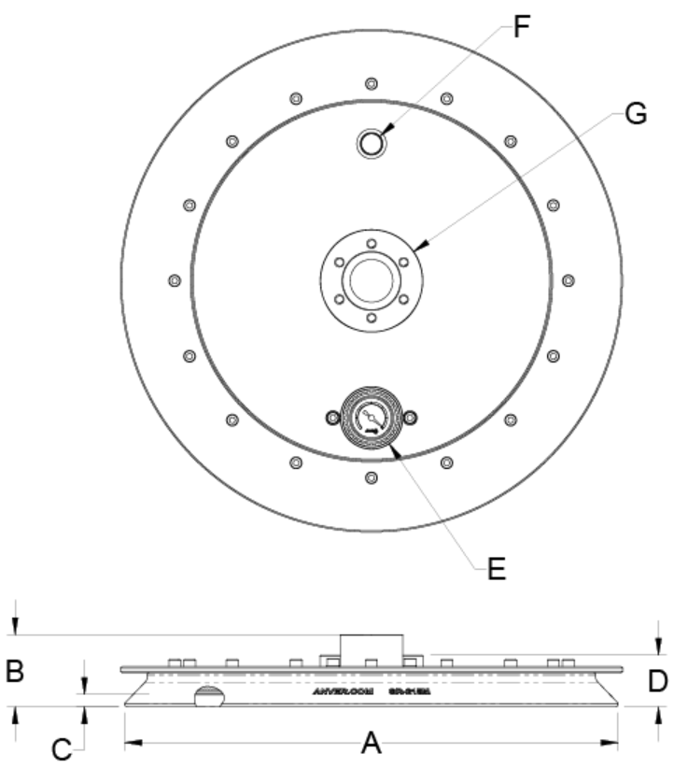

VP185S · VP195S · VP215S · VP235S dimensions
| VP series vacuum pads – swivel suspension mount | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Pad number (nitrile) [drawing no.] | Horizontal capacity | Replacement seal | A – seal dia. (flared) | B – pad height with gauge | C – height | D – mounting height | E – gauge (plug) part no. | F – vacuum port | G – swivel suspension |
| VP145S-NBR [76201145] | 750 lb (341 kg) | SR-145M | 14.5 in. (368 mm) | 2.75 in. (70 mm) | 0.27 in. (7 mm) | 1.58 in. (39 mm) | VG150-18PBM [219P-2] | 3/8″ NPT | VPSA214SM20X400F – swivel mount 20F |
| VP155S-NBR [76201146] | 1,000 lb (455 kg) | SR-155M | 17.25 in. (438 mm) | 2.88 in. (73 mm) | 0.53 in. (13 mm) | 2.22 in. (56 mm) | VG150-18PBM [219P-2] | 3/8″ NPT | VPSA212M24X450F – swivel mount 30F |
| VP185S-NBR [76201147] | 1,300 lb (591 kg) | SR-185M | 18.5 in. (470 mm) | 3.15 in. (80 mm) | 0.42 in. (11 mm) | 1.85 in. (47 mm) | 78000018 [78000021] | 3/8″ NPT | VPSA212M24X450G – swivel mount 30G |
| VP195S-NBR [76201148] | 1,550 lb (705 kg) | SR-195M | 19.5 in. (495 mm) | 3.04 in. (77 mm) | 0.42 in. (11 mm) | 1.85 in. (47 mm) | 78000018 [78000021] | 3/8″ NPT | VPSA212M24X450G – swivel mount 30G |
| VP215S-NBR [76201149] | 2,000 lb (909 kg) | SR-215M | 22 in. (559 mm) | 3.15 in. (80 mm) | 0.53 in. (13 mm) | 2.24 in. (57 mm) | 78000018 [78000021] | 3/4″ NPT | VPSA314SM36X550H – swivel mount 40H |
| VP235S-NBR [76201150] | 2,300 lb (1,045 kg) | SR-235M | 24 in. (610 mm) | 3.15 in. (80 mm) | 0.53 in. (13 mm) | 2.24 in. (57 mm) | 78000018 [78000021] | 3/4″ NPT | VPSA314SM36X550H – swivel mount 40H |
Item weights: VP145S 30 lb (14 kg), VP155S 39 lb (18 kg), VP185S 46 lb (21 kg), VP195S 51 lb (23 kg), VP215S 59 lb (27 kg), VP235S 67 lb (30 kg). Silicone versions are special order – VP145S-SI, VP155S-SI, VP185S-SI, VP195S-SI, VP215S-SI and VP235S-SI. Suspension adapters: VPHA214S34M20, VPHA212S1M24 and VPHA314S1M36 depending on the size.
Previous Generation Pads

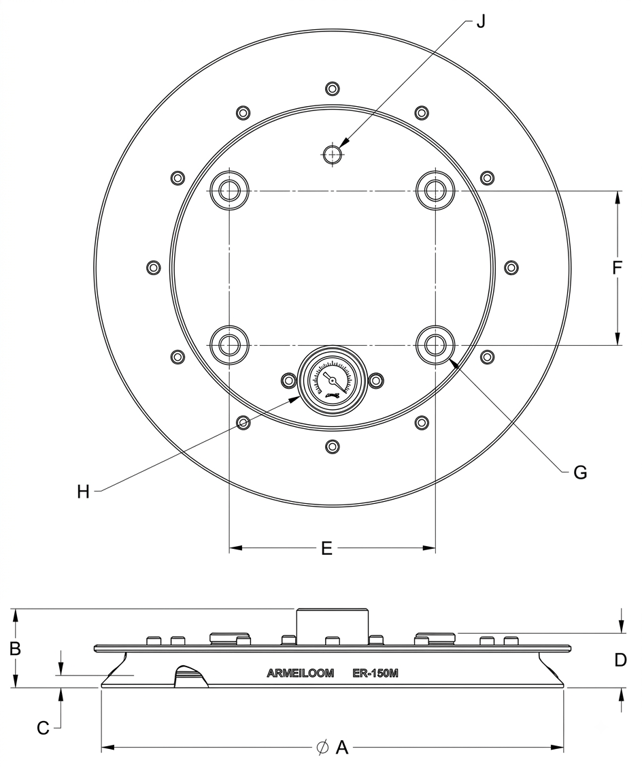

VP145Q · VP145MQ · VP155Q · VP155MQ dimensions
VP185Q · VP195Q · VP215Q · VP235Q dimensions (Q and MQ)
| Previous generation VP series pads – 3/4-10 UNC mounting holes | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pad number (nitrile) [drawing no.] | Horizontal capacity | Replacement seal | Internal seal | A – seal dia. (flared) | B – height with gauge | D – mounting height | E – mounting length | F – mounting width | H – gauge (plug) part no. | J – vacuum port | Item weight lb (kg) |
| VP145Q-NBR [76200871] | 750 lb (341 kg) | SR-145DP | SE-145 | 14.5 in. (368 mm) | 0.81 in. (21 mm) | 2.31 in. (59 mm) | 6.5 in. (165 mm) | 4 in. (102 mm) | VG150-18PBM [219P-2] | 3/8″ NPT (K) | 29 (13) |
| VP145MQ-NBR [76201031] | 750 lb (341 kg) | SR-145M | N/A | 14.5 in. (368 mm) | 0.81 in. (21 mm) | 1.97 in. (50 mm) | 6.5 in. (165 mm) | 4 in. (102 mm) | VG150-18PBM [219P-2] | 3/8″ NPT (K) | 29 (13) |
| VP155Q-NBR [76200846] | 1,000 lb (455 kg) | SR-155DP | SE-155 | 17.25 in. (438 mm) | 0.81 in. (21 mm) | 2.31 in. (59 mm) | 6.5 in. (165 mm) | 4 in. (102 mm) | VG150-18PBM [219P-2] | 3/8″ NPT (K) | 38 (17) |
| VP155MQ-NBR [76201026] | 1,000 lb (455 kg) | SR-155M | N/A | 17.25 in. (438 mm) | 0.81 in. (21 mm) | 2.10 in. (53 mm) | 6.5 in. (165 mm) | 4 in. (102 mm) | VG150-18PBM [219P-2] | 3/8″ NPT (K) | 38 (17) |
| VP185Q-NBR [76200847] | 1,300 lb (591 kg) | SR-185DP | SE-185 | 18.5 in. (470 mm) | 0.81 in. (21 mm) | 2.31 in. (59 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/8″ NPT (K) | 45 (20) |
| VP185MQ-NBR [76200952] | 1,300 lb (591 kg) | SR-185M | N/A | 18.5 in. (470 mm) | 0.81 in. (21 mm) | 2.10 in. (53 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/8″ NPT (K) | 45 (20) |
| VP195Q-NBR [76200827] | 1,550 lb (705 kg) | SR-195DP | SE-195 | 19.5 in. (495 mm) | 0.81 in. (21 mm) | 2.31 in. (59 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/8″ NPT (K) | 51 (23) |
| VP195MQ-NBR [76201028] | 1,550 lb (705 kg) | SR-195M | N/A | 19.5 in. (495 mm) | 0.81 in. (21 mm) | 2.10 in. (53 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/8″ NPT (K) | 51 (23) |
| VP215Q-NBR [76200035] | 2,000 lb (909 kg) | SR-215DP | SE-215 | 22 in. (559 mm) | 1.06 in. (27 mm) | 2.56 in. (65 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/4″ NPT (K) | 57 (26) |
| VP215MQ-NBR [76200948] | 2,000 lb (909 kg) | SR-215M | N/A | 22 in. (559 mm) | 1.06 in. (27 mm) | 2.21 in. (56 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/4″ NPT (K) | 57 (26) |
| VP235Q-NBR [76200034] | 2,300 lb (1,045 kg) | SR-235DP | SE-235 | 24 in. (610 mm) | 1.06 in. (27 mm) | 2.56 in. (65 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/4″ NPT (K) | 66 (30) |
| VP235MQ-NBR [76200937] | 2,300 lb (1,045 kg) | SR-235M | N/A | 24 in. (610 mm) | 1.06 in. (27 mm) | 2.21 in. (56 mm) | 8 in. (203 mm) | 6 in. (152 mm) | 78000018 [78000021] | 3/4″ NPT (K) | 66 (30) |
The SR-165BO bolt-on vacuum seal is still available – contact FULL-SHARP for details.
Replacing Competitive Lifting Cups
| Competitive cup cross-reference | |||
|---|---|---|---|
| Competitive part number | Competitive rated load lb (kg) | ANVER replacement part number | ANVER horizontal rated load lb (kg) |
| Strato-Vac 2710 lifting cups | 1,000 (454) | 76201030 – same as VP215MQ-NBR with a 6″ × 6″ mounting hole pattern | 2,000 (980) – de-rate as needed for your lifter |
Pads can be supplied in quantity with either a 6 × 6 mounting pattern or an adapter plate. Strato-Vac is a registered trademark of Strato-Vac Inc. Contact FULL-SHARP about other competitive pads.
*Capacity basis – rated load capacity is given at 24″ Hg vacuum in the horizontal plane, based on a safety factor of 2. Divide again by 2 for vertical applications. Actual capacity depends on the load surface and the condition of the vacuum generating system, and must be determined by the user.
**SR (series) M replacement seals include spacers, to prevent the clamping ring hardware being over torqued and the seal over compressed.
Finish – ANVER reserves the right to supply these pads with either painted or plated steel parts.
Contact FULL-SHARP with the load size, weight and surface finish and we will confirm the pad, the seal number, the mounting style and the suspension.
