ROUND VACUUM PADS WITH ANDURASOFT® FOAM SEALS
FP28 to FP150 – for tread plate, diamond plate, saw cut stone and textured surfaces, 20 to 550 lb
Product Overview

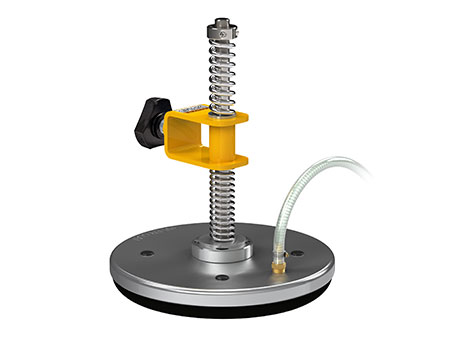

FP128 with suspension
ANVER round foam vacuum pads use a slip-in self-locking sealing ring. These ANDURASOFT® foam seals are most effective on rough, uneven or textured surfaces – tread plate, diamond plate, saw cut stone or smoothed concrete.
They are available in a range of shapes, styles and materials, and the seal design makes maintenance straightforward: the seal can be changed by hand in a few minutes while the pad stays on the lifter.

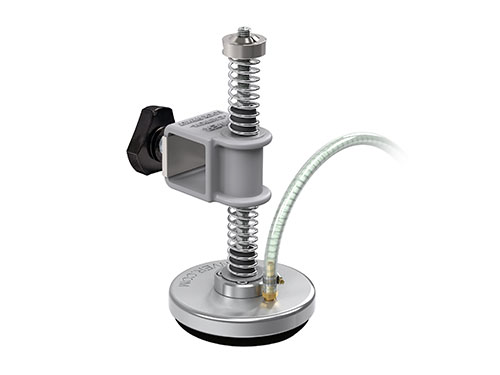

Pads offer maximum versatility when used with ANVER spring loaded suspension assemblies.
Design Features
01 – Built for industry
Round metal vacuum pads with ANDURASOFT® foam seals, designed for industrial use.
02 – Seals in stock
Replacement seals are always in stock and available for same day shipping.
03 – No special tools
Seals are easily replaceable without special tools.
04 – Change on the lifter
Seals can be replaced by hand in a few minutes while the pad remains on the lifter.
05 – Follows the surface
Pads adjust easily to uneven or rough surfaces, for maximum safety.
06 – Wide size range
Seals are available in a large variety of sizes, from 3.00 in. to 15.00 in. pad diameter.
Fitting note – if the pads are bought separately, follow the specified torque settings and bolt depths given in the product specifications.
Pad Dimensions & Capacities
FP28 · FP38 · FP48 · FP58 · T1-FP58 · FP68 · FP78 · FP88 · FP98

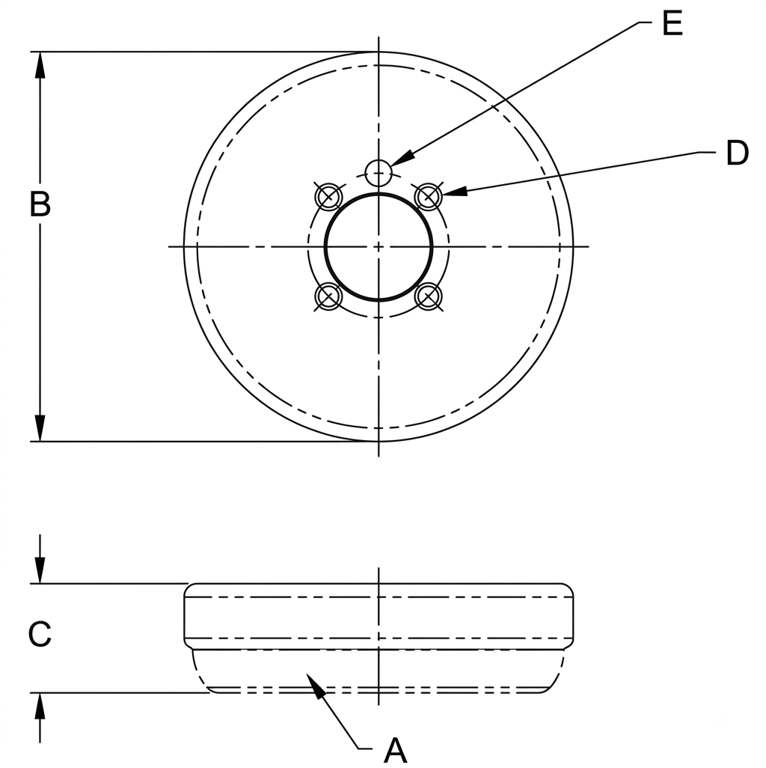

FP28 · FP38 dimensions

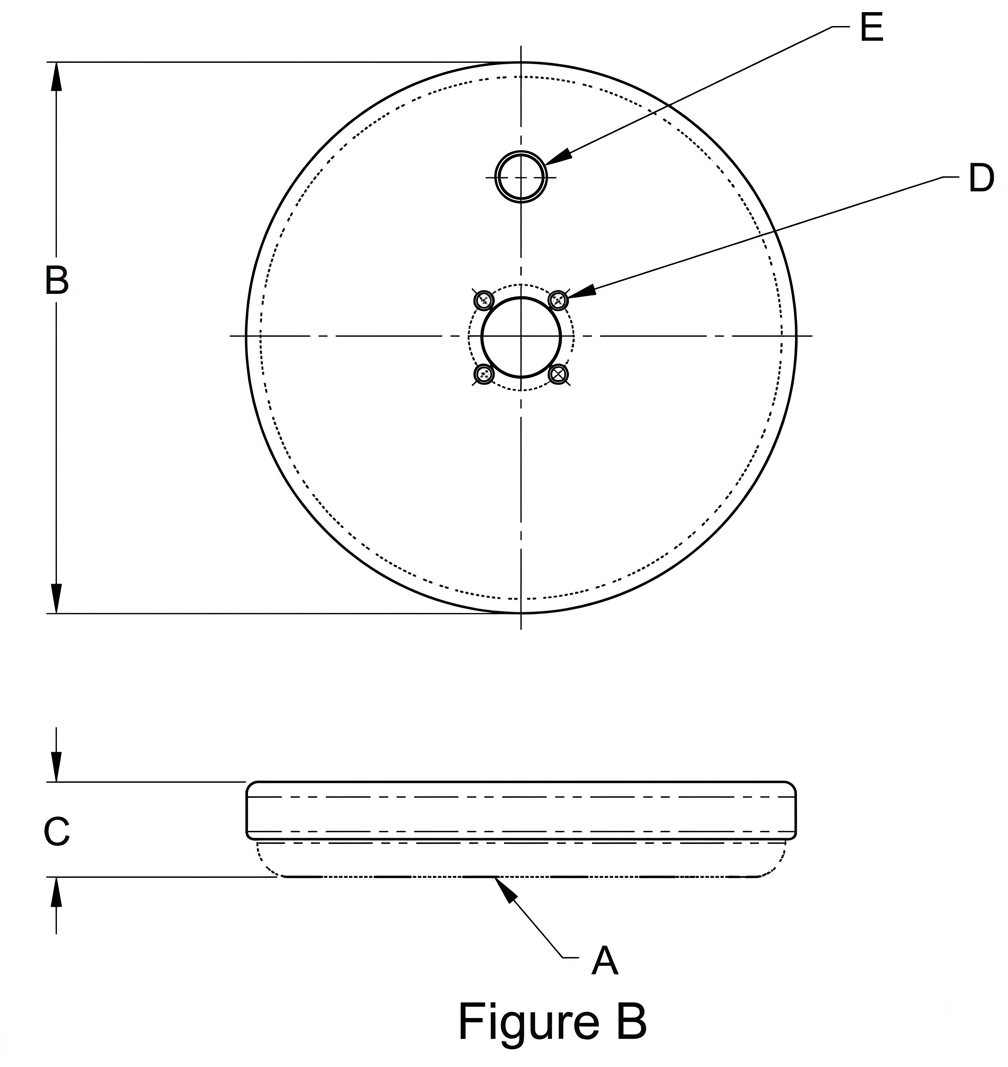

FP48 · FP58 · FP68 · FP78 · FP88 dimensions (Figure B)

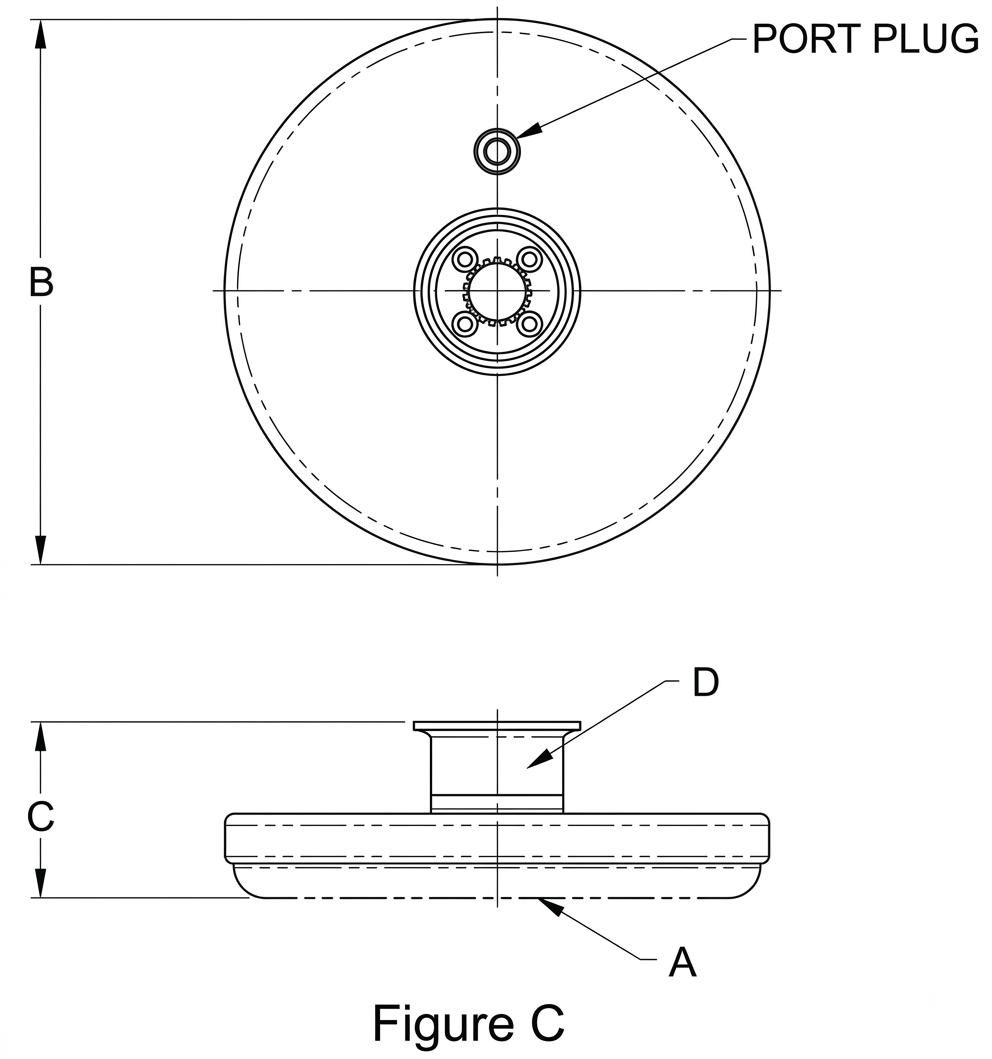

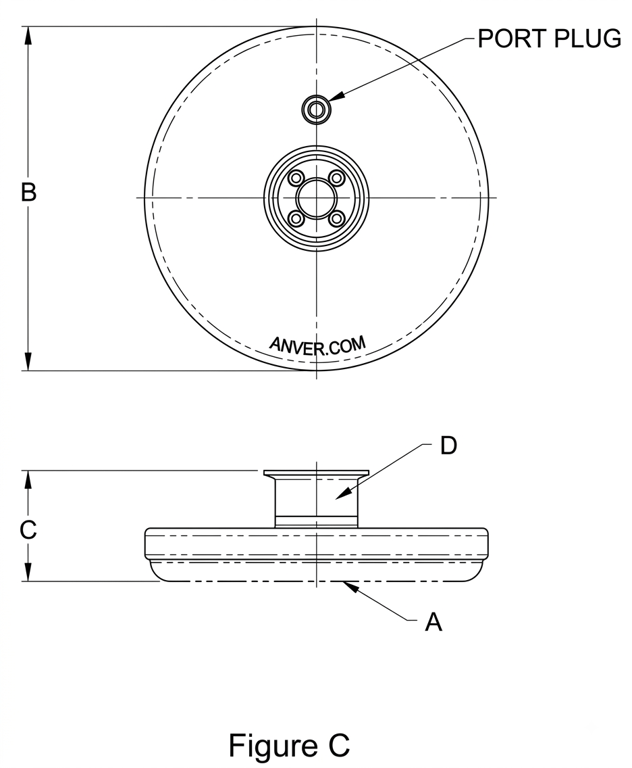

FP48 · FP58 · FP68 · FP78 · FP88 dimensions (Figure C)

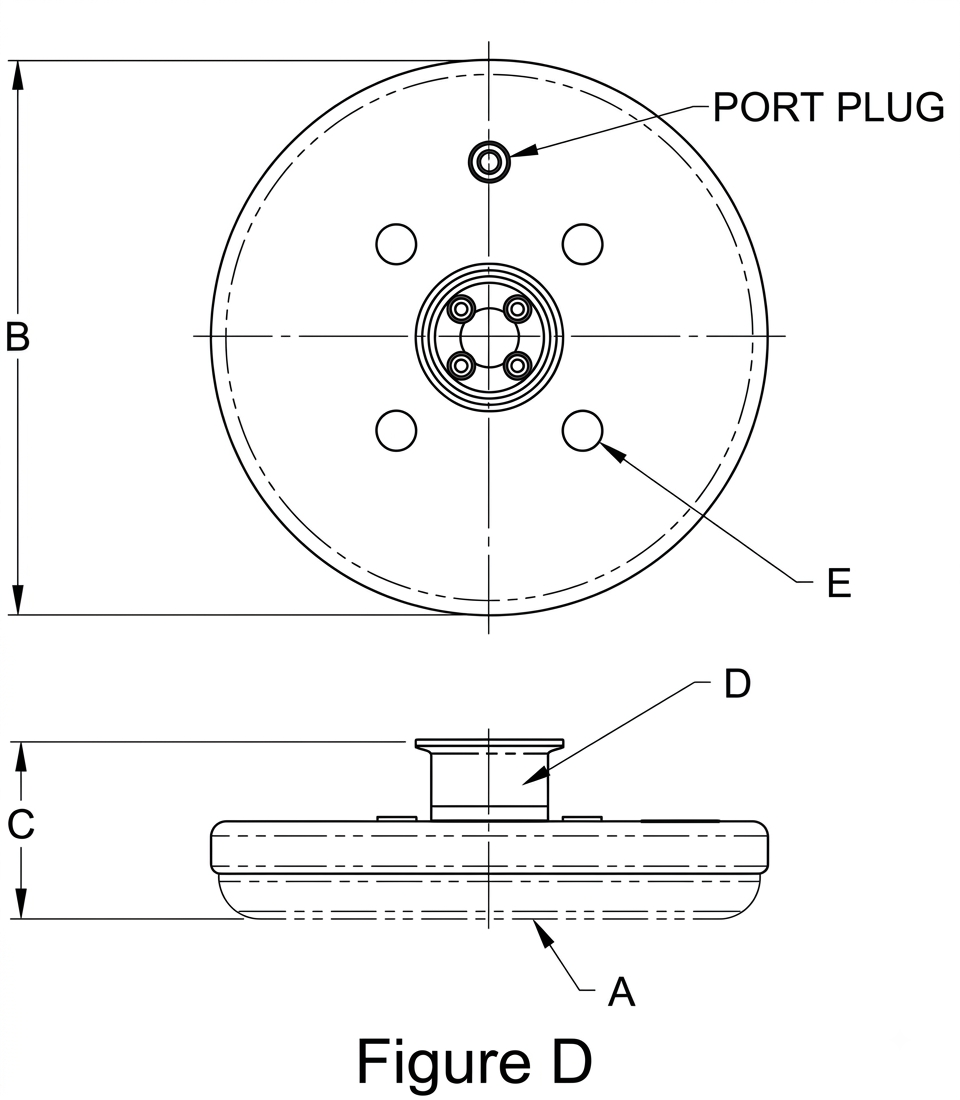

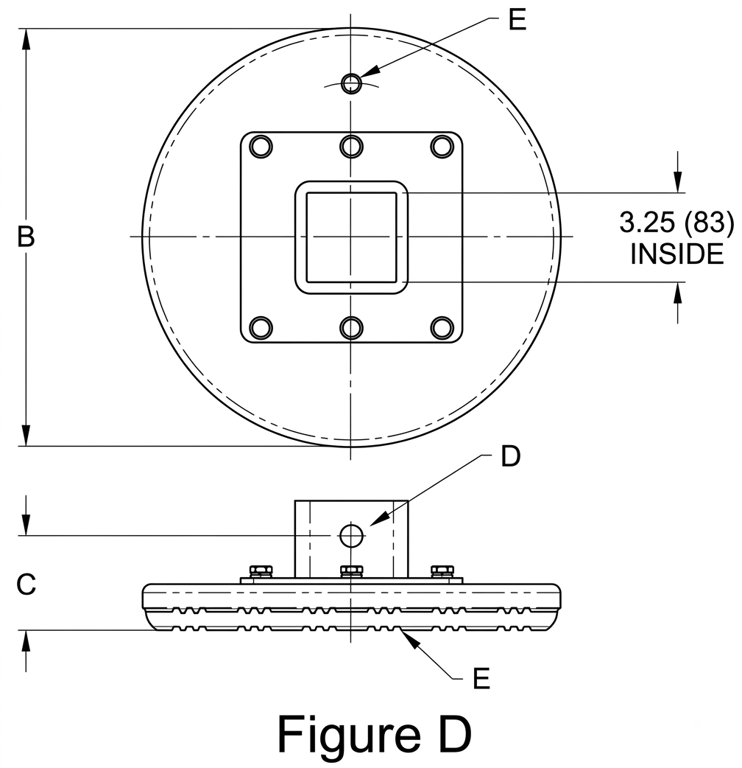

FP98 · FP98S · FP98C · T1-FP98 (Figure D)

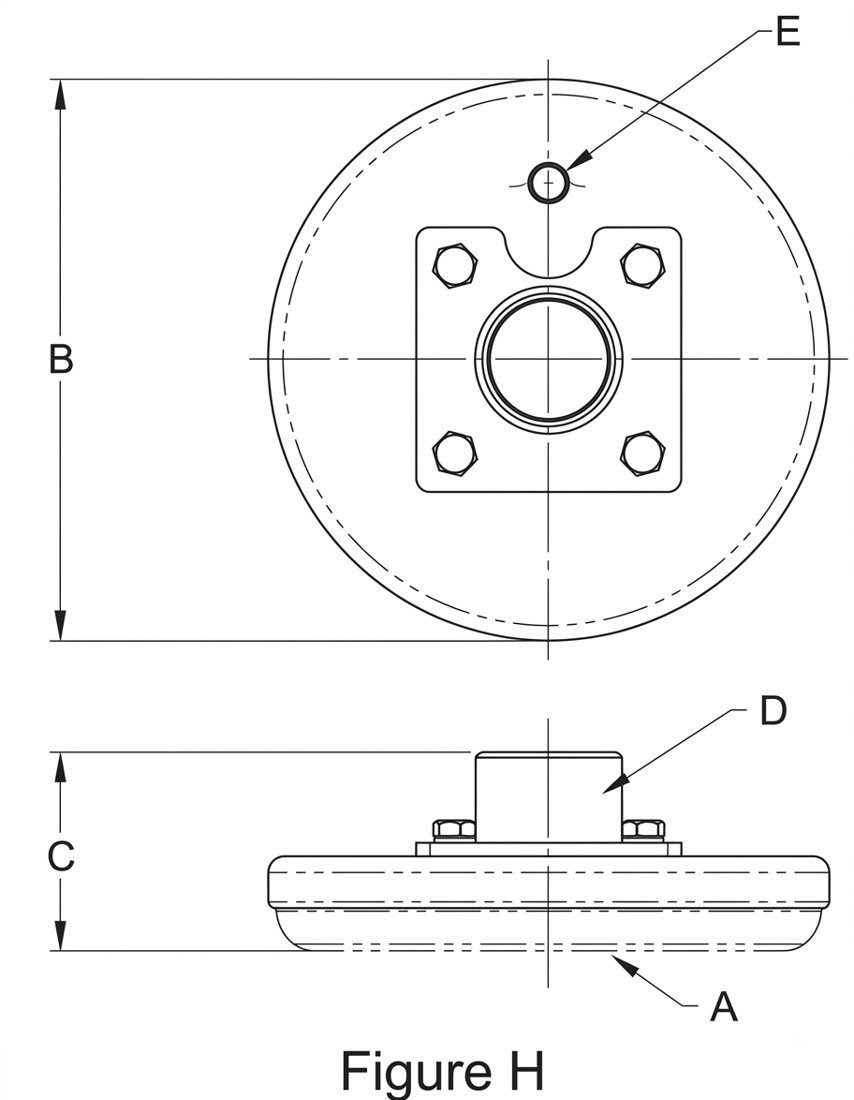

FP98 · FP98S · FP98C · T1-FP98 (Figure H)

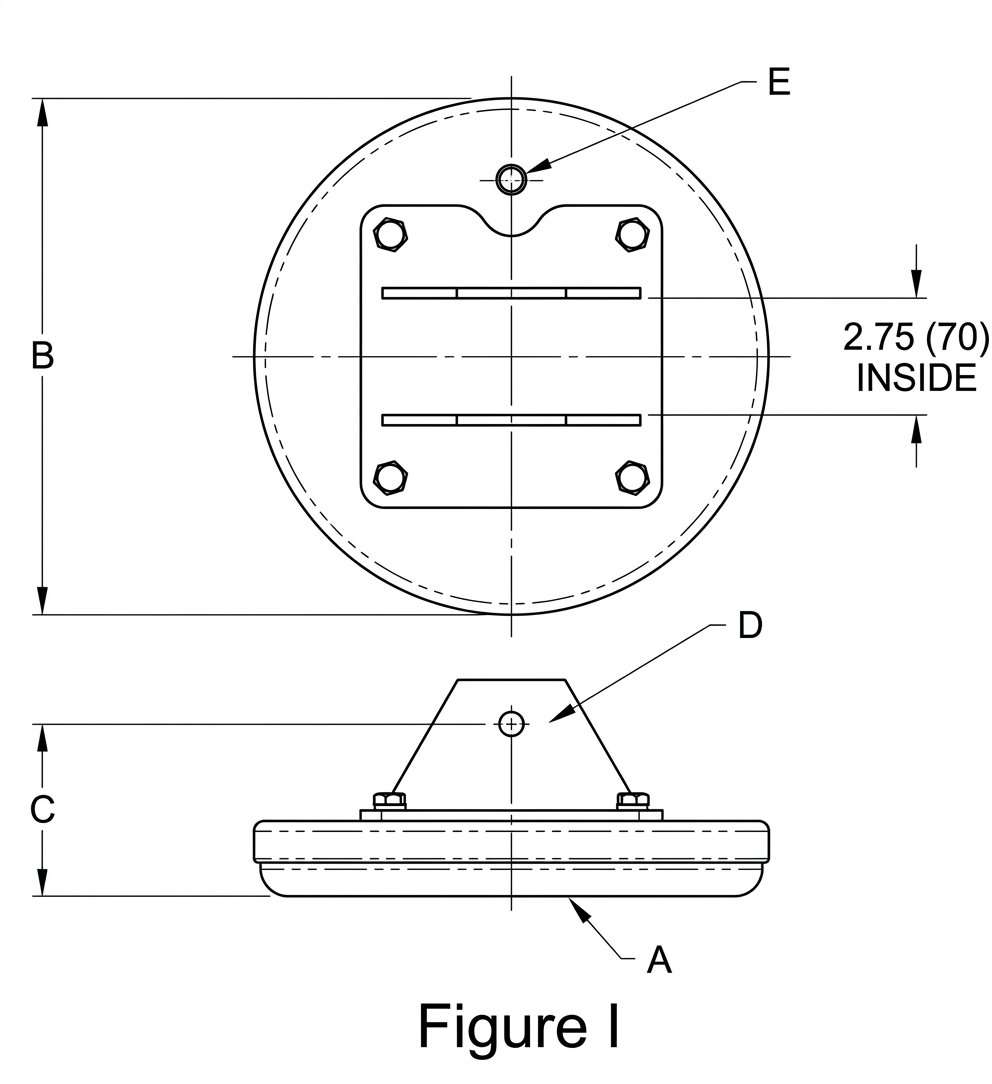

FP98 · FP98S · FP98C · T1-FP98 (Figure I)
FP128 · FP150

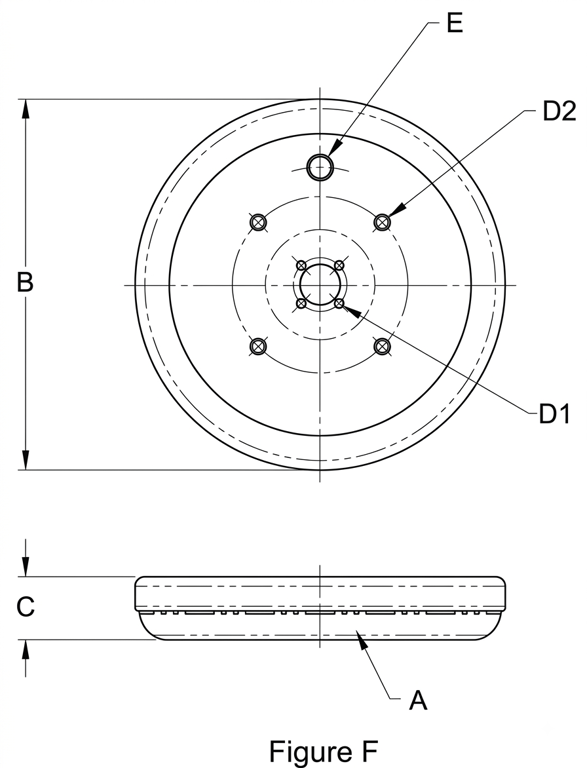

FP128 dimensions (Figure F)
FP128 dimensions (Figure C)

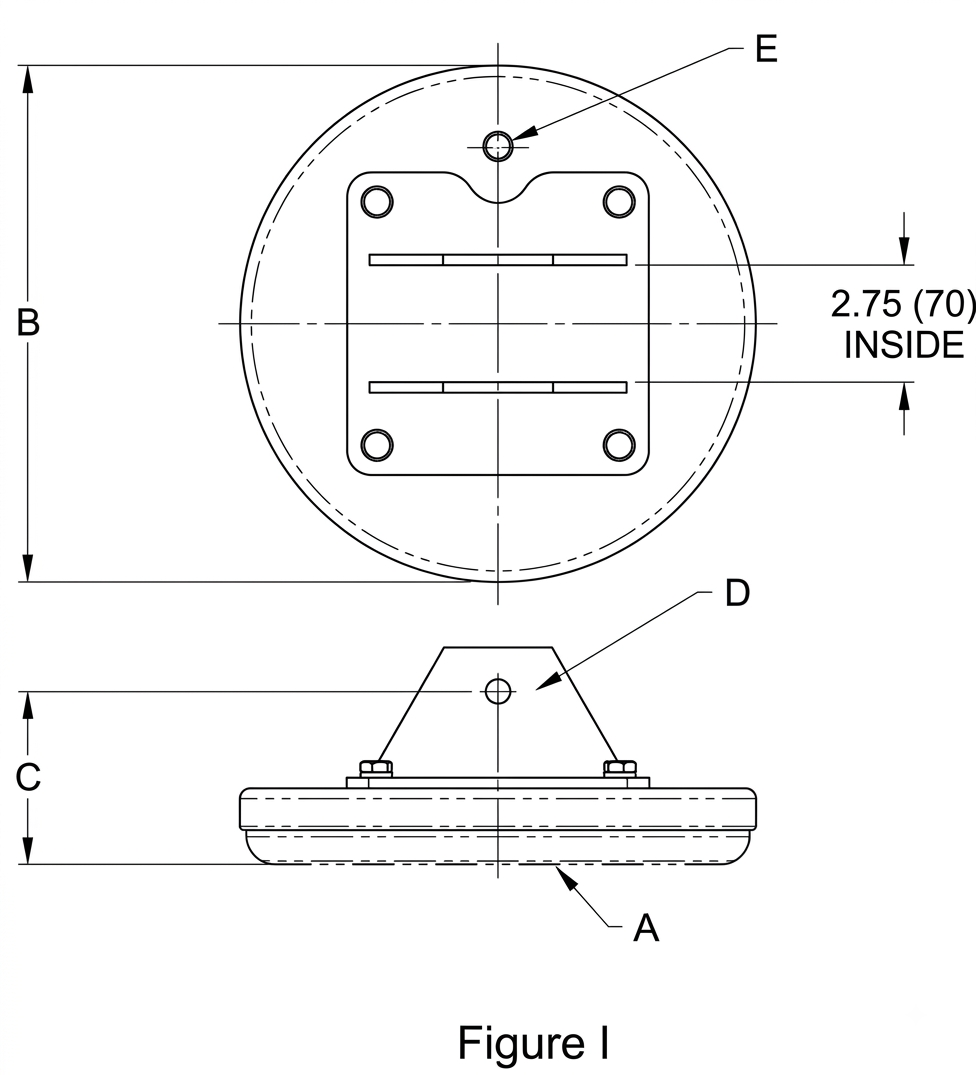

FP128 dimensions (Figure I)

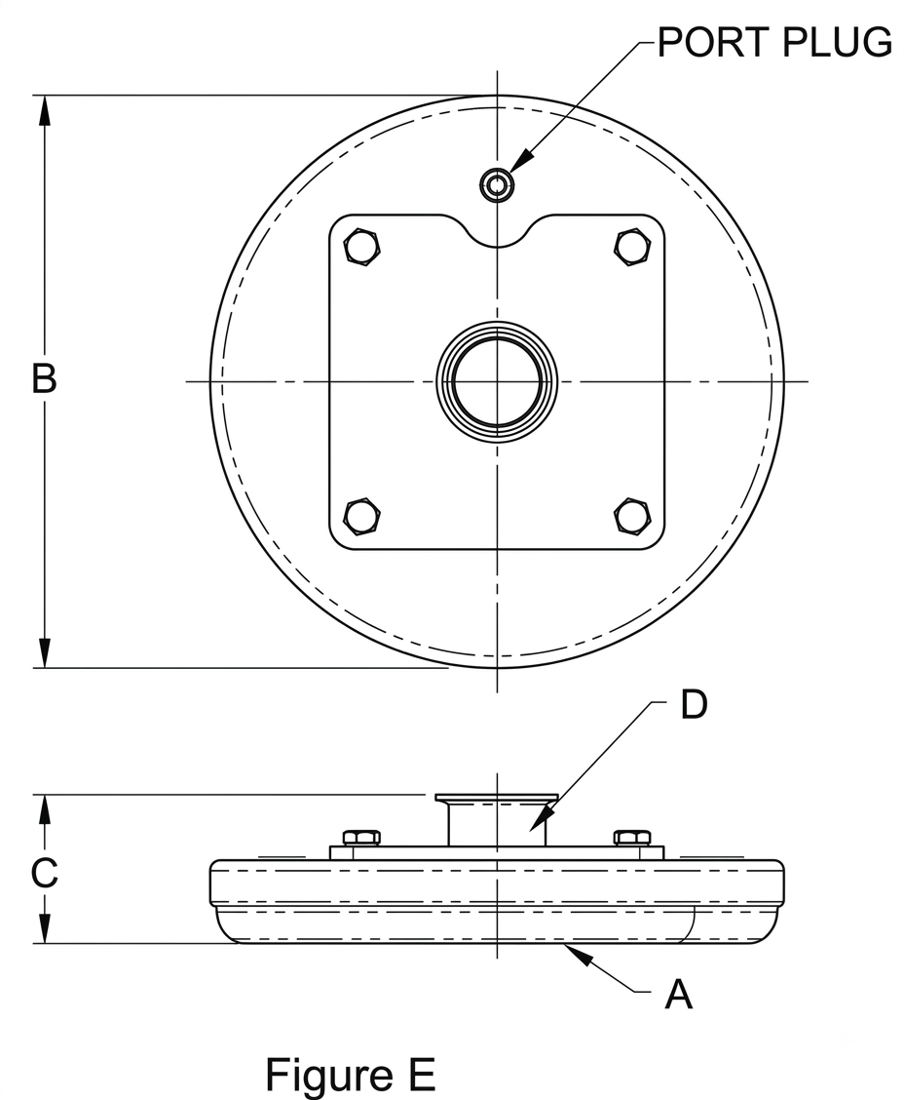

FP128 dimensions (Figure E)

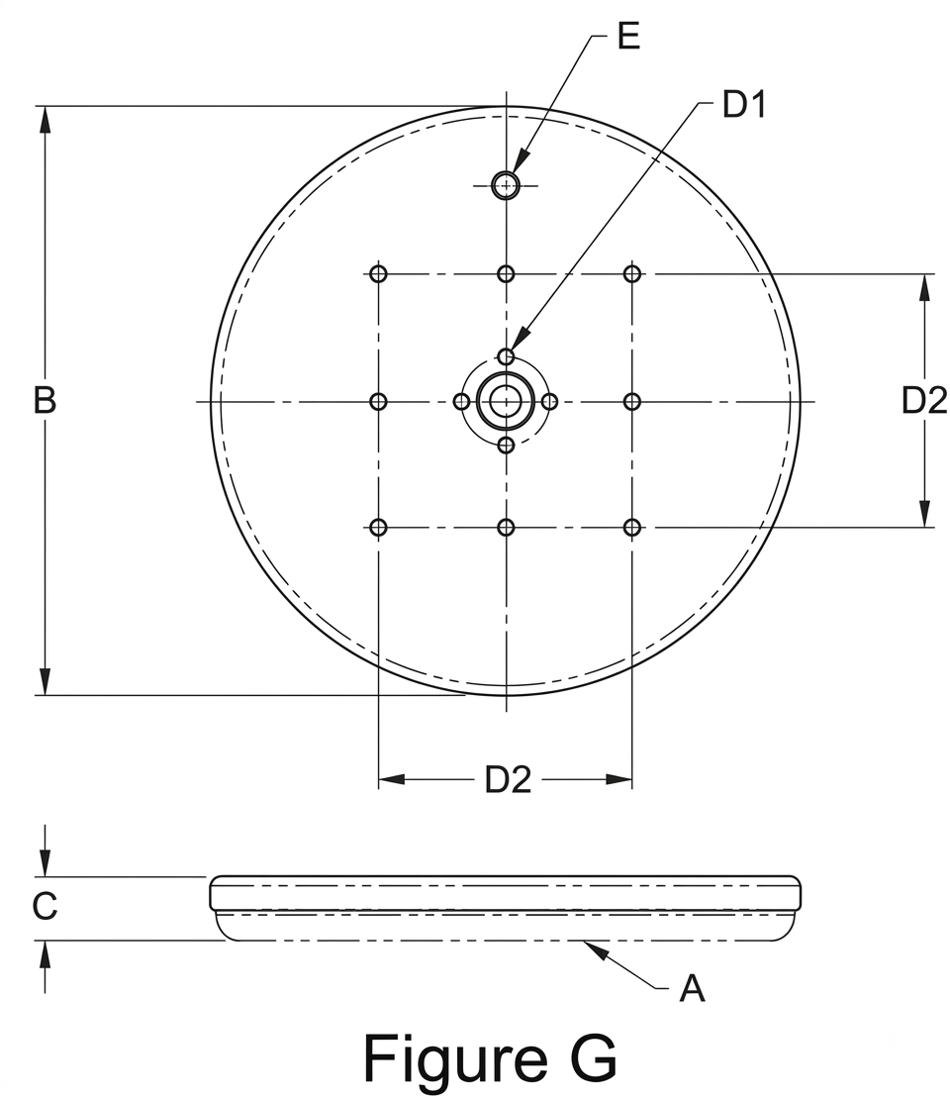

FP150 dimensions (Figure G)

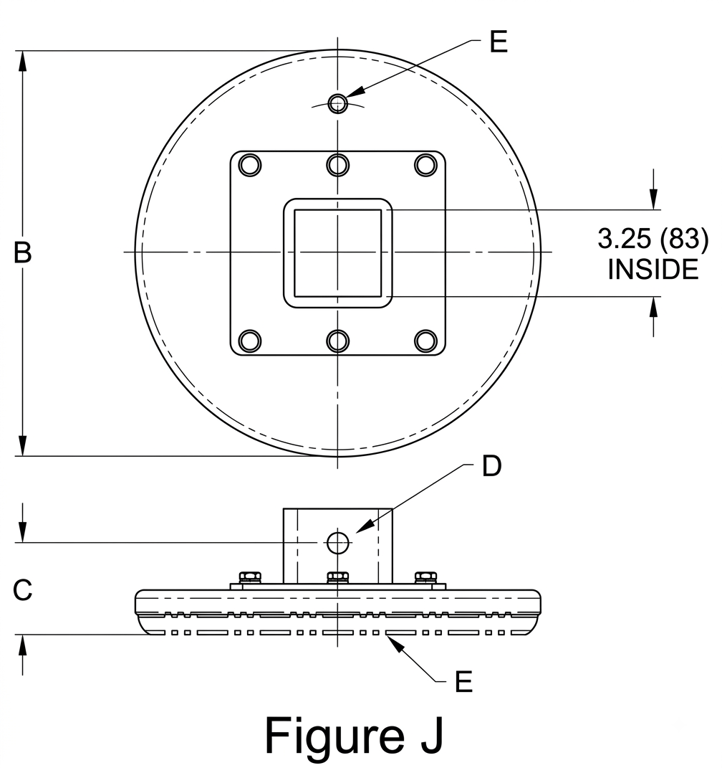

FP150 dimensions (Figure J)
FP150 dimensions (Figure D)
| FP Series round pads with ANDURASOFT® foam seals | ||||||||
|---|---|---|---|---|---|---|---|---|
| Vacuum pad number | Horizontal load capacity, SF2 lb (kg) | A – replacement seal number | B – pad diameter in. (mm) | C – height in. (mm) | D – mounting | E – vacuum port | Weight lb (kg) | Figure |
| FP28 and FP38 | ||||||||
| FP28 (76201055) | 20 (9) | FR28-K5 standard (24531332) | 3.00 (76) | 1.06 (27) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 1/4″ thru | 0.35 (0.16) | Figure A |
| FP38 (76201056) | 30 (13) | FR38-K5 standard (24531333) | 3.80 (97) | 1.06 (27) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 1/4″ thru | 0.62 (0.28) | Figure A |
| FP48 and FP58 | ||||||||
| FP48 (76201057) | 40 (18) | FR48-K5 standard (24531334) | 4.80 (122) | 1.19 (27) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 1/8″ NPT | 1.12 (0.51) | Figure B |
| FP58 (76201004) | 50 (23) | FR58-K3R standard (24531446) | 5.25 (133) | 1.50 (38) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 1/8″ NPT | 1.39 (0.63) | Figure B |
| T1-FP58 (75001838) | 25 (12) | FR58-K3R standard (24531446) | 5.25 (133) | 2.66 (68) | Quick release adapter with thru port | – | 1.81 (0.82) | Figure C |
| FP68 | ||||||||
| FP68 (76201005) | 75 (34) | FR68-K3R standard (24531447) | 6.25 (159) | 1.50 (38) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 1/4″ NPT | 2.03 (0.92) | Figure B |
| T1-FP68 (75001839) | 38 (17) | FR68-K3R standard (24531447) | 6.25 (159) | 2.66 (68) | Quick release adapter with thru port | – | 2.47 (1.12) | Figure C |
| FP78 | ||||||||
| FP78 (76201006) | 100 (45) | FR78-K3R standard (24531448) | 7.25 (184) | 1.50 (38) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 3/8″ NPT | 2.71 (1.23) | Figure B |
| T1-FP78 (75001840) | 50 (23) | FR78-K3R standard (24531448) | 7.25 (184) | 2.66 (68) | Quick release adapter with thru port | – | 3.15 (1.43) | Figure C |
| FP88 | ||||||||
| FP88 (76201007) | 150 (68) | FR88-K3R standard (24531449) | 8.25 (210) | 1.50 (38) | 12 mm ball swivel or rigid; M6×1.0 holes on 1.38 in. (35) bolt circle | 3/8″ NPT | 3.57 (1.62) | Figure B |
| T1-FP88 (75001841) | 75 (34) | FR88-K3R standard (24531449) | 8.25 (210) | 2.66 (68) | Quick release adapter with thru port | – | 4.03 (1.83) | Figure C |
| FP98 – seal FR98-K1R standard, FR98-K2C2 special (24531080) | ||||||||
| FP98 (76200967) | 200 (91) | FR98-K1R standard | 9.50 (241) | 1.50 (38) | D1 inner: 12 mm ball swivel or rigid, M6×1.0 on 1.38 in. (35) BC · D2 outer: quad mount M10×1.5 on 4.50 in. (114) BC | 3/8″ NPT | 4.63 (2.10) | Figure D |
| FP98S (76200971) | 200 (91) | FR98-K1R standard | 9.50 (241) | 3.63 (92) | Adapter for 3/4″ or 20 mm ball swivel suspension, for ball sockets and retaining ring | 3/8″ NPT | 7.83 (3.55) | Figure H |
| FP98C (76200972) | 200 (91) | FR98-K1R standard | 9.50 (241) | 5.53 (140) | Clevis mount suspension adapter | 3/8″ NPT | 7.82 (3.55) | Figure I |
| T1-FP98 (75001834) | 100 (45) | FR98-K1R standard | 9.50 (241) | 3.15 (80) | Quick release adapter with thru port | – | 5.07 (2.30) | Figure D |
| FP128 – seal FR128-K1R standard, FR128-K2C2 special (24531081) | ||||||||
| FP128 (76200968) | 300 (136) | FR128-K1R standard | 12.00 (305) | 1.50 (38) | D1 inner: 22 mm ball swivel or rigid, M10×1.5 on 2.25 in. (57) BC · D2 outer: quad mount M10×1.5 on 8.00 in. (203) BC | 3/8″ NPT | 10.45 (4.74) | Figure F |
| FP128S34 (76200974) | 300 (136) | FR128-K1R standard | 12.00 (305) | 1.58 (41) | Adapter for 3/4″ or 20 mm ball stud suspensions | 3/8″ NPT | 8.99 (4.08) | Figure H |
| FP128C (76200975) | 300 (136) | FR128-K1R standard | 12.00 (305) | 5.53 (140) | Clevis mount suspension adapter | 3/8″ NPT | 15.83 (7.18) | Figure I |
| T1-FP128 (75001828) | 150 (68) | FR128-K1R standard | 12.00 (305) | 3.15 (80) | Quick release adapter with thru port | – | 12.44 (5.64) | Figure E |
| FP150 – seal FR150-K1R standard, FR150-K2C2 special (24531082) | ||||||||
| FP150 (76200969) | 550 (249) | FR150-K1R standard | 15.00 (381) | 1.50 (38) | D1 inner: 22 mm ball swivel or rigid, M10×1.5 on 2.25 in. (57) BC · D2 outer: pattern mount (8) M10×1.5 on 6.25 in. (159) square | 3/8″ NPT | 14.42 (6.54) | Figure G |
| FP150C (76200978) | 550 (249) | FR150-K1R standard | 15.00 (381) | 3.40 (86) | Two position clevis hanger adapter for 2-1/2″ square tubing | 3/8″ NPT | 19.82 (8.99) | Figure J |
| T1-FP150 (75001835) | 275 (125) | FR150-K1R standard | 15.00 (381) | 3.15 (80) | Quick release adapter with thru port | – | 12.44 (5.64) | Figure D |
*Capacity basis – the capacities shown are based on 22″ Hg at sea level with a safety factor of two (2) horizontal (flat) and four (4) vertical. Vertical load capacity is half the listed horizontal figure. Rated capacities are estimates; actual capacity varies with the load type and surface, the vacuum level, altitude and other conditions. Extra capacity is always recommended where possible, to increase the load holding safety factor.
Suspensions & Mounting Adapters
FP28 and FP38
Swivel or rigid suspensions in the SM10E18 / RM10E18 range for the FP28, and SM10E / RM10E for the FP38. Suspension adapter VPHA138S12M12NPT18.
FP48 to FP88
Swivel SM10E / SM10A and rigid RM10E / RM10A suspensions. Swivel adapter VPHA138S12M12; rigid adapters VPHA138RM12, VPHA138R12-13, VPHA138R58-11, VPHA138RM20, VPHA138R34-10.
FP98
Swivel SM10A and rigid RM10A suspensions, with the same VPHA138 adapter family as the mid sizes.
FP128 and FP150
Swivel SM20C and rigid RM20C suspensions. Swivel adapter VPHA214S34M20; rigid adapters VPHA214RM20, VPHA214R34-10, VPHA214RNPT12.
S and S34 versions
Bolt-on adapter for a 3/4″ or M20 ball swivel suspension with sockets and retaining ring – for replacing a previous style foam vacuum pad.
C and T1 versions
C versions carry a bolt-on clevis hanger adapter for 2-1/2″ square tubing. T1 versions carry a bolt-on adapter with quick disconnect coupling for VB and VT “Hi-Flow” systems.
Contact FULL-SHARP with the load surface, size and weight and we will confirm the pad, the ANDURASOFT® seal number and the suspension assembly.
