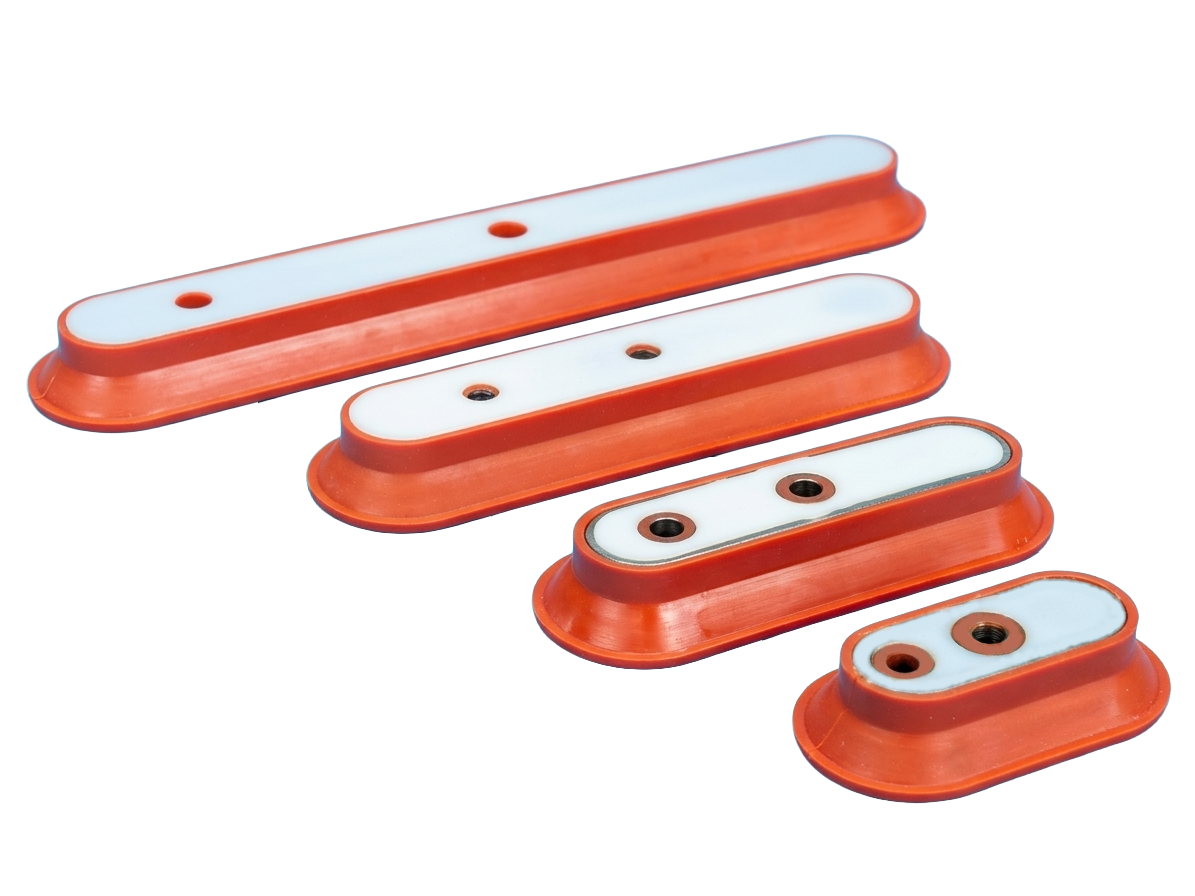

OVAL & RECTANGULAR VACUUM CUPS – OC SERIES
Oval and rectangular vacuum cups and pad attachments for long, narrow loads
Product Overview
OC Series oval cups
The ANVER OC Series covers a wide range of oval and rectangular vacuum cups, designed specifically for handling long, narrow loads that a standard round cup cannot hold securely.
Oval and rectangular cups are available in many sizes and in different rubber compounds (Nitrile / NBR, Silicone, EPDM, Polyurethane). They fit most vacuum lifting systems and handle a broad range of materials.
Typical applications: long steel bar, aluminium tube, narrow timber board, long glass panel, oval packages and carton packaging products.
*Note – the FULL-SHARP sales engineering team will help you select the most suitable cup for the specific application in your plant.
Eight OC Series Product Lines
Small Oval Cups
Small Oval Cups with Snap-On Reusable Fittings
Small oval cups with reusable snap-on fittings – ideal for handling light, long and narrow loads.
OC55 Series – Medium Oval
OC55 Series Medium Oval Cups
Made for the paper and carton industry. Medium size, with high holding force on flat surfaces.
Medium Oval with Bonded Seals
Medium Oval Vacuum Cups With Bonded Seals
Oval cups with a bonded sealing ring – more durable, and the seal will not peel away in heavy duty service.
Medium Rectangular Slip-On
Medium Rectangular Cups With Slip-On Seals
Medium rectangular cups with slip-on seals that are quick to remove and replace – lower maintenance cost.
Oval Bolt-On Pads
Oval Bolt-On Pad Attachments
Oval pads that bolt directly onto the crossarm or lifter frame – firmly fixed, with no slipping.
Hinged Oval Cups
Hinged Oval Cups
A self-adjusting hinge mechanism compensates for angle on a tilted load or a surface that is not perfectly flat.
Large Capacity Rectangular
Large Capacity Rectangular Vacuum Pads
VP 9-12 Series – large capacity rectangular pads for steel plate, wide glass and composite panels.
Slip-On Foam Pads
Rectangle Vacuum Pads with Slip-On Foam Seals
Rectangular pads with slip-on foam – suited to rough, uneven or perforated surfaces.
Rubber Materials Available
NBR – Nitrile
General purpose – oil and abrasion resistant. The most common choice for metal.
SIT – Silicone
High temperature resistance, food grade, leaves no marks on the load.
EPDM – Ethylene Propylene
Resistant to UV, ozone and chemicals – good for outdoor work.
PU – Polyurethane
High durability with outstanding abrasion resistance.
Contact FULL-SHARP with your load size, weight and surface condition and we will confirm the cup size, shape and rubber compound.
