SIDE-GRIP VACUUM LIFTING FRAMES
Two pad side gripping attachments and rotators – L16M2, L27.5M2 and L50M2, 160 to 500 lb
Product Overview
L16M2 side grip frame
ANVER side-grip lifting frames use a spreader beam with adjustable crossarms, carrying vacuum pads on both sides to handle products that cannot be lifted from the top face. They suit loading and unloading shipping containers and palletising work.
A side-grip frame removes the need for several operators on the job. Typical applications include metal cabinets with vented tops, filing cabinets and HVAC equipment, and any other product whose upper surface is not sound enough to carry the load safely.
*Note – frames are shown with vacuum generators and / or optional accessories that are not part of the standard product. Unit weights do not include optional equipment.
Load suitability – the side panels, hardware and assembly of the load must be strong enough to be lifted from both sides. It is the customer’s responsibility to confirm the product can be handled this way without damage.
Common Features
01 – Generator compatibility
Works with a wide range of standard ANVER vacuum generators.
02 – Adjustable crossarms
Crossarms adjust along the length of the spreader beam.
03 – Lockable shut-off valve
Lockable shut-off valve and vacuum gauge mounted on the swivelling crossarm.
04 – Crossarm handles
Positioning handles on the crossarms for easy adjustment.
05 – Beam end handles
Positioning handles at the ends of the spreader beam.
06 – Knock down for shipping
Can be disassembled to pack into a smaller crate for transport.
Series Dimensions & Capacities

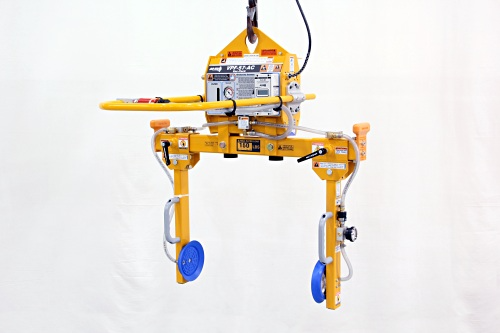

L16M2 series – rated capacity 160 lb [73 kg]

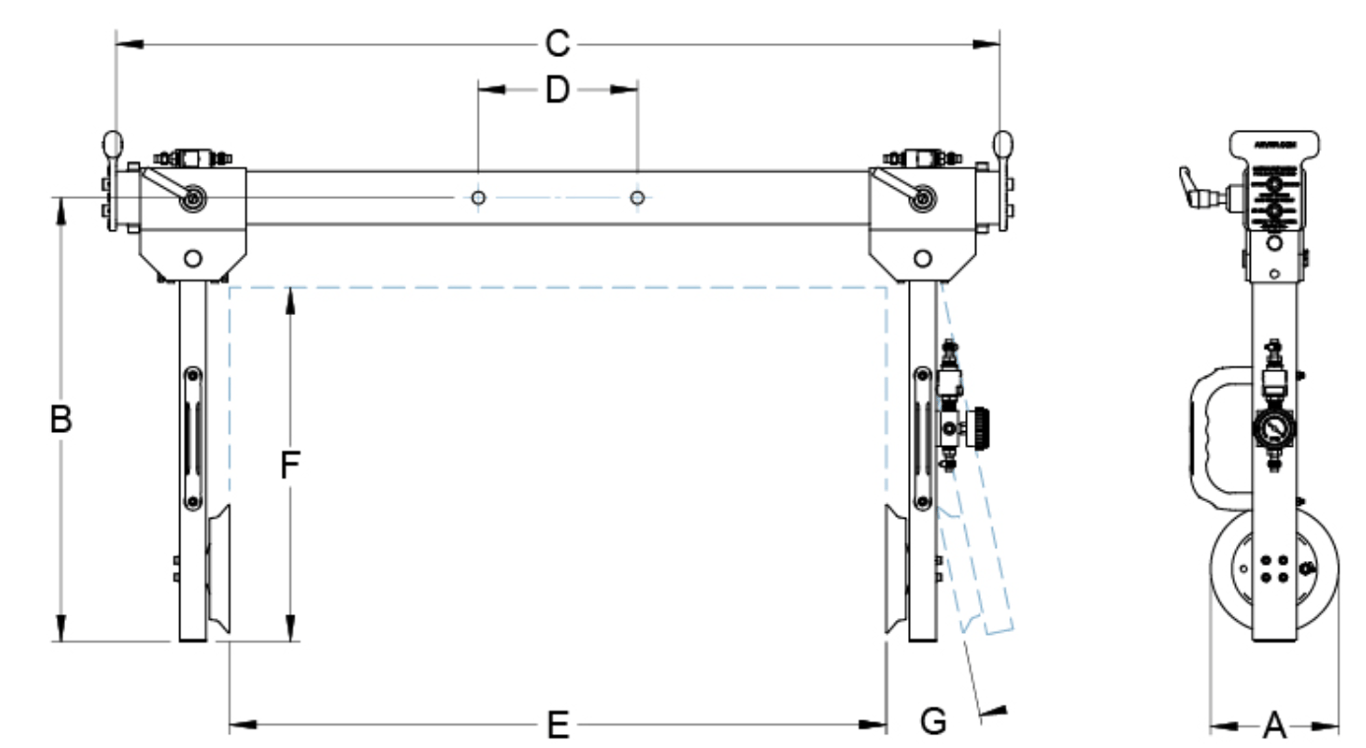

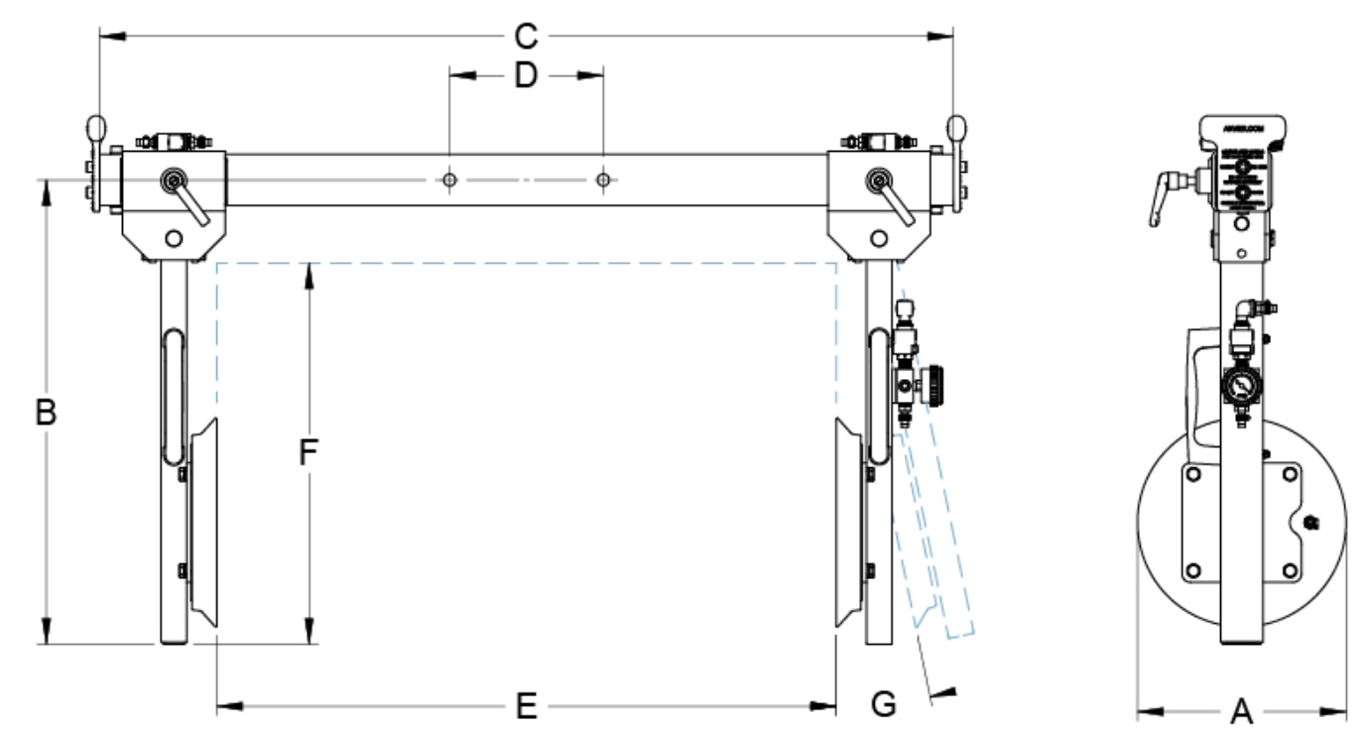

L16M2 dimensions
| L16M2 side grip series – 160 lb [73 kg] | |||
|---|---|---|---|
| Specification | L16M2-48SG | L16M2-61SG | L16M2-86SG |
| Rated capacity | 160 lb [73 kg] | 160 lb [73 kg] | 160 lb [73 kg] |
| Unit weight | 70 lb [32 kg] | 85 lb [39 kg] | 100 lb [46 kg] |
| A – pad diameter | 7.00 in. [178 mm] | 7.00 in. [178 mm] | 7.00 in. [178 mm] |
| B – headroom | 26 in. [660 mm] | 26 in. [660 mm] | 26 in. [660 mm] |
| C – beam length | 50 in. [1,270 mm] | 63 in. [1,600 mm] | 88 in. [2,235 mm] |
| D – mounting hardware centres | 9 in. [229 mm] | 9 in. [229 mm] | 9 in. [229 mm] |
| E – pad spacing, min / max | 18 / 37 in. [457 / 939 mm] | 18 / 50 in. [457 / 1,270 mm] | 18 / 75 in. [457 / 1,905 mm] |
| F – maximum lifter reach | 20 in. [508 mm] | 20 in. [508 mm] | 20 in. [508 mm] |
| G – maximum arm swing angle | 10° | 10° | 10° |
| Sealing ring number | SSR-72 | SSR-72 | SSR-72 |

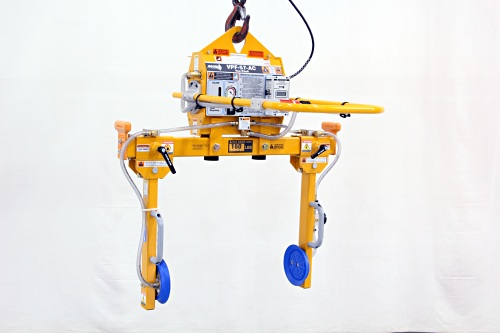

L27.5M2 series – rated capacity 275 lb [125 kg]

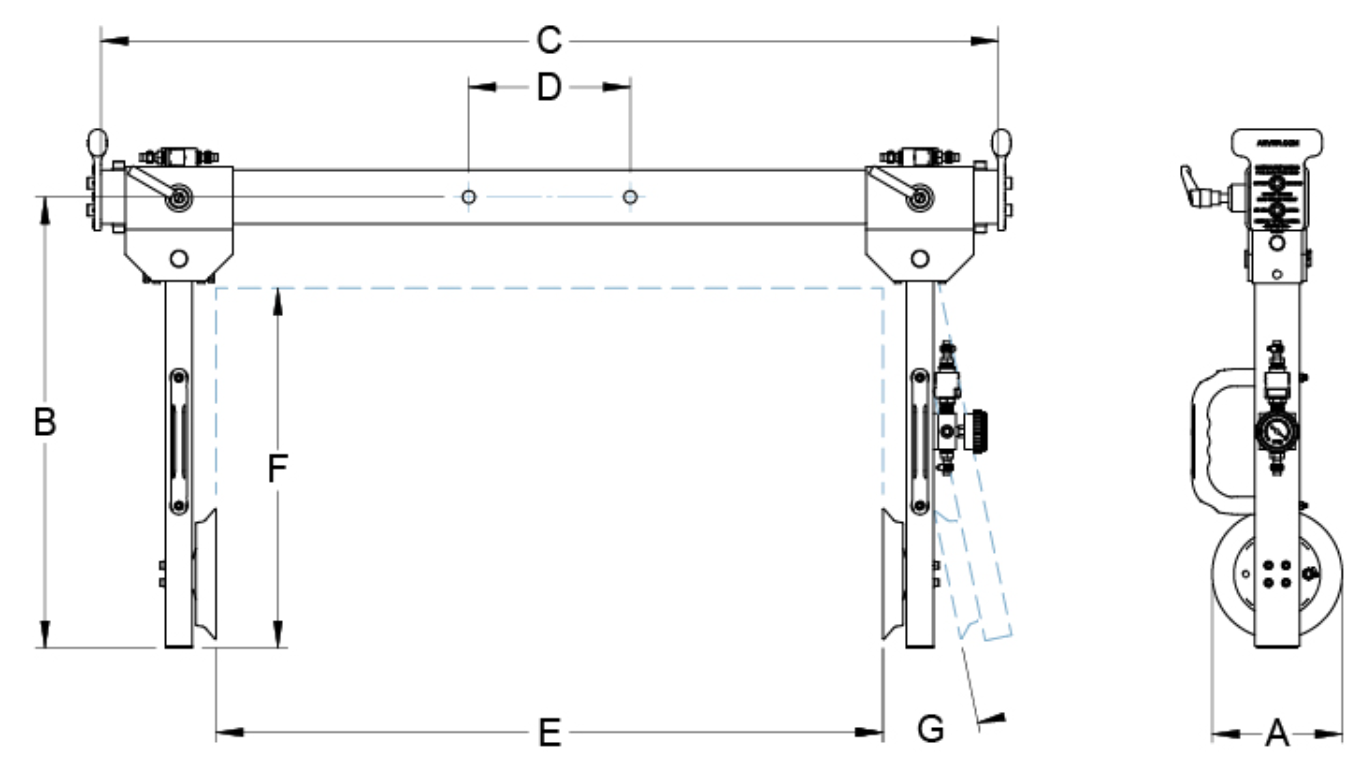

L27.5M2 dimensions
| L27.5M2 side grip series – 275 lb [125 kg] | |||
|---|---|---|---|
| Specification | L27.5M2-48SG | L27.5M2-61SG | L27.5M2-86SG |
| Rated capacity | 275 lb [125 kg] | 275 lb [125 kg] | 275 lb [125 kg] |
| Unit weight | 70 lb [32 kg] | 85 lb [39 kg] | 100 lb [46 kg] |
| A – pad diameter | 9.25 in. [235 mm] | 9.25 in. [235 mm] | 9.25 in. [235 mm] |
| B – headroom | 28 in. [712 mm] | 28 in. [712 mm] | 28 in. [712 mm] |
| C – beam length | 50 in. [1,270 mm] | 63 in. [1,600 mm] | 88 in. [2,235 mm] |
| D – mounting hardware centres | 9 in. [229 mm] | 9 in. [229 mm] | 9 in. [229 mm] |
| E – pad spacing, min / max | 18 / 37 in. [457 / 939 mm] | 18 / 50 in. [457 / 1,270 mm] | 18 / 75 in. [457 / 1,905 mm] |
| F – maximum lifter reach | 20 in. [508 mm] | 20 in. [508 mm] | 20 in. [508 mm] |
| G – maximum arm swing angle | 10° | 10° | 10° |
| Sealing ring number | SSR-92 | SSR-92 | SSR-92 |

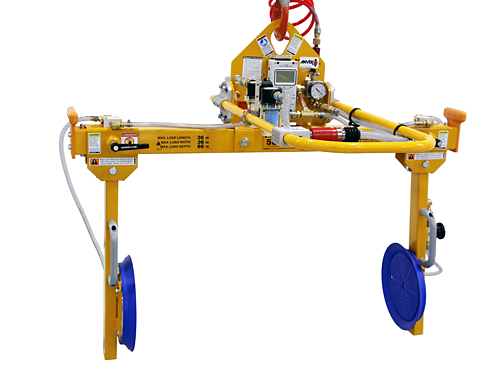

L50M2 series – rated capacity 500 lb [227 kg]
L50M2 dimensions
| L50M2 side grip series – 500 lb [227 kg] | |||
|---|---|---|---|
| Specification | L50M2-48SG | L50M2-61SG | L50M2-86SG |
| Rated capacity | 500 lb [227 kg] | 500 lb [227 kg] | 500 lb [227 kg] |
| Unit weight | 75 lb [34 kg] | 90 lb [41 kg] | 105 lb [48 kg] |
| A – pad diameter | 12.6 in. [321 mm] | 12.6 in. [321 mm] | 12.6 in. [321 mm] |
| B – headroom | 28 in. [712 mm] | 28 in. [712 mm] | 28 in. [712 mm] |
| C – beam length | 50 in. [1,270 mm] | 63 in. [1,600 mm] | 88 in. [2,235 mm] |
| D – mounting hardware centres | 9 in. [229 mm] | 9 in. [229 mm] | 9 in. [229 mm] |
| E – pad spacing, min / max | 18 / 36 in. [457 / 914 mm] | 18 / 49 in. [457 / 1,244 mm] | 18 / 74 in. [457 / 1,879 mm] |
| F – maximum lifter reach | 22 in. [558 mm] | 22 in. [558 mm] | 22 in. [558 mm] |
| G – maximum arm swing angle | 10° | 10° | 10° |
| Sealing ring number | SSR-126 | SSR-126 | SSR-126 |
Compatible Vacuum Generators

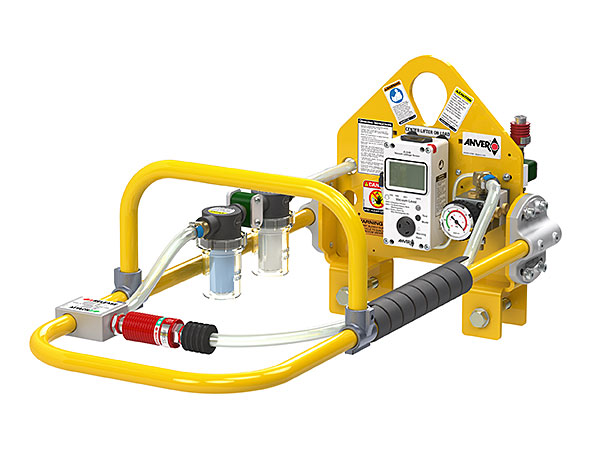

VPFL4 series
- Up to 2,200 lb [998 kg] on a 3″ [76 mm] square beam
- Energy saving with quiet automatic shut-off
- Light weight, low headroom, rugged construction
- Easy access to the dual vacuum filters
- Front mounted gauge
- Ergonomic front handle
- Control slide valve with safety lock
- Vacuum check valve
- Vacuum leak sensor system

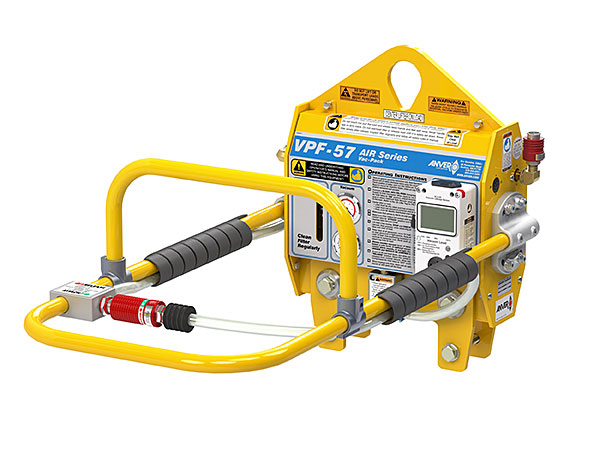

VPF-57 series
- Up to 4,400 lb [1,996 kg]
- Mounting – 3″ × 3″ beam [2,200 lb / 998 kg] or 3″ × 6″ beam [4,400 lb / 1,996 kg]
- Energy saving with quiet automatic shut-off
- Front mounted controls and gauge
- Ergonomic front handle
- Control slide valve with safety lock
- Vacuum check valve and reservoir
- Vacuum leak sensor system

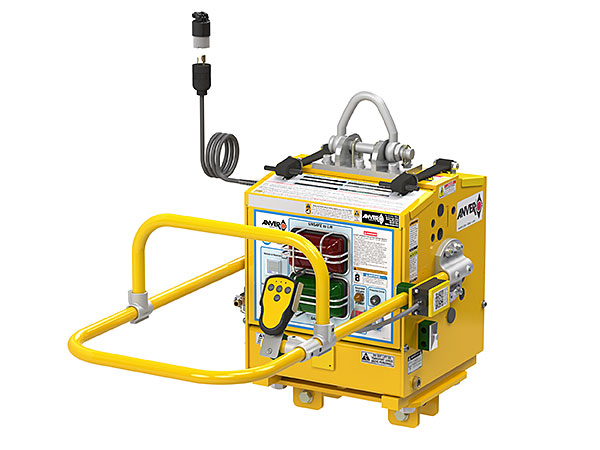

VPE1-GEN3 series
- Up to 4,600 lb [2,090 kg]
- Mounting – 3″×3″ [2,200 lb / 998 kg], 3″×6″ [4,600 lb / 2,087 kg], 5″×7″ [4,600 lb / 2,087 kg]
- Voltage – 115V/1PH/60Hz or 220–240V/1PH/50–60Hz
- Vacuum control with energy saving and quiet automatic shut-off
- Load sensing bail hook with safety lock
- Four control types – automatic electric cycle, pendant, radio, or customer integrated radio
- Front control panel, gauge and indicator lights
- Vacuum hold and thermal overload protection
- Adjustable ergonomic front handle
- Twist-lock plug
- Audible vacuum leak alarm system

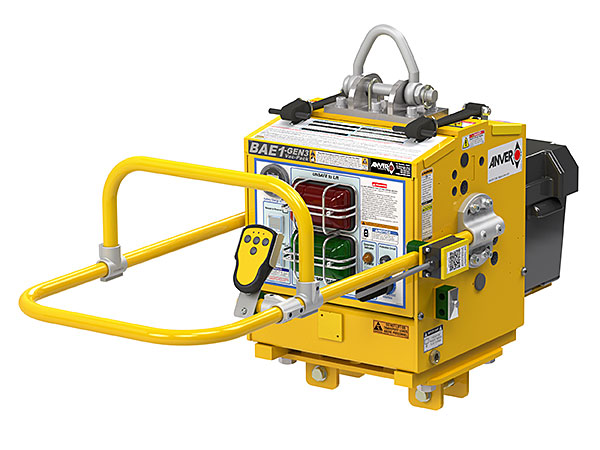

BAE1-GEN3 series
- Up to 4,600 lb [2,090 kg]
- Power – rechargeable battery, no external supply needed
- Mounting – 3″×3″ [2,200 lb / 998 kg], 3″×6″ [4,600 lb / 2,087 kg], 5″×7″ [4,600 lb / 2,087 kg]
- Vacuum control with energy saving and quiet automatic shut-off
- Load sensing bail hook with safety lock
- Four control types – automatic electric cycle, pendant, radio, or customer integrated radio
- Front control panel, gauge and indicator lights
- Vacuum hold and thermal overload protection
- Adjustable ergonomic front handle
- Twist-lock plug and audible vacuum leak alarm
- Removable battery box cover and battery cable plug
Extended Side-Grip Configurations
Beyond the standard L16M2 / L27.5M2 / L50M2 range, ANVER supplies many custom side-grip configurations for special applications – including versions with manual rotation, powered rotation, or a side-grip head combined with a vacuum tube lifter system (VT / VM / VB series).
Three main configuration groups
Basic side-grip
Powered side gripping vacuum lifters.
- E20M2-24SGOC
- E22M2-48SG
- A25M2-45SG
- E50M2-36SG / -45SG / -48ASG
- E50M2-60-SG / -61SG / -75SG / -86SG
- A50M2-61-SG-SP
- E50M2-110ASG
- A120M2-72-SG
- VPE1-FV with LB60M6-36SG
- VPF-57-AC with PAOC32-150-6-SG
With manual rotation
Side-grip head rotated by hand.
- E10M2-SGMR
- A10M2-40SGMROT
- E15M2-52-ASG-MR
- E30M2-52-ASG-MR
- E30M2ASG-ROT
- E50M2-61-SG-MR
- A50M2-61SG-MR
- E50M2-94ASG / -100ASG
- E50M2-136SGMROT
- E60M4-48-SGMR
- E80M2-126-SGMR
- E100M4-ASG-SP
With powered rotation
Side-grip head rotated under power.
- E10-PROT-CA-SP
- E25M2-40-ASG-PR
- E50M2-98SG-PR
- E60M2-184SG-PR
- E60M4-170-SGPROT-SP
- E150M2-60-SGPROT
- E310M2-86-SGPROT
- E80M4-160-2/75-ASG-PROT
Contact FULL-SHARP for advice on the side-grip configuration that fits your application – we will come back to you as quickly as possible.
