EZ-TILT MANUAL TILTING VACUUM LIFTERS
Powered vacuum lifters with EZ-Tilt – one person manipulation, horizontal and vertical
Product Overview

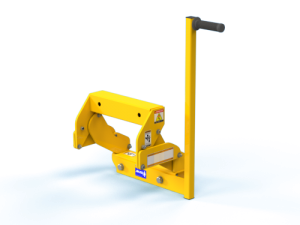

EZ-Tilt vacuum lifter
ANVER EZ-Tilt vacuum lifters are built to tilt and hold a load horizontally or vertically by hand. They suit fast, efficient handling of small, thin loads by a single operator.
The unique quadro-link mechanism gives a mechanical advantage, so very little operator effort is needed to tilt in either direction. The lifter has an attach/release valve with a safety lock and a long handle that keeps the operator at a safe distance from the load.
Lifting charts
Vacuum pad derating – pads rated for horizontal lifting must be derated by 50% for vertical and tilting applications.
Made in USA – contact FULL-SHARP for help selecting the Vac-Pack, pad and adapter for your material.
EZ-TILT-3X3 Specifications
Maximum capacity
500 lb [227 kg] with a single round or oval pad.
Maximum load thickness
1 in. [25.4 mm].
Pad derating
Vacuum pads must be derated 50% for vertical and tilting applications.
Operator benefit
Saves labour and handles the load without marking or damaging it.
Modular System – Three Steps
Thousands of combinations are built from three choices: the vacuum source, the lifting element and the adapter.
Step 1 – choose the Vac-Pack
- VPFL4 – air or electric
- VPF-57-AIR – air powered
- VPF-57-AC – electric
- VPF-57-DC – battery
Step 2 – choose the pad or frame
- Single round pad (rubber)
- Single rectangular pad
- Round or rectangular foam pads
- Lifting frames L100M2 / L100M4
Step 3 – choose the adapter
- EZTILT-3X3 – 3″ × 3″ adapter

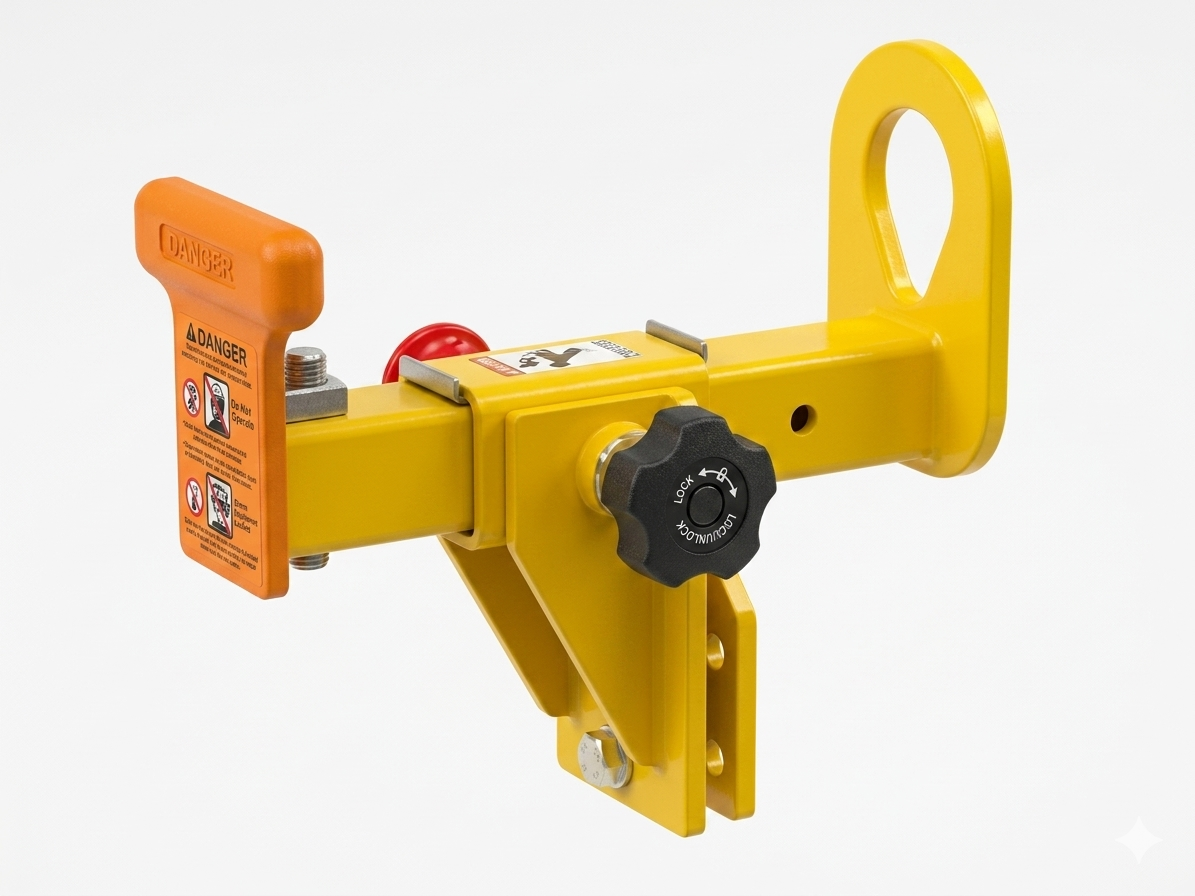

- OBA-1 – offset bail attachment

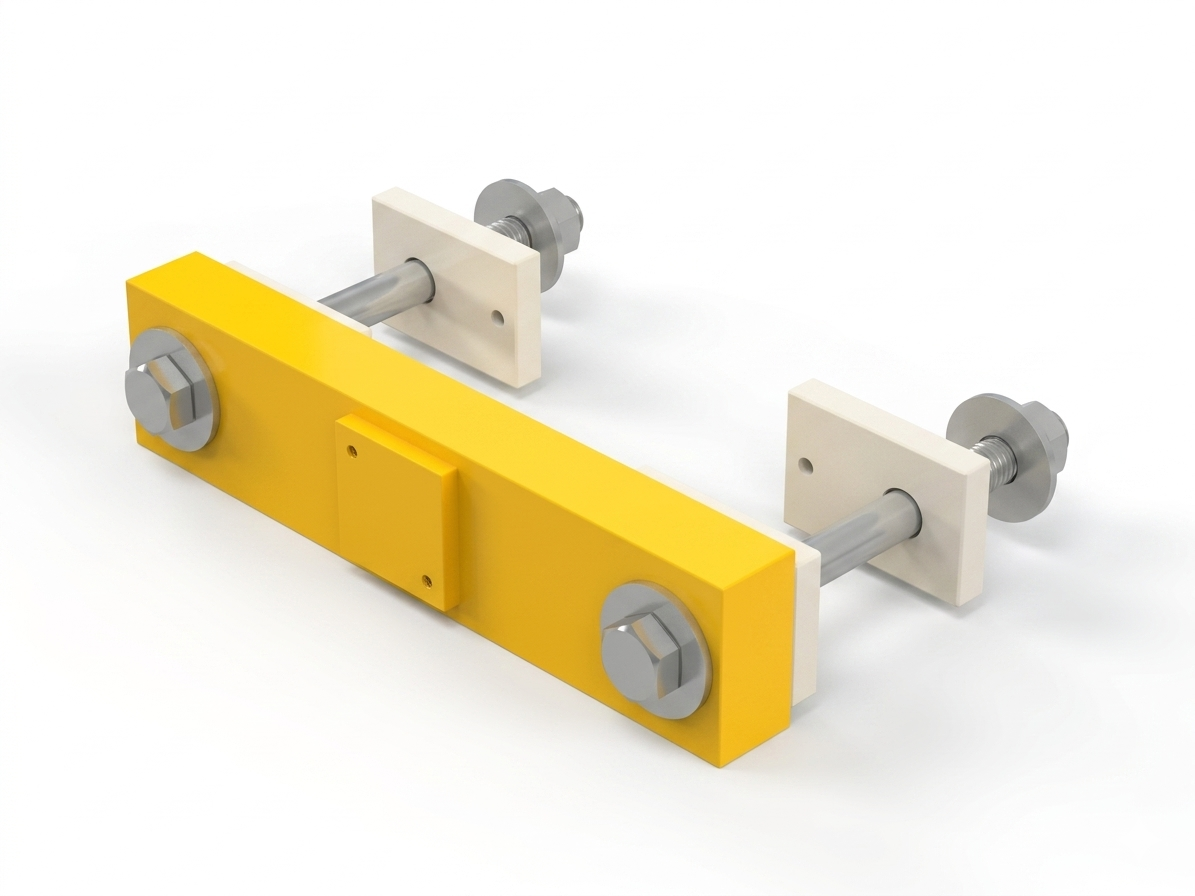

- EZTILT-CW – counterweight assembly
EZV-3X3 Vertical Lifting Adapter
VPFL4 with EZV-3X3
This adapter kit converts a standard horizontal lifter into a vertical lifter, for one person handling of loads carried on edge.
- Maximum capacity – 2,200 lb [998 kg]
- Unit weight – 18 lb [8 kg]
- Pads and frame must be specifically designed for vertical applications
- Horizontal pads must be derated 50% when used vertically
- Compatible with the VPFL4 series and VPF-57 series
EZTILT Adapter & Accessories
| Adapter | Description |
|---|---|
 EZTILT-3X3 |
EZ-Tilt adapter for manual vertical and horizontal tilting of the load. |
| Offset bail attachment, adjustable for standard Vac-Packs. | |
| Counterweight assembly for the EZ-Tilt adapter. For use with all single round or oval pads up to 500 lb [227 kg]. |
Contact FULL-SHARP with your material size, weight, thickness and surface condition and we will confirm the pad, Vac-Pack and adapter combination.
