ANVER VACUUM COIL & ROLL LIFTERS
Damage free handling of metal, film, paper and fabric rolls – capacities to 40,000 lb
Product Overview
Vacuum coil lifter

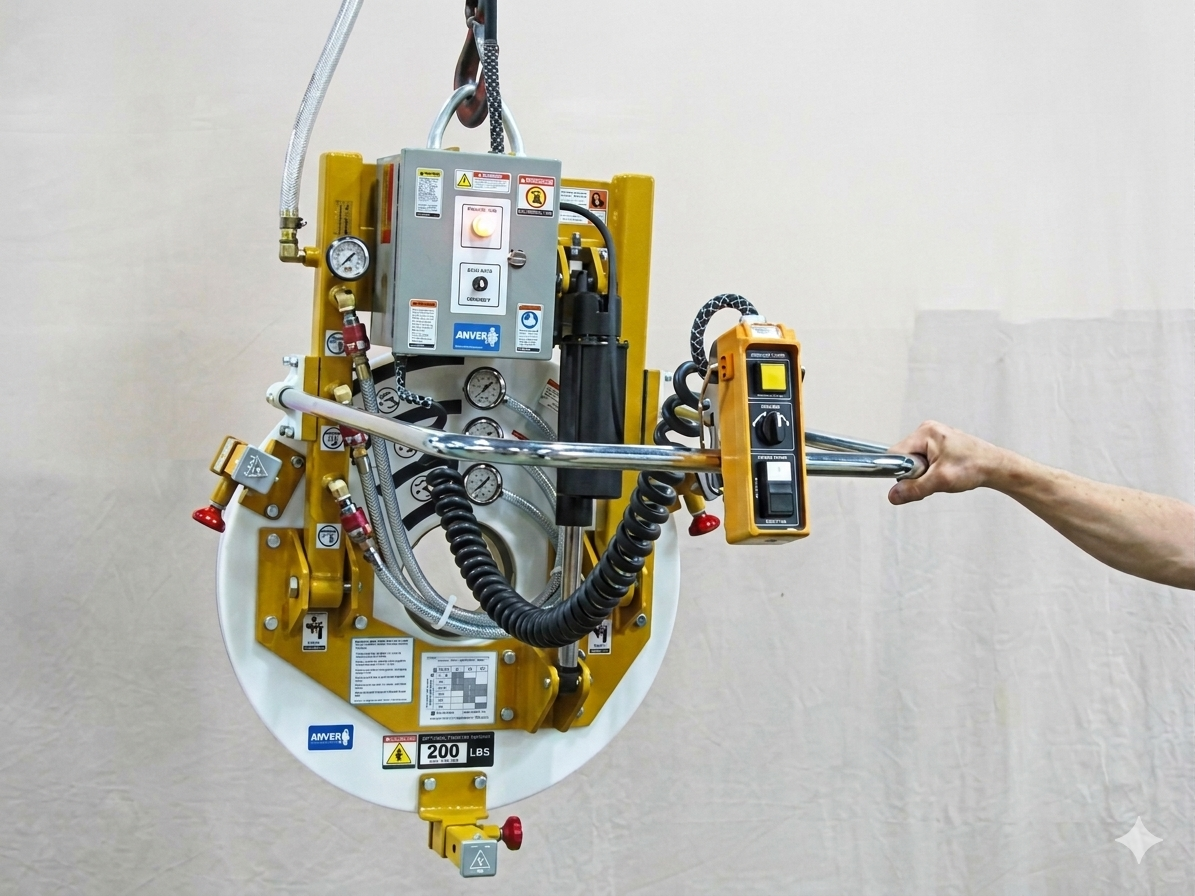

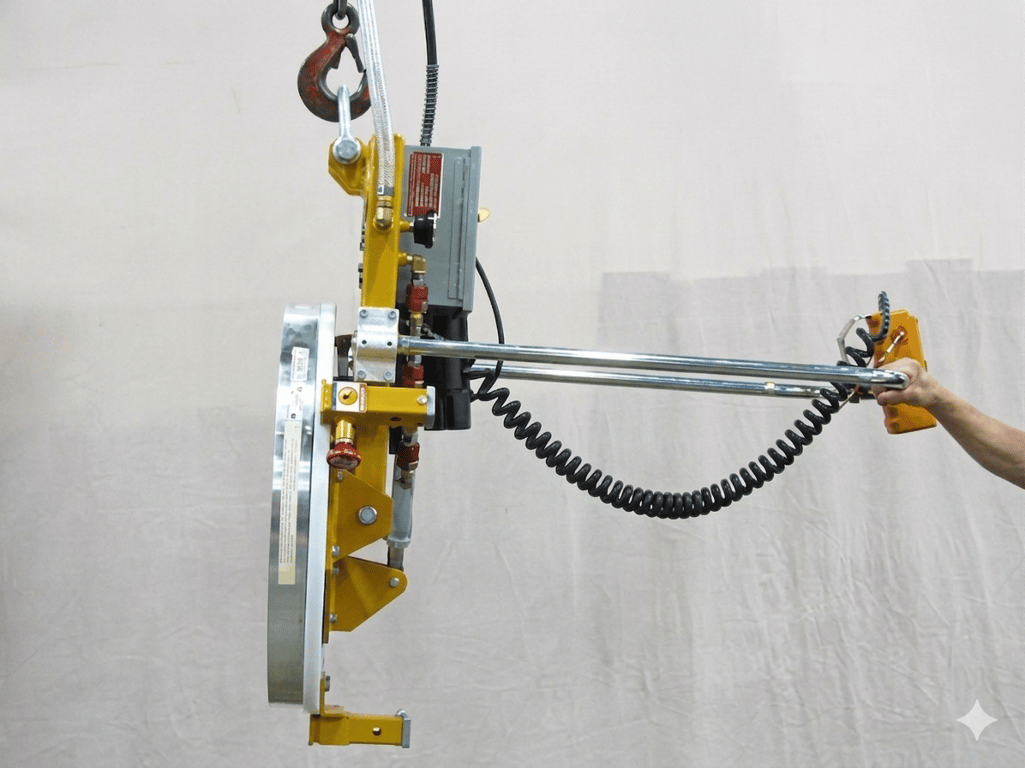

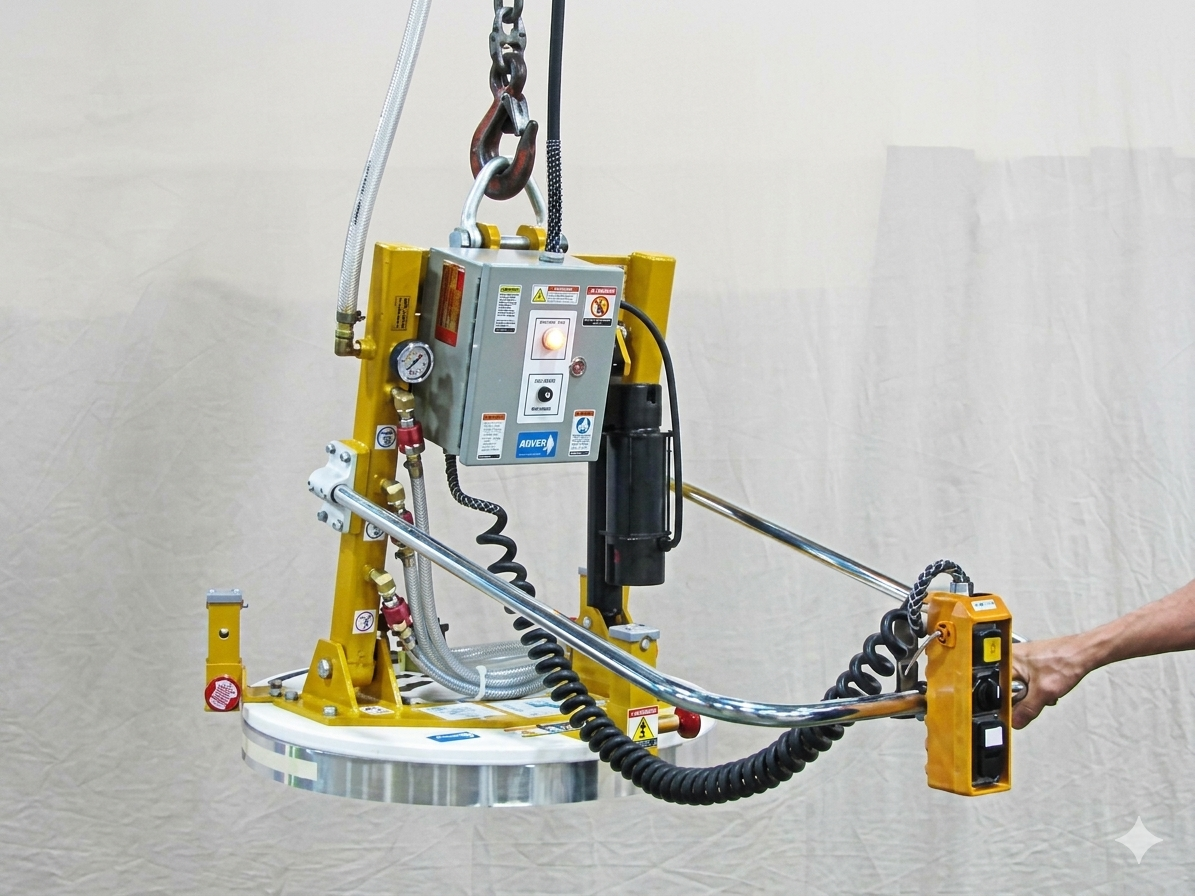

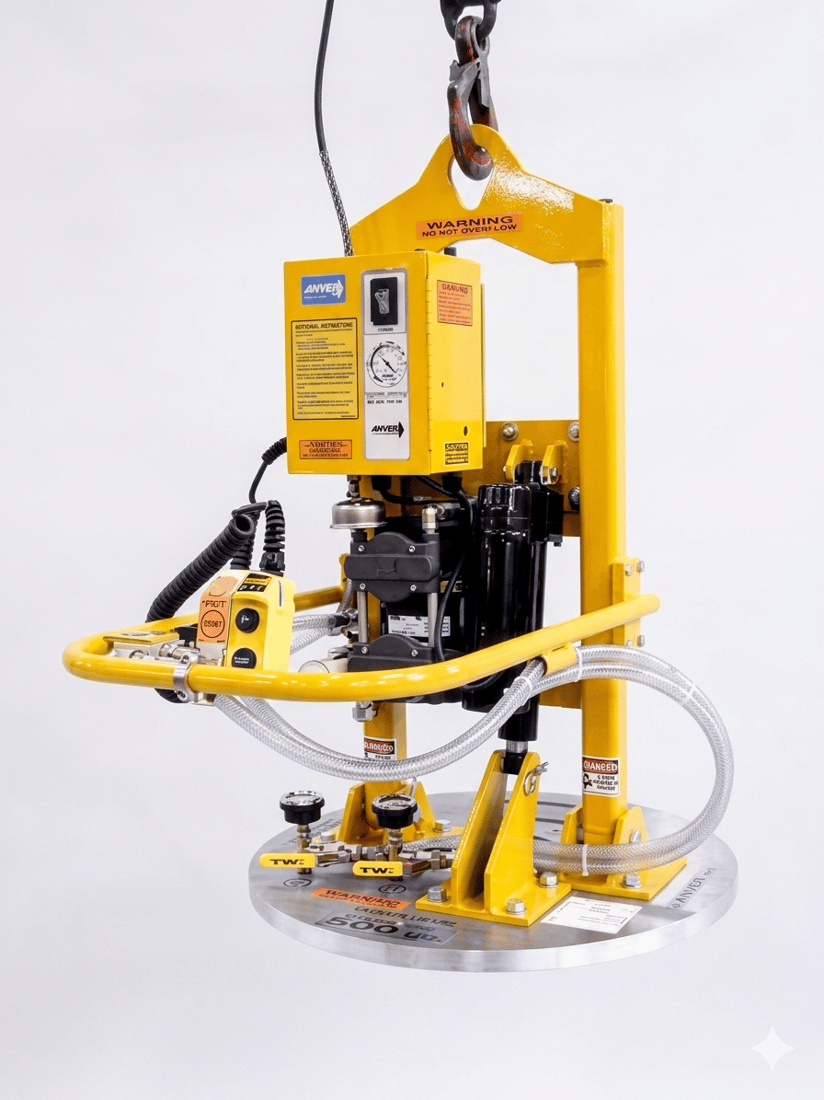

Vacuum coil and roll lifters are designed to handle every type of coil and roll – metal, film, paper or plastic – in both the horizontal and the vertical position.
The lifter grips the outer surface of the roll: nothing enters the core and nothing scores the material. Ideal for:

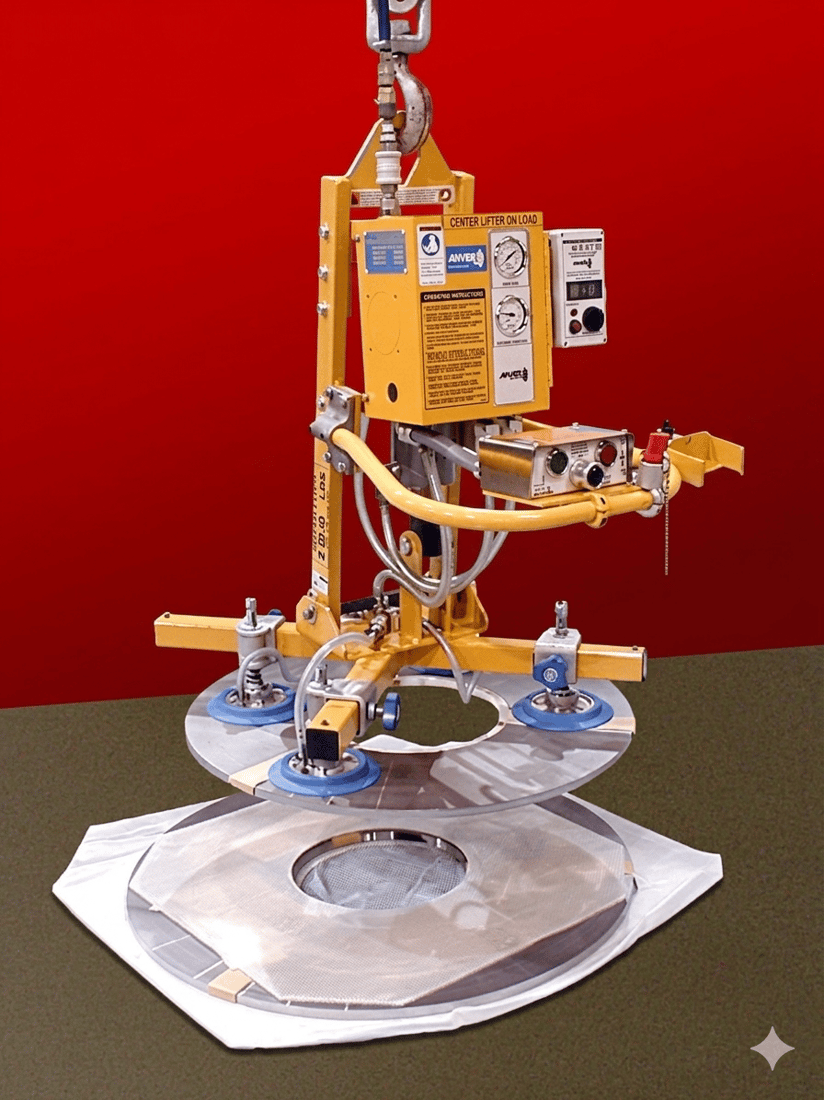

- Aluminium and cold rolled steel coil

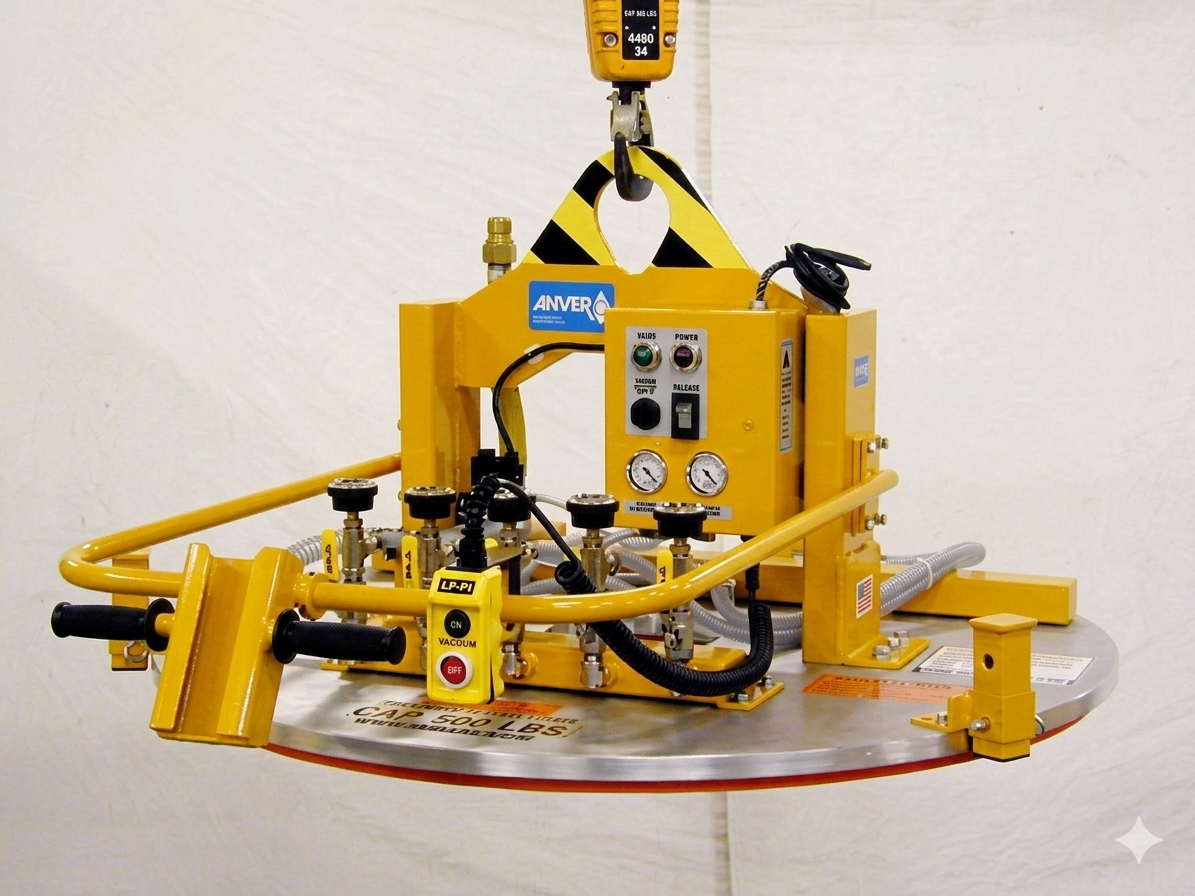

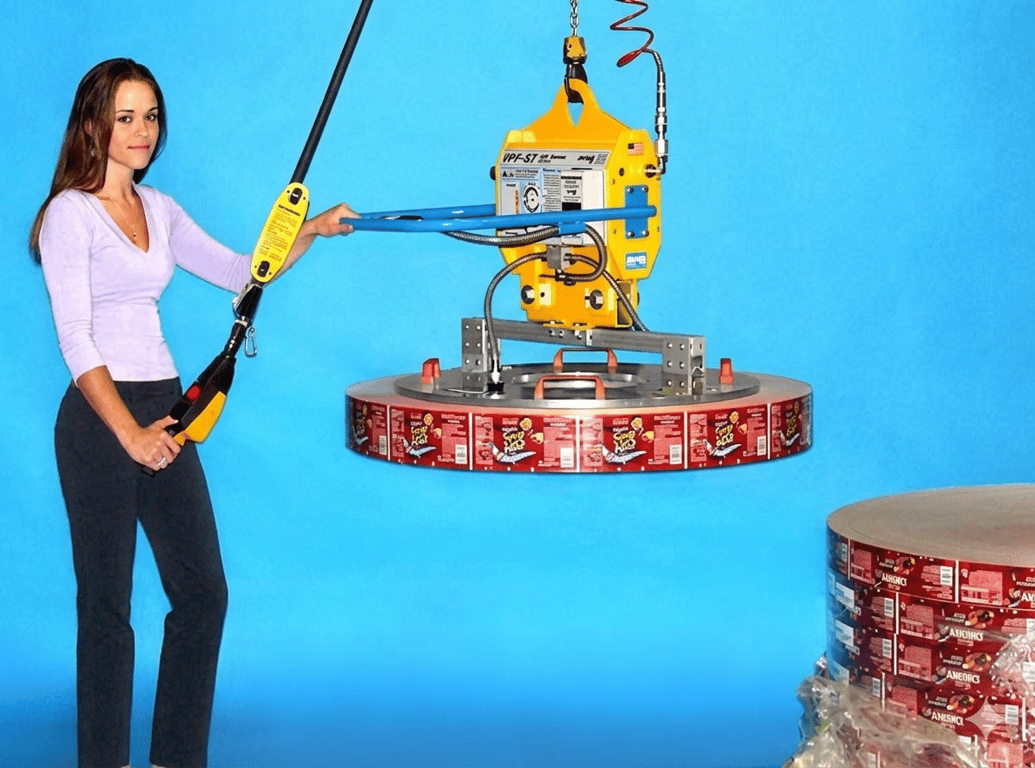

- Plastic film and printing paper rolls
- Technical fabric and non-woven rolls
- Rubber and polymer rolls
Typical Coil Lifter Features
01 – Curved vacuum pads
Pad curvature matched to the roll diameter.
02 – Foam seals
Purpose made foam seals for uneven surfaces.
03 – Opposed pad pair
Two symmetrical pads keep the roll balanced.
04 – Capacity
Lifting capacity up to 40,000 lb [18,000 kg].
05 – Adjustable frame
Adjusts to suit a range of roll diameters.
06 – Powered 90° tilt
Turns the roll between horizontal and vertical.
Choosing the Right Coil Lifter
To specify the right lifter for the application, please send FULL-SHARP the following details:
01 – Weight
Load weight in kg or lb – the deciding factor for lifter size and vacuum generator.
02 – Material
Material type and gauge (steel, aluminium, paper, film, fabric) – sets the pad type and foam seal.
03 – Roll width
Width of the roll – affects pad size and stability through the lift.
04 – Diameter
Inner core diameter (ID) and outer diameter (OD) – determines the pad curvature.
05 – Vacuum chambers
Number of chambers required, depending on the size, weight and balance of the roll.
06 – Core position
Position of the core or centre hole – important for the lifting mechanism and load balance.
07 – Power supply
Supply available in the plant (220V / 380V / compressed air / battery) – selects the VPE, AVL or BAE series.
08 – Controls
Preferred control method (pendant, radio, automatic cycle, or integration with the customer’s PLC).
Industries Served
Cold rolled steel
Aluminium coil
Plastic film
Printing paper
Technical fabric
Rubber and polymer
Typical Models
Contact FULL-SHARP with your figures – diameter, width, weight and material – and we will recommend the configuration.
