SMALL OVAL SUCTION CUPS & NON-ROTATING STEMS
Small oval suction cups, reusable fittings and non-rotating stems for small, narrow loads
Product Overview

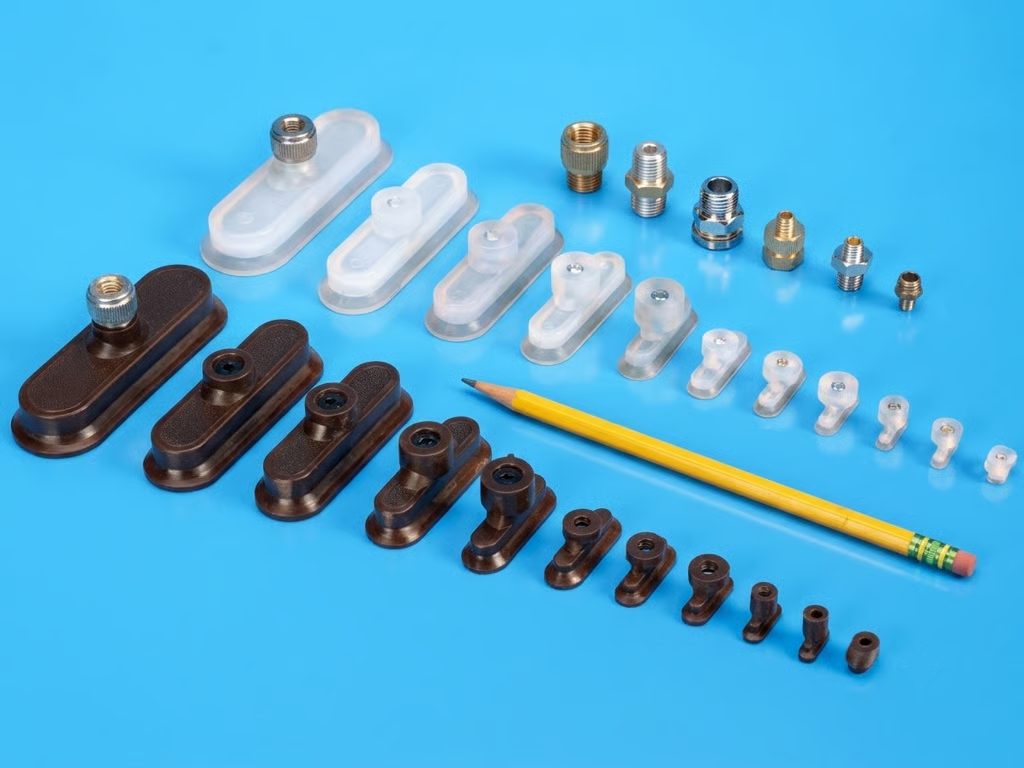

Small oval suction cups
The small oval cup range is made specifically for handling small, narrow, elongated loads where a round cup cannot generate enough holding force.
They are supplied with reusable snap-on fittings and non-rotating stems – keeping the cup’s orientation fixed through the lift so it cannot twist out of line.
Typical applications: electronic components, phone housings, printed circuit boards (PCB), labels, paper bags and narrow packaging.
Technical Features
01 – Snap-on fittings
Reusable – fitted and removed quickly with no tools.
02 – Non-rotating stems
Hold the cup’s orientation steady throughout the lift.
03 – Material options
NBR (nitrile), silicone and EPDM.
04 – Size range
From 10 × 20 mm up to 30 × 60 mm.
05 – Vacuum level
Maximum 24 in. Hg.
06 – Holding capacity
From 0.5 lb to 8 lb per cup, depending on size.
Capacity & Size Chart
| Small oval cups – capacity chart | ||||
|---|---|---|---|---|
| Cup model | Size (A × B) | Material | Capacity (horizontal) | Capacity (vertical) |
| OC-1020 | 10 × 20 mm | NBR / SIT | 0.55 lb (0.25 kg) | 0.18 lb (0.08 kg) |
| OC-1530 | 15 × 30 mm | NBR / SIT | 1.5 lb (0.68 kg) | 0.50 lb (0.23 kg) |
| OC-2040 | 20 × 40 mm | NBR / SIT | 2.6 lb (1.18 kg) | 0.87 lb (0.39 kg) |
| OC-2550 | 25 × 50 mm | NBR / SIT | 4.4 lb (2.00 kg) | 1.46 lb (0.66 kg) |
| OC-3060 | 30 × 60 mm | NBR / SIT | 7.7 lb (3.50 kg) | 2.56 lb (1.16 kg) |
Note – vertical capacity falls to one third of the horizontal figure because it relies on friction. Always apply a further 2:1 safety factor when lifting vertically.
