VACUUM & SUCTION CUP BALL SWIVEL CONNECTORS
Suspension rod to cup connectors – a Flexolink and ball joint combined in one adapter
Product Overview

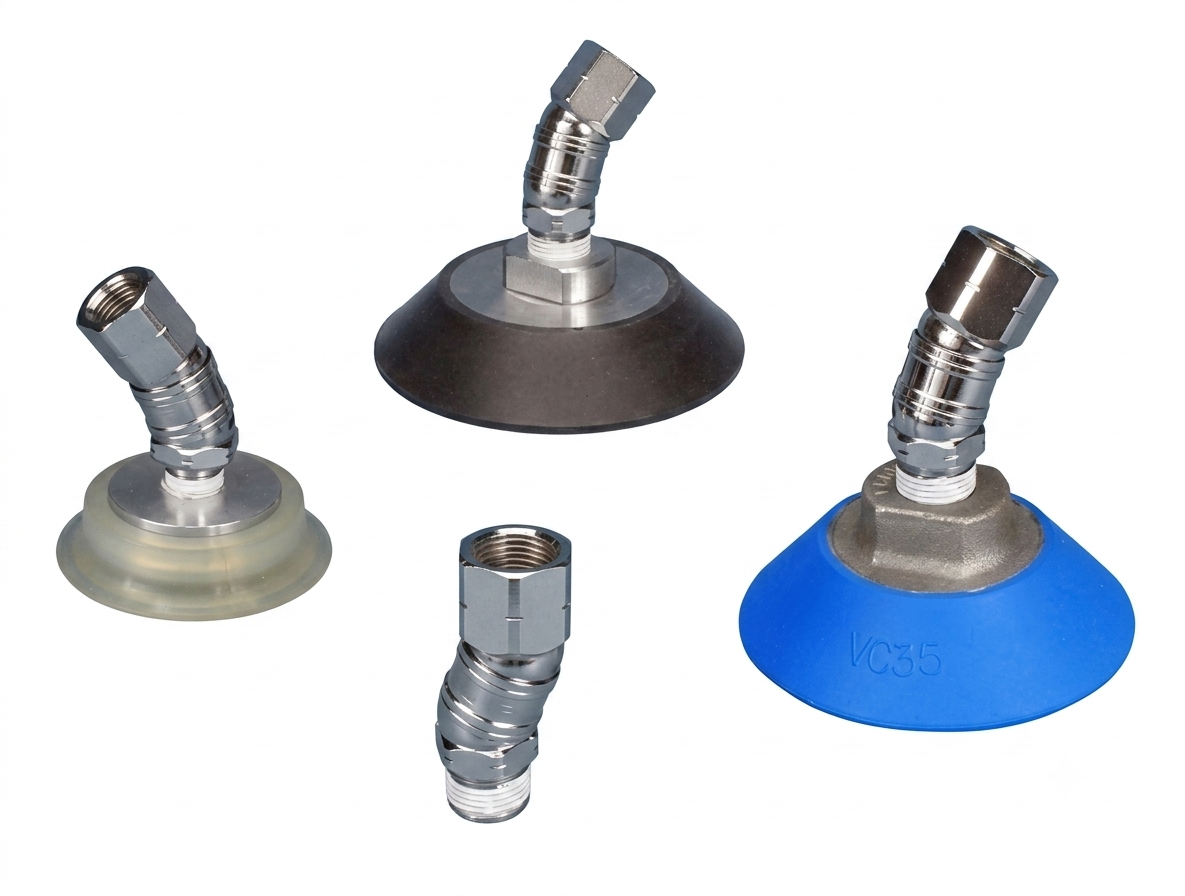

Airtight connections when a ball swivel is needed between the cup and the suspension. Various small ANVER suction cups can be connected to their suspensions with vacuum-tight ball swivels.
Available with 1/4″ and 3/8″ NPT as well as G 3/8″ and G 1/2″ threads, so the connector suits both imperial and BSPP systems.
The design combines a Flexolink and a ball joint in one adapter – two functions in a single part, rather than stacking separate components between the cup and the suspension.
Design Features
01 – 360° rotation
Full rotation with up to 42° of swivel on the uncovered versions.
02 – Plated steel construction
Precision-plated steel throughout.
03 – Two rotating joints
Two joints give a large degree of articulation.
04 – Rated for full vacuum
The connector holds a vacuum-tight seal through the full range of movement.
With or without cover – the uncovered assemblies swivel up to 42°; the covered versions are limited to 12°, trading articulation for a shield over the joint. Pick the covered version where debris or spatter would reach an open ball.

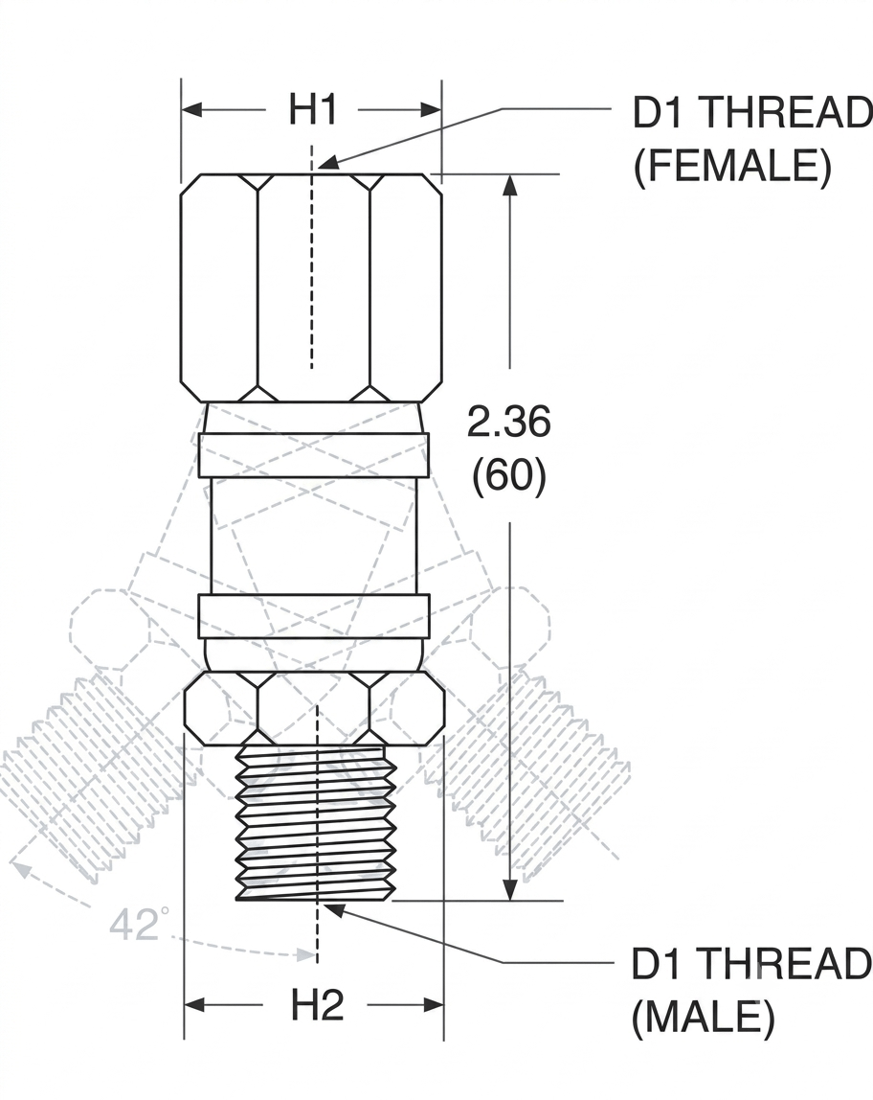

Ball Swivel Assemblies without Cover
| SW series ball swivel assemblies – uncovered | |||||
|---|---|---|---|---|---|
| Part number | D1 – thread | H1 – hex size in. (mm) | H2 – hex size in. (mm) | A – overall length in. (mm) | Swivel range of motion |
 SW14F-14M |
1/4″ NPT | 0.75 (19) | 0.75 (19) | 2.25 (52) | 42° |
 SW38F-38M |
3/8″ NPT | 0.83 (21) | 0.75 (19) | 2.36 (60) | 42° |
Both uncovered assemblies have a female top and male bottom of the same thread size – SW14F-14M is 1/4″ NPT throughout, SW38F-38M is 3/8″ NPT.
Ball Swivel Assemblies with Cover
Dimensions

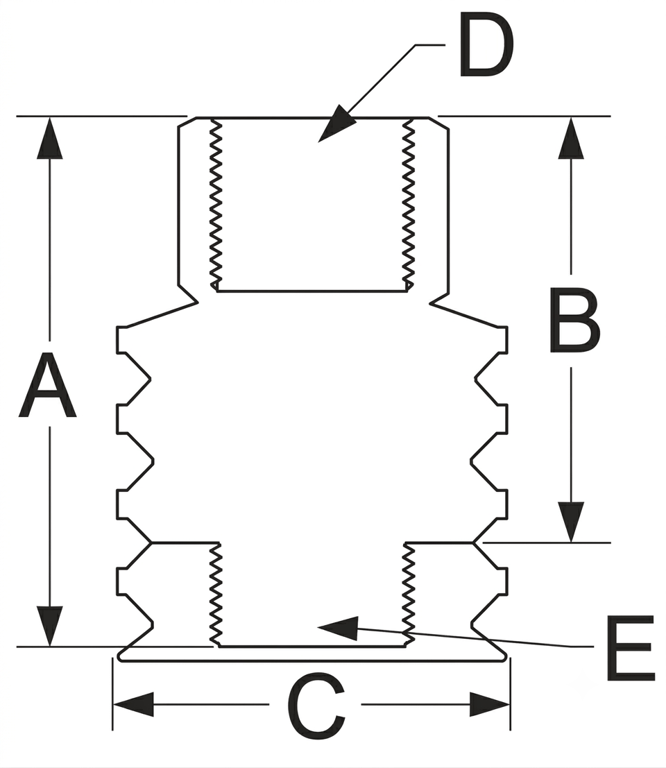

Covered assembly – parts and dimensions
| SW series ball swivel assemblies – covered | ||||||
|---|---|---|---|---|---|---|
| Part number | A in. (mm) | B – installed height in. (mm) | C in. (mm) | D – top thread size | E – bottom thread size | Swivel range of motion |
 SW38F-38M-B |
2.36 (60) | Approx. 2.19 (55.6) | 1.57 (39.9) | 3/8″ NPT female | 3/8″ NPT male | 12° |
 SW38F-38M-G |
2.27 (57.7) | 1.99 (50.5) | 1.57 (39.9) | G 3/8″ female | G 3/8″ male | 12° |
 SW12F-12M-G |
2.13 (54.1) | 1.74 (43.7) | 1.57 (39.9) | G 1/2″ female | G 1/2″ male | 12° |
Note the trade-off: the installed height falls as the thread size rises – 2.19 in. for the 3/8″ NPT version down to 1.74 in. for the G 1/2″. Worth checking against your available headroom.
Thread note – the “G” thread is also known as BSPP, and is commonly used worldwide for vacuum applications.
Contact FULL-SHARP with the cup and suspension threads and the swivel angle you need, and we will confirm the connector.
