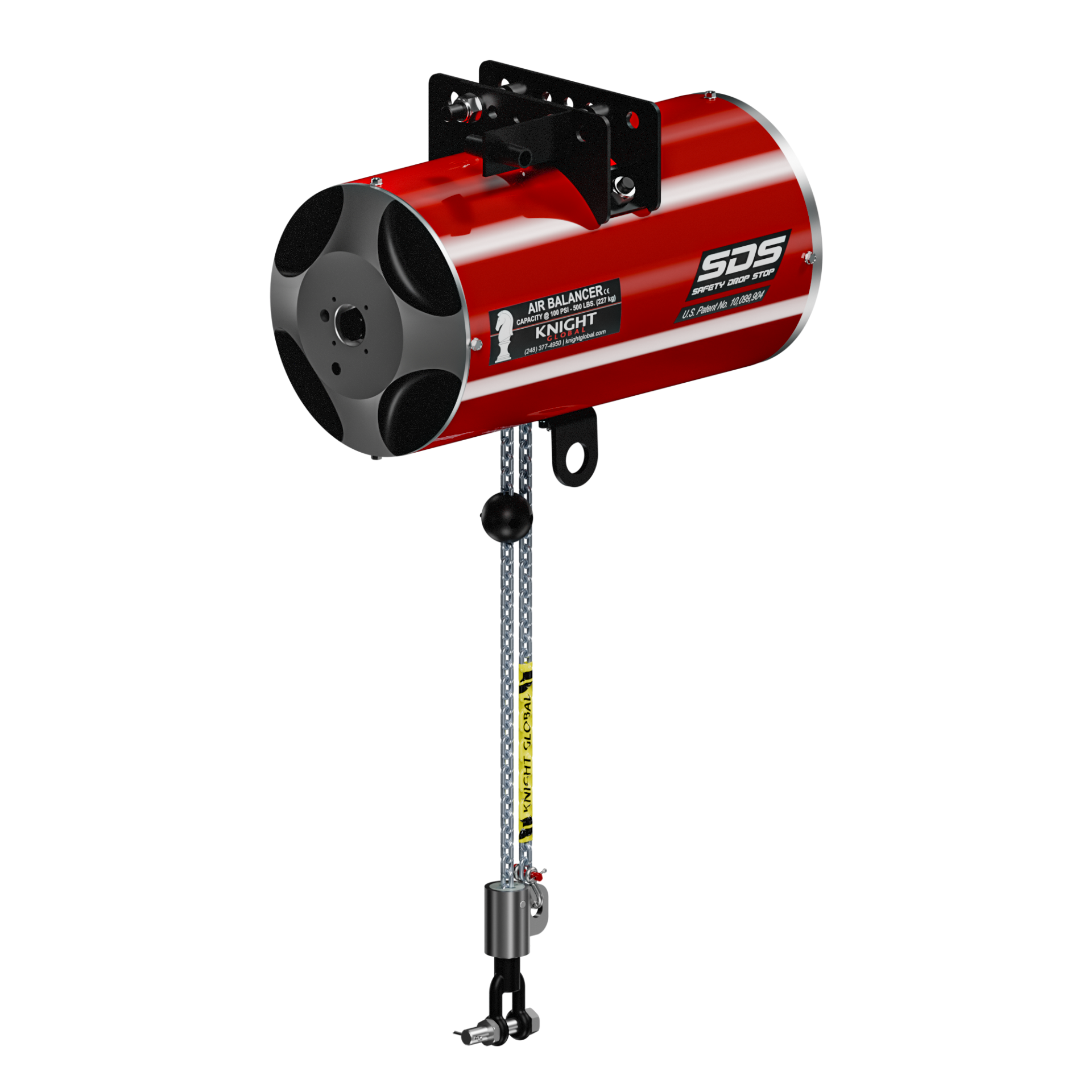

Safety Drop Stop “SDS” Pneumatic Balancers
The Safest Pneumatic Balancer in the World
Series: KBC250S / KBC450S / KBC500S / KBC700S
The Knight Global Safety Drop Stop “SDS” pneumatic balancer is the safest balancer in the world, because it stops the load from dropping if the load chain fails. The “SDS” design gives complete protection against operator injury.
Pneumatic balancers are used where the application calls for a float mode – letting the operator make the final placement of the load hands-free. Raising and lowering is faster than a conventional hoist, and the load can be “feathered” into position. The ergonomic control handle uses a colour-coded thumb lever.
Knight balancer chain is a special grade 80 chain with a proprietary surface treatment that extends chain life by up to 300% compared with standard grade 80 chain.
Features
- CE compliant upon request.
- Redundant dual chain design – fail-safe operation.
- Load chain – carries the working load.
- Safety chain – takes over if the load chain fails.
- Hands-free operation.
- Float mode as standard.
- Internal centrifugal retract control built in.
- Requires clean, dry, non-lubricated compressed air.
- Maximum balancing capacity: 700 lbs [318 kg].
- Standard stroke: up to 84 in [2,133 mm].
Benefits & Options
- Optional external retract control.
- Optional travel limit switch.
- Optional high relieving and feather-touch controls.
- A range of suspension kits to suit the installation.
- Integrates easily with Knight aluminium rail (RAD4110 / 6110 / 7510).
- Supports a pneumatic rotary union connection.
- Special grade 80 chain – up to 300% longer life.
- High operator safety – the load cannot drop.
| Model | Capacity | Stroke | Product Weight | |||
|---|---|---|---|---|---|---|
| lbs | kg | in | mm | lbs | kg | |
| KBC250S-054 | 250 | 113 | 54 | 1,371 | 63 | 28 |
| KBC450S-052 New | 450 | 204 | 52 | 1,321 | 81 | 37 |
| KBC500S-084 | 500 | 227 | 84 | 2,133 | 115 | 52 |
| KBC700S-052 | 700 | 318 | 52 | 1,321 | 95 | 43 |
Pneumatic Controls
Seven 1/8″ NPT ports – 1 MPa
Horizontal or vertical grip
Straight or coiled hose, 10 ft [3 m]
Two zero-gravity load settings
Ideal for tightening tools
2090: up to 250 lbs / 2322: up to 500 lbs
Chain Attachments & Measurement
For 4 mm and 5 mm chain
360° rotation, with safety chain pin
360° rotation, connects the safety chain
Self-closing Crosby® Bullard
Load Trolleys
Fibreglass-filled nylon wheels
Maximum load 1,600 lbs [725 kg]
Maximum load 3,000 lbs [1,360 kg]
Maximum load 550 lbs [250 kg]
Steel wheels, double-shielded bearings
Maximum load 3,000 lbs [1,360 kg]
Safety Cable Kits
4 Crosby® clamps + 2 thimbles
With eye bolts for structural anchoring
2 copper oval sleeves + 2 thimbles
Spec Sheet & CAD Drawings
KBCS “SDS” Balancers – Spec Sheet KBCS Series – CAD Drawings (.zip)
Manuals & Operating Guides
Balancer Operation Manual 2019 Balancer Troubleshooting Guide 2021 Balancer Periodic Inspection Form
