Medium Duty Articulating Pneumatic Arm
Medium Duty Articulating Pneumatic Arm
P/N: AAA6000
The AAA6000 medium duty articulating pneumatic arm (overhead and floor mounted) is a parallelogram arm built to lift, rotate, balance and move product from conveyors, dunnage, assembly lines and many other applications.
The AAA6000 uses a twin cylinder system to achieve a higher lifting capacity, reducing operator fatigue by absorbing torque reaction and making it easy to lift and manipulate the product.
The overhead version of the AAA6000 travels inside RAD4110, RAD6110 or RAD7510 aluminium rail on the “X”, “Y” and “Z” axes, with a wide range of control configurations.
FULLSHARP supplies the AAA6000 in both fixed and 360° rotating versions. Maximum reach (without an extension boom) is 48 in [1,219 mm] and maximum balancing capacity is 430 lbs [195 kg] at 100 psi [6.8 bar]. Capacity varies with reach.
Features
- Travels inside Knight RAD4110, RAD6110 or RAD7510 rail.
- Lifts, rotates, balances and manipulates product with minimal effort.
- A wide range of control configurations.
- Overhead carriage pan size: 24 in [609 mm] or 36 in [914 mm].
- Maximum arm length: up to 48 in [1,219 mm].
- Maximum extension boom length: up to 48 in [1,219 mm] (contact FULLSHARP for longer).
- Maximum vertical travel: up to 48 in [1,219 mm].
- Maximum lift / balance capacity: up to 430 lbs [195 kg] at 100 psi [6.8 bar].
Benefits
- Flexible overhead or floor mounted installation.

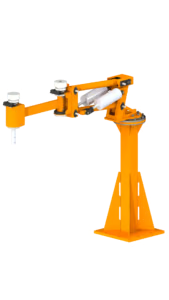

- The pedestal version removes the need for an overhead rail system.
- Reduces operator fatigue.
- The arm travels on all three axes – “X”, “Y” and “Z”.
- Absorbs torque reaction effectively.
- Available fixed or with 360° rotation.
- Optional pivot brake.
- Optional parking brake.
- Optional clutch brake.
| Part number | AAA6000 (Overhead / Pedestal) |
|---|---|
| Mounting type | Overhead mounted or floor mounted pedestal |
| Rotation | Fixed or 360° rotating |
| Max balancing capacity | 430 lbs [195 kg] @ 100 psi [6.8 bar] (varies with reach) |
| Max reach (no boom) | 48 in [1,219 mm] |
| Max extension boom length | 48 in [1,219 mm] (contact FULLSHARP for longer) |
| Max vertical travel | 48 in [1,219 mm] |
| Carriage pan size | 24 in [609 mm] or 36 in [914 mm] |
| Cylinder type | Twin cylinders |
| Working air pressure | 100 psi [6.8 bar] |
| Compatible rail systems | RAD4110 / RAD6110 / RAD7510 (aluminium) |
| Axes of travel | X, Y, Z |
General Accessories
Load Trolleys
Max capacity: 1,100 lbs [499 kg]
Max capacity: 1,600 lbs [725 kg]
Max capacity: 3,000 lbs [1,360 kg]
Safety Cables
ø6 mm × 1.8 m
ø6 mm × 3 m
ø6 mm × 3 m
