Overhead Mounted Vertical Mast Arm
Overhead Mounted Vertical Mast Arm
P/N: ATA4000

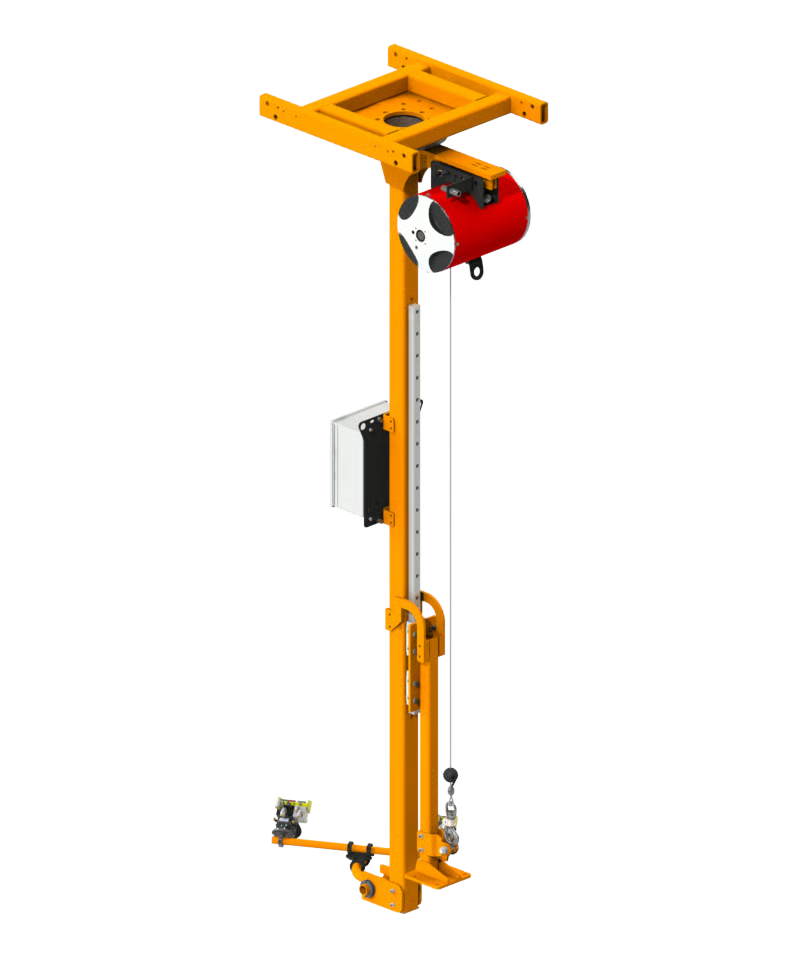

The Knight Global ATA4000 overhead mounted vertical mast arm places the control handle in a fixed position on the mast, improving ergonomics considerably by removing the need for the operator to bend or reach.
It is typically used in applications that call for long vertical travel and precise positioning. The arm can be configured to rotate 360° or fixed without rotation, depending on what the operator needs.
The ATA4000 comes with two mast options: a round mast for loads applied directly on the axis, and a square THK mast for offset cantilevered loads that generate torque.
The ATA4000 works with any Knight pneumatic balancer or chain hoist, and can be fitted with an optional ball bearing clutch brake and friction parking brake. Maximum lifting capacity is 500 lbs [226 kg] and maximum torque is 853 ft-lbs [1,156 Nm]. Maximum vertical travel varies with the application.
Features
- Control handle in a fixed, ergonomic position on the mast.
- A wide range of control configurations.
- Support rail length: up to 15 ft [4.6 m].
- Maximum arm length: up to 48 in [1,219 mm].
- Maximum torque: up to 853 ft-lbs [1,156 Nm] (contact FULLSHARP for arms over 48 in).
- Maximum vertical travel: varies with the application.
- Maximum lifting capacity: up to 500 lbs [226 kg] at 100 psi [6.8 bar].
- Two mast options: round mast or square THK mast.
Benefits
- Compatible with any Knight balancer or chain hoist.
- Removes the need for the operator to bend or reach.
- Reduces operator fatigue.
- Available fixed or with 360° rotation.
- Ideal for applications with long vertical travel.
- Precise positioning at every point.
- Optional parking brake.
- Optional bearing brake.
- The square THK mast handles heavy offset cantilevered loads.
| Part number | ATA4000 (Overhead Mounted) |
|---|---|
| Mounting type | Overhead mounted |
| Rotation | Fixed or 360° rotating |
| Mast options | Round mast or square THK mast |
| Load type | Round mast – direct load / THK mast – offset cantilevered load |
| Max lifting capacity | 500 lbs [226 kg] @ 100 psi [6.8 bar] |
| Max torque | 853 ft-lbs [1,156 Nm] |
| Max arm length | 48 in [1,219 mm] (contact FULLSHARP for longer) |
| Support rail length | Up to 15 ft [4.6 m] |
| Max vertical travel | Varies with the application |
| Control handle | Fixed on the mast in an ergonomic position |
| Working air pressure | 100 psi [6.8 bar] |
| Compatible equipment | Knight balancer or chain hoist |
| Brake options | Parking brake / bearing brake |
General Accessories
Weight: 3.6 lbs [1.63 kg]
Max torque: 411 Nm
Max capacity: 2,000 lbs [908 kg]
Load Trolleys
Max capacity: 1,100 lbs [499 kg]
Max capacity: 1,600 lbs [725 kg]
Max capacity: 3,000 lbs [1,360 kg]
Weight: 13.4 lbs [6.08 kg]
Safety Cables
ø6 mm × 1.8 m
ø6 mm × 3 m
ø6 mm × 3 m
