ELECTRIC MANIPULATOR

Full-Sharp Handling Equipment

Articulated Electric Manipulator

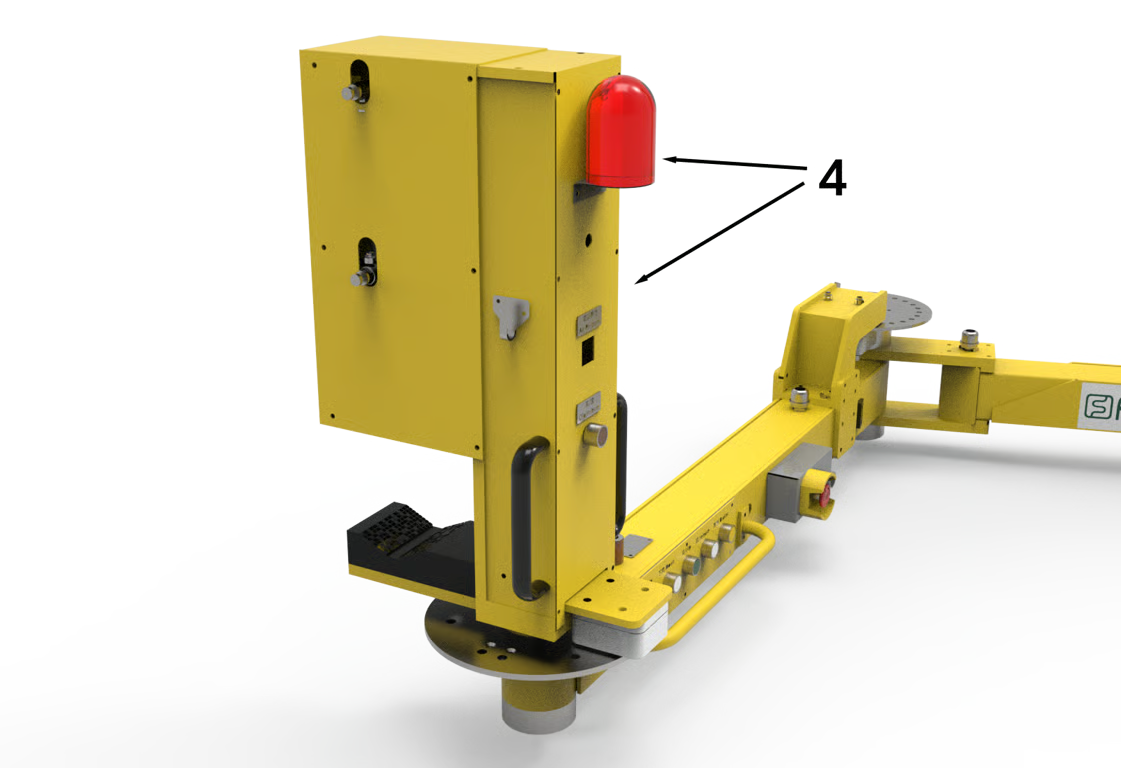

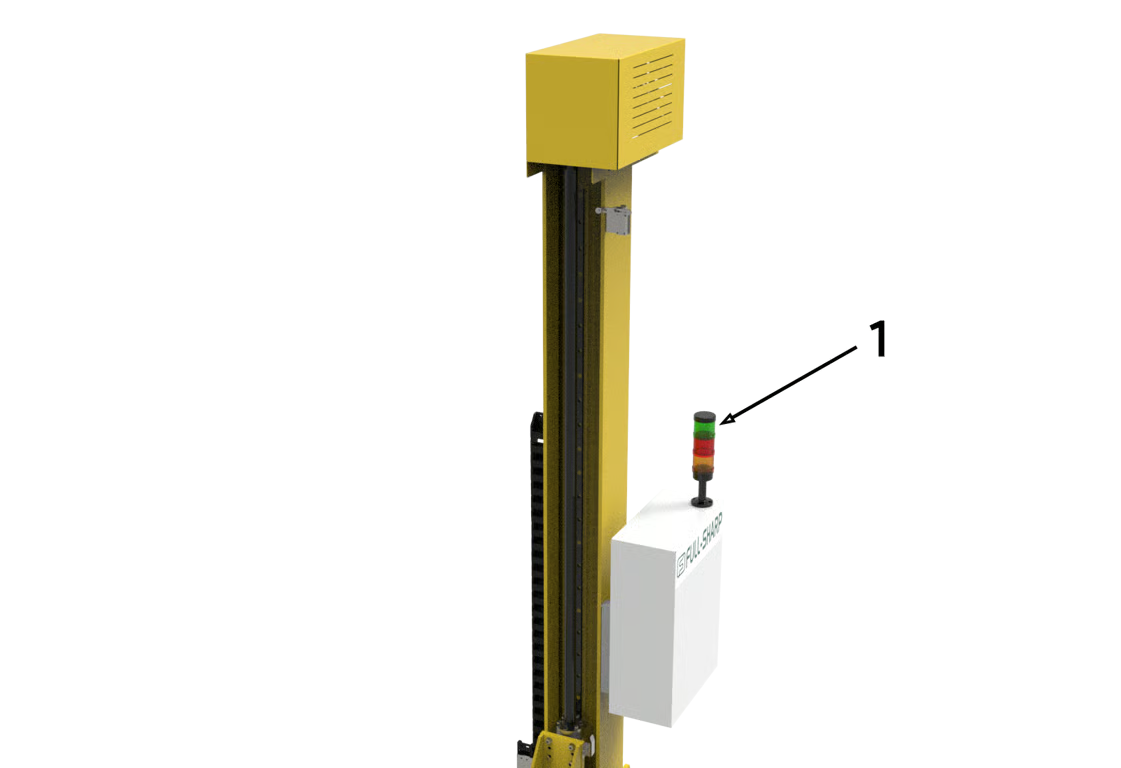

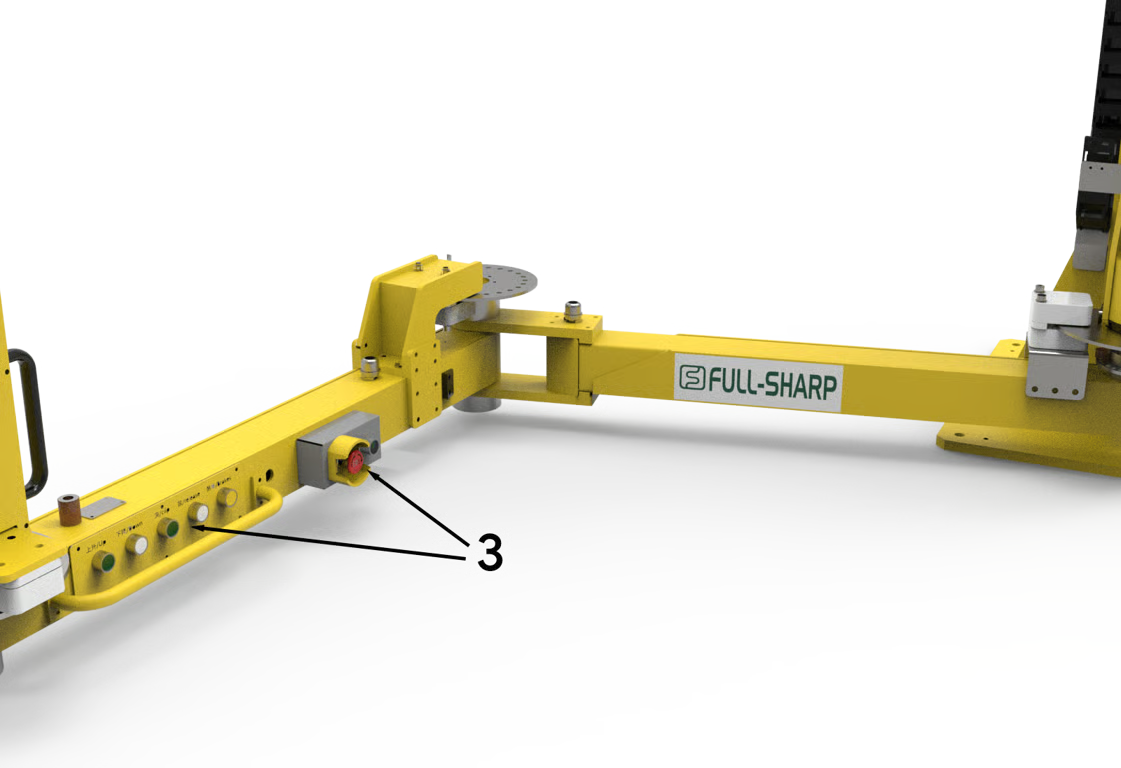

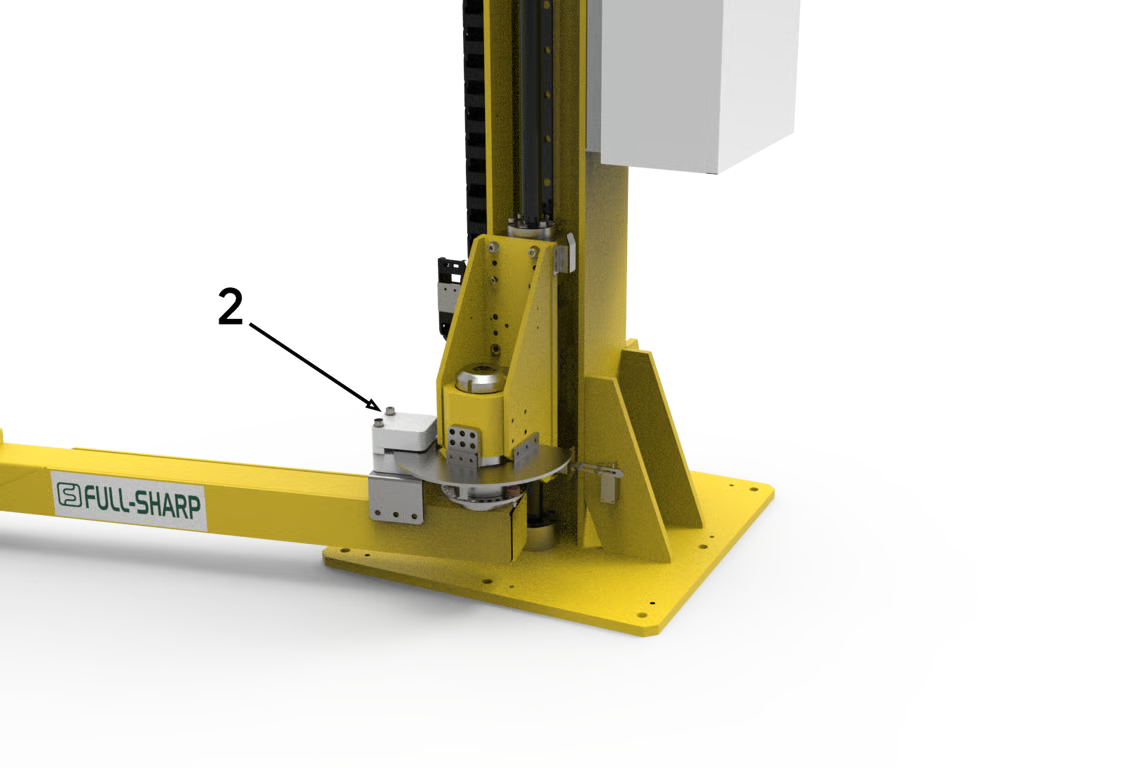

An electrically driven articulated lifting arm handling 60–200 kg, with more than 270° of rotation and standard strokes and arm lengths that can be built to a custom specification. Warning beacon, pneumatic braking and an emergency stop are fitted as standard.

Specification

Lifting capacity	60–200 kg
Standard lifting stroke	1,000–2,000 mm (custom on request)
Standard arm length	2,000–2,500 mm (custom on request)
Rotation range	Over 270°
Electrical supply	110 V or 230 V AC
Air pressure	7 bar
Colour	Any colour on request (yellow as standard)
End effector	Designed to the application
