Heavy Duty Articulating Pneumatic Arm
Heavy Duty Articulating Pneumatic Arm
P/N: AAA9000

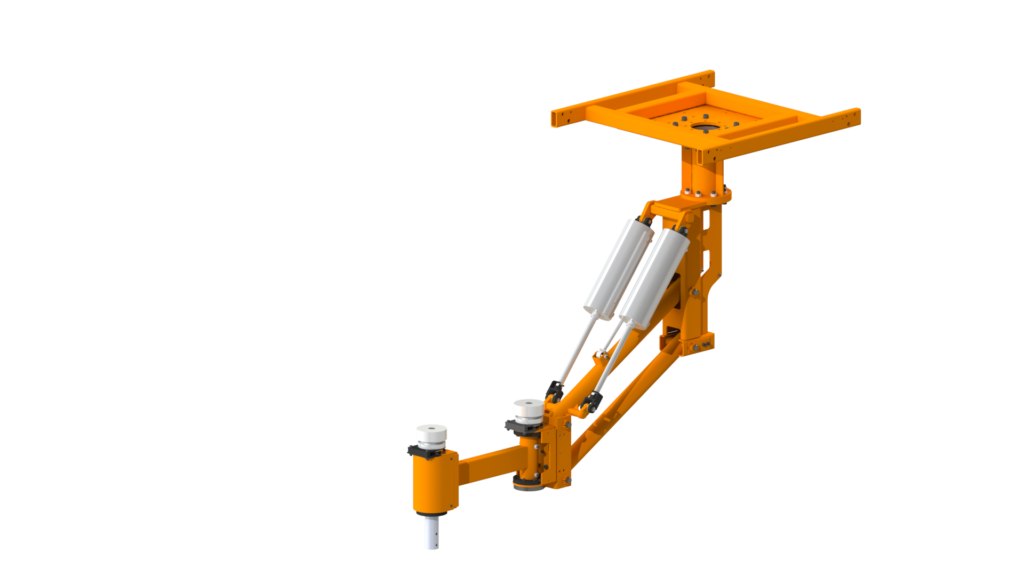

The AAA9000 heavy duty articulating pneumatic arm (overhead and floor mounted) is a parallelogram arm built to lift, rotate, balance and move product from conveyors, dunnage, assembly lines and many other applications.
The AAA9000 uses a pair of rear-mounted twin cylinders to achieve a higher lifting capacity while reducing the overall mass of the unit. The design minimises operator fatigue by absorbing torque reaction, so the product can be lifted and manipulated with almost no effort.
The overhead version of the AAA9000 travels inside RAD6110 and RAD7510 aluminium rail on the “X”, “Y” and “Z” axes, with a wide range of control configurations.
FULLSHARP supplies the AAA9000 in both fixed and 360° rotating versions. Maximum reach (without an extension boom) is 60 in [1,524 mm] and maximum balancing capacity is 600 lbs [272 kg] at 100 psi [6.8 bar]. Capacity varies with reach.
Features
- Travels inside Knight RAD6110 or RAD7510 rail.
- Lifts, rotates, balances and manipulates product with minimal effort.
- A wide range of control configurations.
- Overhead carriage pan size: 24 in [609 mm] or 36 in [914 mm].
- Maximum arm length: up to 60 in [1,524 mm].
- Maximum extension boom length: up to 48 in [1,219 mm] (contact FULLSHARP for longer).
- Maximum vertical travel: up to 60 in [1,524 mm].
- Maximum lift / balance capacity: up to 600 lbs [272 kg] at 100 psi [6.8 bar] (varies with reach).
Benefits
- Flexible overhead or floor mounted installation.

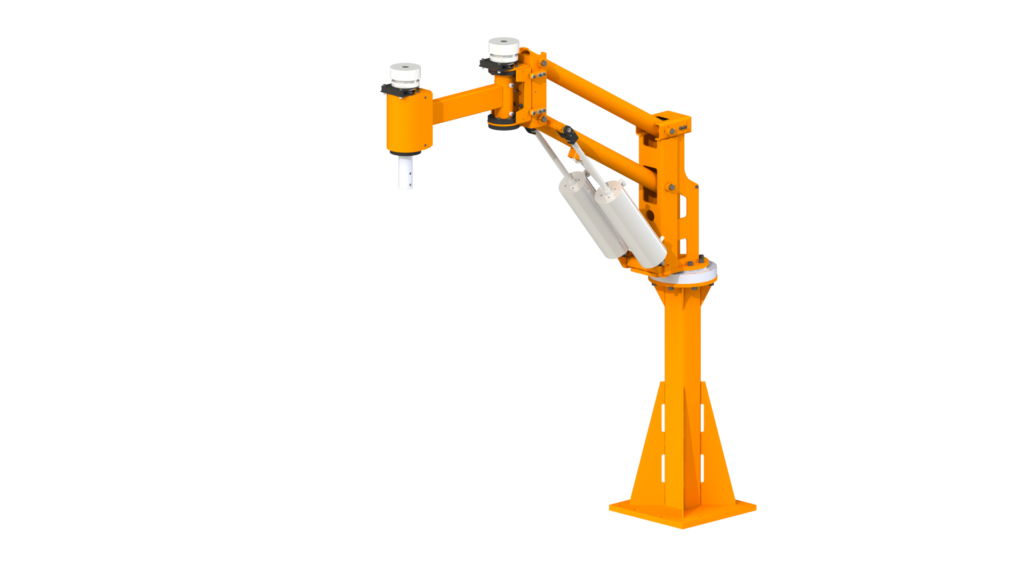

- The pedestal version removes the need for an overhead rail system.
- Reduces operator fatigue.
- The arm travels on all three axes – “X”, “Y” and “Z”.
- Absorbs torque reaction effectively.
- Available fixed or with 360° rotation.
- Optional pivot brake.
- Optional parking brake.
- Optional clutch brake.
| Part number | AAA9000 (Overhead / Pedestal) |
|---|---|
| Mounting type | Overhead mounted or floor mounted pedestal |
| Rotation | Fixed or 360° rotating |
| Max balancing capacity | 600 lbs [272 kg] @ 100 psi [6.8 bar] (varies with reach) |
| Max reach (no boom) | 60 in [1,524 mm] |
| Max extension boom length | 48 in [1,219 mm] (contact FULLSHARP for longer) |
| Max vertical travel | 60 in [1,524 mm] |
| Carriage pan size | 24 in [609 mm] or 36 in [914 mm] |
| Cylinder type | Rear twin cylinders |
| Working air pressure | 100 psi [6.8 bar] |
| Compatible rail systems | RAD6110 / RAD7510 (aluminium) |
| Axes of travel | X, Y, Z |
General Accessories
Weight: 9.9 lbs [4.49 kg]
Weight: 3.6 lbs [1.63 kg]
Max torque: 411 Nm
Max capacity: 2,000 lbs [908 kg]
Load Trolleys
Max capacity: 1,600 lbs [725 kg]
Max capacity: 3,000 lbs [1,360 kg]
Weight: 13.4 lbs [6.08 kg]
Safety Cables
ø6 mm × 1.8 m
ø6 mm × 3 m
ø6 mm × 3 m
