5T Light Crane System

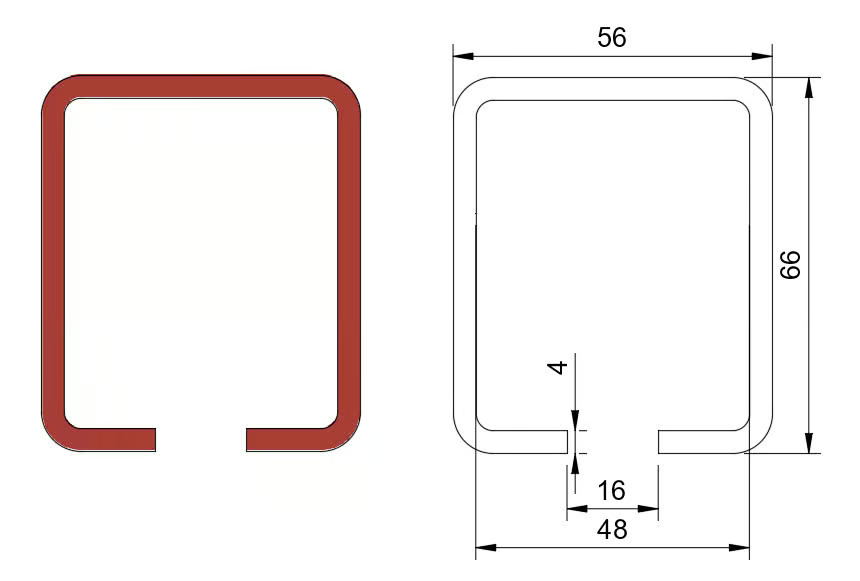

Steel Rail 200 kg
This rail supports a lifting capacity of up to 200 kg when combined with a trolley. With one of the best load-to-weight ratios in Taiwan, it delivers high performance while staying light and easy to install. The 5T rail is manufactured to tight dimensional and straightness tolerances, guaranteeing consistent quality.
| Material | Alloy steel |
| Lifting capacity | 200 kg |
| Runway rail length | Unlimited |
| Bridge rail length | 5.5 m |
| 1000 mm | 6 kg |
| 2000 mm | 13 kg |
| 3000 mm | 20 kg |
| 4000 mm | 26 kg |
| 5000 mm | 33 kg |
| 6000 mm | 40 kg |
200 kg capacity
With trolley fitted
Unlimited runway
Bridge span to 5.5 m
Tool-free joints
Chamfered, no measuring
Silent travel
Low rolling resistance
Build your system
5T Rail Components
Runway Rail Suspension SetHangers and drop rods fixing the runway rail to the roof structure, adjustable on site.
TrolleyGuide wheels on both sides keep it centered in the rail. Silent, low-friction running.
Other ComponentsEnd stops, rail joints, brackets and fixings to complete and secure the installation.
TrolleyGuide wheels on both sides keep it centered in the rail. Silent, low-friction running.
Other ComponentsEnd stops, rail joints, brackets and fixings to complete and secure the installation.
Assembly
Precision Rail Joints
The rail ends are chamfered so assembly is fast, accurate and requires no further adjustment. No tools and no measuring are needed. The smart joint mechanism makes installation easy even in tight spaces. Precise alignment between rail sections lets the trolley travel smoothly, effortlessly and silently. The joint can be fitted from either end without turning the rail around.
Motion
Trolley and Rail Together
The trolley is precision-built for durability and smooth running. It operates silently, has very low rolling resistance and moves with minimal effort. Guide wheels on both sides keep it perfectly centered inside the rail. Every rail is fitted with rubber end stops at both ends to absorb impact.
Choose your layout
Compatible Support Structures
Free-Standing FrameCarries the full load on its own columns, so nothing is transferred to the building structure.Details →
Single-Leg CantileverOne row of columns only, keeping the opposite side fully open for machines or traffic.Details →
Ceiling-MountedHung directly from the roof beams for maximum usable floor area beneath the working zone.Details →
Jib CraneA rotating arm on 5T rail for local pick-and-place around a single workstation or machine.Details →
Single-Leg CantileverOne row of columns only, keeping the opposite side fully open for machines or traffic.Details →
Ceiling-MountedHung directly from the roof beams for maximum usable floor area beneath the working zone.Details →
Jib CraneA rotating arm on 5T rail for local pick-and-place around a single workstation or machine.Details →
