Dual Drum “SDS” Pneumatic Balancer

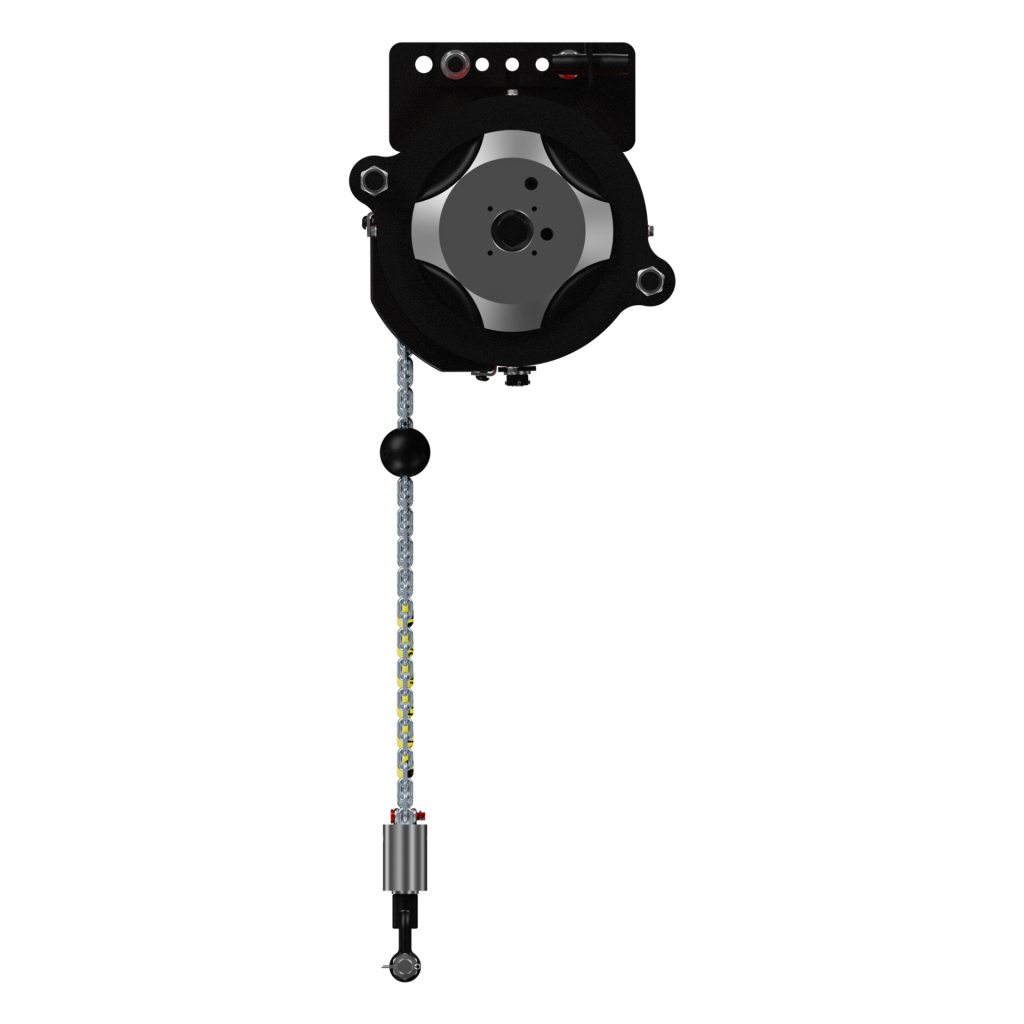

Dual Drum Pneumatic Balancer with SDS Technology
Series: DKBC500S / DKBC700S
Knight designed the Dual Drum pneumatic balancer around the same Safety Drop Stop “SDS” proprietary dual chain technology. It is used where the application handles bulky or large parts. On a long part a single suspension point cannot hold the load steady – some applications need the end effector to stay square to the part, and two lifting points stop the tool rotating out of line.

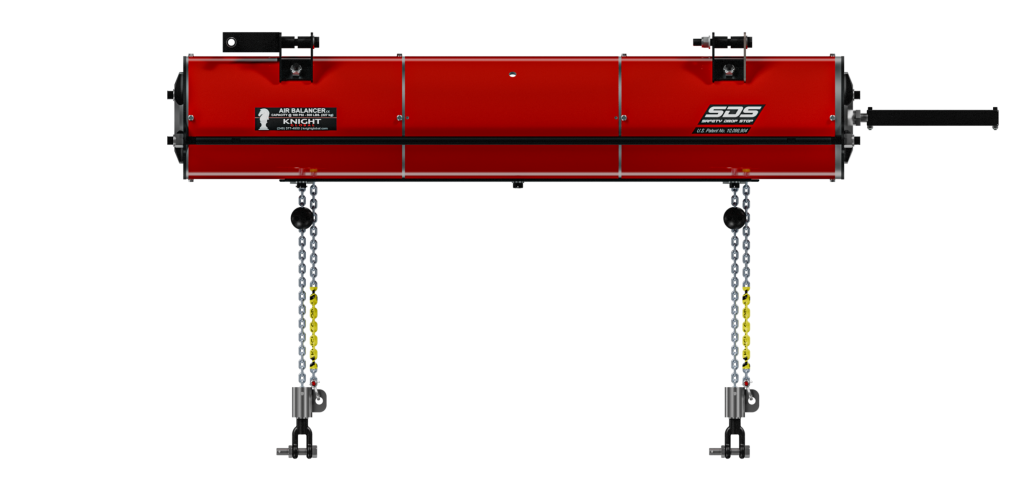

With two synchronised drums in a single housing, the Dual Drum balancer handles off-centre shapes and unevenly distributed weight by lifting and balancing from two separate suspension points.
The balancer is supplied as standard with external retract control. Travel limit switches are available as an option.
Pneumatic balancers are used where the application calls for a float mode – letting the operator make the final placement of the load hands-free. Raising and lowering is faster than a conventional hoist, and the load can be “feathered” into position. The ergonomic control handle uses a colour-coded thumb lever.
Knight balancer chain is a special grade 80 chain with a proprietary surface treatment that extends chain life by up to 300% compared with standard grade 80 chain.
Single Drum
One suspension point. The end effector is free to rotate about that point, so a long or off-centre part will swing out of line and the operator has to hold it square by hand.
Dual Drum
Two synchronised drums lift from two points spaced 33 in or 38 in apart. The end effector stays square to the part, and weight that is unevenly distributed along the part is balanced across both points.
Features
- CE compliant upon request.
- Redundant dual chain design – fail-safe operation:
- Load chain – carries the working load.
- Safety chain – takes over if the load chain fails.
- Two synchronised drums in a single housing.
- Hands-free operation.
- Float mode as standard.
- External retract control as standard.
- Requires clean, dry, non-lubricated compressed air.
- Maximum balancing capacity: 700 lbs [318 kg].
- Standard stroke: up to 78 in [1,981 mm].
Benefits & Options
- Balances bulky or off-centre loads from two points.
- Stops the end effector rotating when handling long parts.
- Optional travel limit switches (one or two).
- Optional high relieving and feather-touch controls.
- A range of suspension kits to suit the installation.
- Special grade 80 chain – up to 300% longer life.
- Works with the Knight pneumatic rotary union.
- Ideal for hoods, windscreens and seat panels in automotive assembly.
- 33 / 38 – chain size / distance between the two suspension points.
- EX – external retract, no limit switch.
- LS1 – one limit switch.
- LS2 – two limit switches.
| Model | Capacity | Stroke | Configuration | ||
|---|---|---|---|---|---|
| lbs | kg | in | mm | ||
| DKBC500S-078-33-EX | 500 | 227 | 78 | 1,981 | Chain 33 / external retract |
| DKBC500S-078-33-LS1 | 500 | 227 | 78 | 1,981 | Chain 33 / 1 limit switch |
| DKBC500S-078-33-LS2 | 500 | 227 | 78 | 1,981 | Chain 33 / 2 limit switches |
| DKBC500S-078-38-EX | 500 | 227 | 78 | 1,981 | Chain 38 / external retract |
| DKBC500S-078-38-LS1 | 500 | 227 | 78 | 1,981 | Chain 38 / 1 limit switch |
| DKBC500S-078-38-LS2 | 500 | 227 | 78 | 1,981 | Chain 38 / 2 limit switches |
| DKBC700S-048-33-EX | 700 | 318 | 48 | 1,219 | Chain 33 / external retract |
| DKBC700S-048-33-LS1 | 700 | 318 | 48 | 1,219 | Chain 33 / 1 limit switch |
| DKBC700S-048-33-LS2 | 700 | 318 | 48 | 1,219 | Chain 33 / 2 limit switches |
| DKBC700S-048-38-EX | 700 | 318 | 48 | 1,219 | Chain 38 / external retract |
| DKBC700S-048-38-LS1 | 700 | 318 | 48 | 1,219 | Chain 38 / 1 limit switch |
| DKBC700S-048-38-LS2 | 700 | 318 | 48 | 1,219 | Chain 38 / 2 limit switches |
Pneumatic Controls
Seven 1/8″ NPT ports – 1 MPa
Horizontal or vertical grip
Straight or coiled hose, 10 ft [3 m]
Two zero-gravity load settings
For tandem and Dual Drum balancers
2090: up to 250 lbs / 2322: up to 500 lbs
Chain Attachments & Measurement

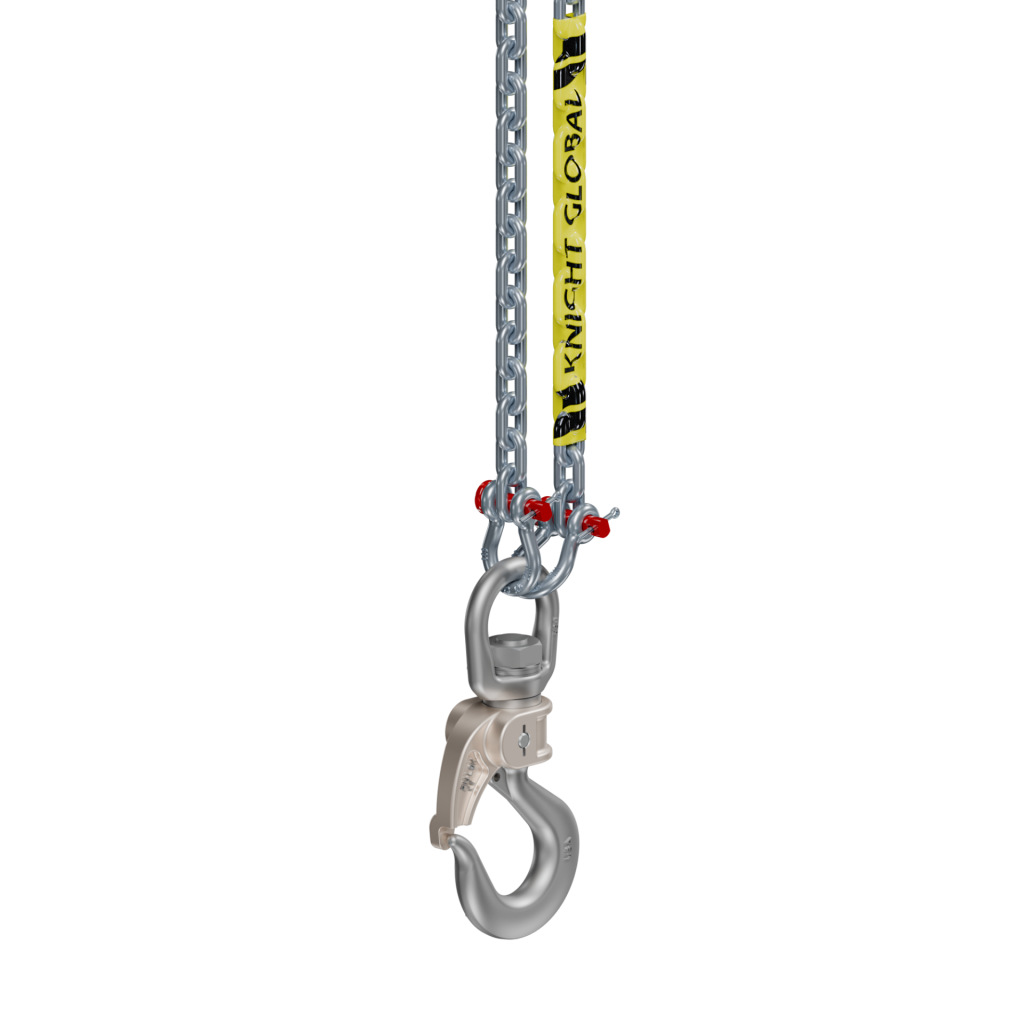

For 4 mm and 5 mm chain
360° rotation, connects the safety chain
Self-closing Crosby® Bullard, 360° rotation
360° rotation, with safety chain pin
Load Trolleys
Maximum load 1,600 lbs [725 kg]
Maximum load 3,000 lbs [1,360 kg]
Steel wheels, for W-beam and I-beam
Maximum load 3,000 lbs [1,360 kg]
Safety Cable Kits
4 Crosby® clamps + 2 thimbles
With eye bolts for structural anchoring
2 copper oval sleeves + 2 thimbles
Spec Sheet & Brochures
Dual Drum “SDS” Balancer – Spec Sheet Knight Global Pneumatic Balancers Brochure Knight Rotary Union Brochure
