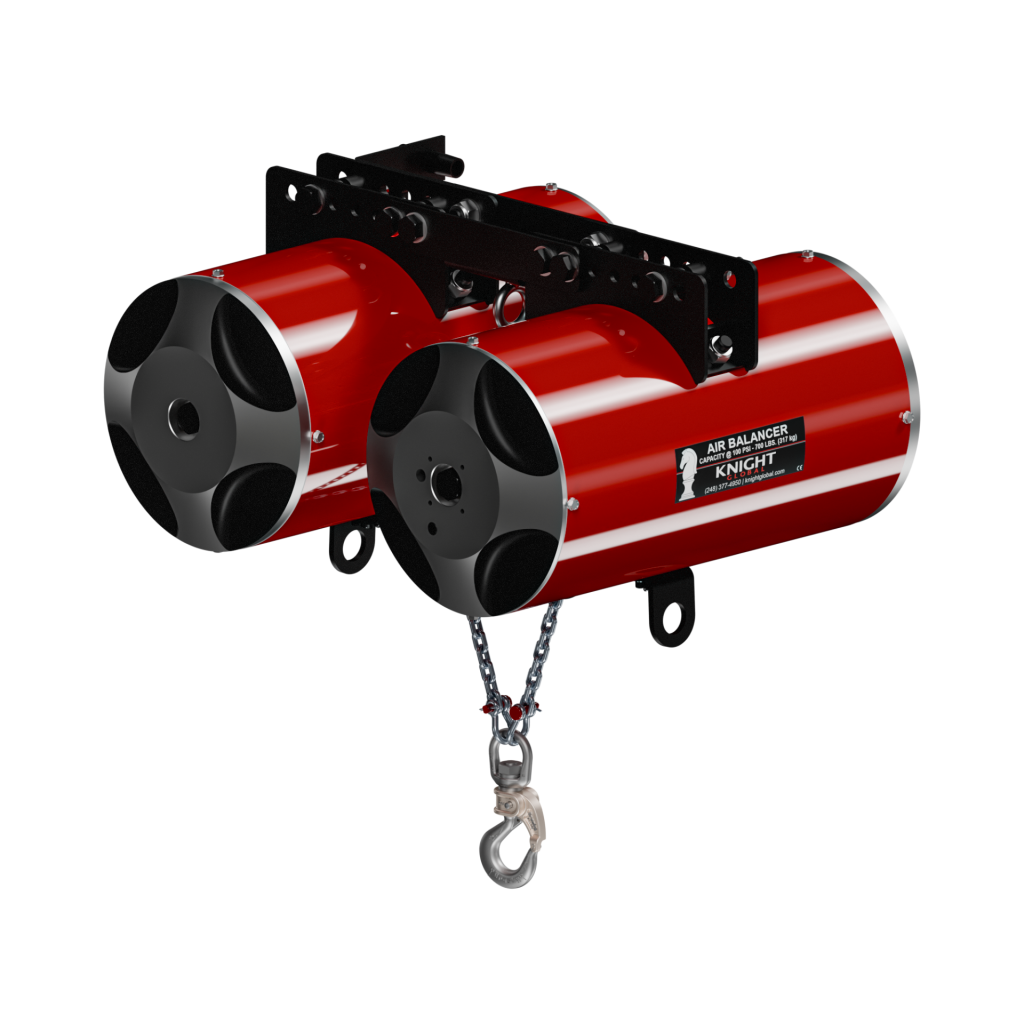

Tandem Cable / Chain Pneumatic Balancer Series
Tandem Pneumatic Balancers (Cable / Chain)
Series: TKBA700 / 1000 / 1400 | TKBC700 / 1000 / 1400
The Knight tandem balancer series is built primarily for loads above 700 lbs [318 kg]. The tandem construction reaches the same capacity as a reeved balancer while keeping the long stroke of a standard single unit – there is no pulley block halving the lift height.
The chain version uses a special grade 80 load chain with a proprietary surface treatment that extends chain life by up to 300% compared with standard grade 80 chain.
Size the working load at 80% of the rated capacity to allow for normal fluctuation in the plant air system. Units are rated at 100 psi [6.8 bar].
Tandem – Full Stroke
Two cylinders work in series inside one unit, so capacity rises to 1,400 lbs [635 kg] with no loss of stroke – up to 80 in [2,032 mm]. Choose tandem when the part has to travel a long vertical distance.
Reeved – Half Stroke
A pulley block doubles the capacity to the same 1,400 lbs, but the load rises only half as far as the cable travels – 26 to 55 in [685 to 1,397 mm]. Choose reeved when headroom is tight and lift height is modest.
Features
- CE compliant.
- Two versions: cable (TKBA) or chain (TKBC).
- Hands-free operation.
- Float mode as standard.
- Internal centrifugal retract control built in.
- Requires clean, dry, non-lubricated compressed air.
- Maximum balancing capacity: 1,400 lbs [635 kg].
- Standard stroke: up to 80 in [2,032 mm].
Benefits & Options
- Full stroke retained at reeved-level capacity.
- Optional external retract control (EX).
- Optional travel limit switch (LS1 / LS2).
- A range of suspension kits to suit the installation.
- Integrates with Knight aluminium rail (RAD4110 / 6110 / 7510).
- Special grade 80 chain – up to 300% longer life.
- Suited to heavy, continuous-duty industrial use.
Tandem Cable – TKBA Series
| Model | Rated Capacity | Maximum Stroke | ||
|---|---|---|---|---|
| lbs | kg | in | mm | |
| TKBA700-073 | 700 | 318 | 73 | 1,854 |
| TKBA1000-080 | 1,000 | 454 | 80 | 2,032 |
| TKBA1400-054 | 1,400 | 635 | 54 | 1,371 |
Tandem Chain – TKBC Series
| Model | Rated Capacity | Maximum Stroke | ||
|---|---|---|---|---|
| lbs | kg | in | mm | |
| TKBC700-067 | 700 | 318 | 67 | 1,701 |
| TKBC1000-080 | 1,000 | 454 | 80 | 2,032 |
| TKBC1400-052 | 1,400 | 635 | 52 | 1,320 |
Load Attachments & Measurement
For 4 mm and 5 mm chain
360° rotation, connects the safety cable
Self-closing Crosby® Bullard
360° rotation, with safety chain pin
Load Trolleys
Pneumatic Controls
Purpose-built for tandem balancers
Straight or coiled hose, 10 ft [3 m]
Horizontal or vertical grip
Two zero-gravity load settings
2090: up to 250 lbs / 2322: up to 500 lbs
Ideal for tightening tools
Safety Cable Kits
4 Crosby® clamps + 2 thimbles
With eye bolts for structural anchoring
2 copper oval sleeves + 2 thimbles
Spec Sheets & CAD Drawings
TKBA Tandem Cable Series – Spec Sheet TKBC Tandem Chain Series – Spec Sheet TKBA Series – CAD Drawings (.zip) TKBC Series – CAD Drawings (.zip)
