Extension Arm Pneumatic Balancers

P/N: KEAA2000 / KEAA2500

The Knight Global KEAA2000 and KEAA2500 extension arm balancers let the operator reach beyond the working envelope of the overhead rail system in a workstation. A pneumatic balancer mounts to the extension arm, giving controlled raising and lowering of the load.

The KEAA2000 and KEAA2500 travel inside Knight Global RAD4110, RAD6110 or RAD7510 aluminium rail. Two versions are available:

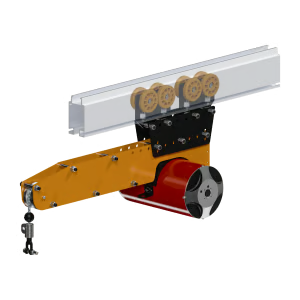

KEAA2500 – Single Bridge: for light and medium duty applications, compact and lighter in weight.

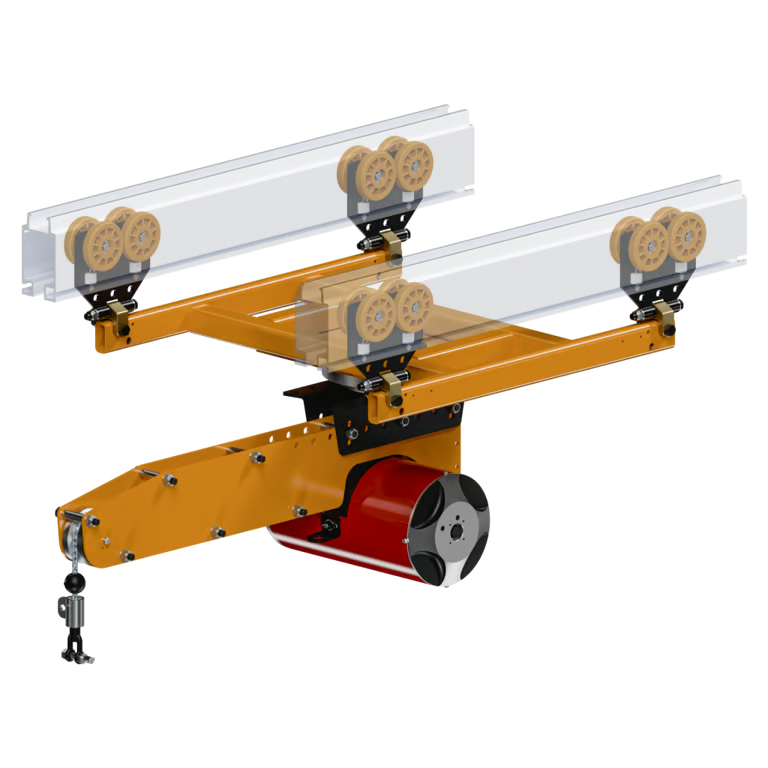

KEAA2000 – Dual Bridge: higher capacity and greater stability when handling heavy or off-centre loads.

When selecting a pneumatic balancer, FULLSHARP recommends sizing the working load at 80% of the rated capacity to allow for plant air pressure fluctuation. Balancers are rated at a standard supply pressure of 100 psi [6.8 bar].

Working capacity formula: Example – plant air at 60 psi, a 350 lbs balancer, 80% load factor → (60/100) × 350 lbs = 210 lbs × 0.80 = 168 lbs of actual working capacity.

Features & Benefits

Features

Single Bridge or Dual Bridge configuration.
Travels inside Knight RAD4110, RAD6110 or RAD7510 rail.
CE compliant.
A wide choice of control configurations.
Angle adjustment in 10° increments (10° up / 10° down).
Lateral adjustment to 6.8 in [172 mm] in 2.3 in increments.
Requires clean, dry, non-lubricated compressed air.
Maximum balancing capacity up to 700 lbs [317 kg].
Chain configuration.

Benefits

Extends the working area of a conventional balancer.
Reaches beyond the limits of the overhead rail.
Allows 360° rotation.
Controlled raising and lowering, with anti-drop protection.
Reduces operator fatigue and raises productivity.
Integrates easily with an existing Knight rail system.
Control accessories sold separately (Up/Down or Balance).
Easily customised for a specific application.

Maintenance recommendation: Knight Global recommends a food-grade, high-pressure, anti-wear penetrating oil – Lubriplate® 1241 for wire rope, or SAE 50-90 EP motor / gear oil for load chain.

Specifications – KEAA2500 (Single Bridge)

Part Number	Capacity (lbs / kg)	Stroke (in / mm)	Balancer Length (in / mm)
KEAA2500-200	200 lbs [90 kg]	110 in [2,794 mm]	16.3 in [414 mm]
KEAA2500-350	350 lbs [158 kg]	67 in [1,702 mm]	16.3 in [414 mm]
KEAA2500-500	500 lbs [226 kg]	80 in [2,032 mm]	21.5 in [546 mm]
KEAA2500-700	700 lbs [317 kg]	50 in [1,270 mm]	21.5 in [546 mm]

Specifications – KEAA2000 (Dual Bridge)

Part Number	Capacity (lbs / kg)	Stroke (in / mm)	Balancer Length (in / mm)
KEAA2000-200	200 lbs [90 kg]	110 in [2,794 mm]	16.3 in [414 mm]
KEAA2000-350	350 lbs [158 kg]	67 in [1,702 mm]	16.3 in [414 mm]
KEAA2000-500	500 lbs [226 kg]	80 in [2,032 mm]	21.5 in [546 mm]
KEAA2000-700	700 lbs [317 kg]	50 in [1,270 mm]	21.5 in [546 mm]

Capacity and stroke figures are measured at a standard supply pressure of 100 psi [6.8 bar]. Actual working capacity is recommended at 80% of the rated capacity to allow for plant air pressure fluctuation.
