Description

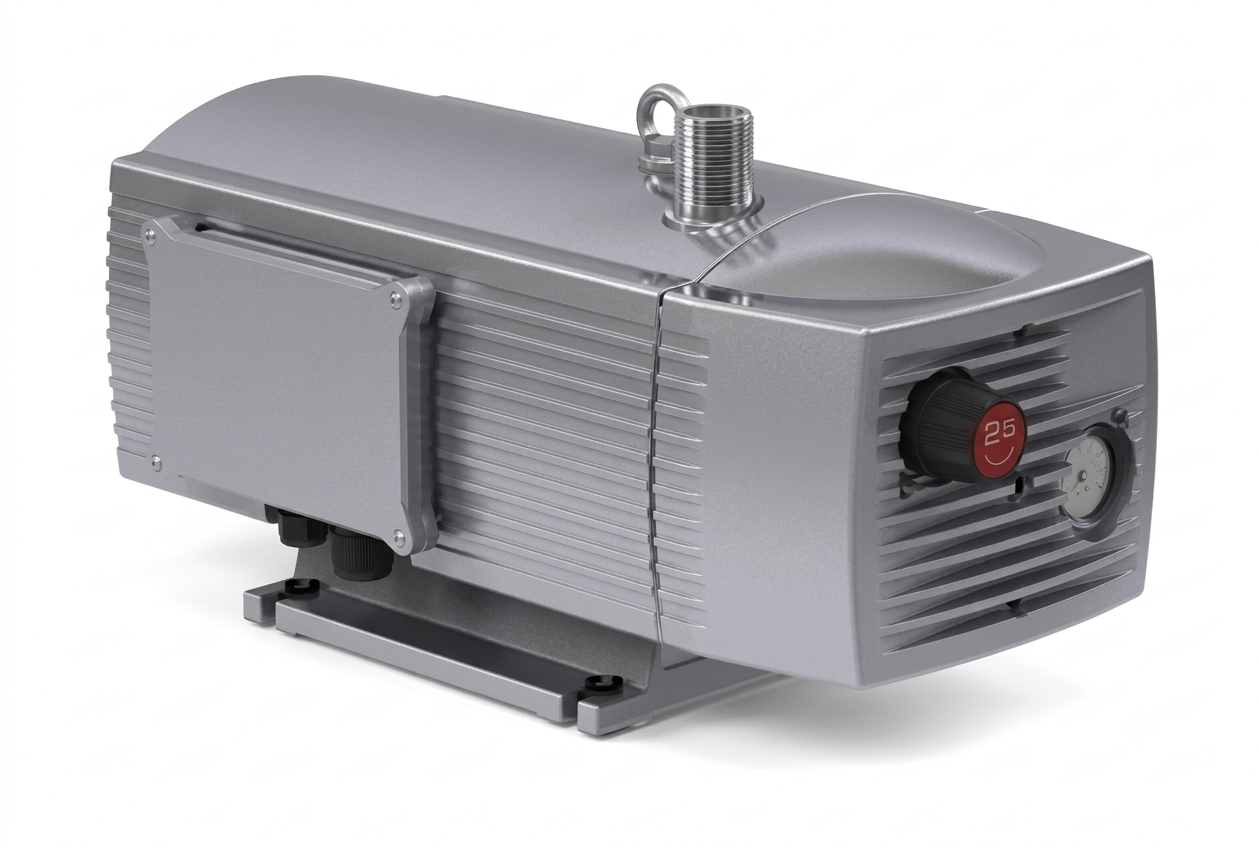

PMPE-28-2436-S ROTARY VANE VACUUM STATION
A compact, reliable source of quiet, vibration-free vacuum – with integrated suction filter, vacuum regulating valve and muffler
Product Overview
PMPE-28-2436-S – dimensions
ANVER offers select models of high efficiency vacuum pumps specially designed for ANVER and used as part of its vacuum lifting systems. These rotary vane pumps offer a compact, reliable source of quiet, vibration-free vacuum.
They are made from tough, high-strength materials for long life, and are lightweight and virtually maintenance free. Their highly efficient, state-of-the-art design has rendered the older designs of conventional side-channel blowers obsolete.
Powered by high quality motors, they are more energy efficient and require less horsepower to operate than competitive models, and are offered in a variety of sizes to match your vacuum lifting requirements.
The station has an integrated suction filter, vacuum regulating valve and muffler.
Fittings Included
The vacuum station includes the following fittings:
| Part number | Description |
|---|---|
| AA34X112AL | Hose barb, 3/4″ NPT x 1-1/2″ hose (aluminium) |
| PHB34X1 | Hose barb, 3/4″ NPT x 1″ hose (polypropylene) |
Voltages Available
| Voltage available | Phase | Cycle |
|---|---|---|
| Dual voltage: 230 / 460 V · single voltage: 208 V | 3 phase | 60 |
| Single voltage: 400 V | 3 phase | 50 |
Specifications
PMPE-28-2436-S – performance chart
| PMPE-28-2436-S | |
|---|---|
| Parameter | Value |
| Dimensions and weight | |
| A [in. (mm)] | 11.7 (297) |
| B [in. (mm)] | 22.25 (565) |
| C [in. (mm)] | 10.75 (273) |
| D [in. (mm)] | 8.66 (220) |
| E [in. (mm)] | 7.48 (190) |
| Pump weight [lb (kg)] | 91 (42) |
| Performance | |
| Power at 50 / 60 Hz [HP (kW)] | 1.7 (1.26) / 2.0 (1.49) |
| Flow at 50 / 60 Hz [SCFM (m³/hr)] | 23.5 (39.9) / 28.3 (40.1) |
| Maximum vacuum [in. Hg (mbar)] | 25.4 (860) |
| Sound [dB] | 67 / 72 |
| Electrical | |
| Amps at 230 / 460 VAC, 60 Hz | 5.8 / 2.9 |
| Amps at 208 VAC, 60 Hz | 6.5 |
| Amps at 400 VAC, 50 Hz | 3.1 / 3.3 |
Refer to the pump specification label for actual ratings. The data listed above is subject to change. Before using the pump, confirm that your operating requirements are compatible with the data on the pump specification label.
Reference document 13600209.
