VERTICAL VACUUM LIFTERS
Powered vacuum lifters for one person vertical lifting – EV, EVL and AVL series
Product Overview

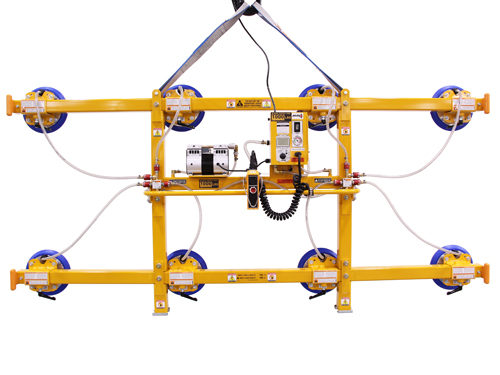

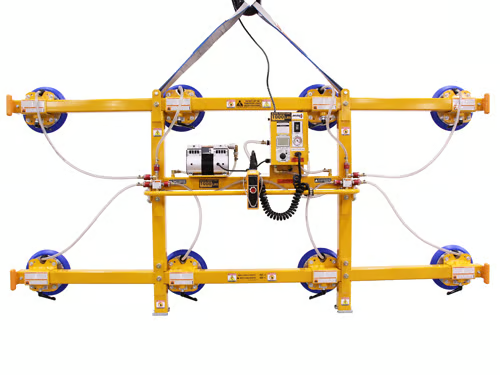

EV200M8 vertical lifter
Lightweight electric vertical vacuum lifters are designed to take most of the effort out of lifting loads carried on edge. Protective features include:
- VLS system – 9V battery powered vacuum leak sensor
- Attach / release pendant for operator control
- Locking knobs on the adjustable pads
- Maximum vacuum level of 24 in. Hg
- Vacuum safety factor of 4:1

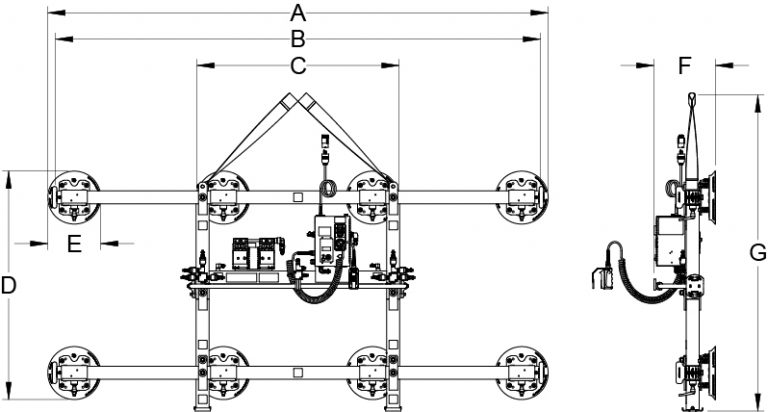

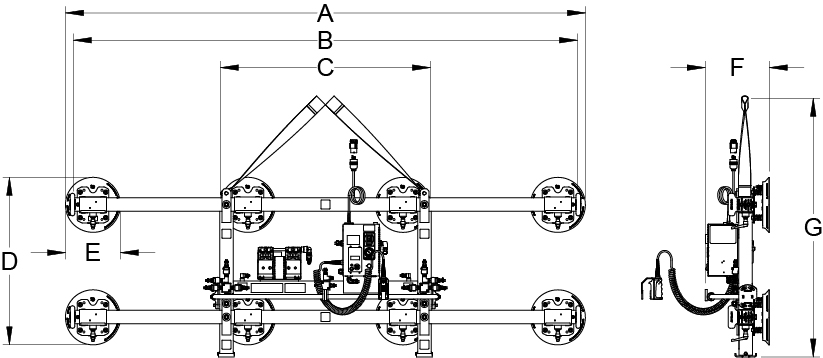

EV200M8-110X44 – 8 Pad Lifter for Large Glass
| Model EV200M8-110X44 | |
|---|---|
| Specification | Value |
| Rated capacity | 2,000 lb [907 kg] |
| Unit weight | 430 lb [195 kg] |
| A – outer pad spacing, min / max | 67 / 115 in. [1,702 / 2,921 mm] |
| B – beam length | 112 in. [2,845 mm] |
| C – inner pad spacing, min / max | 26 / 46 in. [661 / 1,168 mm] |
| D – pad spacing, min / max | 38 / 53 in. [966 / 1,346 mm] |
| E – pad size | 12.6 in. [320 mm] |
| F – lifter depth | 15 in. [381 mm] |
| G – headroom, min / max | 60 / 75 in. [1,524 / 1,905 mm] |
| Maximum sheet size | 12 × 10 ft [3.7 × 3.1 m] |
| Pad number | VP126 |
EVL / AVL Series with Manual Rotation

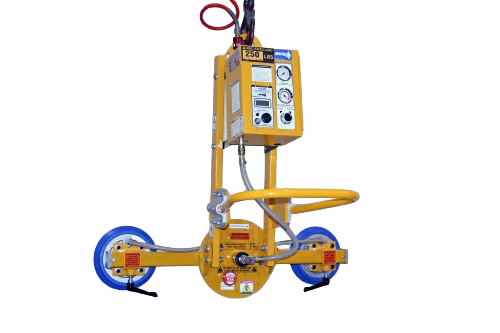

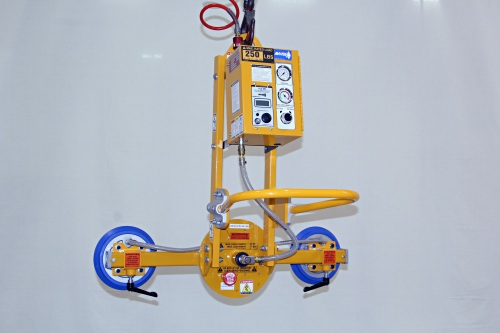

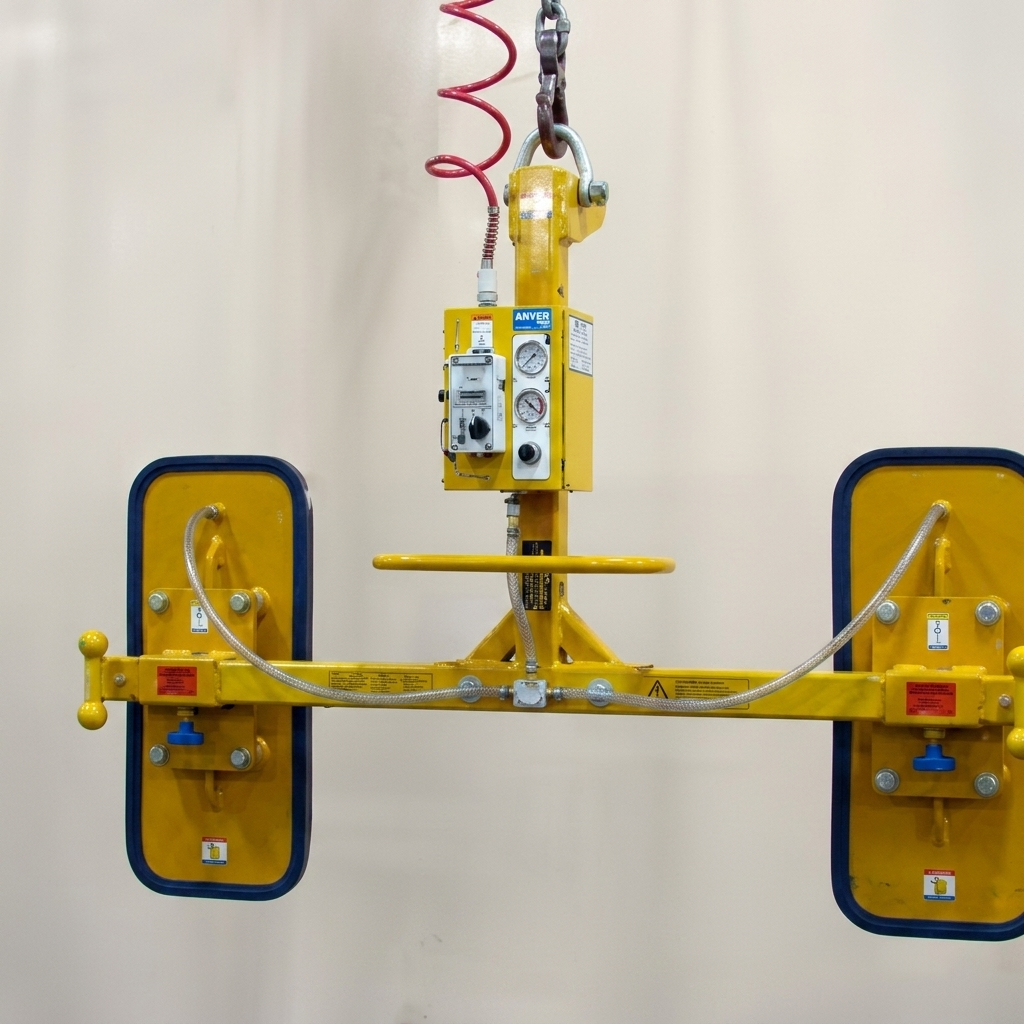

AVL25M2 vertical lifter
The lightweight EVL electric and AVL air powered vertical lifters are built to take the effort out of lifting loads on edge. They are made with safety as the first priority and carry several protective features: the VLS 9V battery vacuum leak sensor with audible alarm; an attach/release slide valve with safety lock (EVL series only); and locking knobs on the adjustable pads, slide assemblies and crossarms where fitted.
EVL and AVL rated capacities are given at a maximum vacuum of 24 in. Hg [609.6 mm Hg] at sea level, with a 4:1 safety factor in vacuum holding unless otherwise specified.
Built with ergonomic handles and a rigid welded steel frame, the lifter stays easy and comfortable to operate across a wide range of loads and applications.

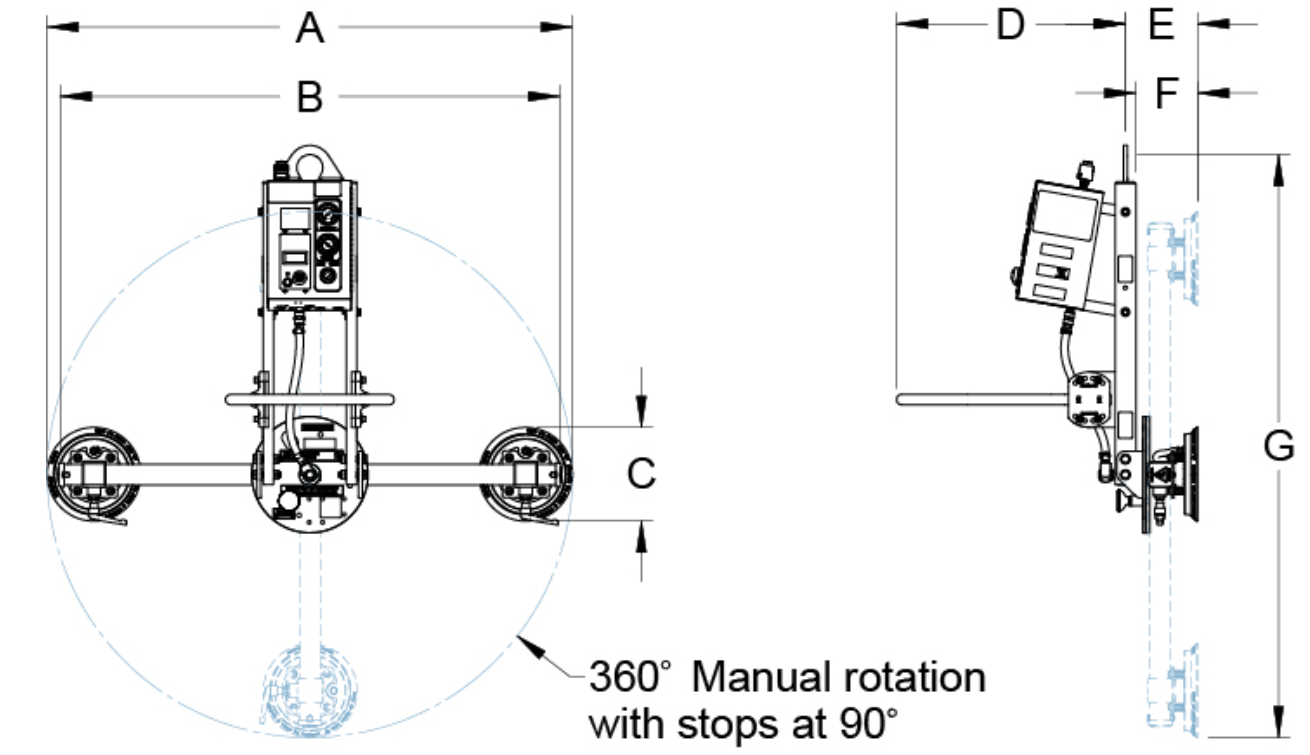

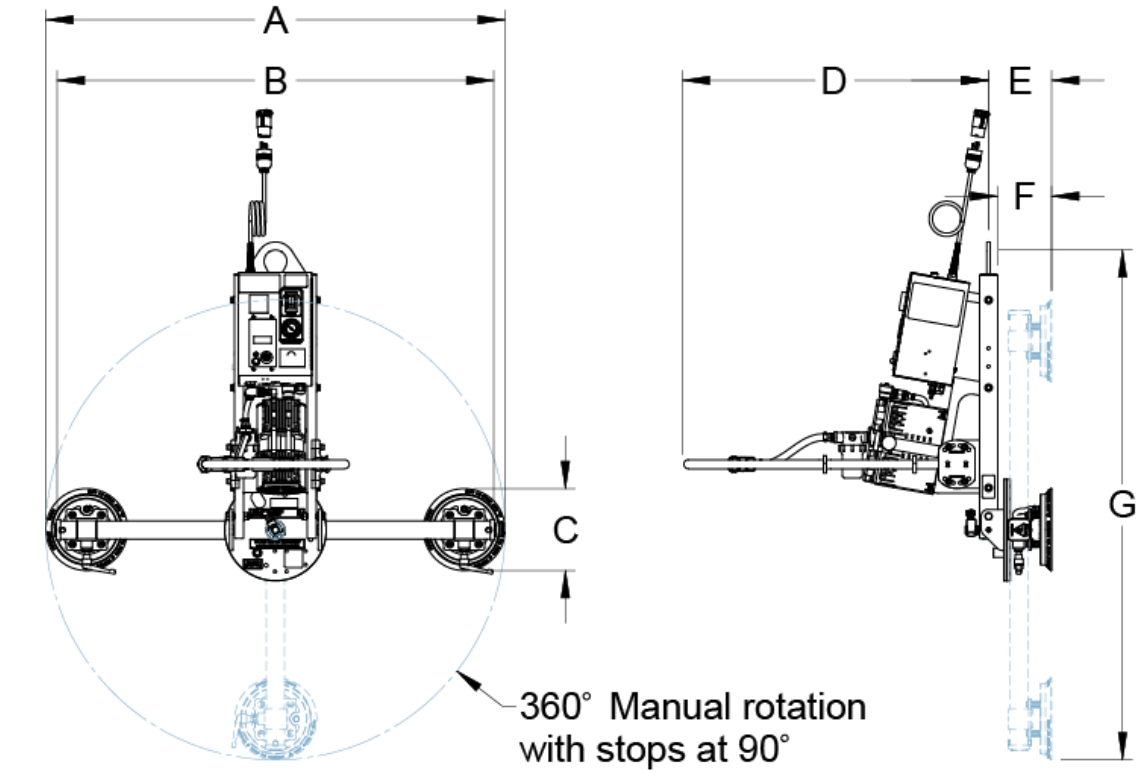

AVL25M2 series – air powered, 360° manual rotation
| AVL25M2 series specifications | |||
|---|---|---|---|
| Lifter model | AVL25M2-24MR | AVL25M2-36MR | AVL25M2-48MR |
| Rated capacity [lb (kg)] | 250 (113) | 250 (113) | 250 (113) |
| Unit weight [lb (kg)] | 90 (41) | 95 (44) | 100 (46) |
| A – max. pad spacing [in. (mm)] | 26 (660) | 38 (965) | 50 (1,270) |
| A – min. pad spacing [in. (mm)] | 24 (610) | 24 (610) | 24 (610) |
| B – beam length [in. (mm)] | 24 (610) | 36 (914) | 48 (1,219) |
| C – pad size [in. (mm)] | 9.25 (235) | 9.25 (235) | 9.25 (235) |
| D – handle length [in. (mm)] | 33 (838) | 33 (838) | 33 (838) |
| E – pad to bail [in. (mm)] | 7.5 (191) | 7.5 (191) | 7.5 (191) |
| F – pad to frame [in. (mm)] | 5.5 (140) | 5.5 (140) | 5.5 (140) |
| G – max. headroom [in. (mm)] | 47 (1,194) | 59 (1,499) | 71 (1,803) |
| Recommended max. load size [ft (m)] | 8×4 (2.4×1.2) | 8×4 (2.4×1.2) | 8×4 (2.4×1.2) |
| Pad number | VP92 | VP92 | VP92 |
EVL25M2 series – electric, 360° manual rotation
| EVL25M2 series specifications | |||
|---|---|---|---|
| Lifter model | EVL25M2-24MR | EVL25M2-36MR | EVL25M2-48MR |
| Rated capacity [lb (kg)] | 250 (113) | 250 (113) | 250 (113) |
| Unit weight [lb (kg)] | 106 (48) | 111 (51) | 116 (53) |
| A – max. pad spacing [in. (mm)] | 26 (660) | 38 (965) | 50 (1,270) |
| A – min. pad spacing [in. (mm)] | 24 (610) | 24 (610) | 24 (610) |
| B – beam length [in. (mm)] | 24 (610) | 36 (914) | 48 (1,219) |
| C – pad size [in. (mm)] | 9.25 (235) | 9.25 (235) | 9.25 (235) |
| D – handle length [in. (mm)] | 33 (838) | 33 (838) | 33 (838) |
| E – pad to bail [in. (mm)] | 7.5 (191) | 7.5 (191) | 7.5 (191) |
| F – pad to frame [in. (mm)] | 5.5 (140) | 5.5 (140) | 5.5 (140) |
| G – max. headroom [in. (mm)] | 47 (1,194) | 59 (1,499) | 71 (1,803) |
| Recommended max. load size [ft (m)] | 8×4 (2.4×1.2) | 8×4 (2.4×1.2) | 8×4 (2.4×1.2) |
| Pad number | VP92 | VP92 | VP92 |
*Note – load weight and thickness affect the final tilt angle the lifter can reach. Because of the centre of gravity offset, contact FULL-SHARP for loads thicker than 2 in. [51 mm]. Unit weights do not include optional accessories.
EVL & AVL Series Features
EVL – electric powered
- EP1001 vacuum generator with vacuum gauge and master on/off switch
- Power supply – 115V / 60Hz / 1ph / 5A; a 15 A service line is required
- 4.3 SCFM [121.8 l/min] vacuum pump and motor, 1/2 HP, with thermal overload sensor and 100% duty cycle
- VLS – vacuum leak sensor and alarm, 9V battery powered
- Re-settable circuit breaker for the vacuum pump
- Power cord with twist-lock plug, male and female receptacles
- Check valve holds vacuum in the event of power loss
AVL – air powered
- AL1001 vacuum generator with vacuum and pressure gauges, mounted on the housing
- Air supply – 90 psi, clean and dry compressed air, 6.1 SCFM [172.7 l/min]
- 3/8 NPT air inlet with lockable slide valve, 100% duty cycle
- VLS – vacuum leak sensor and alarm, 9V battery powered
- Pre-set regulator allows the lifter to run on higher pressure air lines
- Single stage venturi with check valve, preventing loss of vacuum if the air supply fails

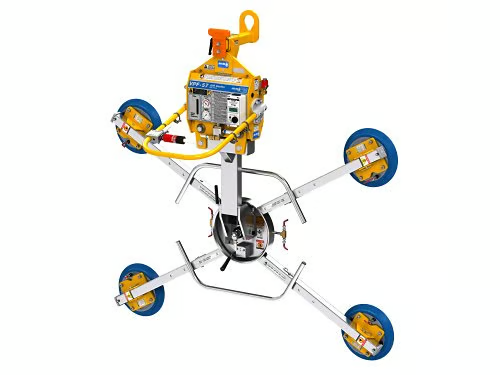

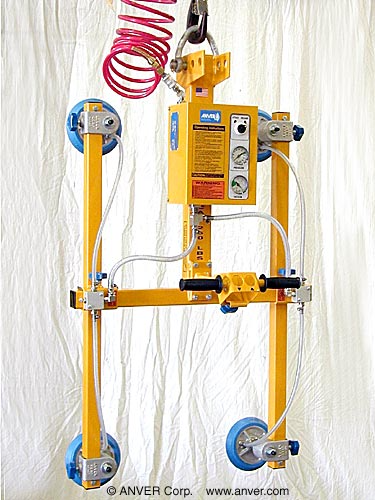

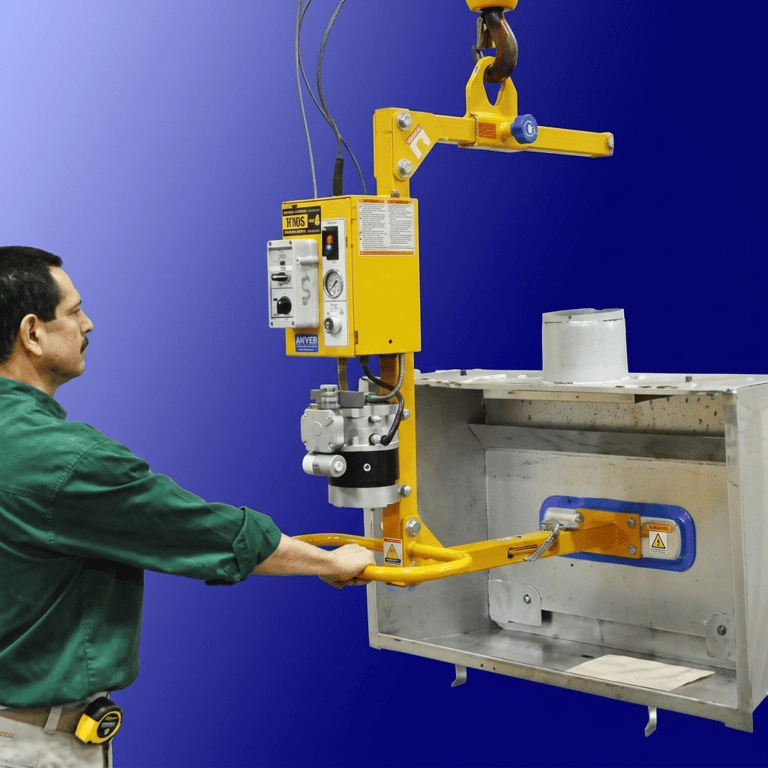

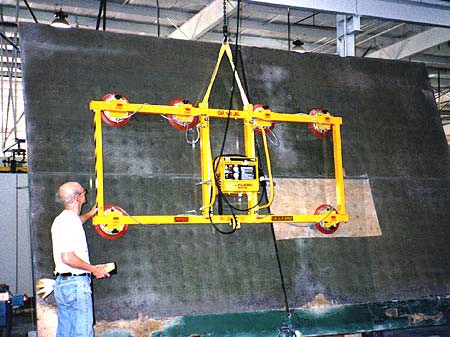

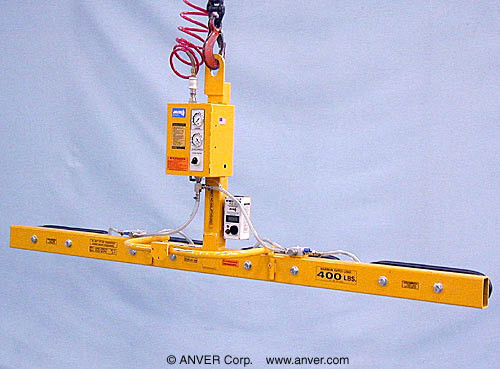

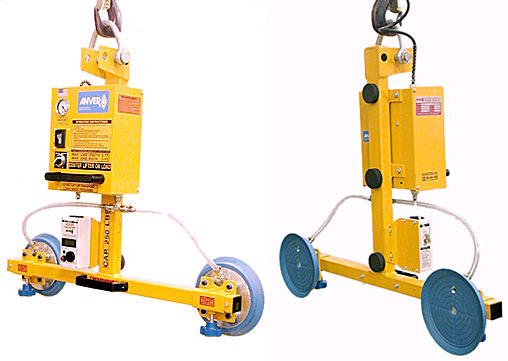

Custom Vertical Configurations

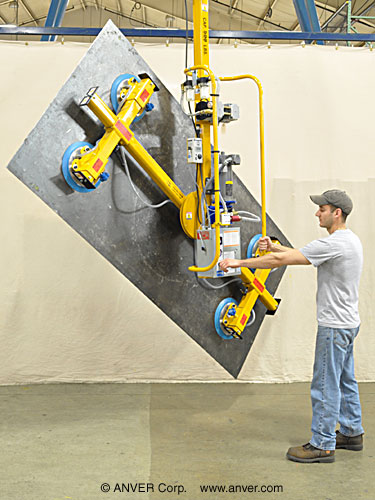

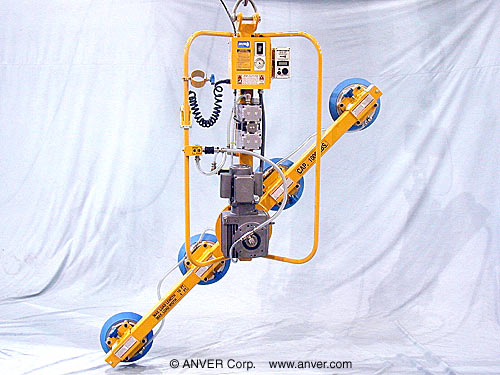

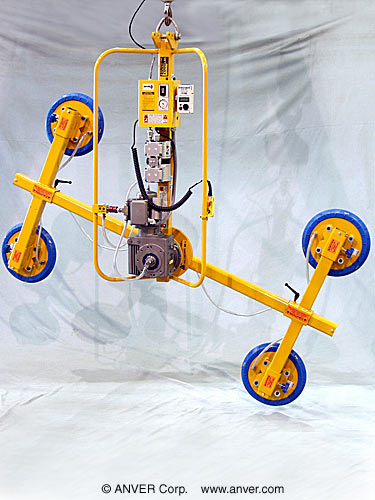

Vertical Lifters with Powered Rotation
Vertical lifters are configured to the load, pad layout and rotation required – contact FULL-SHARP with your material size, weight, thickness and surface condition.
