Description
MECHANICAL VACUUM GENERATORS
Self-powered and self-cycling – save energy and increase productivity
Unique Features of ANVER Mechanical Vacuum Lifters
- Instant attach and release is provided via the hoist up and down movement. The attach and release alternates each lift cycle for fast, efficient handling. Mechanical vacuum lifters increase the speed and efficiency of the horizontal handling of sheet and plate, panels, and all types of nonporous materials.
- Simple to operate. One person can control the entire operation. No oil fumes or noise pollution.
- Easy to maintain. Only the highest quality components and superior construction are used with few moving parts.
- Extremely safe. Load cannot be released until it is set down on a surface.
- ANVER Mechanical Vacuum Lifters are suitable for 100% duty cycle 24 hour a day operation. They never overheat or burn out.
- Easy to maintain and keep operating in heavy production environments.
ANVER Mechanical Vacuum Generators comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and European requirements.

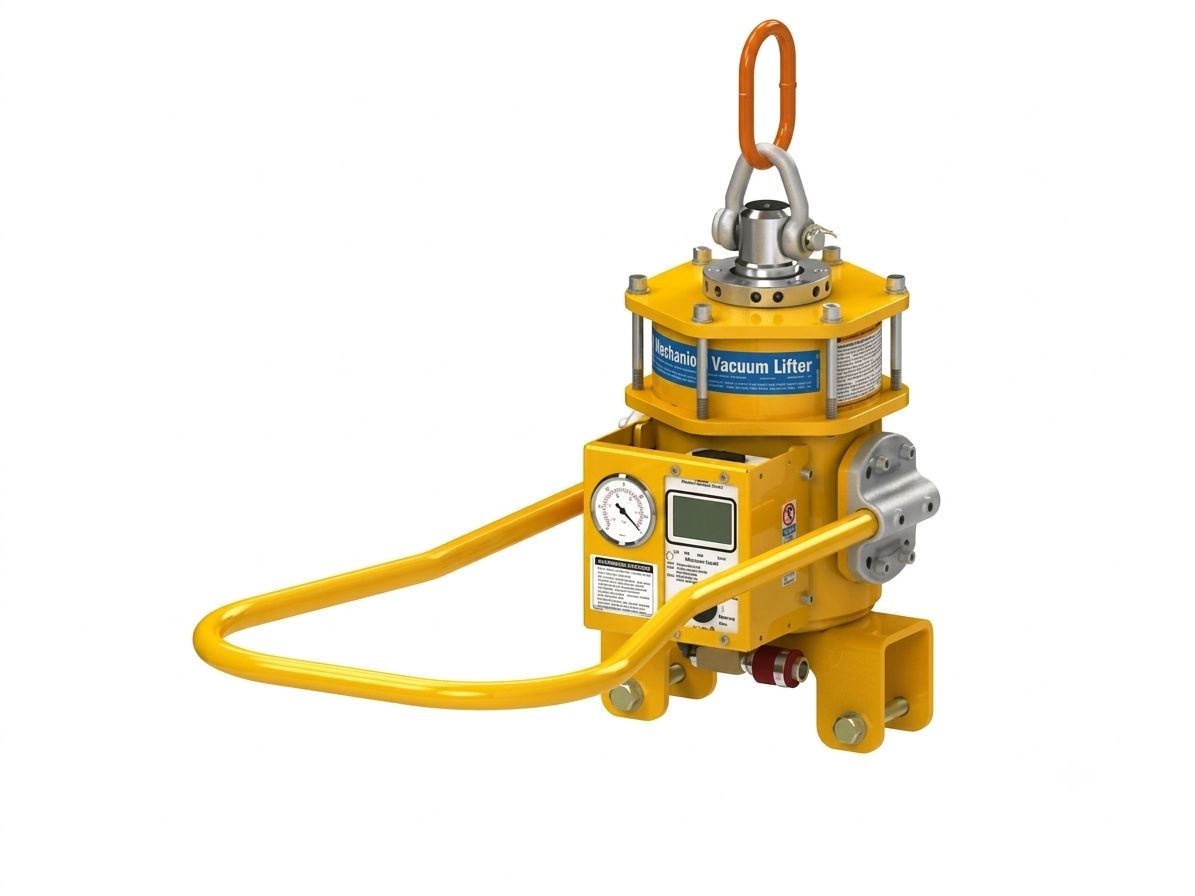

M100M Mechanical Vacuum Generators
M100M
Standard on each generator
- Vacuum gauge
- Battery operated VLS, vacuum loss sensor and warning system
- Front, adjustable pivoting handle-bar
- Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)
| Generator series model no. | M100M |
|---|---|
| Rated load capacity [lbs (kg)] | 1100 (499) |
| Unit weight [lb (kg)] | 105 (48) |
| A max. [in. (mm)] | 29 (737) |
| B min. [in. (mm)] | 18 (457) |
| C [in. (mm)] | 16 (406) |
| D [in. (mm)] | 30 (762) |
| E hardware centers [in. (mm)] | 9 (229) |
| F mounting hardware [in. (mm)] | Provided |
| G master chain link dimensions [in. (mm)] | 2.38 x 4.25 (60 x 108) |
| H handlebar height [in. (mm)] | 10 (254) |
| Fits tube size [in. (mm)] | 3 x 3 (76 x 76) |
For assistance in determining the proper lifter for your load, contact ANVER Corporation to speak with a Sales Technician. Reference User’s Guide 12000042 Mechanical Vacuum Lifters with M100M Generator.

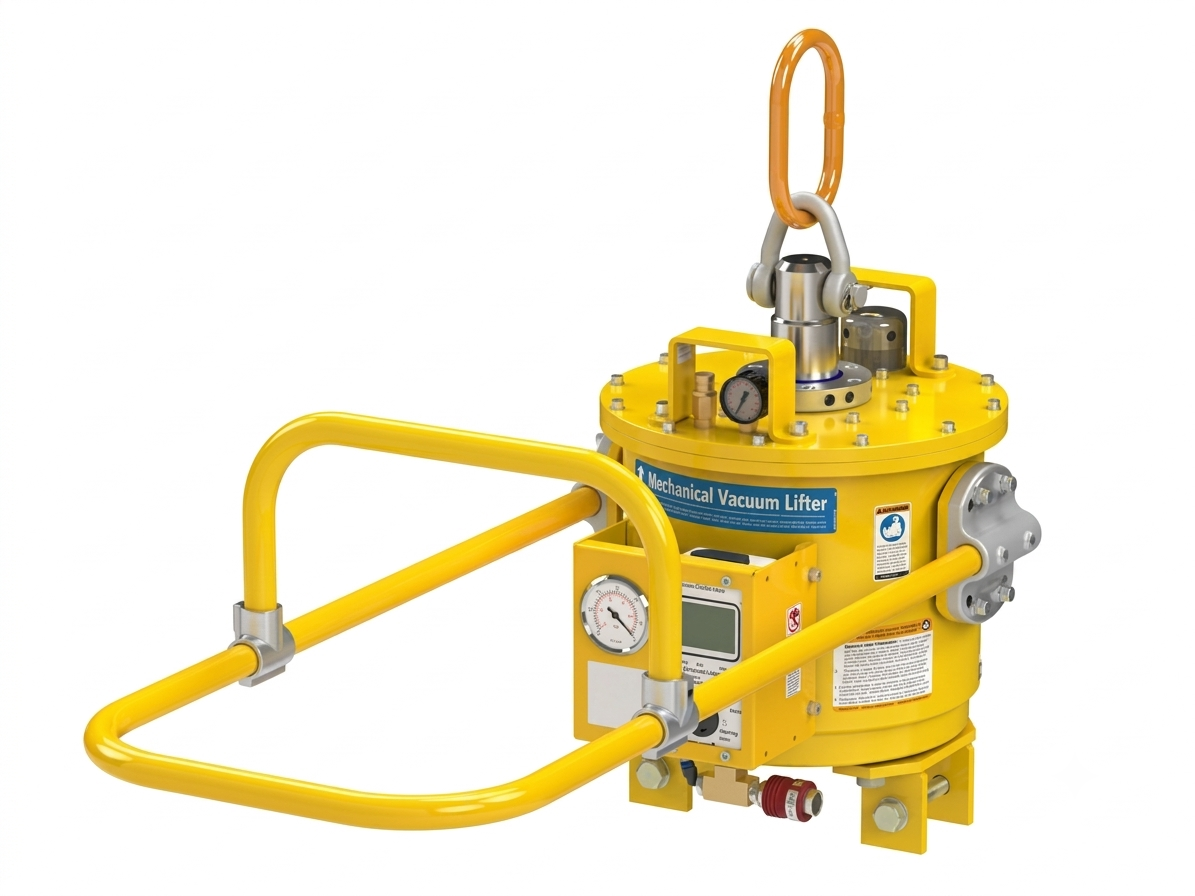

M150M Mechanical Vacuum Generators
M150M
Standard on each generator
- Vacuum gauge
- Battery operated VLS, vacuum loss sensor and warning system
- Front, adjustable pivoting handle-bar
- Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)
| Generator series model no. | M150M | M150M-3X6 |
|---|---|---|
| Rated load capacity [lbs (kg)] | 2200 (998) | 2200 (998) |
| Unit weight [lb (kg)] | 168 (76) | 170 (77) |
| A max. headroom [in. (mm)] | 30 (762) | 31 (787) |
| B min. height [in. (mm)] | 17.1 (434) | 18.6 (472) |
| C handlebar width [in. (mm)] | 16.1 (409) | 16.1 (409) |
| D handlebar length [in. (mm)] | 34 (864) | 34 (864) |
| E hardware centers [in. (mm)] | 9 (229) | 9 (229) |
| F mounting hardware [in. (mm)] | Provided | Provided |
| G master chain link dimensions [in. (mm)] | 3.25 x 5.38 (83 x 137) | 3.25 x 5.38 (83 x 137) |
| H handlebar height [in. (mm)] | 9.13 (232) | 10.5 (267) |
| Fits tube size [in. (mm)] | 3 x 3 (76 x 76) | 3 x 6 (76 x 152) |
For assistance in determining the proper lifter for your load, contact ANVER Corporation to speak with a Sales Technician. Reference User’s Guide 12000039 Mechanical Vacuum Lifters with M150M/M250M Generator (single chain sling).

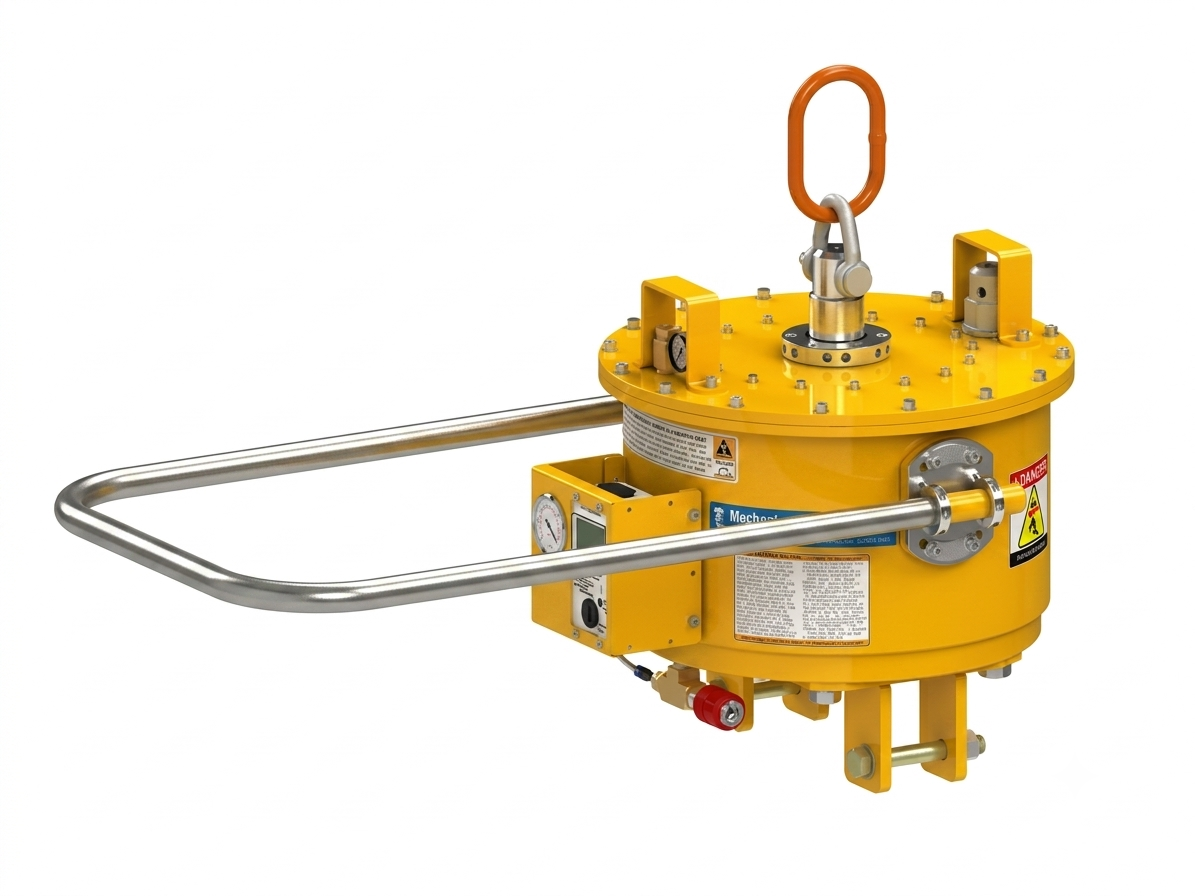

M250M Mechanical Vacuum Generators
M250M
Standard on each generator
- Vacuum gauge
- Battery operated VLS, vacuum loss sensor and warning system
- Front, adjustable pivoting handle-bar
- Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)
| Generator series model no. | M250M | M250M-5X7 | M250M-5X7H |
|---|---|---|---|
| Rated load capacity [lbs (kg)] | 4400 (1996) | 4400 (1996) | 4400 (1996) |
| Unit weight [lb (kg)] | 302 (137) | 305 (138) | 320 (145) |
| A max. headroom [in. (mm)] | 32.25 (819) | 32.75 (832) | 32.75 (832) |
| B min. height [in. (mm)] | 20 (508) | 20 (508) | 20 (508) |
| C handlebar width [in. (mm)] | 22 (559) | 22 (559) | 22 (559) |
| D handlebar length [in. (mm)] | 34.75 (883) | 34.75 (883) | 34.75 (883) |
| E hardware centers [in. (mm)] | 12 (305) | 12 (305) | 12 (305) |
| F mounting hardware [in. (mm)] | Provided | Provided | Provided |
| G master chain link dimensions [in. (mm)] | 3.25 x 5.38 (83 x 137) | 3.25 x 5.38 (83 x 137) | 3.25 x 5.38 (83 x 137) |
| H handlebar height [in. (mm)] | 11.5 (292) | 11.5 (292) | 11.5 (292) |
| Fits tube size [in. (mm)] | 3 x 6 (76 x 152) | 5 x 7 (127 x 178) | 5 x 7 (127 x 178) |
For assistance in determining the proper lifter for your load, contact ANVER Corporation to speak with a Sales Technician. Reference User’s Guide 12000039 Mechanical Vacuum Lifters with M150M/M250M Generator (single chain sling).
M600M Mechanical Vacuum Generators
Special order only.
| Model no. | M600M-S (special order only) |
M600M-H (special order only) |
|---|---|---|
| Max. rated load [lb (kg)] | 8000 (3629) | 8000 (3629) |
| Fits tube size [in (mm)] | 3 × 6 (76 × 152) | 5 × 7 (127 × 178) |
| Unit weight [lb (kg)] | 818 (371) | 831 (377) |
| A max. headroom [in (mm)] | 48 (1219) | 48.6 (1234) |
| B min. height [in (mm)] | 29.5 (749) | 30 (762) |
| C width [in (mm)] | 27.4 (696) | 27.4 (696) |
| D hardware centers [in (mm)] | 22.38 (568) | 22.38 (568) |
| E mounting hardware [in (mm)] | Provided | Provided |
| F master chain link dim. [in (mm)] | 4 x 6 (102 x 153) | 4 x 6 (102 x 153) |
M600M
A · B · C · D · E · F dimensions
M900M & M902M Mechanical Vacuum Generators
Larger capacity mechanical vacuum generators are built into specific models. We have a full line up to 18,000 lbs capacity.
M900M
- 13,000 lb (5897 kg) lift capacity
- H 65 in (1651 mm) x W 30.9 in (785 mm)
- Weight 950 lb (431 kg)
M902M
- 18,000 lb (8165 kg) lift capacity
- H 85 in (2162 mm) x W 30.9 in (785 mm)
- Weight 1300 lb (590 kg)
Retrofit Option
GF5T24-M
GF5T24-M – electric or battery powered
Direct replacement retrofit for existing M600M & M900M vacuum lifters with mechanical generators now available. Contact us for more information.
