FLOW-THROUGH SILENCERS
Vacuum system accessories – FTS Series non-clogging silencers, G 1/8 to G 1-1/2
Product Overview

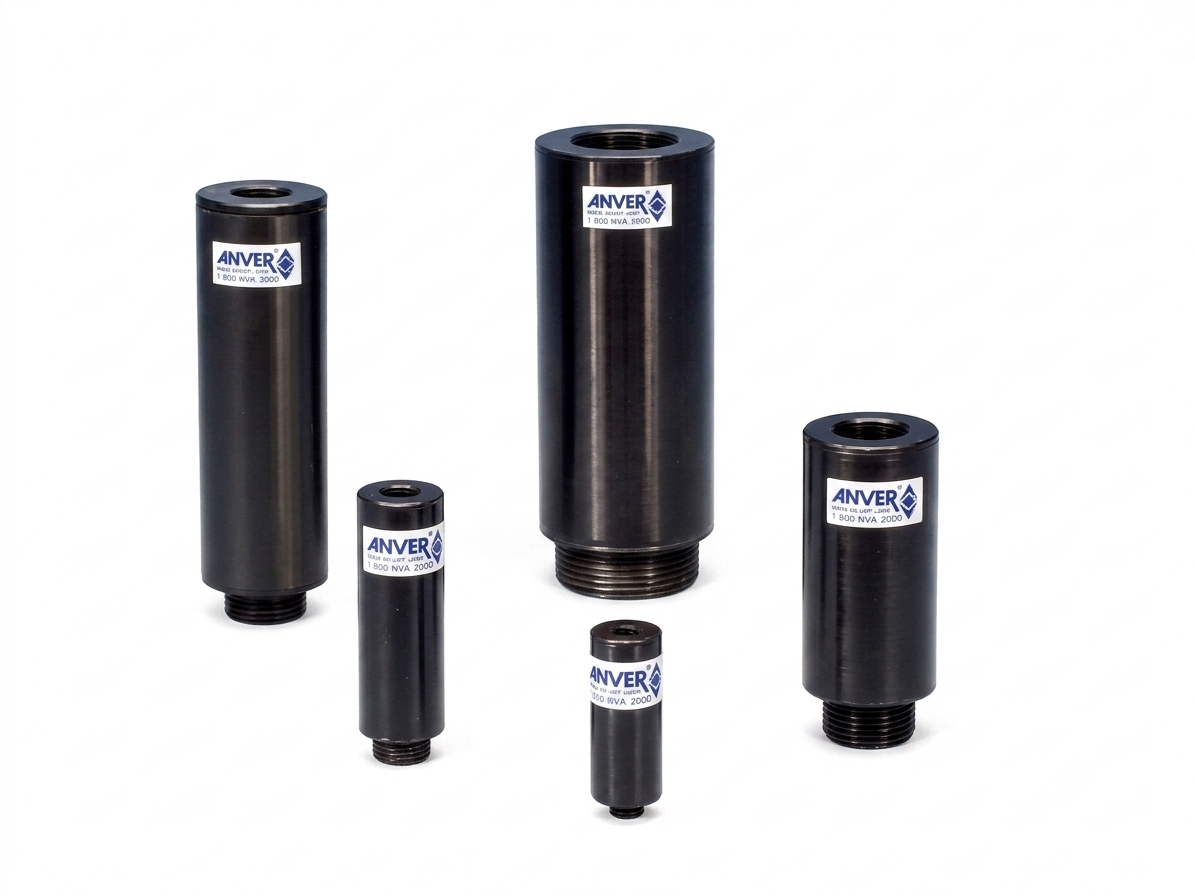

FTS Series flow-through silencers
ANVER Flow-Through Silencers avoid clogging by passing debris directly through the silencer. Each silencer is tuned in proportion to its exhaust flow and contains a dense liner to absorb exhaust noise, minimizing the excess noise to a gentle, low frequency flow of air.
This flow-through design allows debris to easily pass through the silencer, making them perfect for venturi pumps that are prone to ingesting dirt and debris.
The “G” thread is also known as BSPP, commonly used world-wide for vacuum applications.
Specifications
| Product photo | FTS Series flow-through silencers | |
|---|---|---|
| Parameter | Value | |
 |
Standard materials | Anodized AL-6061 black, polyurethane foam |
| Maximum temperature | 176°F (80°C) | |
| Maximum operating pressure | 150 PSI | |
| Color | Black | |
(Actual noise reduction will depend on application, port size, and working pressure.)
Silencer Specifications
| Flow-through silencers | ||||||
|---|---|---|---|---|---|---|
| ANVER part number | A [in. (mm)] | B [in. (mm)] | D1 thread (G) | D2 [in. (mm)] | D3 [in. (mm)] | Weight [oz. (g)] |
 FTS-0.125 |
0.22 (5.6) | 1.9 (48.2) | G 1/8 | 0.28 (7) | 0.75 (19) | 0.6 (17) |
 FTS-0.250 |
0.31 (8) | 1.9 (48.2) | G 1/4 | 0.37 (9.3) | 0.75 (19) | 0.9 (25) |
 FTS-0.375 |
0.36 (9.1) | 2.75 (70) | G 3/8 | 0.43 (11) | 0.96 (24.3) | 1.2 (34) |
 FTS-0.500 |
0.59 (15) | 2.95 (75) | G 1/2 | 0.59 (15) | 1.5 (38.1) | 1.6 (45) |
 FTS-0.750S |
0.59 (15) | 2.95 (75) | G 3/4 | 0.83 (21) | 1.5 (38.1) | 2.5 (71) |
 FTS-1.00 |
0.69 (17.5) | 5.5 (139.7) | G 1″ | 0.98 (25) | 2.24 (57) | – |
 FTS-1.5 |
0.69 (17.5) | 5.5 (139.7) | G 1-1/2 | 1.32 (33.5) | 2.24 (57) | 7.6 (215) |
3D models
| ANVER part number | SolidWorks 3D model |
|---|---|
| FTS-0.125 | Download |
| FTS-0.250 | Download |
| FTS-0.375 | Download |
| FTS-0.500 | Download |
| FTS-0.750S | Download |
| FTS-1.00 | Download |
| FTS-1.5 | Download |
