Expanders | Lifts All Core Grippers for the Roll Gripper

Expanders | Lifts All Core Grippers for the Roll Gripper

Lifts All expanders grip the roll core and expand, lifting rolls up to 120 kg. 92-10061 for 76 mm cores, 92-10062 for 152 mm cores.

next day delivery

check availability

pick localy

check availability

PayAfter

Buy now pay within 6 month

You may also like …

Tags: , , , , , , , , , , ,
Brands:

Description

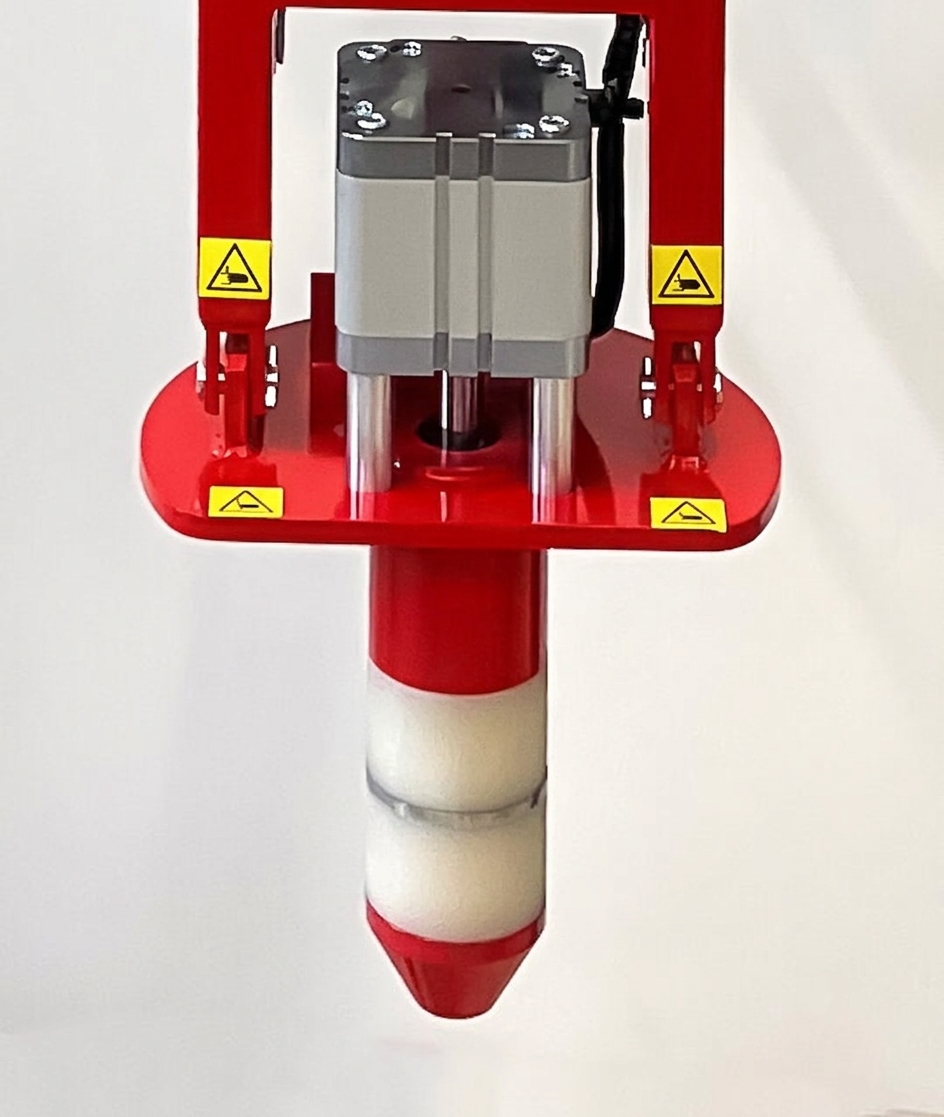

LIFTS ALL · Expanders Core-Gripping Applications for the Roll Gripper — Rolls up to 120 kg

Expanders ⊕ Zoom
APPLICATIONS

Expanders

Expander application for the Roll Gripper. The piston grips the core of the roll and expands, making it possible to lift rolls weighing up to 120 kg.

Weight (kg) 7.3
Maximum capacity (kg) 120
Type of lifting object Roll
Optional control PSH
Gripping technique Mechanical
Width (mm) 73.5, 149
Height (mm) 382, 404
Configuration height (mm) -100
Product Description

Expander application that fits our Roll Gripper. The piston grips the core of the roll and expands, making it possible to lift rolls weighing up to 120 kg.

01

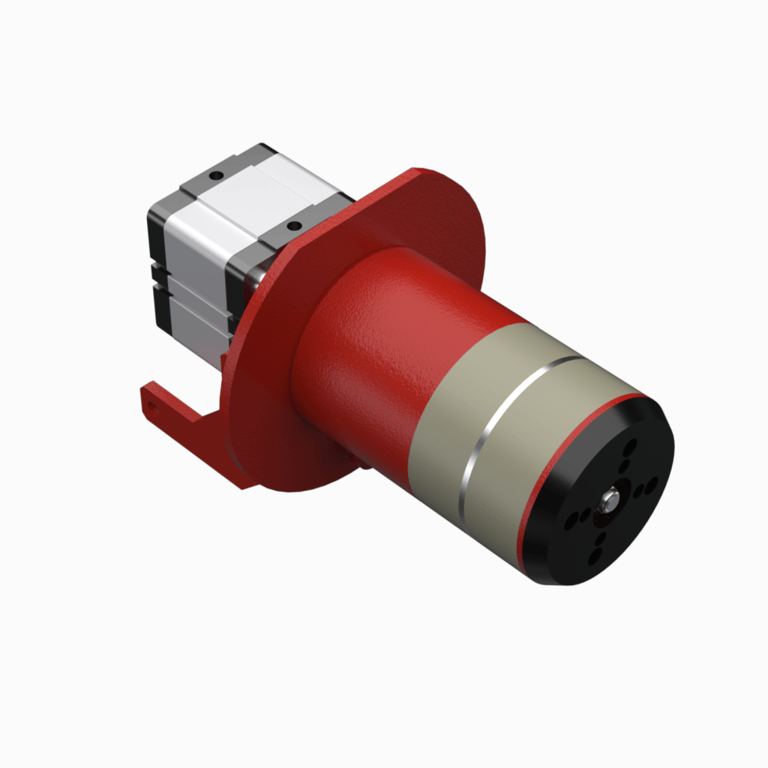

Expander 92-10061-MK2
Grips a 76 mm (3") wide core.
02

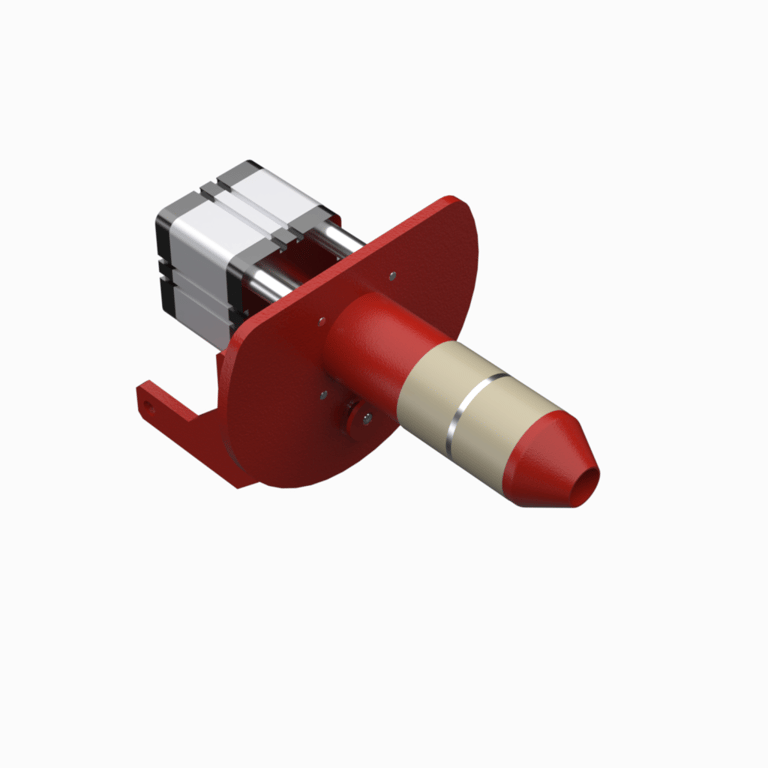

Expander 92-10062-MK3
Grips a 152 mm (6") wide core.
SKU & Configurations
SKU Name Weight
(kg)
Expander 92-10061-MK2 92-10061-MK2 Expander — (76 mm – 3″) – [120] kg 7.3
Expander 92-10062-MK3 92-10062-MK3 Expander — (152 mm – 6″) – [120] kg —
Type of lifting object: roll. — Mechanical gripping with PSH control, for the Roll Gripper.
