LEVEL COMPENSATOR MOUNTING BRACKETS FOR ALUMINIUM EXTRUSIONS
Universal SLSA brackets and hanger kits – anodised aluminium, for building an EOAT on any extrusion system
Product Overview
These brackets let ANVER cups and suspensions be integrated into aluminium extrusion systems in a simple, low cost way. This type of bracket is not available from other companies, because it is specific to ANVER vacuum cup suspensions.

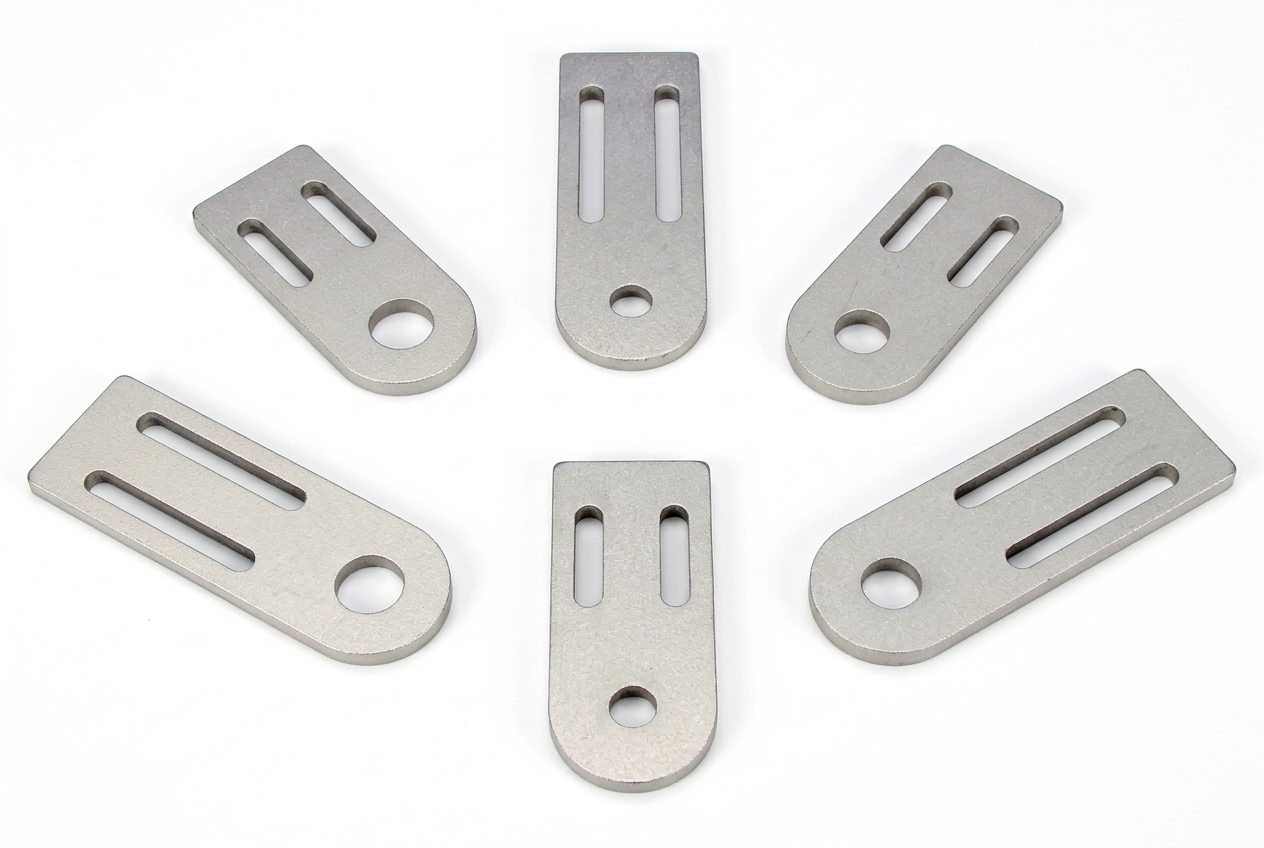

The brackets are made from tumbled and anodised 1/4″ (6 mm) aluminium, and the ANVER SLSA Series spring level compensators fit right into the end. They work with extrusion systems from any manufacturer, in inch or metric – 25 mm, 28 mm and around 40 mm sizes.
Add two standard 8 mm bolt clamps for your particular extrusion brand (not included) and you have an EOAT (end of arm tool). The brackets adjust and lock into position on the top or bottom of the extrusion rail.

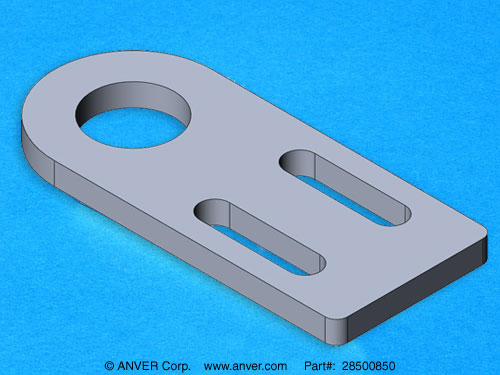

Choosing a bracket – the A hole diameter is what matches the bracket to the suspension: 0.48 in. for SLSA-1, 0.64 in. for SLSA-2, 0.75 in. for SLSA-3 and 0.9 in. for SLSA-4. Then choose the plate size: the 2 × 5 in. version for more adjustment, or the 1 × 4 in. version where space is tight.
Mounting Brackets
| SLSA mounting brackets – anodised aluminium | ||||||
|---|---|---|---|---|---|---|
| Part number | A – hole diameter in. (mm) | B in. (mm) | C in. (mm) | Description | Level compensator suspension | Weight lb (grams) |
| Brackets for SLSA-1 suspensions | ||||||
 28500230 |
0.48 (12.7) | 2.00 (50.8) | 5.00 (127) | Mounting bracket for SLSA-1, aluminium – 2 × 5 × 0.48 | SLSA-1 series | 0.170 (77) |
 28500232 |
0.48 (12.7) | 1.00 (25.4) | 4.00 (102) | Mounting bracket for SLSA-1, aluminium – 1 × 4 × 0.48 | SLSA-1 series | 0.141 (64) |
| Brackets for SLSA-2 suspensions | ||||||
 28500239 |
0.64 (16.2) | 2.00 (50.8) | 5.00 (127) | Mounting bracket for SLSA-2, aluminium – 2 × 5 × 0.64 | SLSA-2 series | 0.166 (75) |
 28500240 |
0.64 (16.2) | 1.00 (25.4) | 4.00 (101.6) | Mounting bracket for SLSA-2, aluminium – 1 × 4 × 0.64 | SLSA-2 series | 0.137 (62) |
| Brackets for SLSA-3 suspensions | ||||||
 28500231 |
0.75 (19.0) | 2.00 (50.8) | 5.00 (127) | Mounting bracket for SLSA-3, aluminium – 2 × 5 × 0.75 | SLSA-3 series | 0.163 (74) |
 28500233 |
0.75 (19.0) | 1.00 (25.4) | 4.00 (102) | Mounting bracket for SLSA-3, aluminium – 1 × 4 × 0.75 | SLSA-3 series | 0.135 (61) |
| Brackets for SLSA-4 suspensions | ||||||
 28500580 |
0.9 (23) | 1.00 (25.4) | 4.00 (102) | Mounting bracket for SLSA-4 | SLSA-3838G-102 | 0.127 (58) |
Call FULL-SHARP if the specifications above do not fit your design requirements – ANVER also makes custom mounting brackets on request.

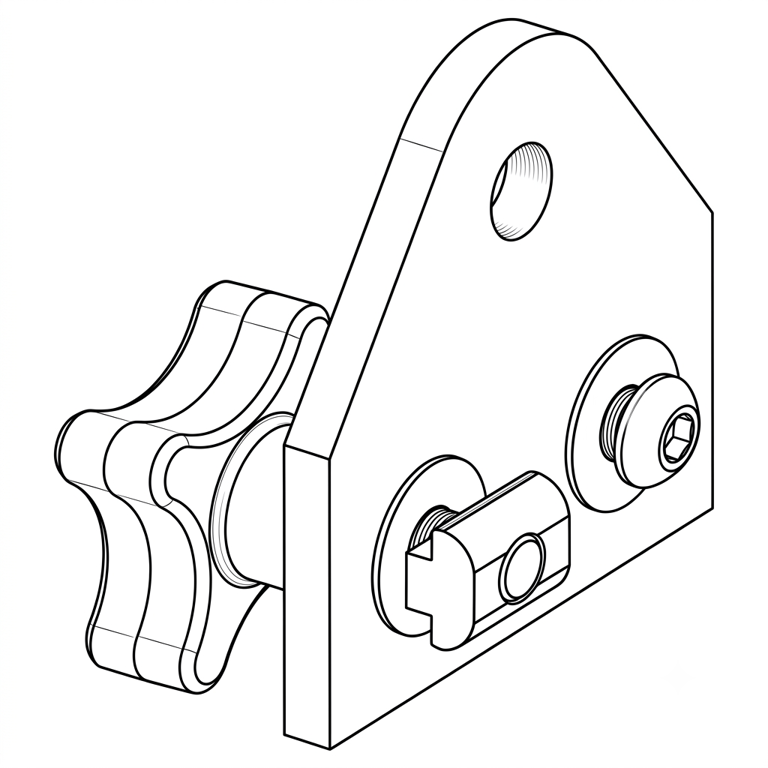

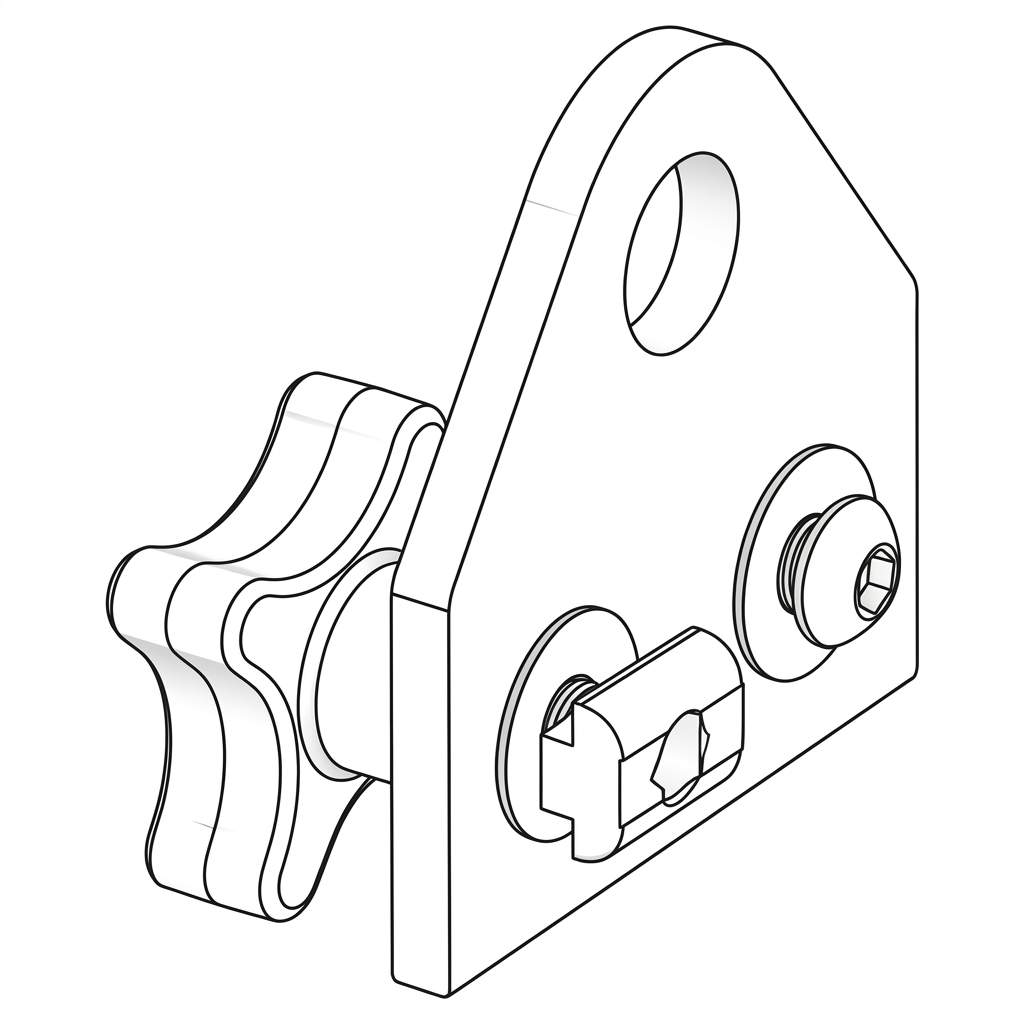

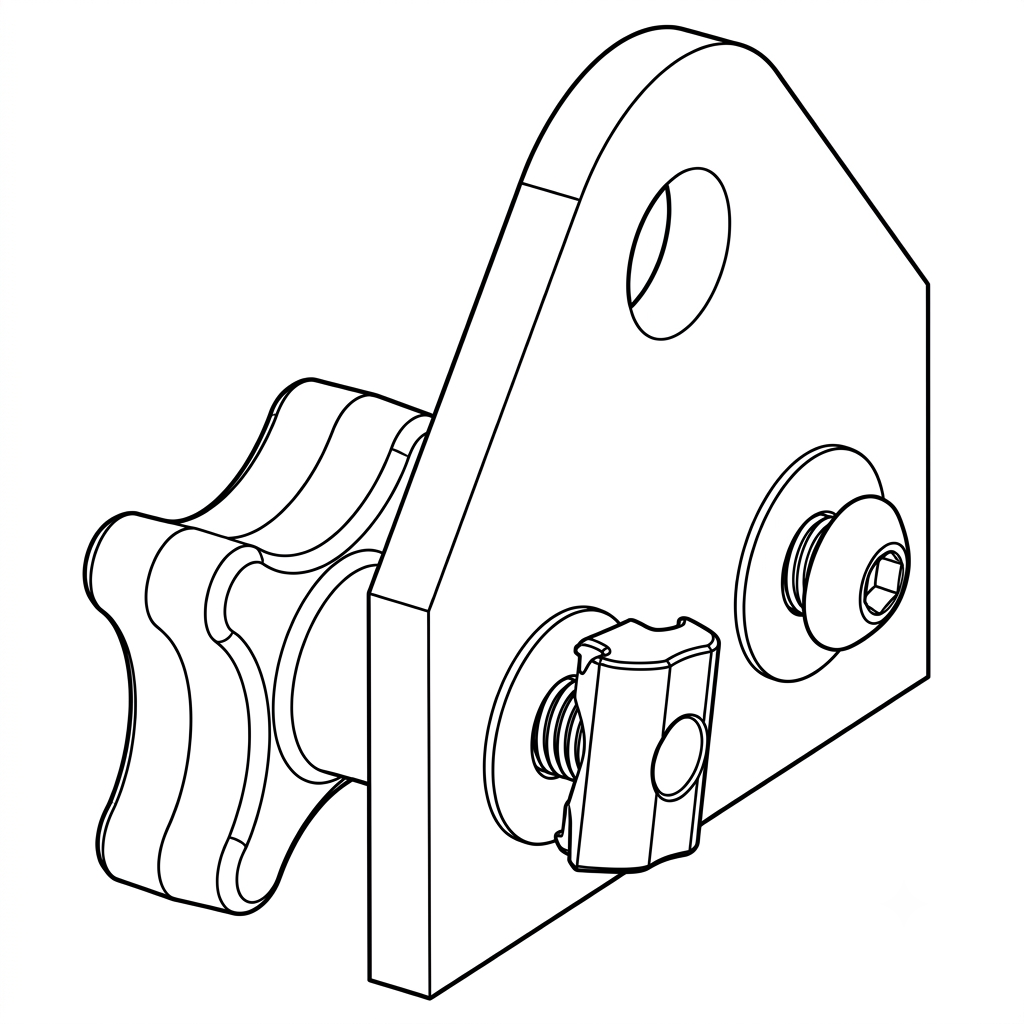

Adjustable Bracket Hanger Kits for 40 mm Extrusions
These suspension bracket hanger kits integrate ANVER cups and suspensions into aluminium extrusion systems in the same simple, low cost way, and are likewise specific to ANVER vacuum cup suspensions.

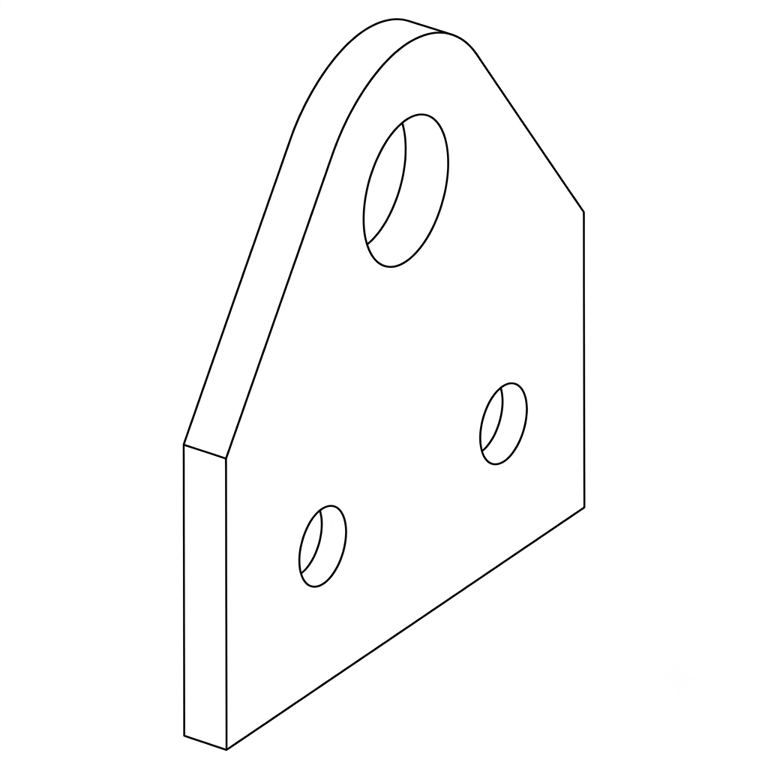

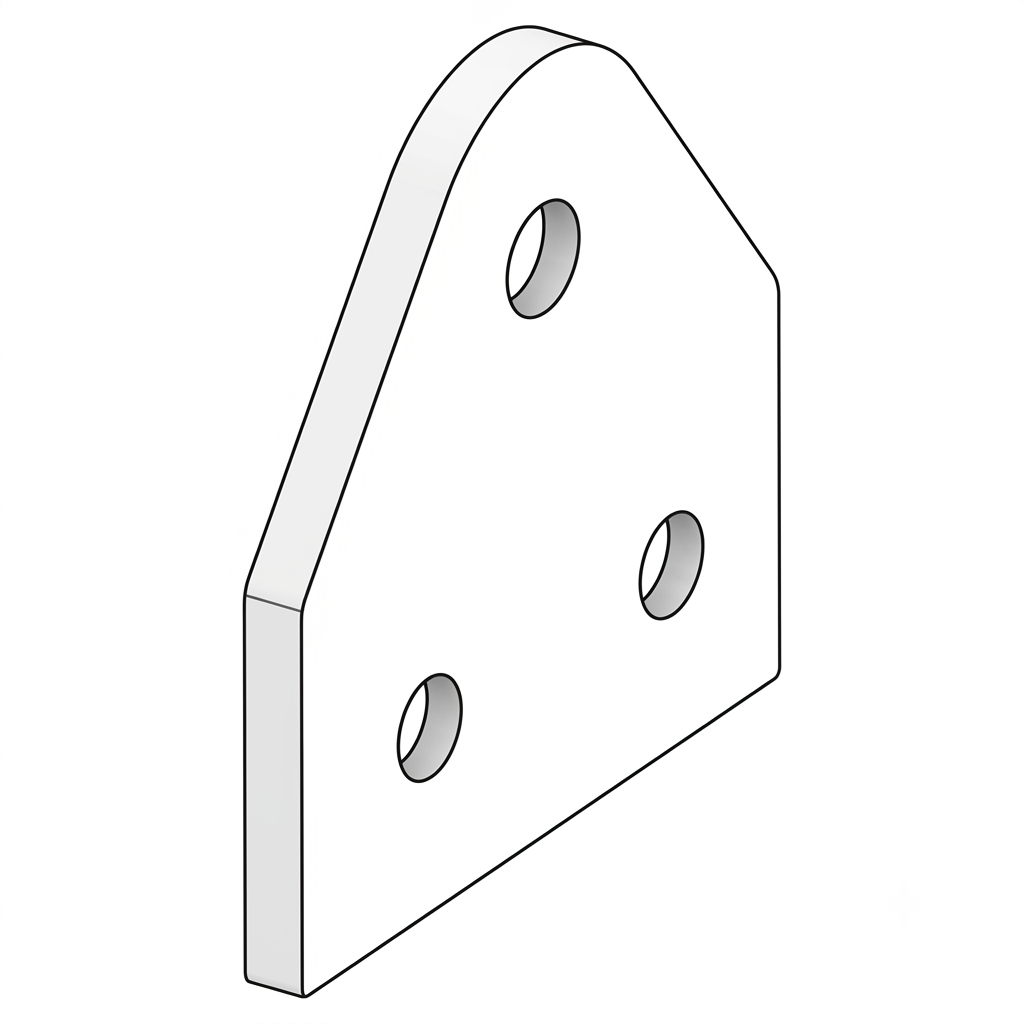

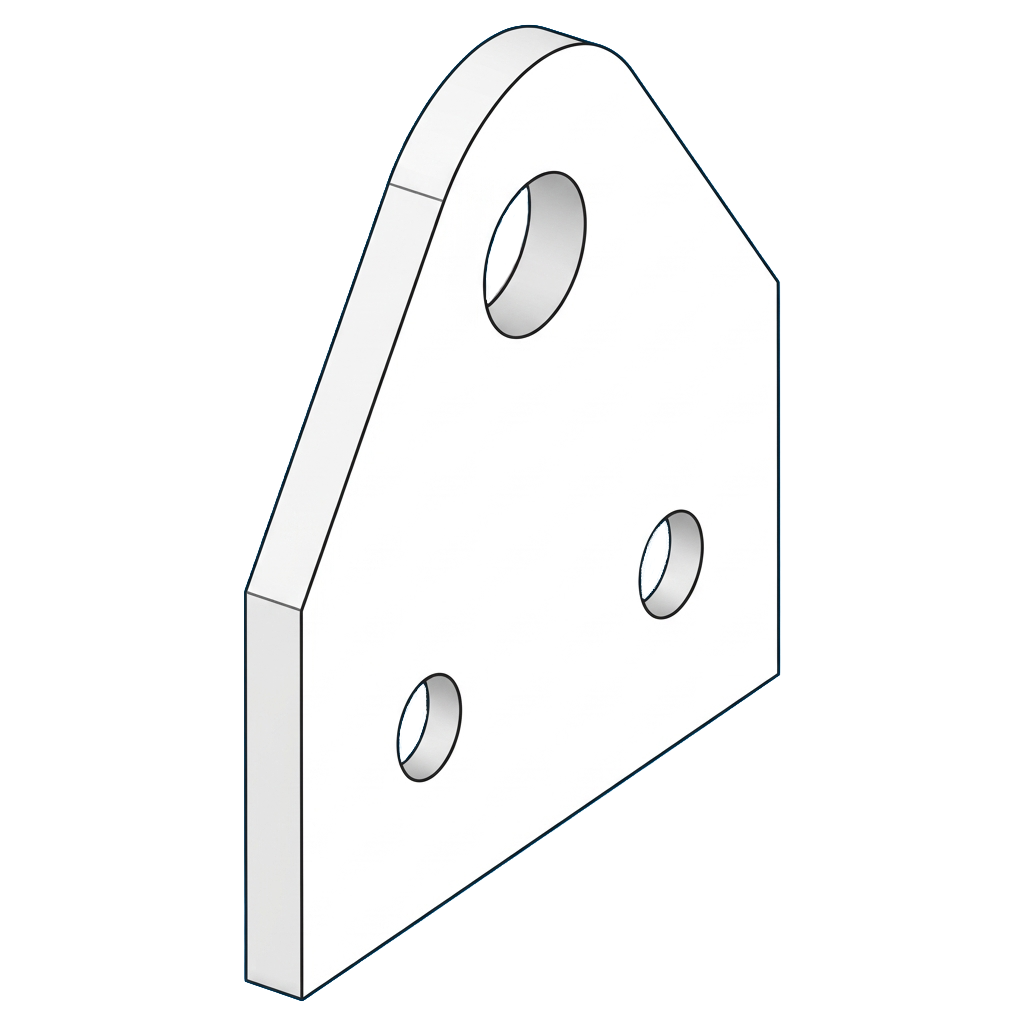

They are made from tumbled and anodised 1/4″ aluminium, with the SLSA Series spring level compensators fitting right into the end. These are sized for approximately 40 mm extrusions, and adjust and lock on the top or bottom of the rail. Mounting plates for this style are also available – listed alongside each kit below.
| Bracket hanger kits and mounting plates – 40 mm extrusions | |||||
|---|---|---|---|---|---|
| Part number | A – hole diameter in. (mm) | C in. (mm) | Description | Level compensator suspension | Weight lb (grams) |
| For SLSA-1 suspensions | |||||
| 0.48 (12.2) | 3.15 (80) | Suspension bracket hanger kit for the SLSA-1 series | SLSA-1 series | 0.324 (147) | |
| 0.48 (12.2) | 3.15 (80) | Mounting plate to mount the SLSA-1 series to an aluminium extrusion | SLSA-1 series | 0.194 (85) | |
| For SLSA-2 suspensions | |||||
| 0.48 (12.2) | 3.15 (80) | Suspension bracket hanger kit for the SLSA-2 series | SLSA-2 series | 0.323 (147) | |
| 0.64 (16.3) | 3.15 (80) | Mounting plate to mount the SLSA-2 series to an aluminium extrusion | SLSA-2 series | 0.193 (88) | |
| For SLSA-3 suspensions | |||||
| 0.75 (19.0) | 3.15 (80) | Suspension bracket hanger kit for the SLSA-3 series | SLSA-3 series | 0.305 (138) | |
| 0.75 (19.0) | 3.15 (80) | Mounting plate to mount the SLSA-3 series to an aluminium extrusion | SLSA-3 series | 0.175 (79) | |
Call FULL-SHARP if the specifications above do not fit your design requirements – custom brackets are made on request.
What You Need to Build the Tool
01 – The bracket
Chosen by the A hole diameter to match your SLSA suspension series, and by plate size.
02 – The suspension
An SLSA-1, SLSA-2, SLSA-3 or SLSA-3838G-102 spring level compensator, which drops into the end of the bracket.
03 – Two 8 mm bolt clamps
Not included – use the clamps made for your particular extrusion brand.
Contact FULL-SHARP with your extrusion profile and the SLSA series you are using, and we will confirm the bracket or hanger kit.
