Description

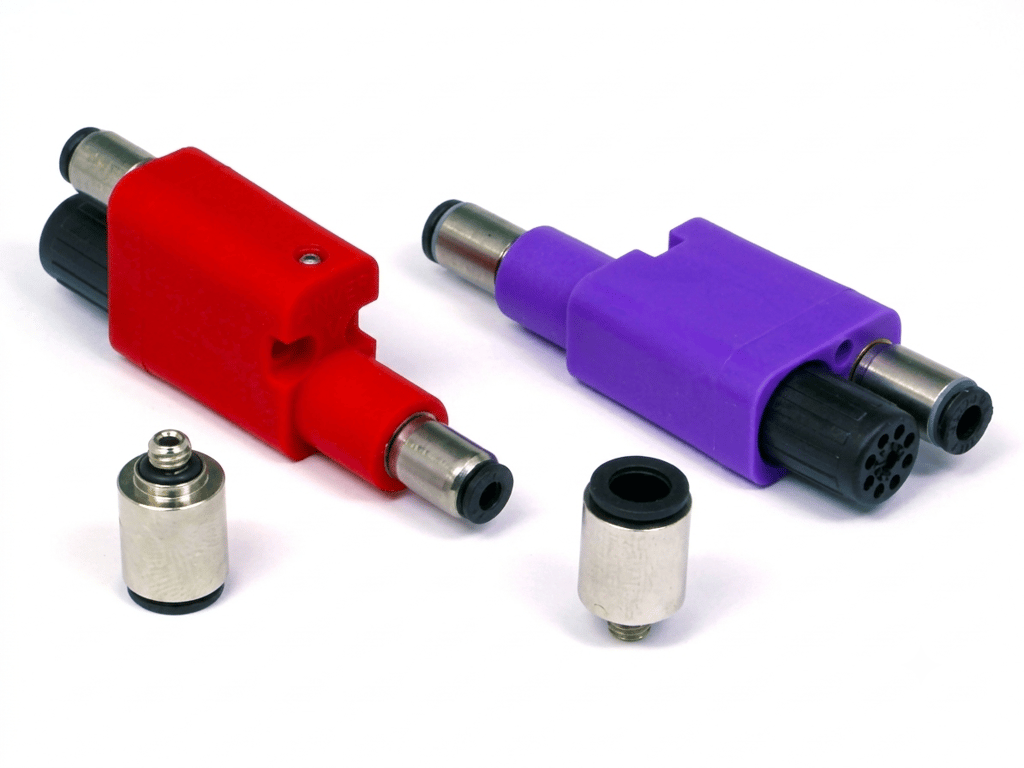

JV SERIES MINI COMPRESSED AIR VENTURI VACUUM GENERATORS
Plastic bodied mini vacuum pumps – 26 in. Hg, no moving parts, 16 grams
Product Overview
ANVER JV Series Mini Vacuum Generators are ideal for use as vacuum pumps where space is limited, or as a lightweight stand-alone vacuum pump such as in robotic applications.
Their small size permits mounting close to the load pick-up point, decreasing response time and minimising air consumption. Thermoplastic construction gives excellent performance while providing an economical vacuum solution.

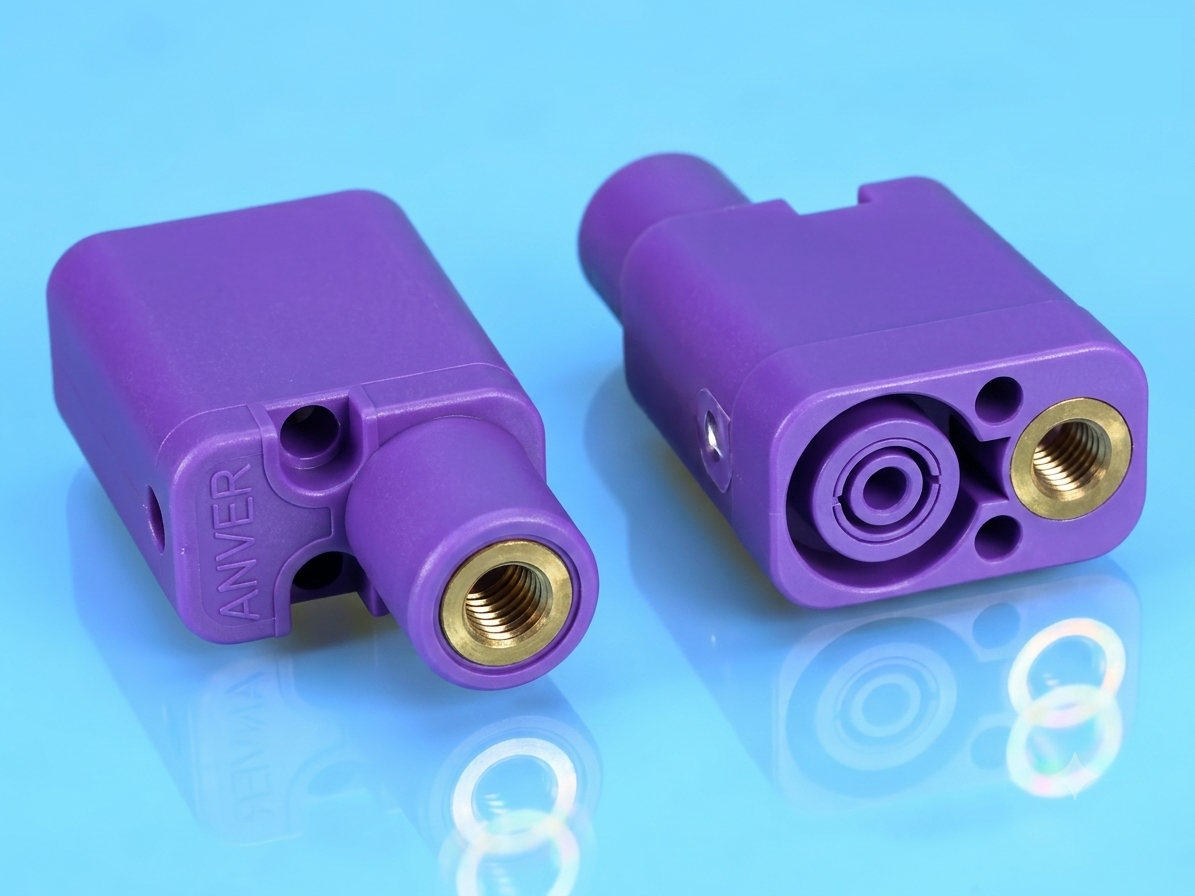

The JV Series are mini Venturi vacuum generators. Vacuum control is handled by a separate manual or automatic control valve on the compressed air supply line. Supplied with 5 mm female threads, compatible with 10/32.
Why mount at the cup – a generator this small can sit at the pick-up point rather than at the far end of a hose. Shorter vacuum lines mean faster response and less air used per cycle, which is the main reason to choose a mini venturi over a remote pump.
Features
01 – High vacuum for the size
High speed, 26 in. Hg vacuum and excellent flow for the size of pump.
02 – Minimal space
Space requirement is little more than the size of the fittings.
03 – Build to suit
Available with or without valves or silencers, and straightforward to install.
04 – Manifold or individual
Can be manifold mounted or used individually – one per vacuum cup, inline.
05 – 16 grams
Economical, lightweight and quiet – the JV pump weighs only 16 grams.
06 – Nothing to wear out
Low air consumption and no moving parts. Withstands temperature and moisture variances well. Made in the USA by ANVER.
Operating Requirements
| Requirement | Specification |
|---|---|
| Air supply | 50 micron, filtered, non-lubricated, dry compressed air |
| Optimum operating pressure | 5 bar (72.5 psi) |
| Operating temperature | −10 to +80°C (14 to 176°F) |
Ordering Information
The JV Series comes in two model sizes, each with a standard M5 female thread port compatible with 10/32. JV07 and JV09 denote the basic vacuum generator only. Adding a control valve for the air supply turns the basic generator into a compact vacuum system – the CE and CED designations – with built-in 24 VDC vacuum control. The control valve mounts directly to the generator body, with all air passages internal to the system.
| JV Series mini vacuum generators | ||||
|---|---|---|---|---|
| Model number | Description | Max. vacuum level in. Hg (mm Hg) | Vacuum flow SCFM (l/min) | Air consumption SCFM (l/min) |
| Basic vacuum generators | ||||
 JV07 |
Mini vacuum generator with M5 – 10/32 ports | 26 (660) | 0.50 (14) | 0.74 (21) |
 JV09 |
Mini vacuum generator with M5 – 10/32 ports | 26 (660) | 0.74 (21) | 1.27 (36) |
| With muffler | ||||
 JV07ES |
JV07 with muffler, M5 – 10/32 ports | 26 (660) | 0.50 (14) | 0.74 (21) |
 JV09ES |
JV09 with muffler, M5 – 10/32 ports | 26 (660) | 0.74 (21) | 1.27 (36) |
| With single valve – vacuum control | ||||
 JV07CE |
JV07 with 24 VDC vacuum control valve, M5 – 10/32 ports | 26 (660) | 0.50 (14) | 0.74 (21) |
 JV09CE |
JV09 with 24 VDC vacuum control valve, M5 – 10/32 ports | 26 (660) | 0.74 (21) | 1.27 (36) |
| With double valves – vacuum control and blow-off | ||||
 JV07CED |
JV07 with 24 VDC vacuum & blow-off control valves, M5 – 10/32 ports | 26 (660) | 0.50 (14) | 0.74 (21) |
 JV09CED |
JV09 with 24 VDC vacuum & blow-off control valves, M5 – 10/32 ports | 26 (660) | 0.74 (21) | 1.27 (36) |
All eight models share the same two nozzle sizes – JV07 draws 0.74 SCFM and JV09 draws 1.27 SCFM. The suffix changes only what is fitted to the body: ES muffler, CE vacuum valve, CED vacuum plus blow-off valve.
Air Consumption & Vacuum Flow at Different Vacuum Levels
Measured at 72.5 psi supply pressure. Vacuum flow falls as the vacuum level rises – the figures below let you check the pump still moves enough air at your working vacuum.
| Vacuum flow SCFM (l/min) at vacuum level | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Air consumption | 0 Hg | 3 Hg | 6 Hg | 9 Hg | 12 Hg | 15 Hg | 18 Hg | 21 Hg | 24 Hg | 26 Hg |
| JV07 | 0.50 (14) | 0.50 (14) | 0.45 (12.7) | 0.40 (11.33) | 0.34 (9.63) | 0.25 (7.08) | 0.21 (5.95) | 0.17 (4.81) | 0.11 (3.11) | 0.05 (1.42) | 0.00 (0.00) |
| JV09 | 0.74 (20.9) | 0.74 (20.9) | 0.65 (18.41) | 0.57 (16.14) | 0.47 (13.31) | 0.40 (11.33) | 0.33 (9.34) | 0.25 (7.08) | 0.15 (4.25) | 0.08 (2.27) | 0.00 (0.00) |
Vacuum time to evacuate 1 cu. ft.
| Seconds to evacuate 1 cu. ft. to the stated vacuum level | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | 0″ | 3″ | 6″ | 9″ | 12″ | 15″ | 18″ | 21″ | 24″ | 26″ |
| JV07 | 0 | 15 | 31.7 | 51.3 | 74.2 | 102.5 | 138.8 | 190 | 277.5 | 568 |
| JV09 | 0 | 8.5 | 18.1 | 29.2 | 42.5 | 58.6 | 79.3 | 108.5 | 158.6 | 328.8 |
Reading these figures – the last few inches of vacuum cost the most time. The JV09 reaches 24 in. Hg in 159 seconds but needs 329 seconds to reach 26. Size the pump for the vacuum you actually need, not the maximum it can reach.
Accessories
| Accessories for JV Series mini vacuum generators | |||
|---|---|---|---|
| Model number | Description | Length in. (mm) | Mounting hole centre distance in. (mm) |
 JVM-2 |
Two station manifold for JV Series mini vacuum generators | 2.17 (55) | 1.77 (45) |
 JVM-4 |
Four station manifold for JV Series mini vacuum generators | 3.54 (90) | 3.15 (80) |
 JVEM |
Optional exhaust muffler, for JV Series generators in stand-alone applications only. Presses onto the body and locks in place. | – | – |
 JVSF |
Optional sensor fitting, allows a remote mounted vacuum sensor to be added for precision control or system monitoring – for M5 thread port models. | – | – |
Contact FULL-SHARP with the cup size, cycle time and whether you need blow-off, and we will confirm the JV model, the valve option and the manifold.
