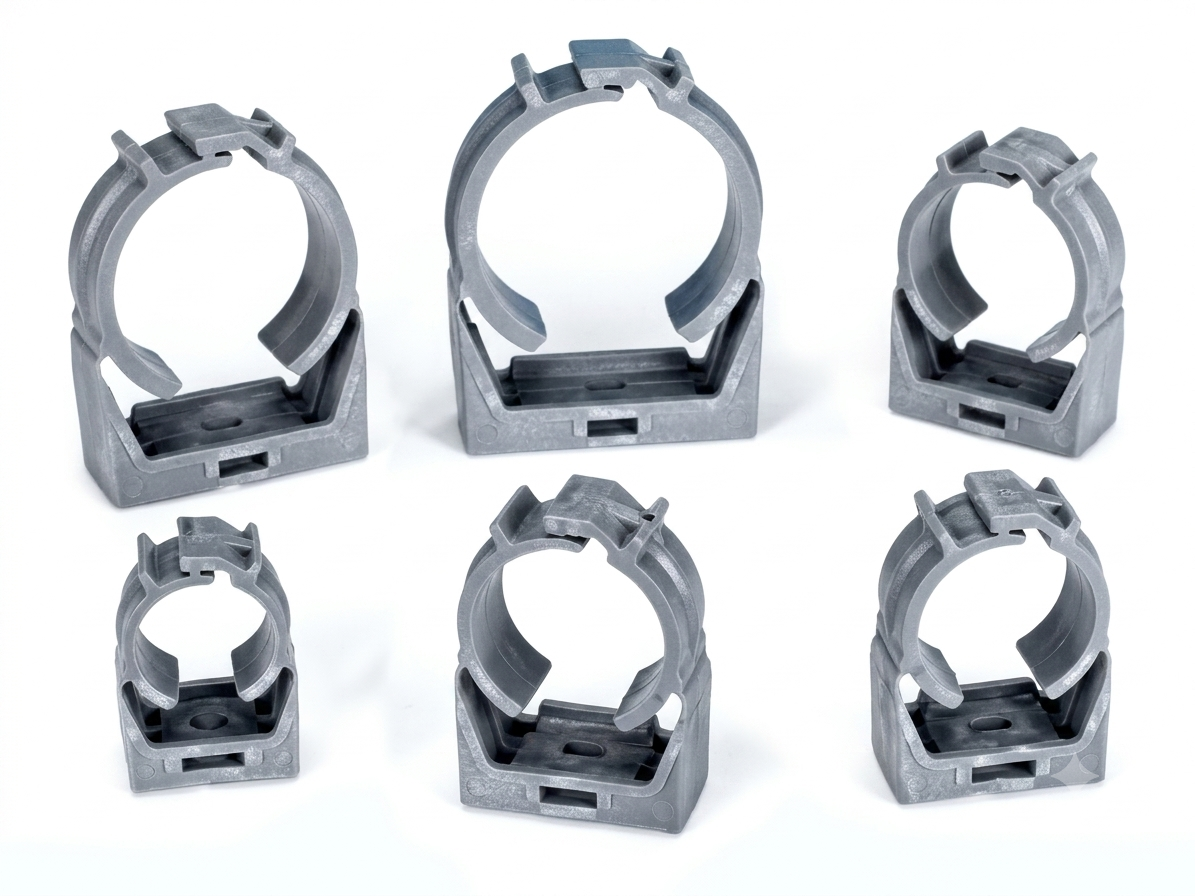

CLAMP-P ADJUSTABLE PLASTIC COMPONENT MOUNTS
Vacuum system accessories – component clamps for 0.77″ to 2.50″ inside diameter
Product Overview
CLAMP-P Series
ANVER’s CLAMP-P Series of Adjustable Plastic Component Mounts help to quickly, easily, and efficiently secure a variety of components (transfer tubes, air movers, mufflers, etc.) without any special tools required. The clamps are flexible and removable, and they come in a wide range of sizes. Clamps open fully and snap shut.

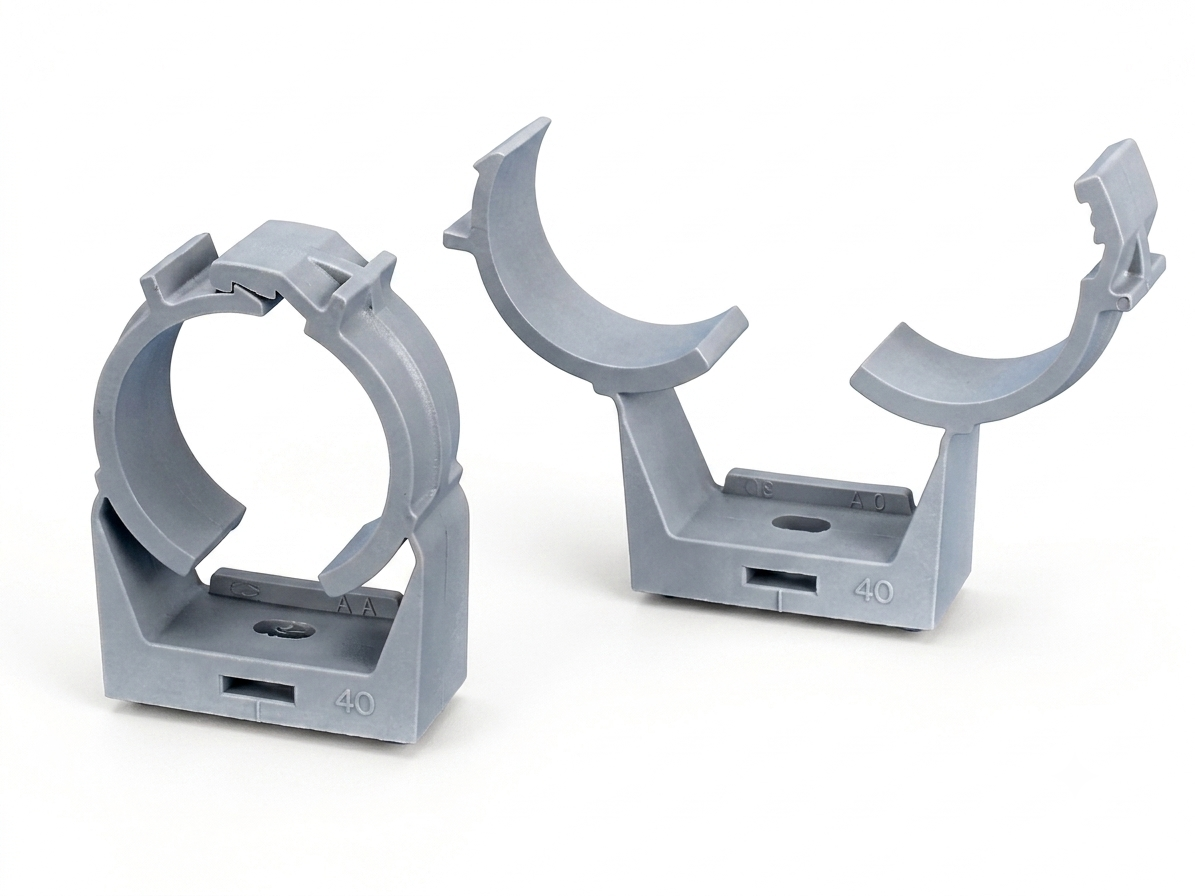

Clamps open fully and snap shut
A · B · C · D · E · F dimensions
CLAMP-P Series Specifications
| Part number | Clamp’s inside diameter range [in. (mm)] | A [in. (mm)] | B [in. (mm)] | C [in. (mm)] | D [in. (mm)] | E [in. (mm)] | F [in. (mm)] |
|---|---|---|---|---|---|---|---|
| CLAMP20P | 0.77 – 0.87 (19.5 – 22) | 1.59 (40.5) | 1.04 (26.5) | 1.00 (25.4) | 0.81 (20.5) | 0.40 (10.25) | 0.52 (13.25) |
| CLAMP25P | 0.98 – 1.10 (25 – 28) | 1.83 (46.5) | 1.28 (32.5) | 1.14 (29) | 0.81 (20.5) | 0.40 (10.25) | 0.64 (16.25) |
| CLAMP32P | 1.26 – 1.38 (32 – 35) | 2.22 (56.5) | 1.58 (40) | 1.38 (35) | 0.85 (21.5) | 0.42 (10.75) | 0.79 (20) |
| CLAMP36P | 1.42 – 1.54 (36 – 39) | 2.42 (61.5) | 1.95 (49.5) | 1.50 (38) | 0.85 (21.5) | 0.42 (10.75) | 0.97 (24.75) |
| CLAMP40P | 1.57 – 1.71 (40 – 43.5) | 2.60 (66) | 1.89 (48) | 1.58 (40) | 0.85 (21.5) | 0.42 (10.75) | 0.95 (24) |
| CLAMP51P | 2.01 – 2.17 (51 – 55) | 3.17 (80.5) | 2.42 (61.5) | 1.89 (48) | 0.93 (23.5) | 0.46 (11.75) | 1.21 (30.75) |
| CLAMP59P | 2.32 – 2.50 (59 – 63.5) | 3.56 (90.5) | 2.78 (70.5) | 2.13 (54) | 0.93 (23.5) | 0.46 (11.75) | 1.39 (35.25) |
Accessories for the CLAMP-P Series
| Part number | Description |
|---|---|
 CLAMP-101 |
Mounting plate, 1/4-20 flange for plastic snap clamps |
 CLAMP-102 |
Threaded adapter, 1/4-20 (M) to 3/8-16 (F) for plastic clamps |
 CLAMP-103 |
Mounting stud, 1/4-20 x 1/2″ long for plastic snap clamps |
