VACUUM GAUGES AND PRESSURE GAUGES
Unique combination panel or back mount style with a modern hi-tech look
Product Overview
Vacuum and pressure gauges

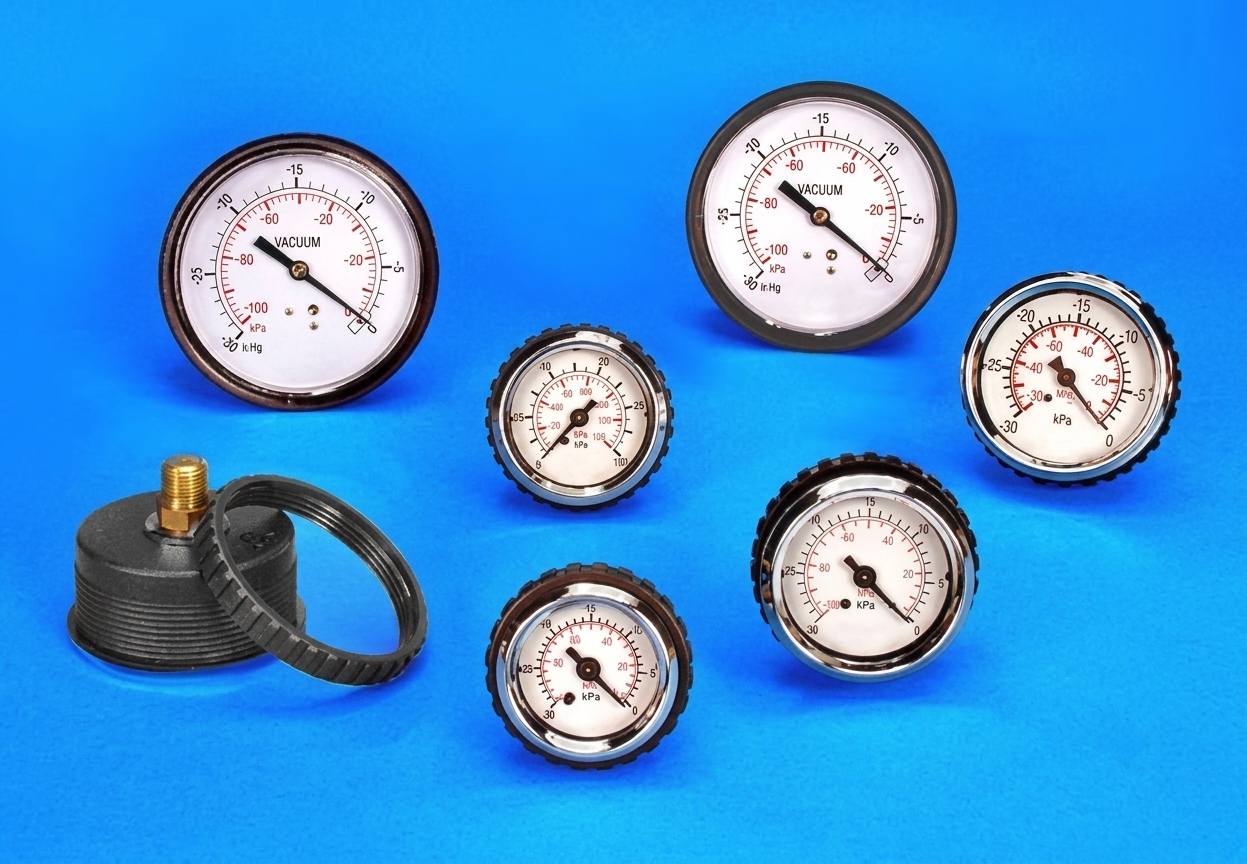

ANVER Vacuum and Pressure Gauges are some of the finest available for this price on the market today. They are precise, reliable, and they have a handsome chrome bezel. Their modern hi-tech look adds an air of quality to any machinery that features them.
These vacuum and pressure gauges are excellent for any vacuum application in which vacuum and/or pressure levels need to be accurately monitored. These gauges feature two mounting options within a single gauge style, offering a solution for all your application requirements: They can be center back or panel mounted, or they can be mounted below the bezel with an extension. (The model 350 Series features single mounting options.)
Features
- Accuracy 2.5% of full scale
- Black ABS plastic case with chromed bezel
- Acrylic window with dust-proof seal
- Coiled safety Bourdon tube
- White dial with black pointer
- Dual scale 0 to -30 in. Hg, 0 to -100 kPa (for pressure gauge: 0 to 100 psi, 0 to 700 kPa)
- High quality construction
A · B · C · D · E · F dimensions
Vacuum Gauge Specifications
| ANVER item no. | Competitor’s part no. | Description | A hole size [in. (mm)] | B [in. (mm)] | C [in. (mm)] | D [in. (mm)] | E [in. (mm)] | F thread | Weight [lb (kg)] | Metal vacuum gauge guard | Adapter for NPT to G attachment | 3D model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 VG150-18PBM-CW |
15.110 | Vacuum gauge, 1-1/2″ dial x 1/8 NPT thread, combination center or panel back mount | 1.58 (40) | 1.26 (32) | 0.39 (10) | 0.27 (7) | 1.96 (50) | 1/8″ NPT male | 0.12 (0.06) |  |
1/8″ NPT female to 1/8″ G male | N/A |
 VG150-18PBM |
15.110 | Vacuum gauge, 1-1/2″ dial x 1/8 NPT thread, combination center or panel back mount | 1.58 (40) | 1.26 (32) | 0.39 (10) | 0.27 (7) | 1.96 (50) | 1/8″ NPT male | 0.12 (0.06) | |
1/8″ NPT female to 1/8″ G male | Download |
 VG200-14PBM |
20.110 | Vacuum gauge, 2″ dial x 1/4 NPT thread, combination center or panel back mount | 2.00 (51) | 1.26 (32) | 0.39 (10) | 0.27 (7) | 2.36 (60) | 1/4″ NPT male | 0.15 (0.07) |  |
1/4″ NPT female to 1/4″ G male | Download |
 VG250-14PBM |
25.310 | Vacuum gauge, 2-1/2″ dial x 1/4 NPT thread, combination center or panel back mount | 2.50 (64) | 1.26 (32) | 0.39 (10) | 0.27 (7) | 2.83 (72) | 1/4″ NPT male | 0.18 (0.08) |  |
1/4″ NPT female to 1/4″ G male | Download |
 VG250-14PBM-LF |
25.310 | Liquid filled vacuum gauge, 2-1/2″ dial x 1/4 NPT thread, combination center or panel back mount | 2.50 (64) | 1.1 (28) | N/A | 0.20 (5) | 2.68 (68) | 1/4″ NPT male | 0.36 (0.16) | |
1/4″ NPT female to 1/4″ G male | Download |
 VG350-14PBM |
– | Vacuum gauge, 3-5/8″ dial x 1/4 NPT thread, panel back mount | 3.63 (92) | 1.26 (32) | n/a | 0.23 (6) | 3.83 (97) | 1/4″ NPT male | 0.40 (0.18) | N/A | 1/4″ NPT female to 1/4″ G male | Download |
 VG350-14CBM |
– | Vacuum gauge, 3-5/8″ dial x 1/4 NPT thread, center back mount | 3.63 (92) | 1.28 (32.5) | n/a | 0.31 (8) | 3.96 (100) | 1/4″ NPT male | 0.37 (0.17) | N/A | 1/4″ NPT female to 1/4″ G male | Download |
Pressure Gauge Specifications
| ANVER item no. | Competitor’s part no. | Description | A hole size [in. (mm)] | B [in. (mm)] | C [in. (mm)] | D [in. (mm)] | E [in. (mm)] | F thread | Weight [lb (kg)] | Metal vacuum gauge guard | Adapter for NPT to G attachment | 3D model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PG200-14PBM |
– | Pressure gauge, 2″ dial x 1/4 NPT thread, combination center or panel back mount | 2.00 (51) | 1.26 (32) | 0.39 (10) | 0.27 (7) | 2.36 (60) | 1/4″ NPT male | 0.16 (0.07) | |
1/4″ NPT female to 1/4″ G male | Download |
13600113 A
Vacuum Gauge Guards – Welded Steel Construction
Gauge guard

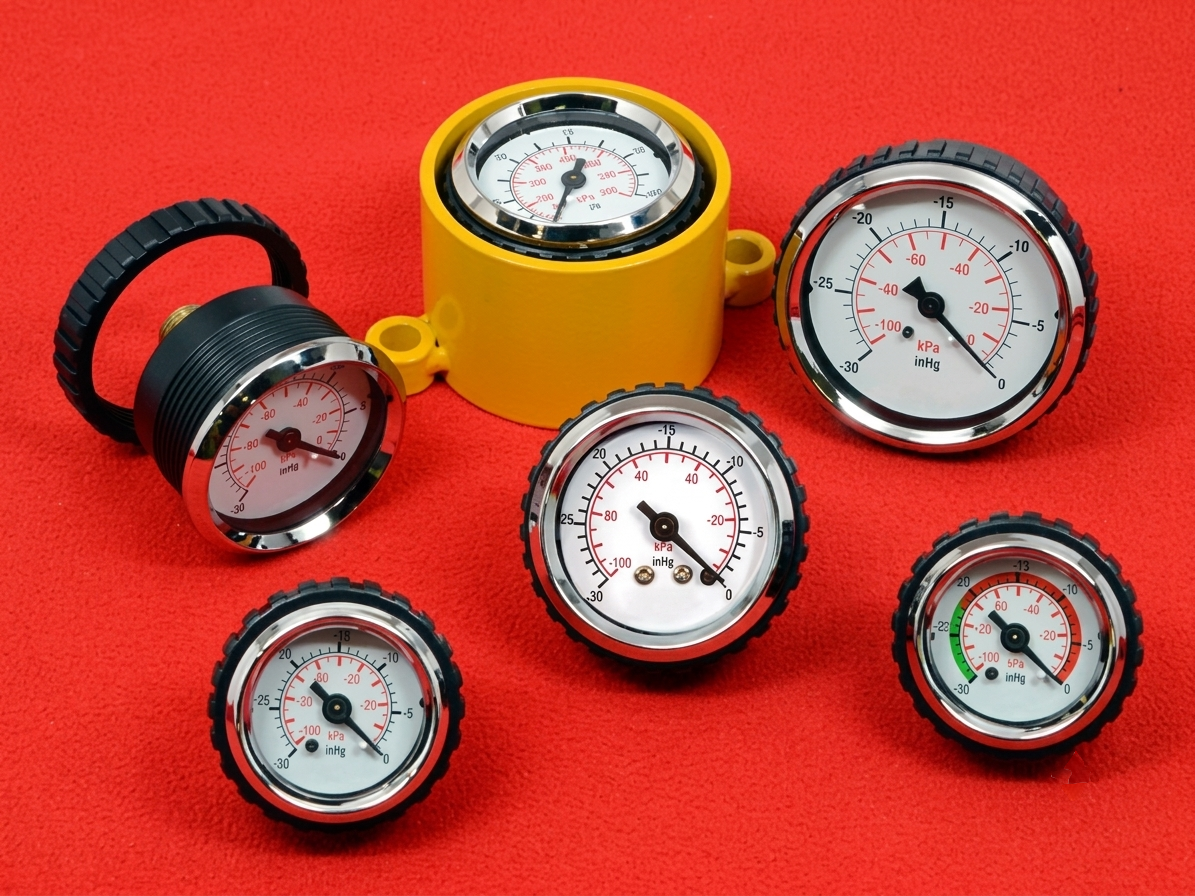

ANVER offers Gauge Guards to protect your investment in our precise, reliable, and great looking vacuum and pressure gauges. Available for mounting on our vacuum pads and protecting them from damage and abuse while allowing full operation and visibility.
Features
- Designed to protect gauges, yet give clear visibility in industrial applications
- Made of welded steel and powder coated safety yellow
- Sizes shown below along with recommended hardware
A · B · C · D dimensions
Metal Gauge Guard Specifications
| ANVER item number | Description | A diameter [in. (mm)] | B height [in. (mm)] | C bolt centers dimension [in. (mm)] | D overall length [in. (mm)] | Hardware (supplied with gauge assembly kits) |
|---|---|---|---|---|---|---|
| 28600073 |
Gauge guard | 2.25 (57) | 1.88 (48) | 2.88 (73) | 3.50 (89) | Recommended: (2) M8x20 socket head screws, (2) flat washers and (2) lock washers |
 78000019 |
Gauge assembly kit | 2.25 (57) | 1.88 (48) | 2.88 (73) | 3.50 (89) | Supplied: (2) M8x20 socket head screws, (2) flat washers and (2) lock washers |
| 28600072 |
Gauge guard | 2.75 (70) | 1.88 (48) | 3.38 (86) | 4.00 (102) | Recommended: (2) M8x20 socket head screws, (2) flat washers and (2) lock washers |
 78000018 |
Gauge assembly kit | 2.75 (70) | 1.88 (48) | 3.38 (86) | 4.00 (102) | Supplied: (2) M8x20 socket head screws, (2) flat washers and (2) lock washers |
| 28600074 |
Gauge guard | 3.25 (83) | 1.88 (48) | 3.88 (99) | 4.50 (114) | Recommended: (2) M8x20 socket head screws, (2) flat washers and (2) lock washers |
 78000020 |
Gauge assembly kit | 3.25 (83) | 1.88 (48) | 3.88 (99) | 4.50 (114) | Supplied: (2) M8x20 socket head screws, (2) flat washers and (2) lock washers |
