SAFETY VENTED BALL VACUUM VALVES
Vented ball valves with locking handles eliminate residual vacuum under vacuum pads when equipment is shut-off
Product Overview

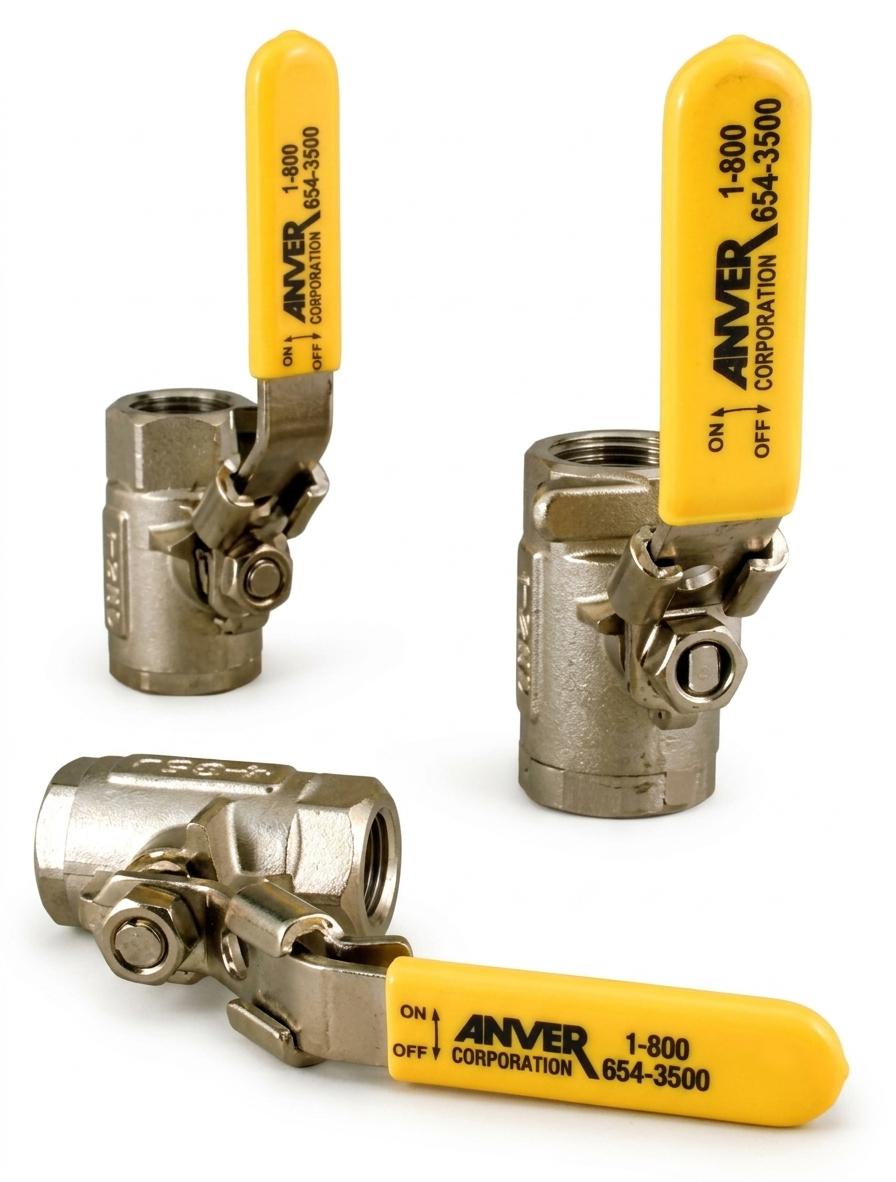

Vented ball valve with locking handle
ANVER’s Vented Ball Valve with locking handle is designed to be an optional safety feature for vacuum lifters. Any residual vacuum that remains under a vacuum pad is eliminated when the system is turned off. This helps to prevent an operator from thinking there is still vacuum when there is not.
Features
Safety
- Vented for easy manual vacuum release
- Locking handle for added safety
- Blow-out proof stem
Construction
- Forged body design, extends the life of the ball valve
- Optimum flow design
Value
- More economical and compact than 3-way valves
Applications
- Suitable for all vacuum applications where manual on/off control is desired or needed
- Easy release of light loads, prevents entrapment of residual vacuum under vacuum pads
- Selective load release makes this ball valve ideal for use with hold-down or clamping devices
Specifications
| Safety vented ball vacuum valves | |
|---|---|
| Parameter | Value |
| Max. pressure | 250 psi |
| Max. vacuum | 29 in. Hg |
| Temperature | 0 to 250°F (-18° to +121°C) |
A · B · C · D · E · H · L dimensions
Vented Ball Valve Specifications
| Part number | Pipe thread | A hex [in. (mm)] | B [in. (mm)] | C [in. (mm)] | D flow [in. (mm)] | E [in. (mm)] | H [in. (mm)] | L [in. (mm)] | Item weight [oz. (grams)] |
|---|---|---|---|---|---|---|---|---|---|
 BVV-38F |
3/8″ NPT | 0.94 (23.8) | 2.03 (51.6) | 1.11 (28.2) | 0.375 (9.5) | 3.91 (99.3) | 2.47 (62.7) | 4.90 (124.5) | 8.9596 (254) |
 BVV-12F |
1/2″ NPT | 1.06 (27.7) | 2.20 (55.9) | 1.23 (31.2) | 0.500 (12.7) | 3.91 (99.3) | 2.58 (65.5) | 5.00 (127.0) | 10.1765 (288.5) |
 BVV-34F |
3/4″ NPT | 1.38 (34.9) | 2.98 (75.9) | 1.69 (42.9) | 0.685 (17.4) | 4.35 (110.5) | 2.85 (72.4) | 5.84 (148.3) | 0.7055 (20) |
 BVV-1F |
1″ NPT | 1.63 (41.3) | 3.37 (85.6) | 1.99 (50.8) | 0.875 (22.2) | 4.35 (110.5) | 3.10 (78.7) | 6.04 (153.4) | 19.1714 (543.5) |
