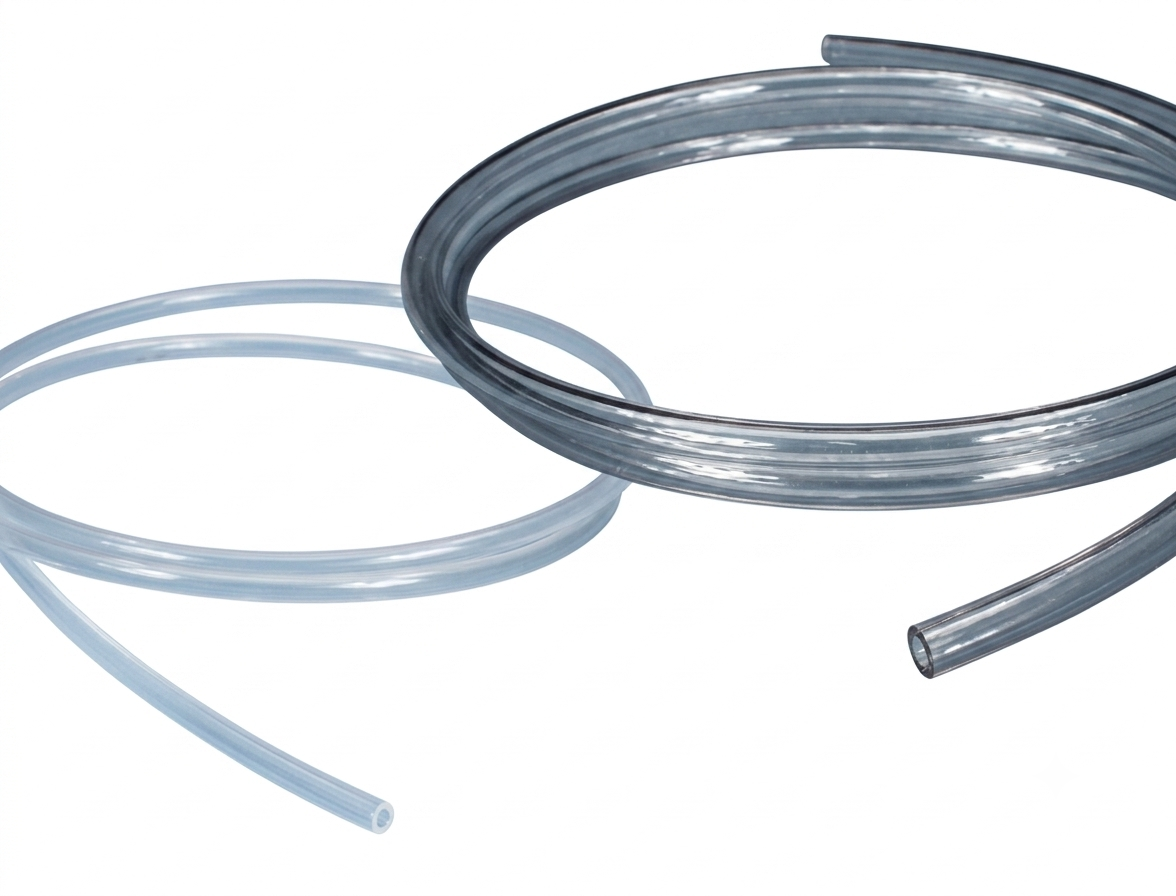

PC SERIES TUBING FOR PUSH-TO-CONNECT FITTINGS
Vacuum system accessories – clear and blue urethane tubing, 5/32″ to 3/8″ outside diameter
Product Overview
PC Series vacuum hose: tubing for push-to-connect fittings (clear and opaque).
PC Series tubing
Construction
Clear and blue urethane.
Features
- Non-kinking
- Clear urethane allows visual line inspection
- Smooth interior to reduce loss of flow
Application
- Durable hose for use with push-to-connect fittings and connectors
- Useful in vacuum material handling applications throughout the industry
Note: Available by the inch up to 6000″ (500 ft) spools. For RFQs, please specify inches when entering quantity.
Specifications
| Product photo | PC Series tubing for push-to-connect fittings | |
|---|---|---|
| Parameter | Value | |
|
Working pressure | 1.5 MPa at 68°F (20°C) |
| Temperature range | -4° to 140°F (-20° to 60°C) [Water: 32° to 100°F (0° to 40°C), no freezing] |
|
| Minimum bend radius | PC-T532: 0.5″ (13 mm) PC-T14: 1.2″ (30 mm) |
|
Tubing Specifications
| Product photo | Item number | Inside diameter [in. (mm)] | Outside diameter [in. (mm)] | Features | Inline barbed filter |
|---|---|---|---|---|---|
 |
PC-T532 | 0.095 (2.4) | 5/32 (4.0) | Clear urethane | Info to come |
 |
PC-T532B | 0.095 (2.4) | 5/32 (4.0) | Blue urethane | Info to come |
 |
PC-T14 | 0.175 (4.4) | 1/4 (6.4) | Clear urethane |  |
 |
PC-T14B | 0.175 (4.4) | 1/4 (6.4) | Blue urethane | |
 |
PC-T38 | 0.200 (5.0) | 3/8 (9.5) | Clear urethane | Info to come |
