Description

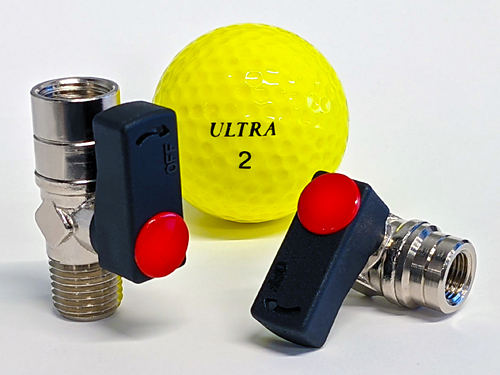

MINIATURE VACUUM BALL VALVES
Two-way manual on/off control for vacuum and pressure lines, 1/8″ to 1/2″ NPT
Product Overview
Miniature ball valves
ANVER’s two-way ball valves are compact and easy to use. Activated manually for basic on/off pressure control or vacuum applications, these durable ball valves provide a tight connection for optimal stop/flow function with a variety of fluids.
Features
Construction
- Chrome-plated brass body for corrosion resistance
- Captured stem provides airtight operation
- Teflon ball seat accommodates a variety of fluids
Format
- Compact size
- Economically priced
Applications
- Manual 2-way function provides basic ON/OFF control of pressure or vacuum
Specifications
| Miniature vacuum ball valves | |
|---|---|
| Parameter | Value |
| Max pressure | 250 psi (17 bar) |
| Max vacuum | 29″ Hg (980 mbar) |
| Temperature | 0 to 160°F (-18° to +70°C) |
C · D · E · F dimensions
Ball Valve Specifications
| Part number | A male thread | B female thread | Orifice [in. (mm)] | C [in. (mm)] | D [in. (mm)] | E [in. (mm)] | F [in. (mm)] |
|---|---|---|---|---|---|---|---|
 BVC-18-MFS |
1/8″ NPT | 1/8″ NPT | 0.217 (5.5) | 1.36 (34.5) | 0.335 (8.5) | 0.94 (24.0) | 0.89 (22.5) |
 BVC-18-MF |
1/8″ NPT | 1/8″ NPT | 0.217 (5.5) | 1.45 (37.0) | 0.354 (9.0) | 0.75 (19.0) | 0.83 (21.0) |
 BVC-14-MFS |
1/4″ NPT | 1/4″ NPT | 0.217 (5.5) | 1.73 (44.0) | 0.492 (12.5) | 0.94 (24.0) | 0.89 (22.5) |
 BVC-14-MF |
1/4″ NPT | 1/4″ NPT | 0.217 (5.5) | 1.81 (46.0) | 0.551 (14.0) | 0.75 (19.0) | 0.83 (21.0) |
 BVC-38-MF |
3/8″ NPT | 3/8″ NPT | 0.315 (8.0) | 1.81 (46.0) | 0.709 (18.0) | 0.75 (19.0) | 0.83 (21.0) |
 BVC-12-MF |
1/2″ NPT | 1/2″ NPT | 0.394 (10.0) | 2.36 (60.0) | 0.870 (22.0) | 1.02 (26.0) | 1.20 (30.5) |
