JTZSE4 DIGITAL CONTROL SWITCH
Digital vacuum / pressure control switch for non-corrosive gases
Product Overview
JTZSE4

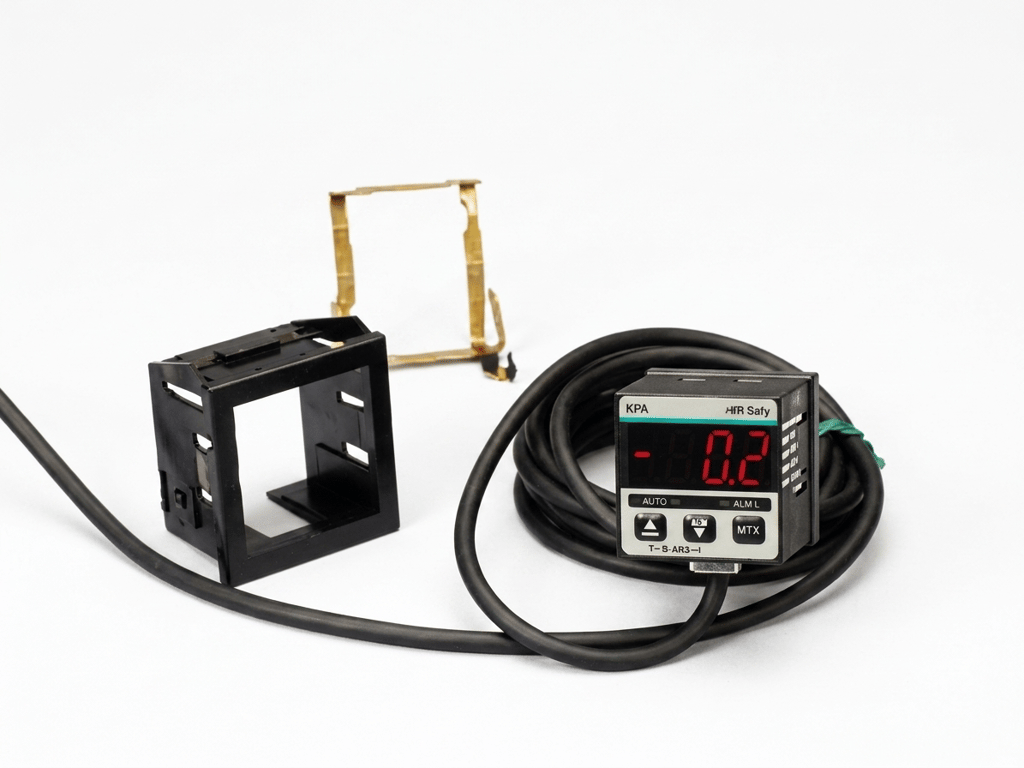

The JTZSE4 Digital Control Switch is a popular standard model for use with non-corrosive gases [compound and low pressure]. It is a compact multi-purpose compound pressure gauge specifically designed to cover negative to normal pressure. A rear mount bracket option is available.
Features
Display
- Full 3-digit red LED display – gives a clear indication even in low light locations
- 8 different pressure units are available for selection
Output
- 2-point switch output with a total of eight operation modes possible
- Analog output 1–5V in addition to the 2-point switch output
Body
- Proven IP65 grade gauge body is suitable for industrial installations
- Small, space-saving 30 mm square face design
Digital Vacuum / Pressure Control Switch Specifications for JTZSE4
| Parameter | Value |
|---|---|
| Sensor type | Vacuum pressure 101 kPa type |
| Type of pressure | Gauge pressure |
| Rated pressure range | 0 to -101.3 kPa |
| Set pressure range | 5.1 to -101.3 kPa |
| Maximum pressure rating | 490 kPa |
| Applicable fluid | Non-corrosive gas |
| Selectable units | kgf/cm², bar, psi, mmHg, inHg |
| Supply voltage | 12 to 24 V DC, ripple P-P 10% or less |
| Current consumption | 50 mA or less |
| Comparative outputs 1 & 2 | Standard PNP output – PNP open-collector transistor • Maximum source current: 100 mA • Applied voltage: 30 V DC or less (between comparative output and +V) • Residual voltage: 2 V or less (at 100 mA source current) |
| Output modes | Equipped with 4 types of modes: hysteresis mode, window comparator mode, dual output mode, automatic sensitivity setting mode (selectable by key operation) |
| Hysteresis | 1 digit (variable in hysteresis mode and 2 digits when using psi unit) |
| Repeatability | Within ±0.2% F.S. ±1 digit |
| Response time | 2.5 ms or less |
| Short-circuit protection | Incorporated |
| Analog voltage output | Output impedance: 1 kΩ approx. Output voltage: 1 to 5 V (over rated-pressure range) Zero-point: within 1 V ±5% F.S. Span: within 4 V ±5% F.S. Linearity: within ±1% F.S. |
| Display | 3½ digit red LED display (sampling rate: 4 times/sec. approx.) |
| Displayable pressure range | 5.1 to -101.3 kPa |
| Analog bar display | LED bar display in steps of 10% F.S. approx. |
| Operation indicators | Comparative output 1: orange LED (lights up when output 1 is ON) Comparative output 2: green LED (lights up when output 2 is ON) |
| Protection | IP40 (IEC) |
| Ambient temperature | -10 to +50°C (no dew condensation or icing allowed). Storage: -10 to +60°C |
| Ambient humidity | 35 to 85% RH. Storage: 35 to 85% RH |
| Temperature characteristics | Over ambient temperature range -10 to +50°C: within ±1% F.S. of detected pressure at 20°C |
| Pressure port | NPTF 1/8 female thread |
| Material | Front case: ABS • Rear case: PPS (glass fiber reinforced) Display surface: acrylic • Pressure port attachment: die-cast zinc alloy |
| Cable | 0.15 mm² 5-core oil-resistant cabtyre cable, 2 m long |
| Cable extension | Extension up to total 100 m is possible with 0.3 mm², or more, cable |
| Weight | 3.351 oz. (95 grams) |
| Accessories | One (1) hexagon-socket-head plug for pressure port |
