Description

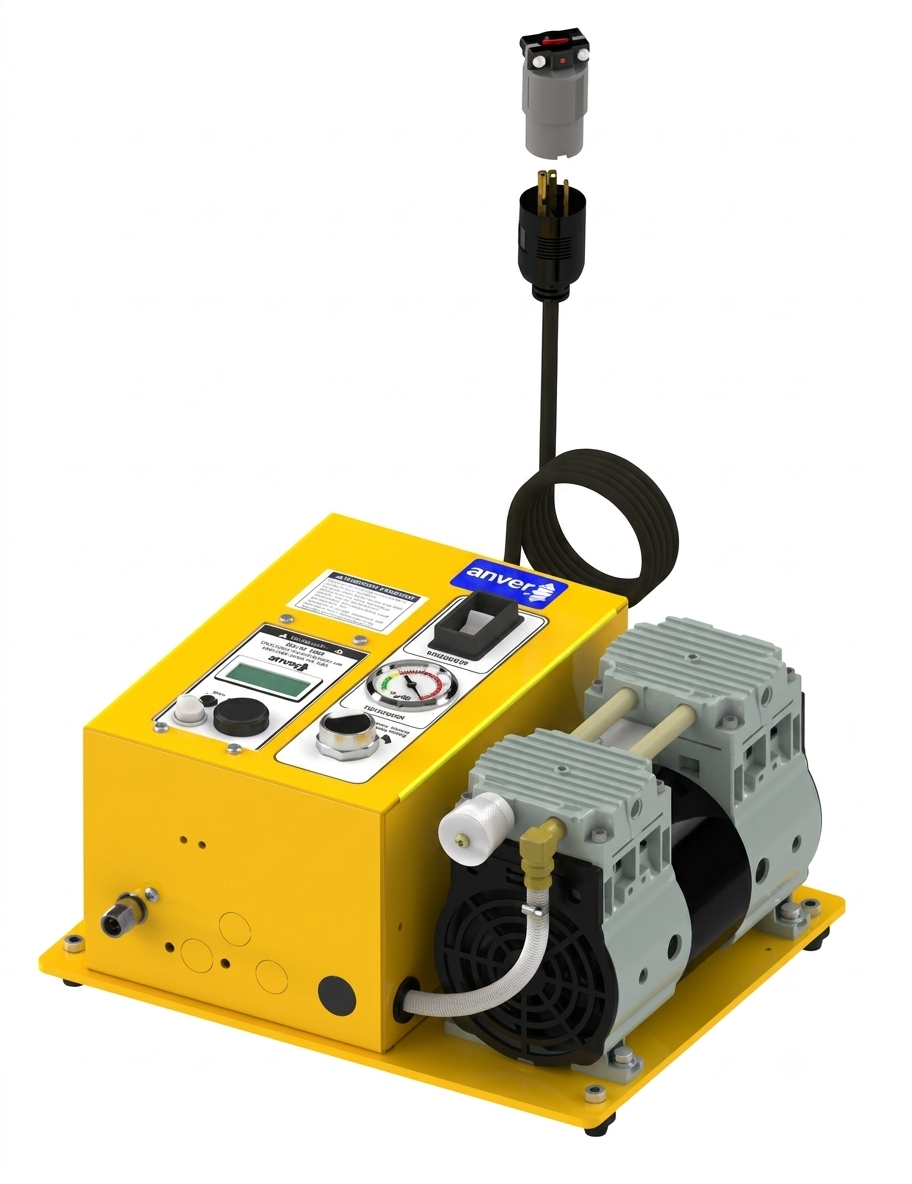

EP SERIES COMPACT ELECTRIC POWERED MINI-VACUUM STATIONS
A continuously running electric pump – no compressed air needed, and good on slightly porous loads
Product Overview
These low cost, compact electric powered vacuum stations require little maintenance and run on ordinary single-phase mains power – no compressed air supply needed at all.
A vacuum check valve maintains vacuum in case of power failure. On clean, smooth, non-porous material the unit holds vacuum per ASME Standard B30.20 for vacuum lifting devices, allowing the operator to put the load down safely. A vacuum attach / release valve is included for consistent attach and release.
The station is built around a quality ANVER electric vacuum pump with a vacuum gauge to monitor the level, and an internal vacuum filter with a replaceable element protecting against contamination. The vacuum port is 3/8″ NPT.
Why a continuously running pump matters – unlike a venturi generator, which stops drawing once the set vacuum is reached, the EP pump runs all the time. That constant draw is what lets it perform well on slightly porous material, where a leaking load would otherwise defeat an on-demand system.
Features
01 – No compressed air
Runs on 115 V single phase, 60 Hz at 7 amps – the option where a plant has no air line, or where air cost is the issue.
02 – Check valve
Maintains vacuum if power fails, so the load can be set down safely. ASME B30.20 on clean, smooth, non-porous material.
03 – Attach / release valve
Included as standard, for a consistent attach and release cycle.
04 – Vacuum gauge
Monitors the working vacuum level at a glance.
05 – Internal filter
Replaceable element protects the pump against contamination.
06 – Slightly porous loads
The continuously running pump keeps up with leakage that would defeat an on-demand generator.
Specifications
EP Series – dimensions
| EP Series mini-vacuum stations | |||||
|---|---|---|---|---|---|
| Complete generator model number | Vacuum pump only model number | Supply voltage | Vacuum port size | Maximum vacuum in. Hg (mm Hg) | Weight lb (kg) |
| EP1001-04 | PMP-KP-116 | 115 V / 1 PH / 60 Hz · 7 amps | 3/8″ NPT | 24 (610) | 44 (20) |
The PMP-KP-116 is the bare pump inside the station, available separately as a replacement or for building into a custom system.
Electric or Air Powered?
Choose the EP electric station when…
- There is no compressed air at the workstation, or air is expensive
- The load is slightly porous and leaks continuously
- The station stays in one place – at 44 lb (20 kg) it is not a portable unit
Choose an air powered station when…
- Compressed air is already available
- Weight matters – the air stations run from 6.6 to 15.4 lb
- The load is non-porous, so an Air Saver station can cut consumption to zero while holding
- The area is explosion-proof rated and no electricity is wanted at the unit
