CUSTOMIZED LIFTING TOOLS

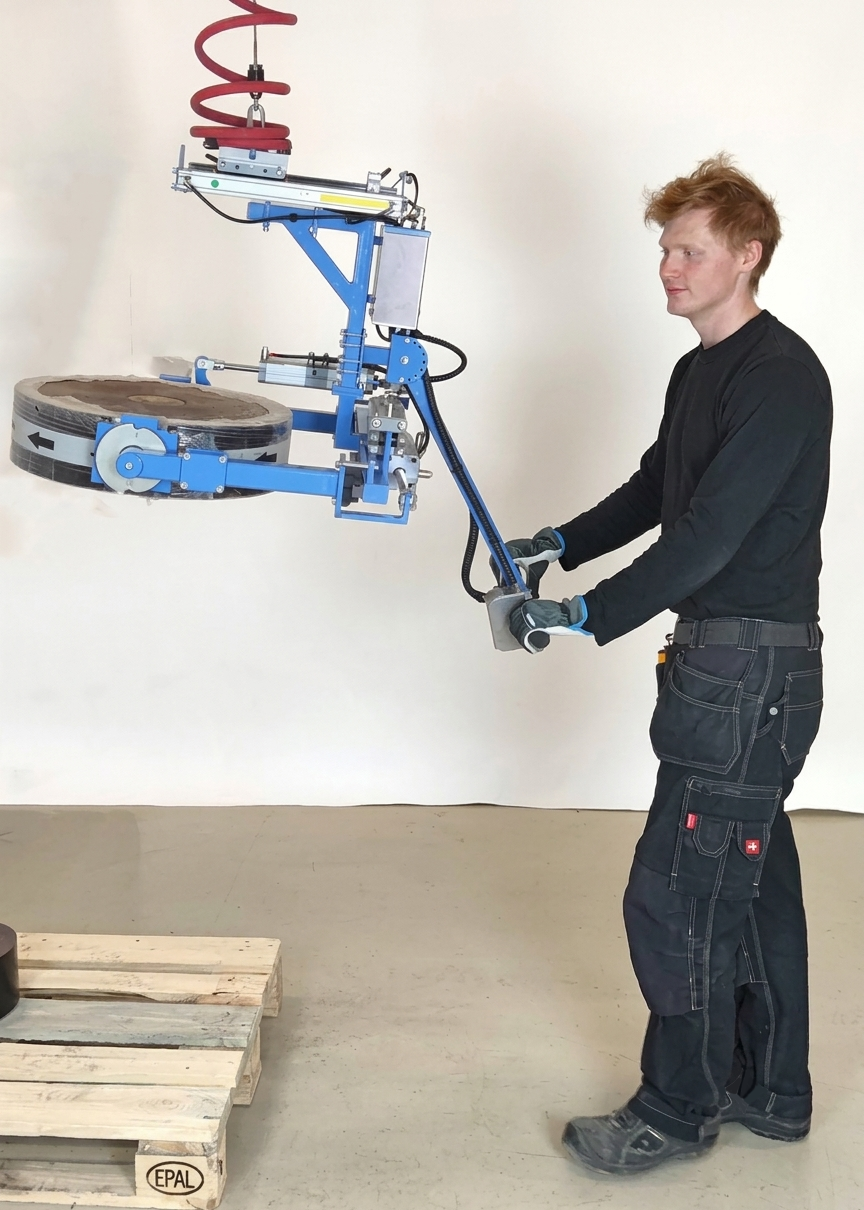

Gripper for wood veneers 89-11927

Our lift for wood veneer is custom-made for a company that manufactures furniture. They use veneer that is wound onto large rolls.

Product name	Lift for wood veneer 89-11927
Article number	89-11927
Serial number	6081
Type of lifted object	Roll
Maximum capacity (kg)	38
Weight (kg)	31
Function	Tilt
Gripping technology	Mechanical
Optional control	PSH
Brand	Lifts All

Our gripper for wood veneers and laminate is customized for furniture manufacturing companies. The veneers are delivered rolled up in big reels. These reels are stacked on a pallet from where the operator picks them up, turns them vertically and places them onto spools in a machine. As the reels are so heavy (up to 38 kg) this is a demanding job to do manually. The turning movement is also taxing for the operator´s wrists, hands and fingers.

By using our gripper for wood veneers, the operator does not need to lift the reels by hand. Instead, the lifting tool does the carrying. By using a clamping function, the grippers arms close tightly around the reel. If the operator does not grip the the reel exaclty in the middle, the lifting tool will automatically slide into the correct position. The rolls can then be lifted, moved around and placed where desired. The gripper can also tilt the rolls from a horizontal to a vertical position, or vice versa, without straining any wrists.

This lifter can be used to lift all types of round objects, such as coils, rolls, or cylinders. This is because we customize the lifter to the diameter and weight of your rolls, ensuring a perfect fit. By avoiding manual lifting, you maintain good ergonomics in the workplace and help prevent work-related injuries. Read more about roll lifters here.
