BASE UNITS

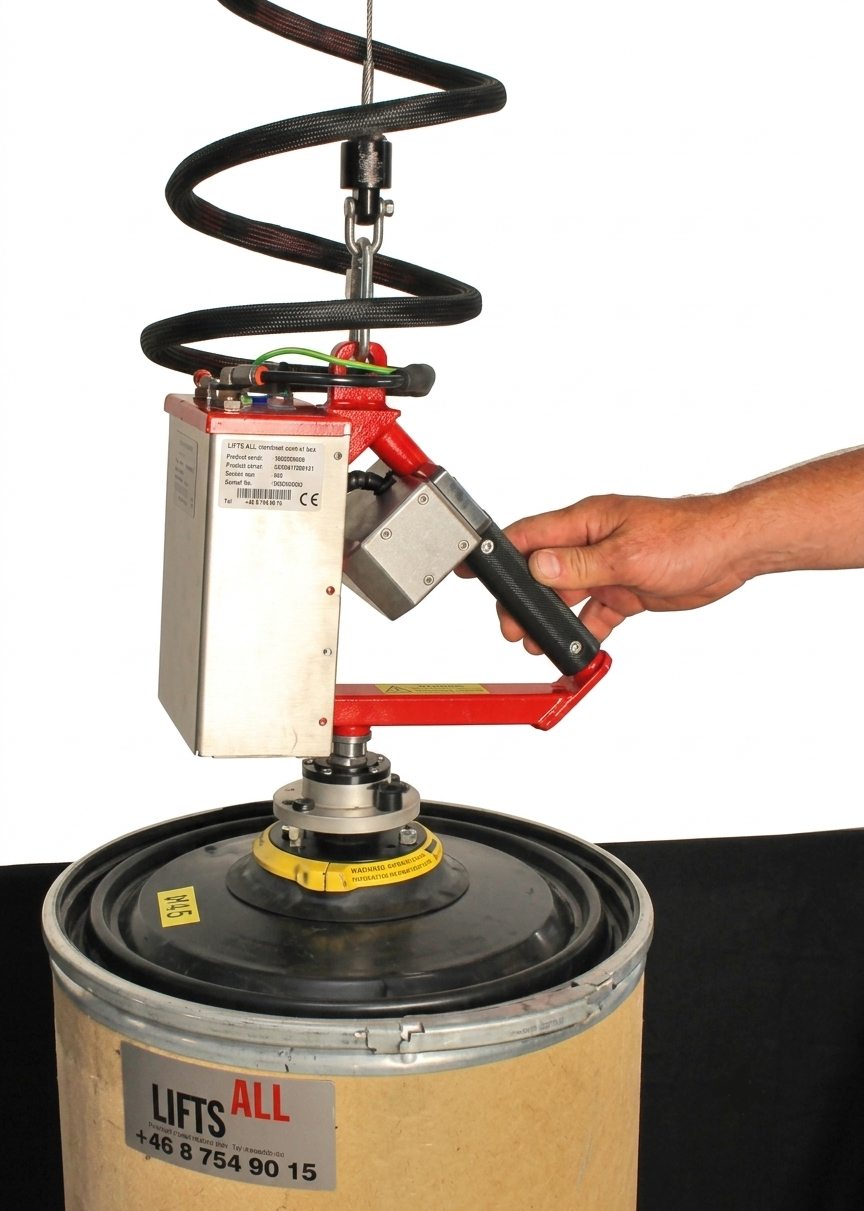

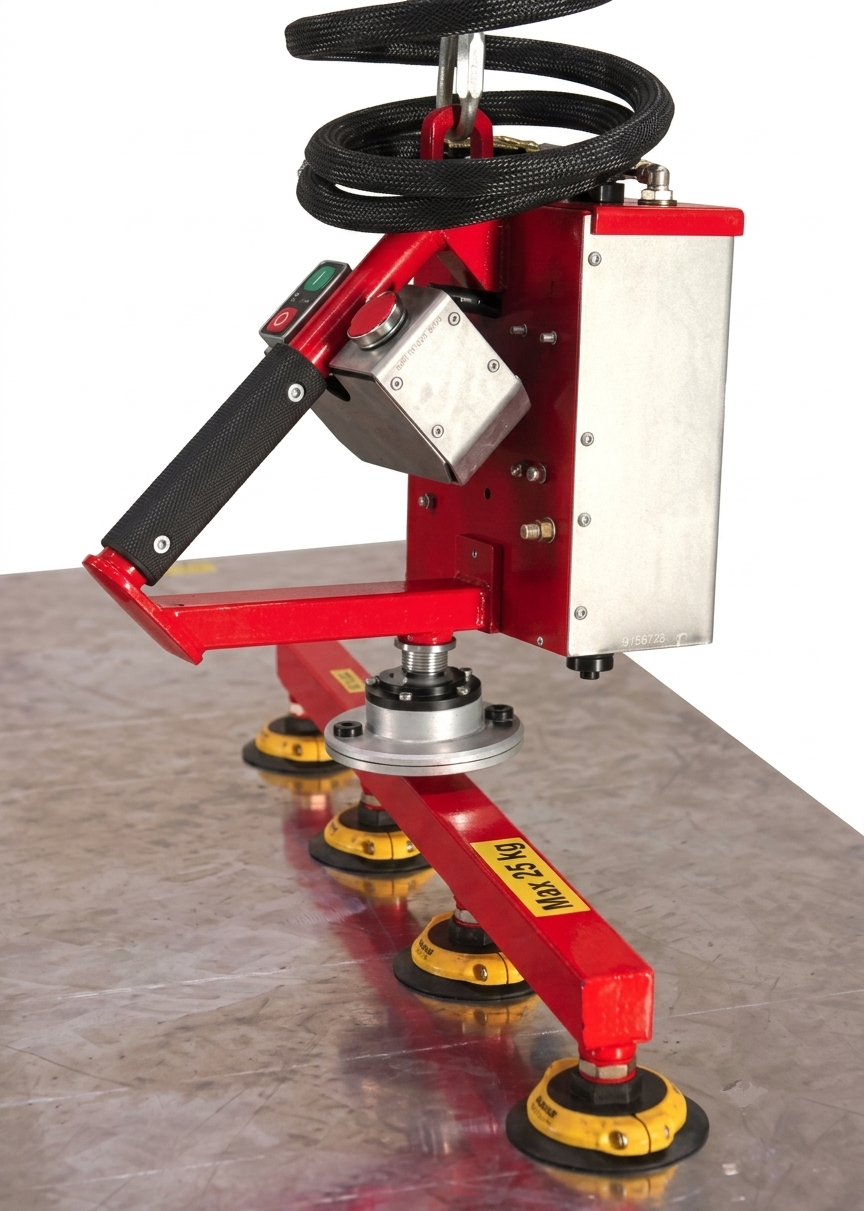

Z-Gripper

All-purpose lifter for airtight drums, pails, boxes and pallets, and other hard objects with gripping surfaces suitable for a vacuum gripper. Small and flexible enough for confined spaces.

Weight (kg)	4.5, 5
Maximum capacity (kg)	25, 65
Gripping technique	Vacuum
Type of load	Can, carton, box, pallet, sack, barrel
Industry	Battery industry, beverage industry, pharmaceutical industry, food industry, metal industry, distribution and warehousing, automotive industry, wood and furniture industry, ventilation industry, engineering industry
Selectable control	Balancing
Other features	Basic lower bracket
Height (mm)	351, 368
Configuration height (mm)	-344, -360

The Z-Gripper is an all-purpose lifter designed to lift airtight drums, pails, boxes and pallets. It is also well-suited for other hard objects with suitable gripping surfaces for a Vacuum gripper. The Z-yoke is available either pre-assembled with a vacuum cup or with a quick-release coupling that lets you easily and quickly swap out the vacuum cup or attach a hook, depending on what you need to lift. The Z-yoke is best suited for airtight loads.

The vacuum gripper is ergonomically designed to resemble manual handling, but without the heavy weight. This means that the lifting tool puts loads of up to 60 kg in a “weightless” state, allowing the operator to smoothly guide and control the load up and down with their hands. This makes handling barrels or other loads quick and highly precise. The operator avoids heavy and awkward lifting and can be sure that the lift can handle the specified weight. The Z-yoke is small and flexible, which means it can be used in confined spaces.

	SKU	Name	Weight (kg)	Max capacity (kg)	Gripping technique	Selectable control
	92-10004	Z-Gripper, Vacuum max 25 kg	4.5	25	Vacuum	Balancing
	92-10034	Z-Gripper, Vacuum max 65 kg	5	65	Vacuum	Balancing
