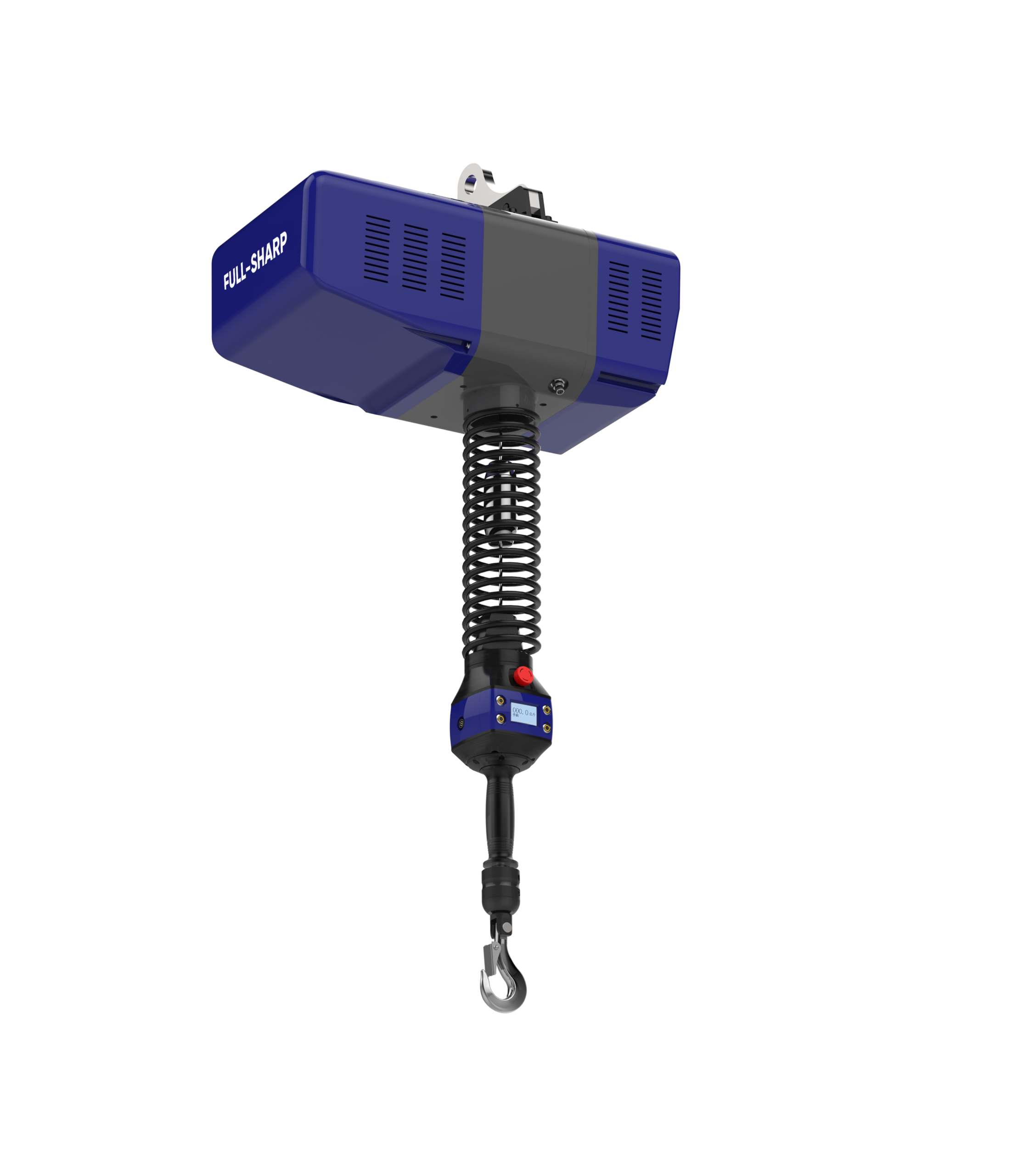

FSX3 INTELLIGENT SERVO HOIST

Product Features

• ◆  It adopts a steel wire rope structure in place of the traditional chain structure, achieving higher precision and faster speed.
• ◆  The system has a soft limit function, reducing the risk of collision at the upper limit and allowing the working range to be set flexibly.
• ◆  The fastest speed reaches 35 m/min and the slowest speed goes down to 0.05 m/min, letting the operator move precision instruments and fragile products accurately and smoothly.
• ◆  Multiple fine steel wires are wrapped into a thick rope, which avoids twisting and makes operation more stable. Combined with a built-in planetary reducer, the hoist runs quietly and feels smoother to operate.

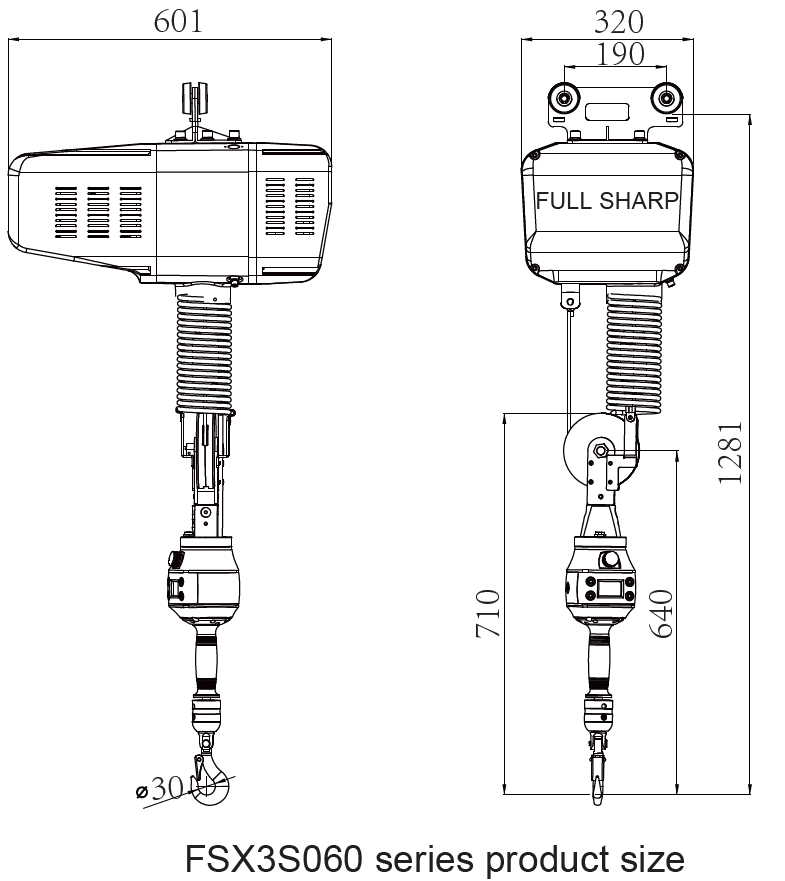

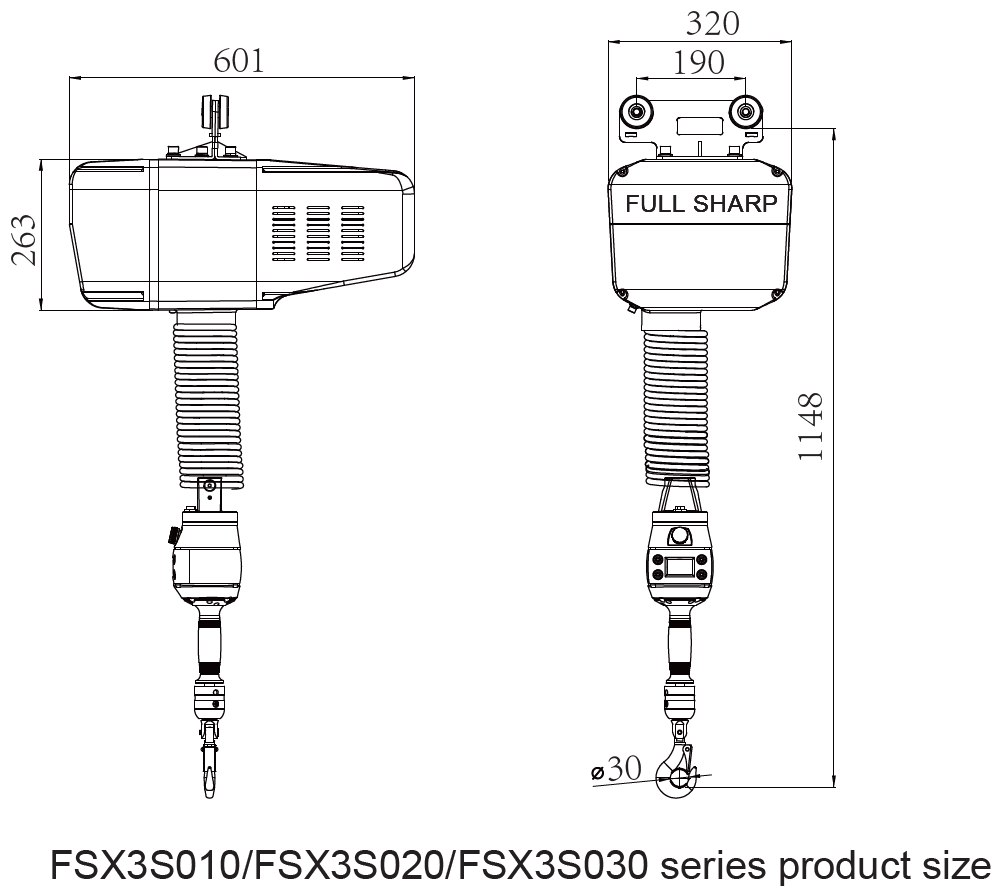

Product Specifications and Dimensions

*1. The speed data is for reference only and is based on the product nameplate.
2. The fastest and slowest speeds can be customised according to needs.
Note: The data above is for model selection reference only; the actual data on the product nameplate shall prevail.
