Description
Product Features
- ◆ Custom variable frequency drive and dedicated hoist motor for stable, reliable control.
- ◆ Automatic deceleration at the upper limit reduces the risk of limit-switch damage, and the lifting working range can be set flexibly.
- ◆ Adjustable speed range (customizable): low speed down to 1/2 of a conventional low-speed step, high speed up to 50% higher than a conventional high-speed step (at under 10% of rated load).
- ◆ Low noise, smooth vibration-free operation with soft start and soft stop; the body shows almost no sway.
- ◆ Multiple safety protections – anti-overrun, overload, power failure and more – for safe, stable operation.
- ◆ Real-time speed display and visible fault codes for easy troubleshooting.
- ◆ Electronic dual-brake system – brake pads last for years without replacement; routine maintenance is simple.
- ◆ Compared with conventional hoists: faster response, more reliable operation, lower failure rate and longer service life.
- ◆ Built-in remote control module allows synchronous operation of the trolley and the crane bridge.
Product Specifications and Dimensions
|
MODEL
ITEM
|
FS-42B012 | FS-42B025 | FS-42B050 | FS-42B100 | FS-42B202 | FS-42B160 | FS-42B200 | FS-42B250 | FS-42B322 | FS-42B502 |
|---|---|---|---|---|---|---|---|---|---|---|
| Maximum load (Kg) | 125 | 250 | 500 | 1000 | 2000 (Double chain) | 1600 | 2000 | 2500 | 3200 (Double chain) | 5000 (Double chain) |
| Lifting speed (m/min) | 1/12 | 1/12 | 1/8 | 1/8 | 0.5/4 | 0.5/10 | 0.5/10 | 0.5/10 | 0.5/5 | 0.5/5 |
| Rated power (kW) | 0.75 | 0.75 | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Standard lifting height (m) | 3 (customizable) | |||||||||
| Control mode | Wired pendant button / Radio remote control button | |||||||||
| Chain specification (mm) | 5.0 | 5.0 | 5.0 | 7.1 | 7.1 | 9.0 | 11.2 | 11.2 | 9.0 | 11.2 |
| Voltage | Standard 380V (optional 220V) | |||||||||
| Mechanism working class | 3m/M6 | 3m/M6 | 3m/M6 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 |
| Working temperature (°C) | -10°C ~ 55°C | |||||||||
Note: Products are continuously upgraded. The data above is for model selection reference only; the actual data on the product nameplate shall prevail.

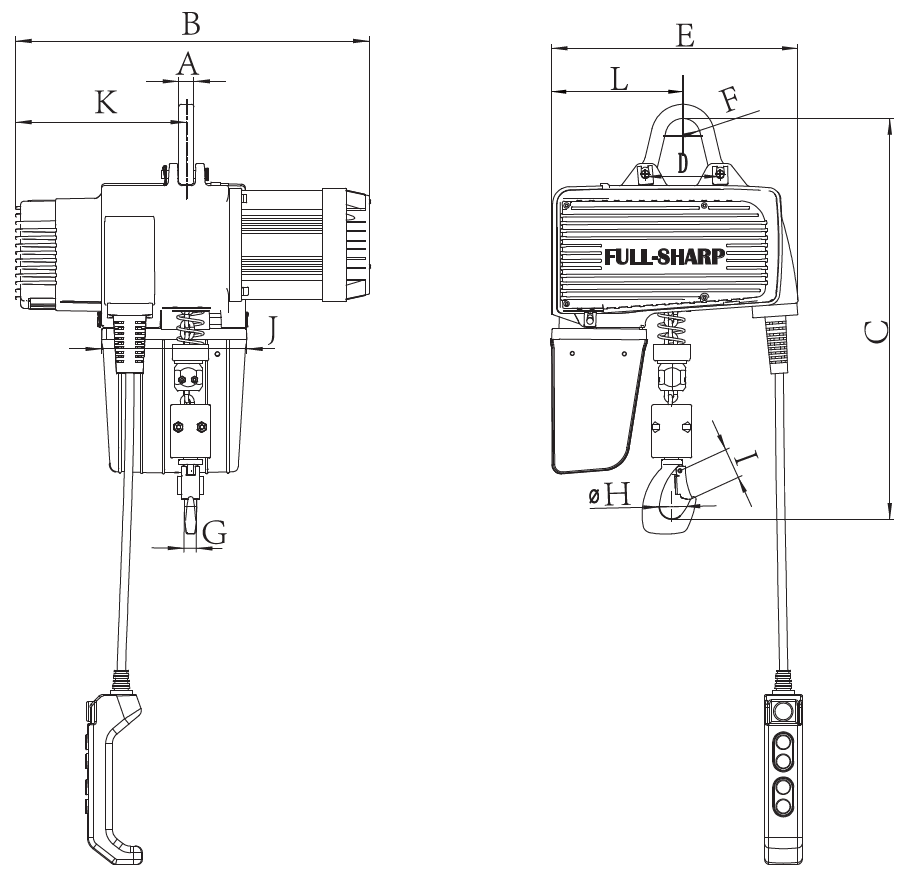

Dimension Drawing
Single chain models
Overall Dimension Table (Unit: mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS-42B012 | 18 | 424 | 473 | 90 | 296 | R21 | 15 | Φ30 | 36 | 174 | 205 | 158 |
| FS-42B025 | 18 | 424 | 473 | 90 | 296 | R21 | 15 | Φ30 | 36 | 174 | 205 | 158 |
| FS-42B050 | 18 | 468 | 478 | 90 | 313 | R21 | 17.5 | Φ35 | 46 | 192 | 208 | 171 |
| FS-42B100 | 24 | 546 | 592 | 124 | 349 | R30 | 23 | Φ44 | 50 | 227 | 243 | 184 |
| FS-42B202 | 24 | 546 | 643 | 124 | 349 | R30 | 31 | Φ52 | 52 | 227 | 243 | 184 |
| FS-42B160 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 178 |
| FS-42B200 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 178 |
| FS-42B250 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 211 |
| FS-42B322 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 211 |
| FS-42B502 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 211 |
All dimensions are in millimetres (mm) and may vary with the selected lifting height and trolley type. Please confirm the certified drawing before installation design.

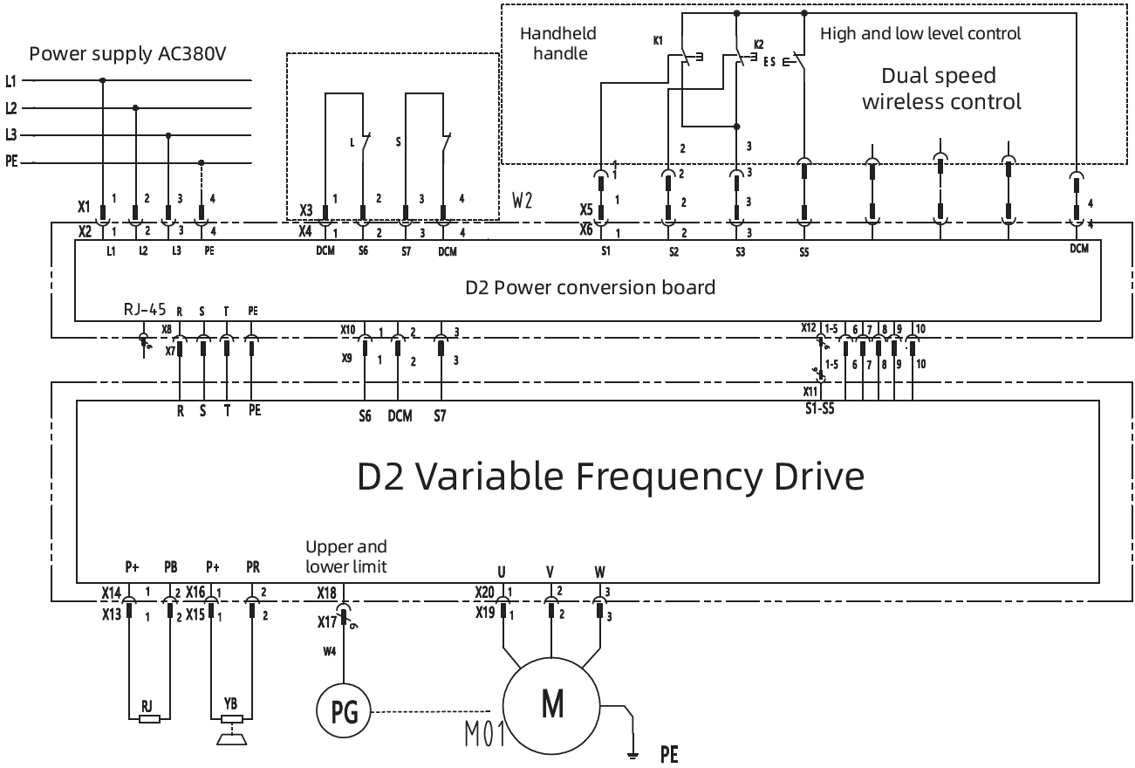

Wiring Diagram
Wiring must be carried out by a qualified electrician in accordance with the manual supplied with the hoist. Check the supply voltage and phase sequence before switching on.
