Description
SDS Speed Hoist
SDS High-Speed Hoist
Models: KSH200SS / KSH400SS / KSH750SS / KSH1000SS / KSH100LS
The SDS Speed Hoist is Knight’s newest powered hoist, carrying many of the same features as the D-Series Servo Hoist, including the patented “Safety Drop Stop” (SDS) dual-chain system. It uses a simple analogue handle with UP/DOWN buttons, so operators need very little training. The handle allows step-by-step movement and speed increase or decrease.

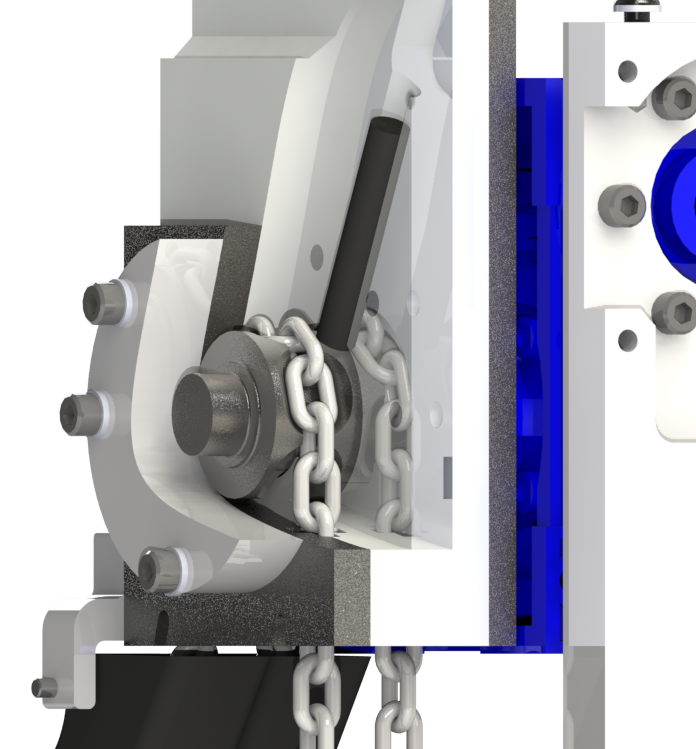

An Ethernet port on the handle connects to Knight Servo Studio for parameter setup: height limits, speed reduction zones and hoist speed control. A graphite lubrication stick inside the gearbox keeps the chain continuously lubricated. Capacity reaches 453 kg, with a top speed of 50 in./sec unloaded.
*Model code: “XXXX” = 2401 (240 VAC, single phase) or 4803 (480 VAC, three phase)
SDS Speed Hoist range: KSH200SS-2401-006 | KSH400SS-2401-006 | KSH750SS-2401-006 | KSH1000SS-2401-006
KSH200SS-4803-006 | KSH400SS-4803-006 | KSH750SS-4803-006 | KSH1000SS-4803-006
KSH200SS-4803-006 | KSH400SS-4803-006 | KSH750SS-4803-006 | KSH1000SS-4803-006
100 lbs Speed Hoist range: KSH100LS-1201-006
General Information
Mechanical

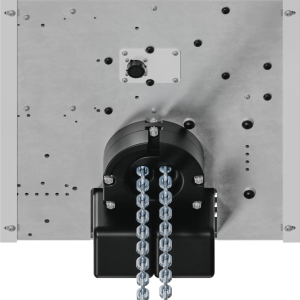

- SDS dual-chain redundant safety design:
- Load chain: carries the working load.
- Safety chain: redundancy and protection.
- Patented Knight chain – longer service life.
- Two separate chain containers.
- Chain length: unlimited (3.6–5.5 m standard).
- Sealed worm-gear gearbox.
- Speed: up to 73.5 m/min [241 fpm].
- Maximum capacity: up to 453 kg [1,000 lbs].
- Integrated graphite lubrication stick.
Software
- Knight Servo Studio: hoist parameter optimisation.
- Set height limits, speed reduction zones and speed.
- Analogue switch: step control plus acceleration and deceleration.
- Ethernet connectivity.
- Full analogue speed control.
- Multi-step digital control.
Electrical
- Analogue UP/DOWN thumb switch.
- Input supply: 240 VAC single phase or 480 VAC three phase.
- Fault LED: Run-Stop button, twist to release.
- Ethernet port for Knight Servo Studio programming and fault diagnostics.

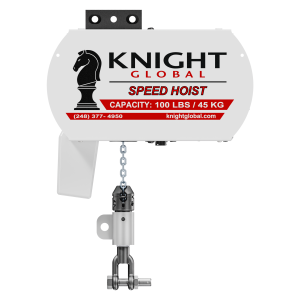

100 lbs Capacity Range – Information
Mechanical
- Single-chain design.
- Patented Knight chain.
- Single chain container.
- Chain length: 3.65 m standard.
- Sealed worm-gear gearbox.
- Speed: up to 58 cm/sec [23 in./sec].
- Maximum capacity: up to 45 kg [100 lbs].
- Integrated graphite lubrication stick.
Software
- Knight Servo Studio: parameter optimisation.
- Custom virtual limits and speed control.
- Analogue switch: step control plus acceleration and deceleration.
- Ethernet connectivity.
- Full analogue speed control.
Electrical
- Analogue UP/DOWN thumb switch.
- Input supply: 120 VAC, 15 A, dedicated circuit.
- Fault LED: Run-Stop button, twist to release.
- Ethernet port for Knight Servo Studio.
SDS Speed Hoist Specifications*
| Model Code* | Capacity lbs [kg] | Max Speed fpm [mpm] | Hoist Weight lbs [kg] |
|---|---|---|---|
| KSH200SS-XXXX-006 | 200 lbs [90 kg] | 241 fpm [73.5 mpm] | 96 lbs [43 kg] |
| KSH400SS-XXXX-006 | 400 lbs [181 kg] | 120 fpm [36.5 mpm] | 96 lbs [43 kg] |
| KSH750SS-XXXX-006 | 750 lbs [340 kg] | 150 fpm [45.7 mpm] | 126 lbs [57 kg] |
| KSH1000SS-XXXX-006 | 1,000 lbs [453 kg] | 105 fpm [32 mpm] | 126 lbs [57 kg] |
100 lbs Speed Hoist Specifications
| Model Code | Capacity lbs [kg] | Max Speed | Voltage | Weight lbs [kg] |
|---|---|---|---|---|
| KSH100LS-1201-006 | 100 lbs [45 kg] | 23 in./sec | 120 VAC | 55 lbs [25 kg] |
Product Videos
* Knight Rotary Union – electric / pneumatic
* SDS Speed Hoist – operating demonstration
Accessories
Controls

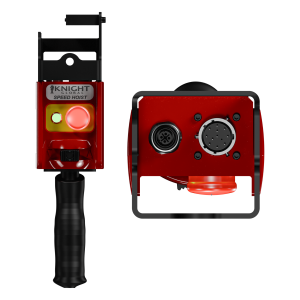

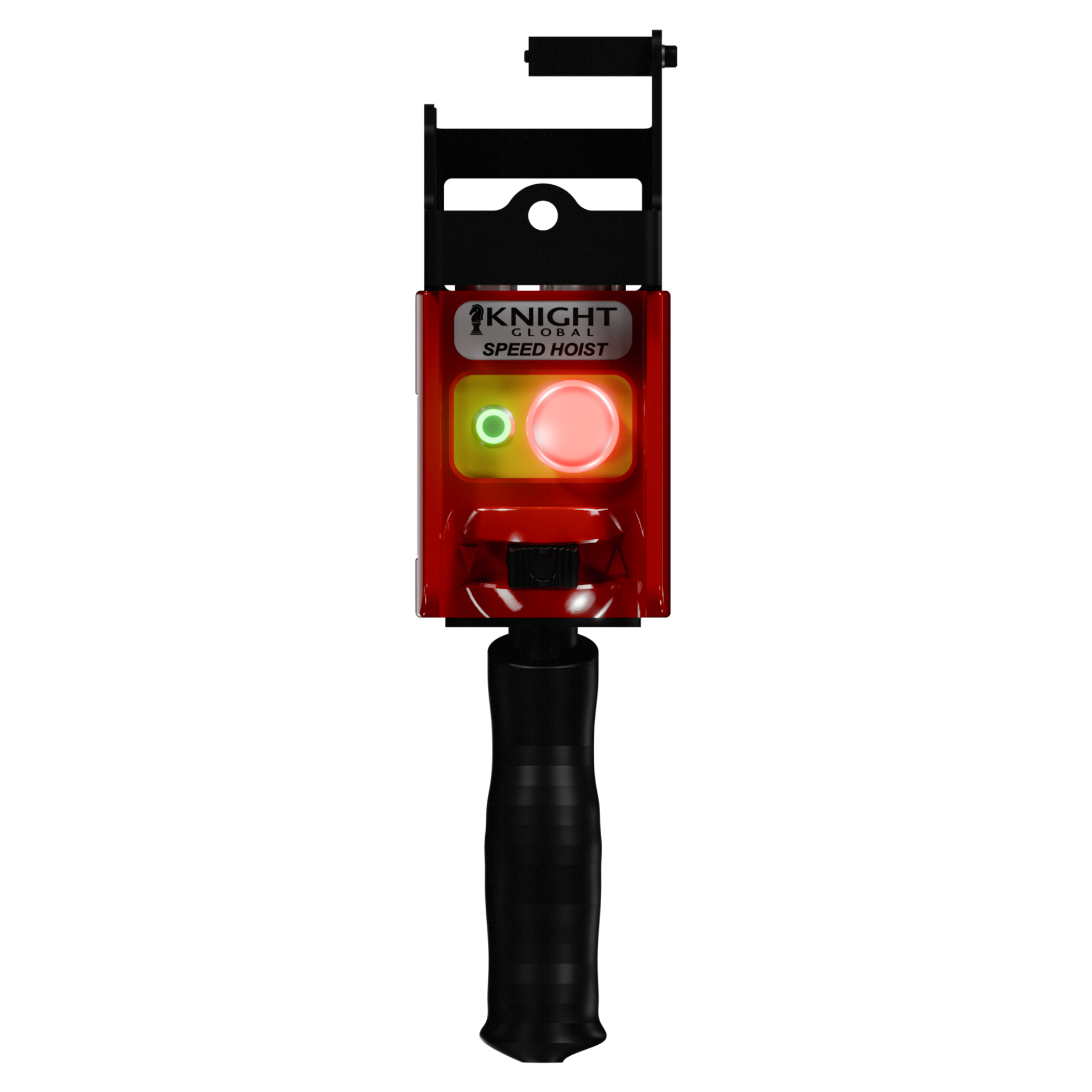

KCA1110
Analogue Handle – Rocker Type (Standard)
- UP/DOWN rocker switch.
- Illuminated Run/Stop button.
- Lightweight 3D-printed housing.
- Ethernet port for parameter setup.
Weight: 2.5 lbs [1.13 kg]

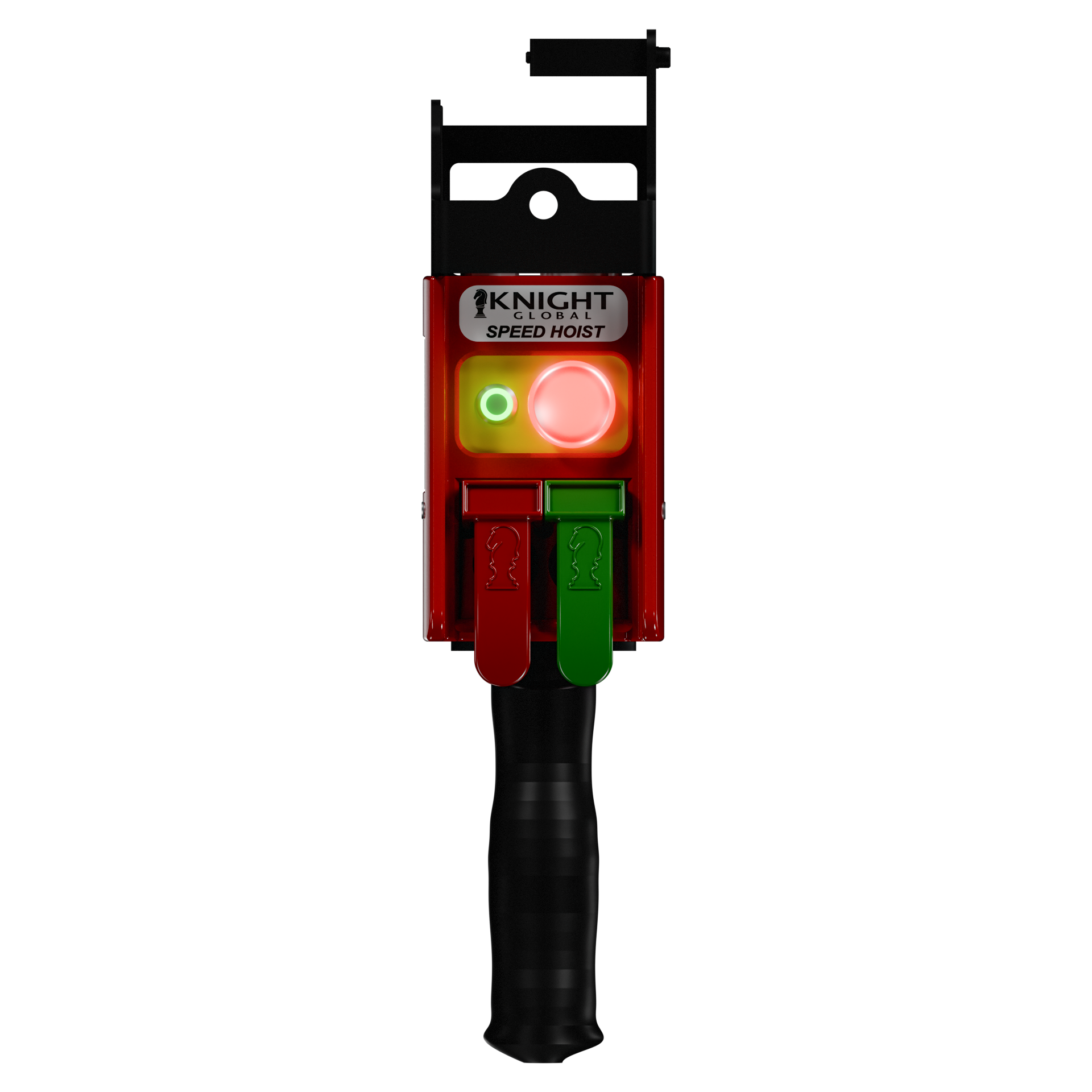

KCA1119
Analogue Handle – Two-Button Paddle Type
- UP/DOWN thumb paddle.
- Illuminated Run/Stop button.
- Lightweight 3D-printed housing.
- Ethernet port for parameter setup.
Weight: 2.9 lbs [1.3 kg]

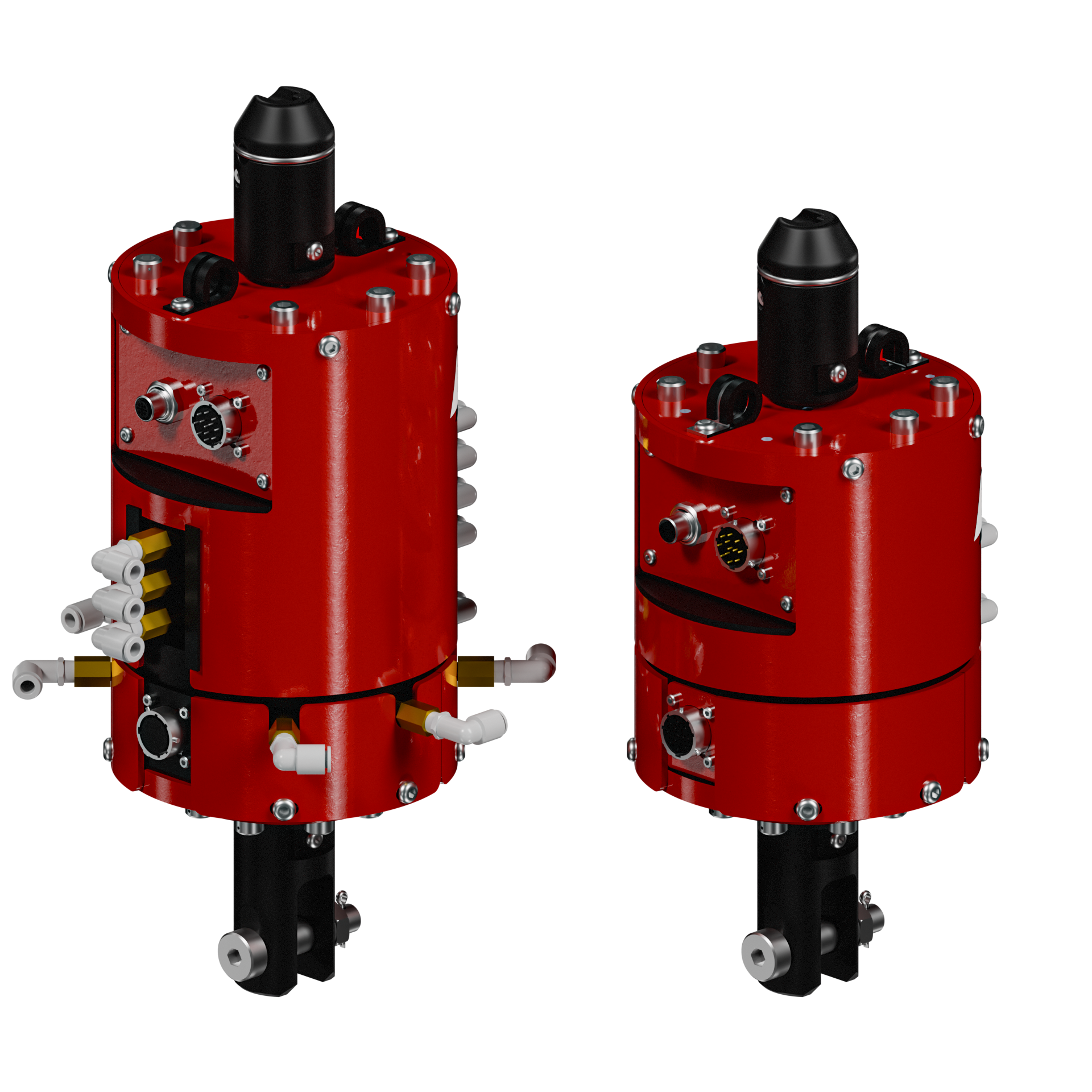

KSAA1068 / KSAA1069
Electro-Pneumatic Rotary Union (200–400 lbs)
- Prevents twisting of electrical lines, air lines and the SDS chain.
- Supply: 24 VDC, 2 A maximum.
- Maximum load: 181 kg [400 lbs].
- Supplied with the KSAA1004 shackle.
Weight: 29.3 lbs [13.29 kg]

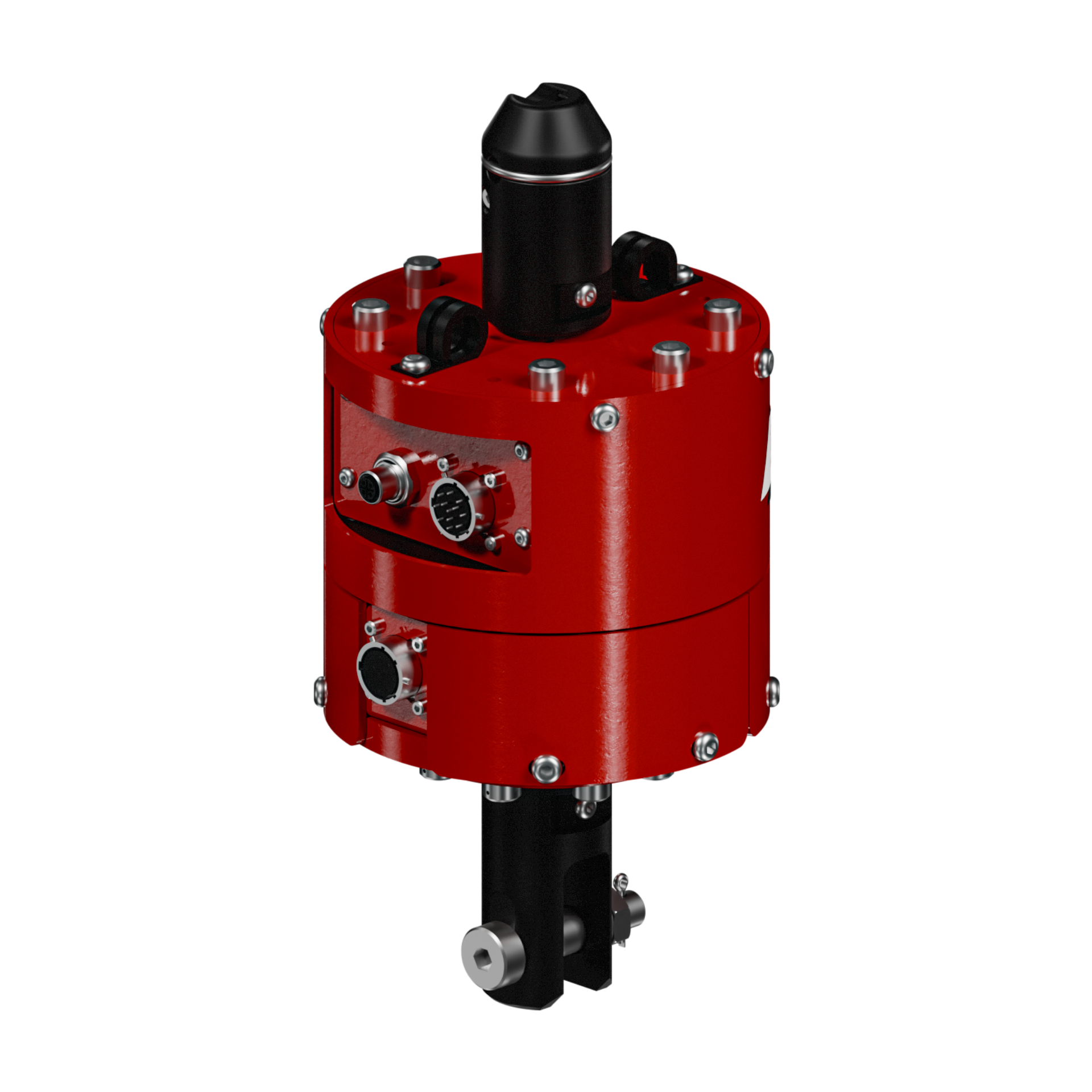

KSAA1078
Electric Rotary Union (200–400 lbs)
- Prevents twisting of electrical lines and the SDS chain.
- Supply: 24 VDC, 2 A maximum.
- Maximum load: 181 kg [400 lbs].
- Supplied with the KSAA1004 shackle.
Weight: 27.6 lbs [12.52 kg]

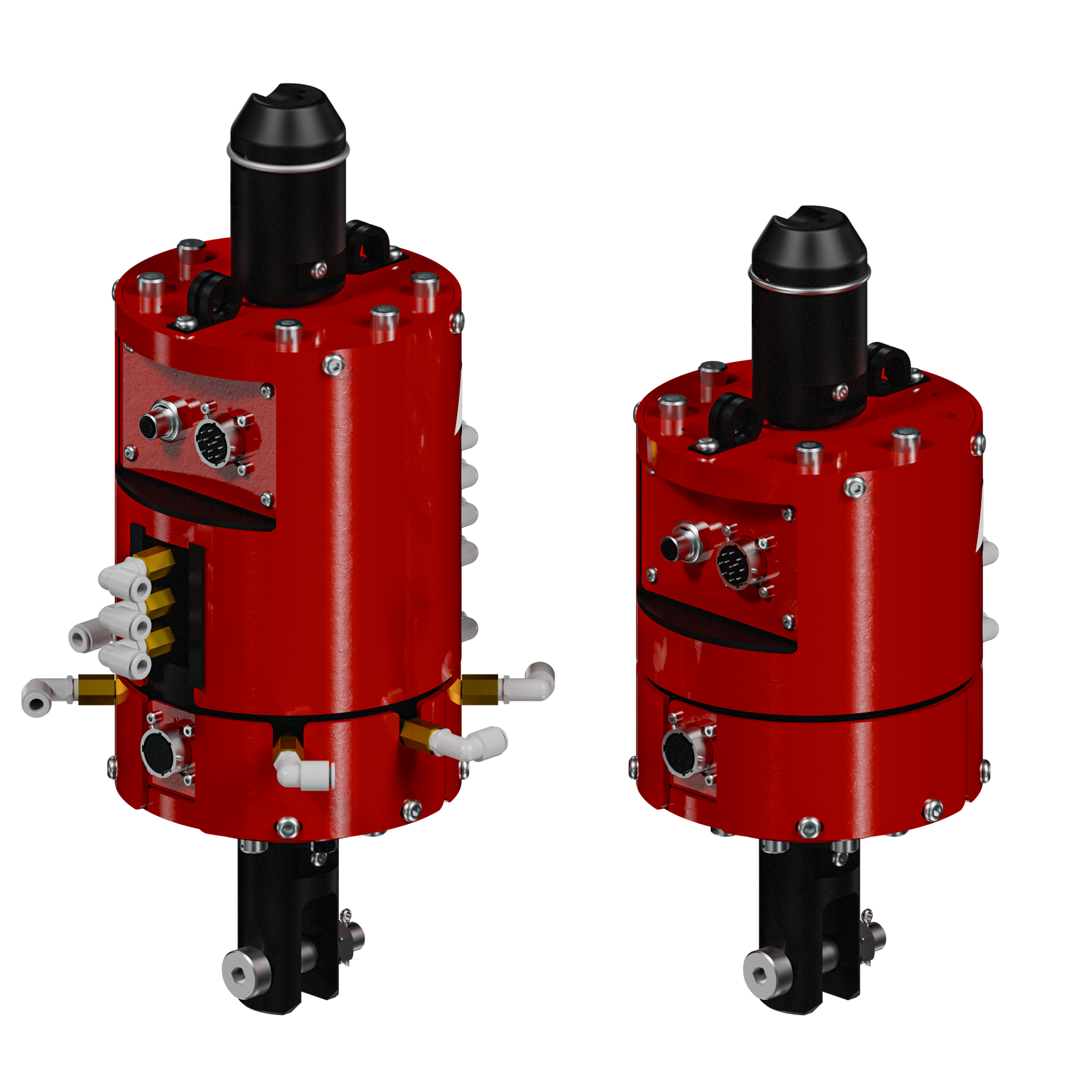

KSAA1070 / KSAA1071
Electro-Pneumatic Rotary Union (750–1,000 lbs)
- Prevents twisting of electrical lines, air lines and the SDS chain.
- Supply: 24 VDC, 2 A maximum.
- Maximum load: 453 kg [1,000 lbs].
- Supplied with the KSAA1004 shackle.
Weight: 30 lbs [13.6 kg]

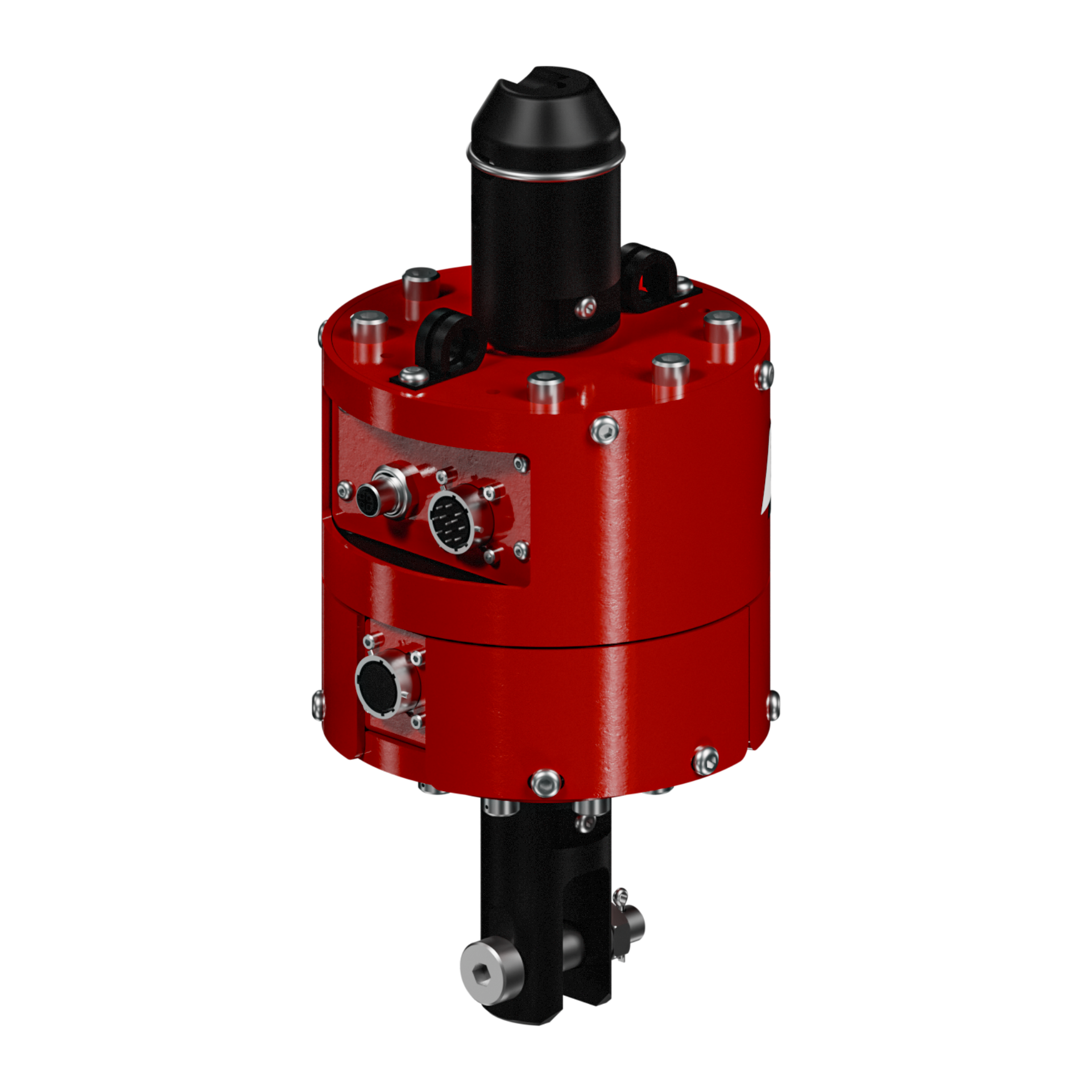

KSAA1079
Electric Rotary Union (750–1,000 lbs)
- Prevents twisting of electrical lines and the SDS chain.
- Supply: 24 VDC, 2 A maximum.
- Maximum load: 453 kg [1,000 lbs].
- Supplied with the KSAA1004 shackle.
Weight: 27.6 lbs [12.52 kg]
General Accessories
KSAA1066
Speed Hoist Chain Hook
- Connects 4 mm chain to the SDS Speed Hoist.
- Crosby® Bullard self-closing gate hook.
- 360° swivel, 1 tonne rating.
- Secure anti-drop chain connection.
Weight: 2.4 lbs [1.08 kg]
KSAA1065
Speed Hoist Chain Shackle
- Connects 4 mm chain to the SDS Speed Hoist.
- Crosby® Bullard self-closing gate hook.
- Quick connection, 360° swivel.
- Anti-drop safety chain.
Weight: 2.7 lbs [1.24 kg]
KDSA1010 / KDSA1011
SDS Servo Hoist Chain Replacement Kit
- KDSA1010 (4 mm): 200–500 lbs capacities.
- KDSA1011 (5 mm): 350–1,000 lbs capacities.
- High-tensile steel, heat treated, zinc plated.
- Supplied with end clamps and connecting links.
KSAA1003
Precision Chain Wear Gauge
- Measures wear on Knight 4 mm and 5 mm zinc-plated chain.
- Durable steel construction.
Weight: 0.87 lbs [0.39 kg]
KSAA1004
Shackle
- 4140 steel body, heat treated to Rockwell C 38–42.
- Connects the load to the servo chain.
- Secured with two M6 steel pins.
- Maximum load: 453 kg [1,000 lbs].
KSAA1011
Servo Hoist Rail Brake
- Locks the hoist against travel along the rail.
- Pneumatic brake, mounts fore or aft.
- Use as a parking brake or a drag brake.
- Replaceable brake pads.
Weight: 6.0 lbs [2.72 kg]
Load Trolleys
KSAA1050
Load Trolley – RAD7510 Rail
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -29°C to +120°C.
Max load: 1,134 kg | Weight: 4.31 kg
KSAA1059
Load Trolley – RAD6110 Rail
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -29°C to +120°C.
Max load: 725 kg | Weight: 3.45 kg
KSAA1048
Load Trolley – RAD4110 Rail
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -7°C to +120°C.
Max load: 408 kg | Weight: 2.04 kg
Panels, Disconnects & Cables
KCA1018
3 KVA Disconnect Panel
- Converts 480 VAC to 240 VAC.
- Finger-safe 3 KVA transformer.
- 15 A primary and secondary breakers.
- For use with a single hoist run.
KCA1055
5 KVA Disconnect Panel
- Converts 480 VAC to 240 VAC.
- Finger-safe 5 KVA transformer.
- 25 A primary and secondary breakers.
- For double or triple servo runs.
KCA1001
Disconnect Panel Stand
- Holds the panel at an ergonomic height.
- Multiple height settings.
- Floor mounted with M10×1.5 Nylock bolts.
- Standard blue finish, custom colours to order.
KCA1041
Straight Power Cable
- Connects the handle to the servo hoist.
- 19-pin military-style connector.
- Lengths from 2 ft to 15 ft.
*Note: All accessories listed are compatible with the SDS Speed Hoist range. Contact FULLSHARP for help selecting the right accessories for your application.
