BASE UNITS

Speedy Picker Add-On

A crane arm and lifting tool connected to a compressor, installed onto the forklift truck the operator drives — so the lifting tool is always at hand.

Article number	95-SpeedyPickerAddOn
Weight (kg)	300
Gripping technique	Hook, mechanical, vacuum
Maximum capacity (kg)	25
Optional control	PSH, Balancing
Volt (V)	24
Industry	Distribution and warehousing
Height (mm)	2346
Configuration height (mm)	1838

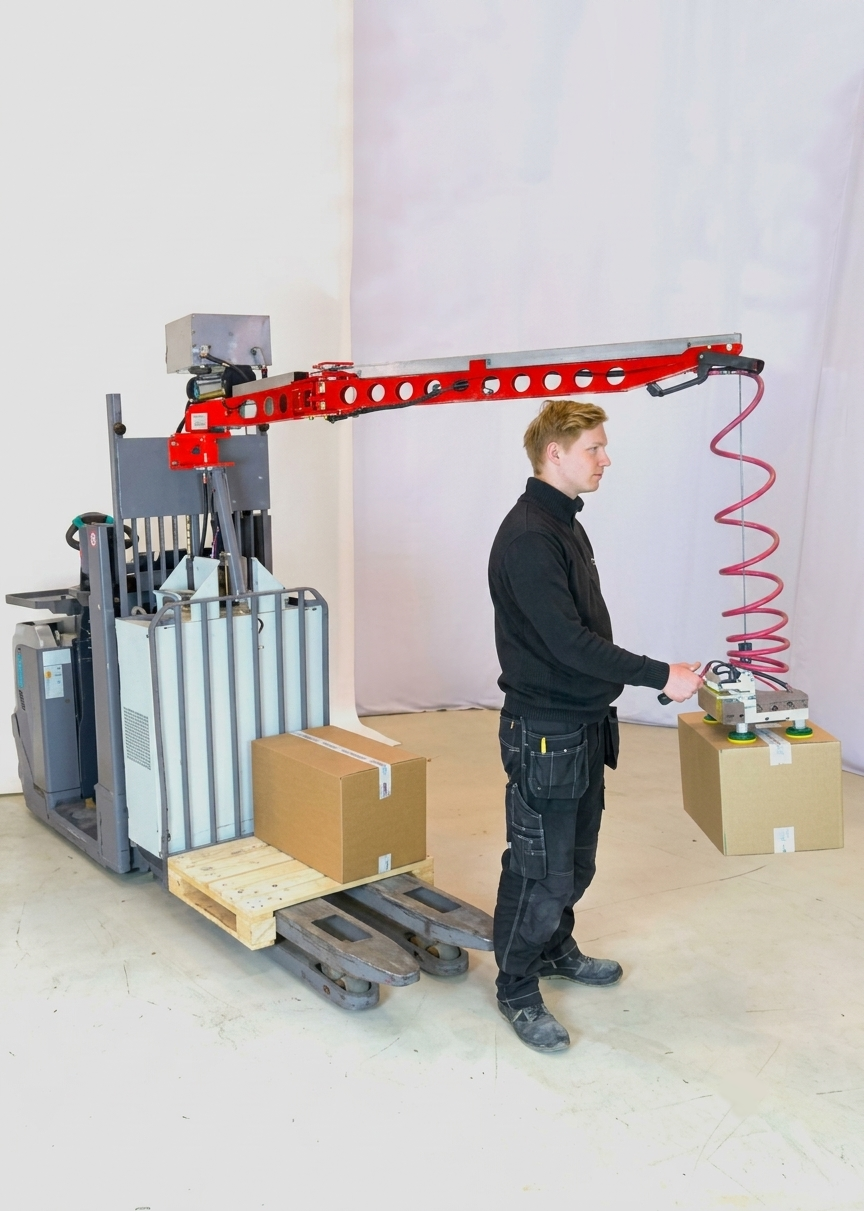

The Speedy Picker is an efficient and ergonomic lifting tool for warehouses and distribution centers. It consists of a crane arm and a lifting tool connected to a compressor. These are installed onto the forklift truck that is driven by the operator during the workday, so the lifting tool is always at hand. As the operator no longer needs to manually lift the loads, the risk of injury from lifting is minimised. With the Speedy Picker, work can be carried out faster, easier, and safer.

Warehouse work and order picking is a repetitive job that needs to be fast-paced and streamlined. Often, it leads to awkward working positions and bad postures, which is a major risk factor for wear-and-tear injuries and general fatigue that may result in lower productivity. The Speedy Picker lifting solution can manage up to 120 lifts per hour, which allows you to maintain a productive and efficient operation, with fewer injuries and improved ergonomics. The lifting tool is always ready to lift.

The Speedy Picker maintains its stability even when the crane arm is open, so you don’t need to fold out support legs while using it. Continuous and efficient usage without time-consuming stops.

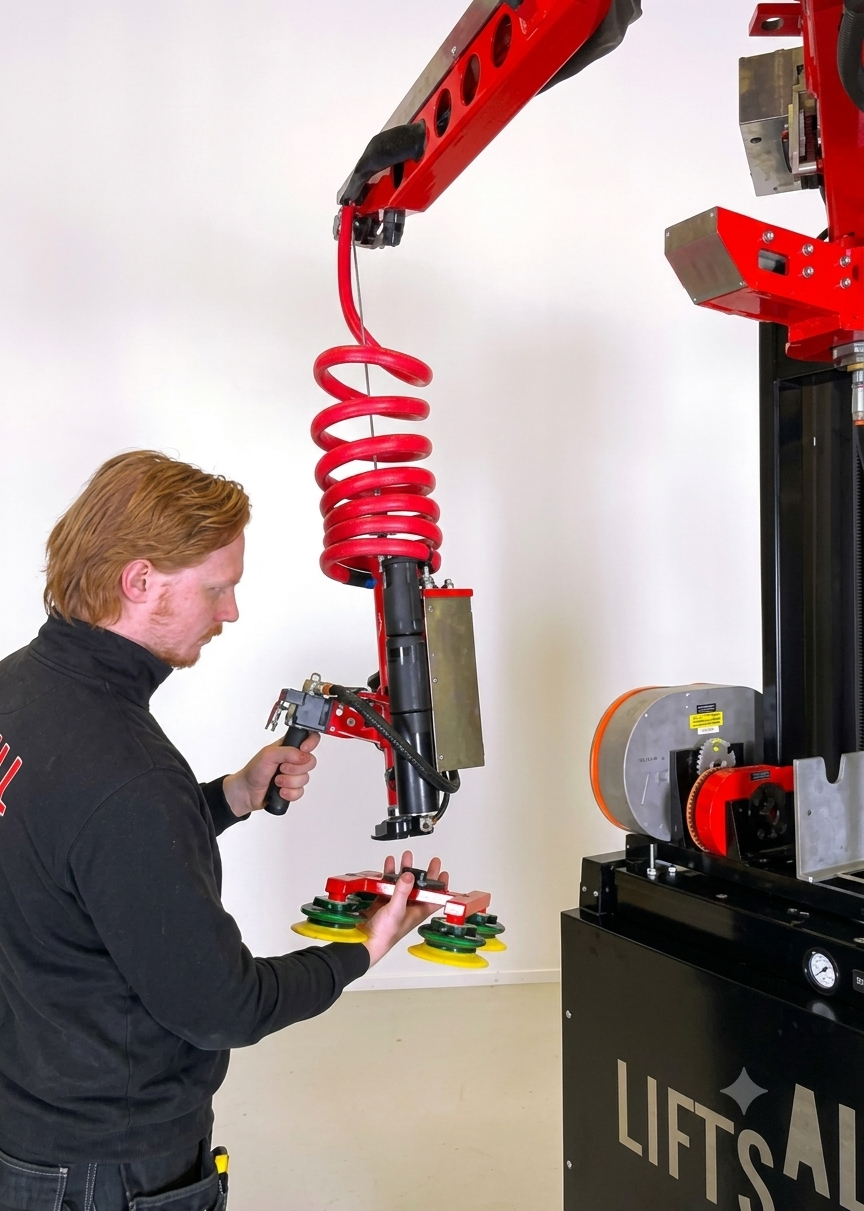

The Speedy Picker truck crane arm can be equipped with different lifting tools, to lift goods and load or unload the truck.

The agile and flexible crane arm is logically placed in the middle of the forklift on the truck. This means quicker pick-ups from both sides and behind the forklift truck. The crane is low-built for work in low spaces, which is common in warehouse aisles. When work is done, the operator simply places the lifting tool into one of the docking stations, folds the crane arm into “parking mode”, and drives safely to the next spot.

Speedy Picker is available both as a permanent installation or as a single unit with a crane, compressor and lifting tools that are attached to an existing forklift. The individual unit (Add-On) can be connected to different trucks and can also be switched off when you want to free up the forklift for other tasks — a flexible solution for the user.

The different mounting methods mean that the forklift crane is suitable for virtually all articulated trucks. In cooperation with you and the forklift manufacturer, we will find the solution that is best suited to the specific forklift.

A warehouse worker can often lift 120 packages in the course of an hour. This often means that a single person is burdened with 15–16 tons during an eight-hour working day (source: Handelsnytt). According to the Swedish Work Environment Authority’s regulations, the employer must arrange the workplace so that the risk of strain disorders is reduced or avoided (Arbetsmiljöverket). This can mean, among other things, using technical aids. Instead of straining and wearing out the body with heavy lifting, Speedy Picker can carry the load, while the warehouse picker maintains speed and precision.
