ProWood — Sheet Gripper

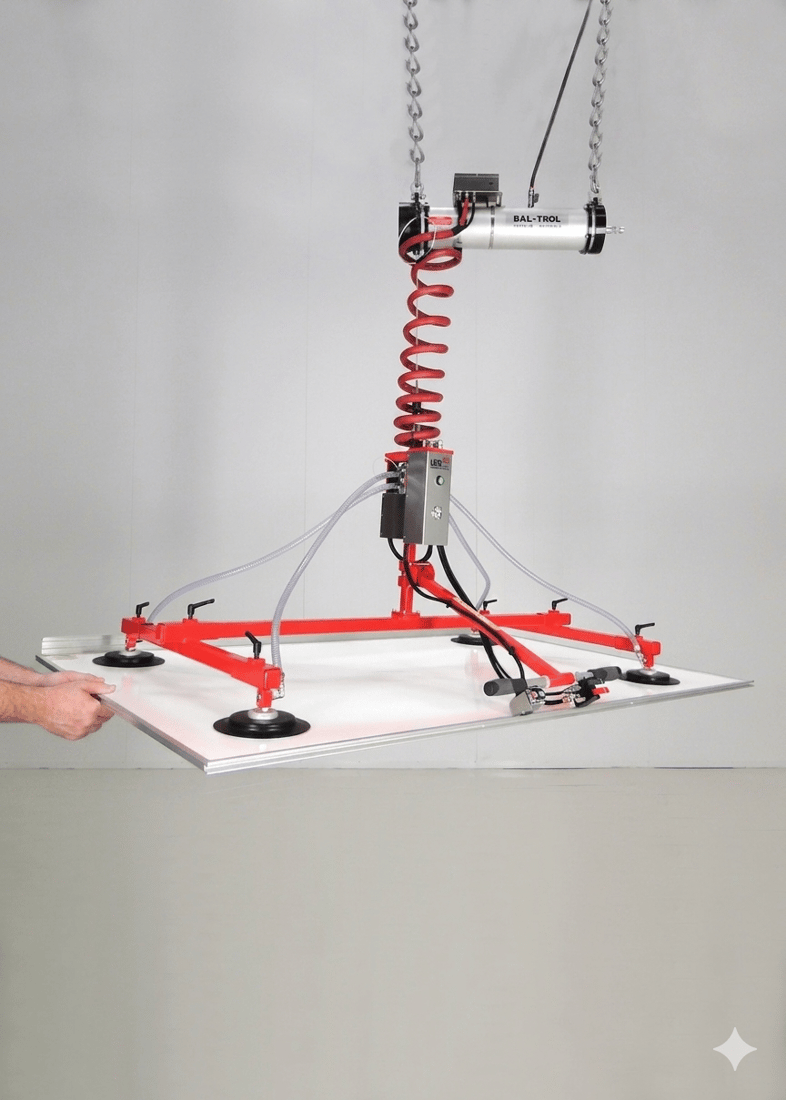

Lifts and tilts all sorts of panes and panels. Adjustable lengths and widths between the vacuum cups, low-built construction and an ergonomic design make ProWood suitable for most industries.

Weight (kg)	21, 30, 42, 55
Maximum capacity (kg)	60, 100, 120, 200
Type of load	Sheet
Function	Tilt
Height (mm)	760, 878, 1112, 1442

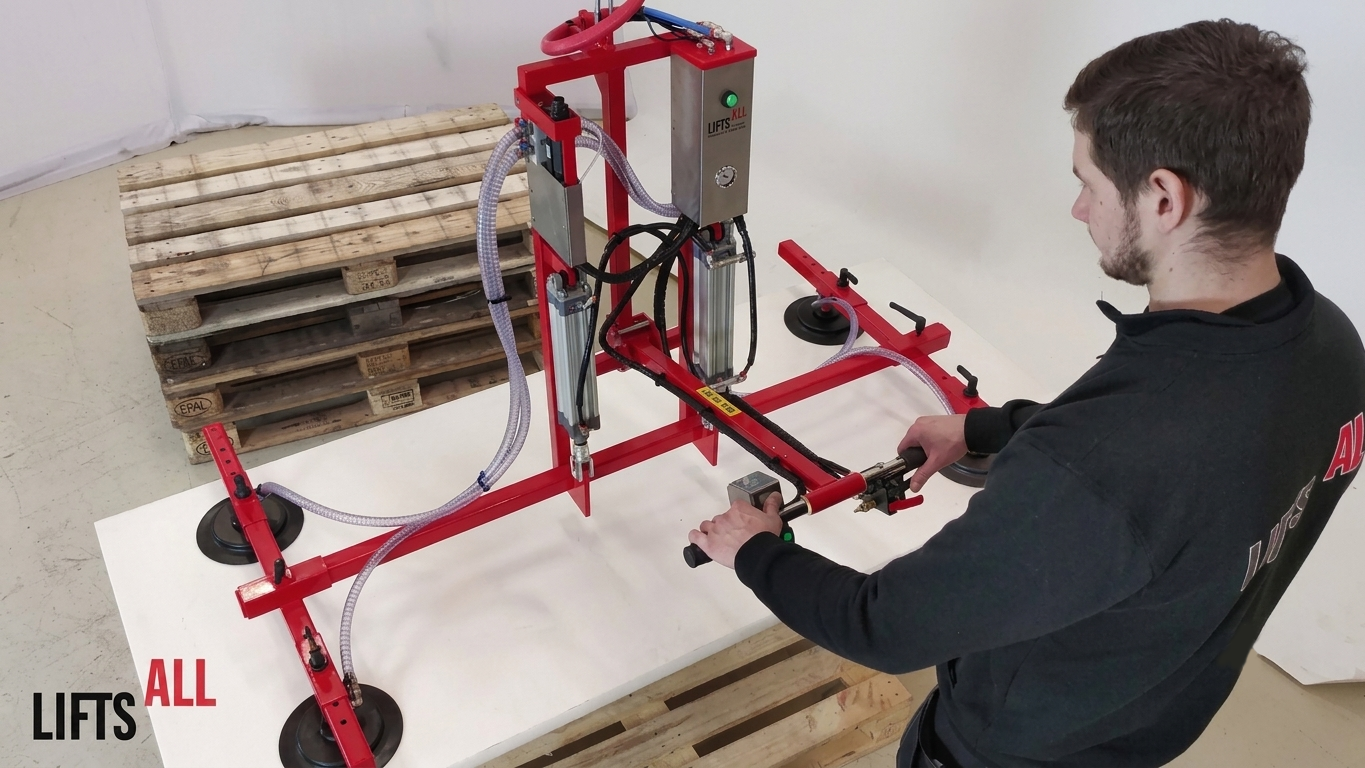

ProWood can easily lift and tilt all sorts of panes and panels. Instead of handling heavy and unwieldy boards manually — or even using a forklift — ProWood does the job effortlessly. The adjustable lengths and widths between the vacuum cups, the low-built construction and the ergonomic design are features that make ProWood suitable for most industries. It is especially popular among door and kitchen manufacturers.

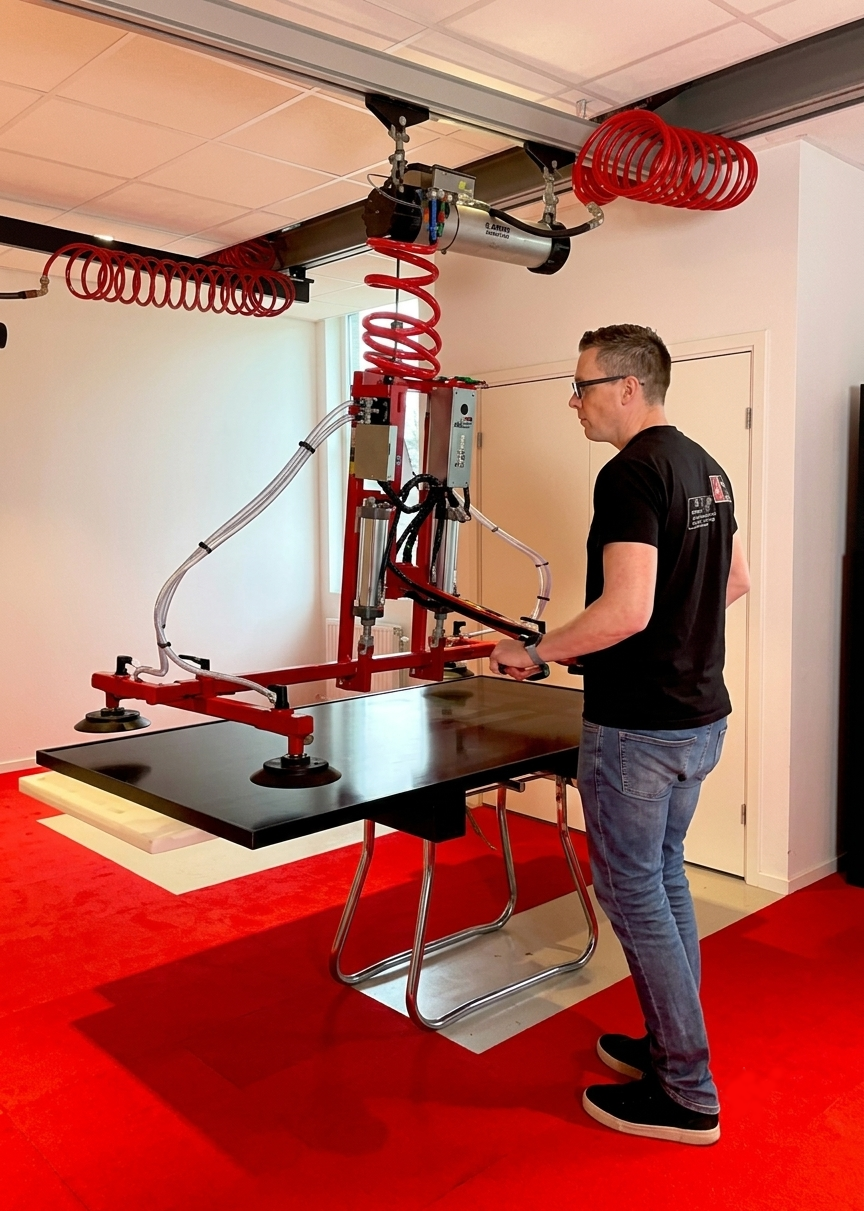

A green eye indicates when the right vacuum level has been reached and when it is safe to lift. During lifting, the load guard function protects the board from being accidentally released. Proportional control makes it easy to place the board very carefully without it being damaged. If the board is to be mounted, it can be weightlessly manoeuvred directly with the hands, without using the control unit.

The width and length of the gripper’s vacuum cups are adapted depending on how and what kind of load you lift. This means that virtually any type of material can be easily lifted with this lifting tool. We help you to find a suitable solution for you and customise based on your needs.

	SKU	Name	Weight (kg)	Max capacity (kg)	Type of lifting object	Function	Height (mm)

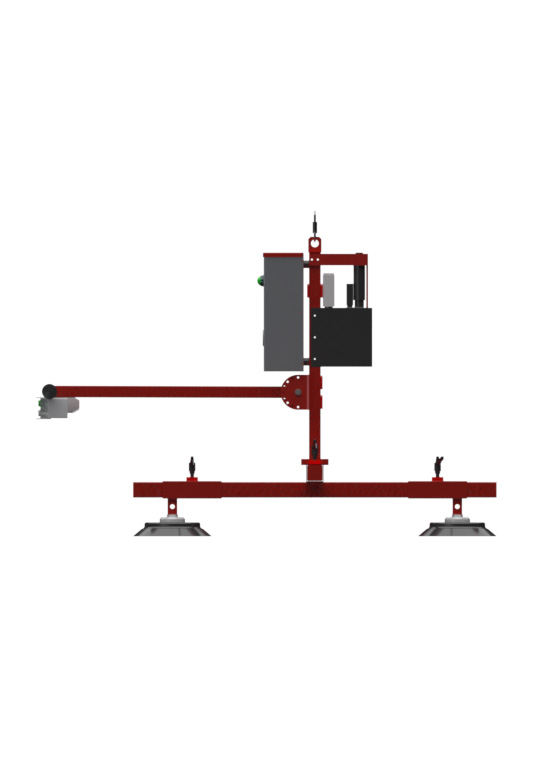

	92-10015-1	ProWood — [120] kg — Without tilt	30	120	sheet	—	760

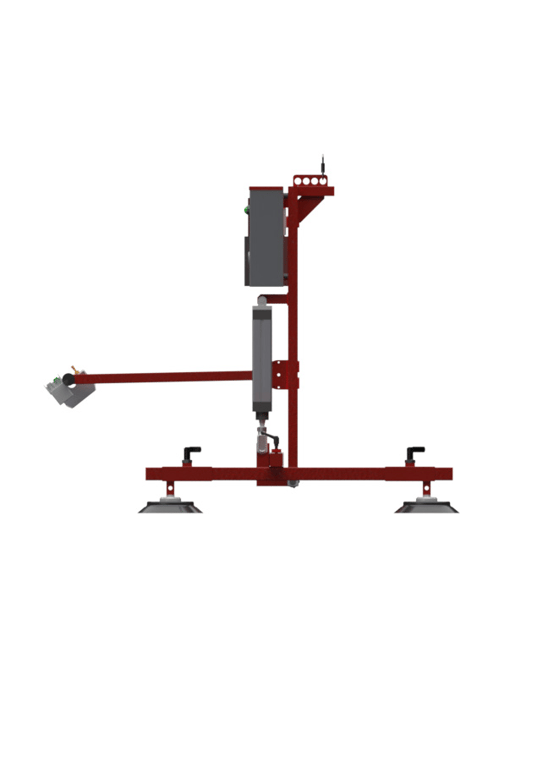

	92-10016-1	ProWood — [100] kg — Tilt	42	100	sheet	Tilt	1112

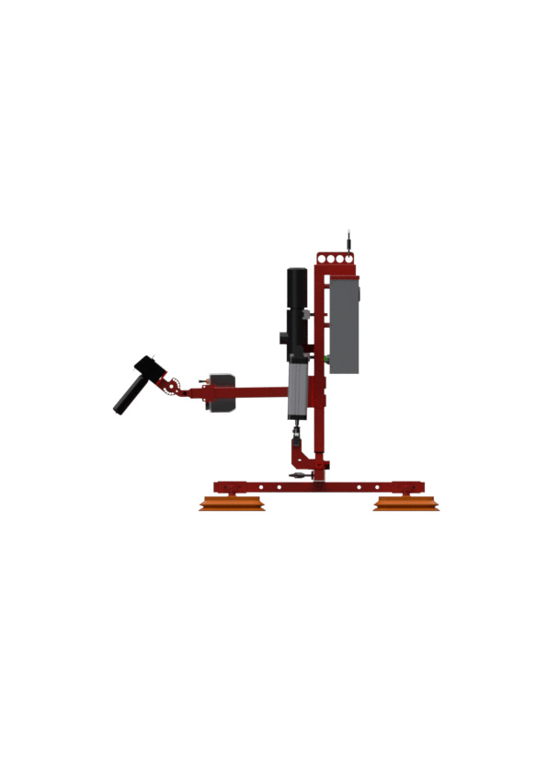

	92-10023	ProWood Mini [60] kg — Tilt	21	60	sheet	Tilt	878

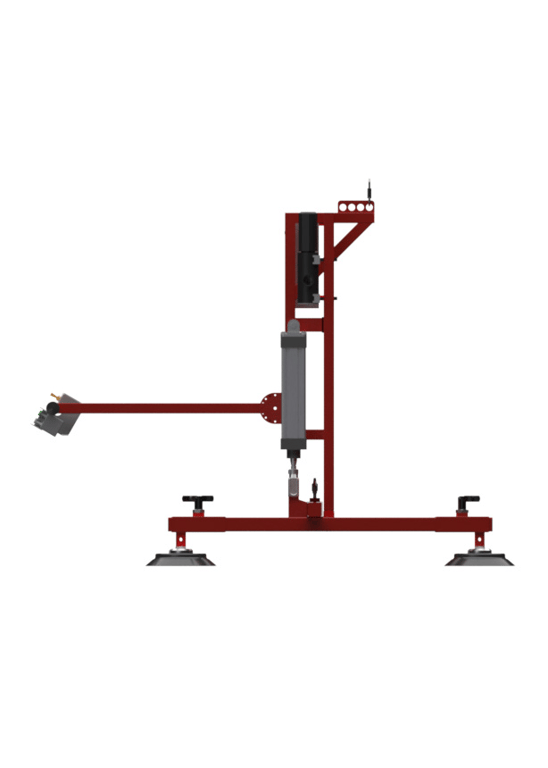

	92-10028	ProWood Maxi [200] kg — Tilt	55	200	sheet	Tilt	1442
