Description

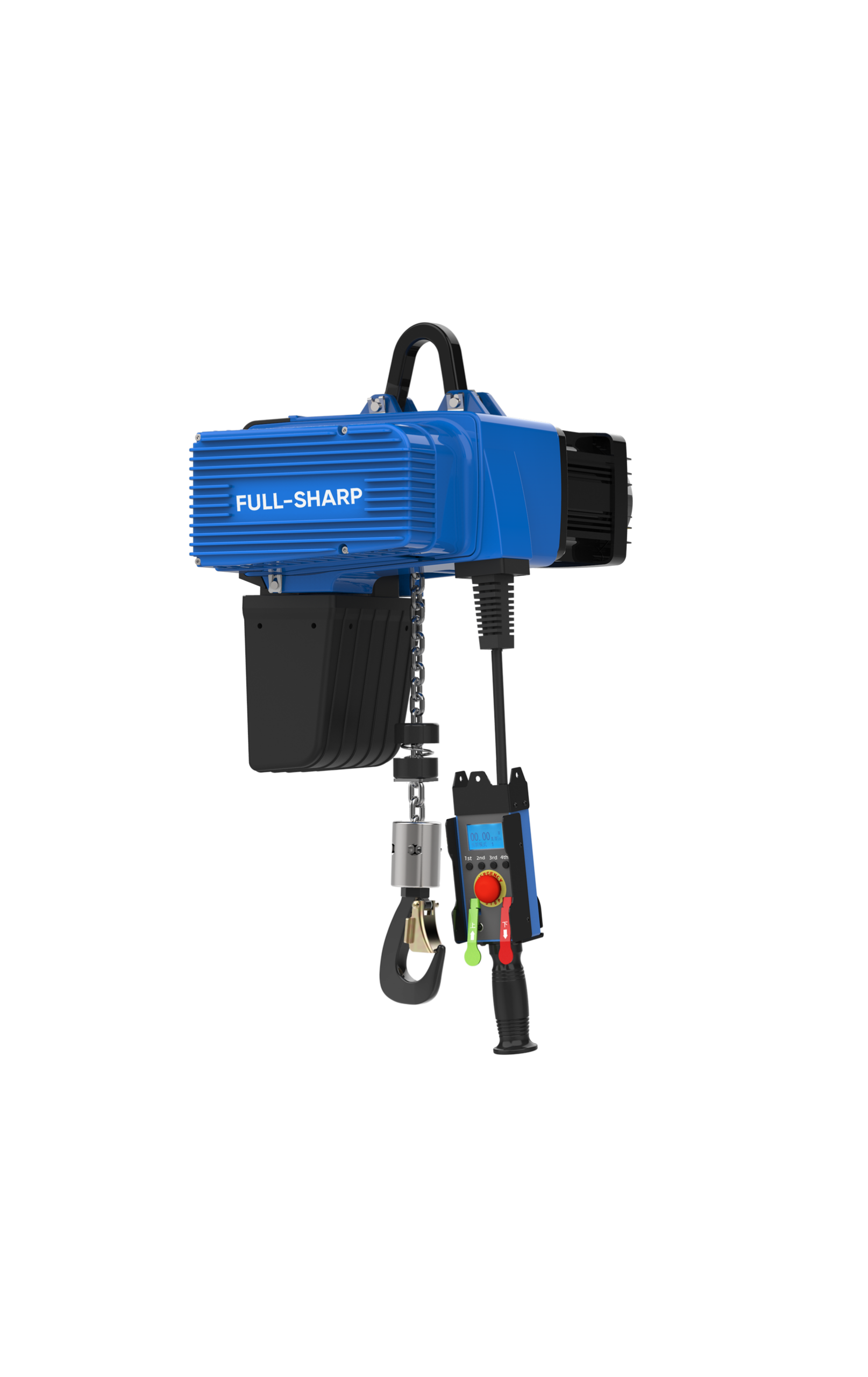

Product Features
- ◆ Custom servo drive and dedicated servo motor for precise, stable control.
- ◆ Smooth, ultra-quiet operation with soft start and soft stop, and minimal body sway.
- ◆ Adjustable speed range with stepless control – minimum speed down to 0.05 m/min for higher positioning accuracy and reduced workpiece impact.
- ◆ Multiple safety protections: anti-overrun, overload, power failure and more.
- ◆ Real-time speed display and visible fault codes for quick, efficient troubleshooting.
- ◆ Electronic dual-brake system – no brake pad replacement for years; simple daily maintenance.
- ◆ Built-in remote control support for synchronised operation of the hoist, trolley and crane bridge.

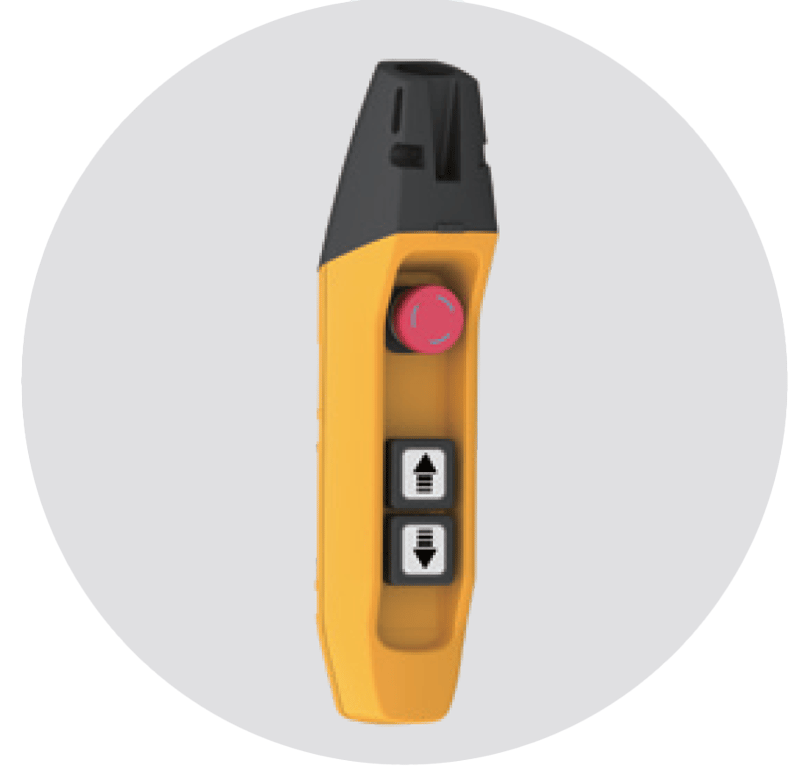

E2 stepless gear handle: Four gear speeds, with the maximum speed range of each gear set according to the customer’s actual production needs. The speed is displayed in real time. Tablet-press style control with sensitive induction, especially suitable for precise control at ultra-low speeds.
Product Specifications and Dimensions
|
MODEL
ITEM
|
FS-42C012 | FS-42C025 | FS-42C050 | FS-42C100 | FS-42C202 | FS-42C160 | FS-42C200 | FS-42C250 | FS-42C320 | FS-42C500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Maximum load (Kg) | 125 | 250 | 500 | 1000 | 2000 (Double chain) | 1600 | 2000 | 2500 | 3200 (Double chain) | 5000 (Double chain) |
| Standard speed (m/min) | 0~16 | 0~16 | 0~12 | 0~8 | 0~4 | 0~16 | 0~12 | 0~12 | 0~8 | 0~6 |
| Rated power (kW) | 0.75 | 0.75 | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Standard lifting height (m) | 3 (customizable) | |||||||||
| Control mode | Wired pendant button / Radio remote control button | |||||||||
| Chain specification (mm) | 5.0 | 5.0 | 5.0 | 7.1 | 7.1 | 9.0 | 11.2 | 11.2 | 9.0 | 11.2 |
| Voltage | Standard 380V (optional 220V) | |||||||||
| Mechanism working class | 3m/M6 | 3m/M6 | 3m/M6 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 | 2m/M5 |
| Working temperature (°C) | -10°C ~ 55°C | |||||||||
Note: The speed of the product is adjustable. The data above is for model selection reference only; the actual data on the product nameplate shall prevail.

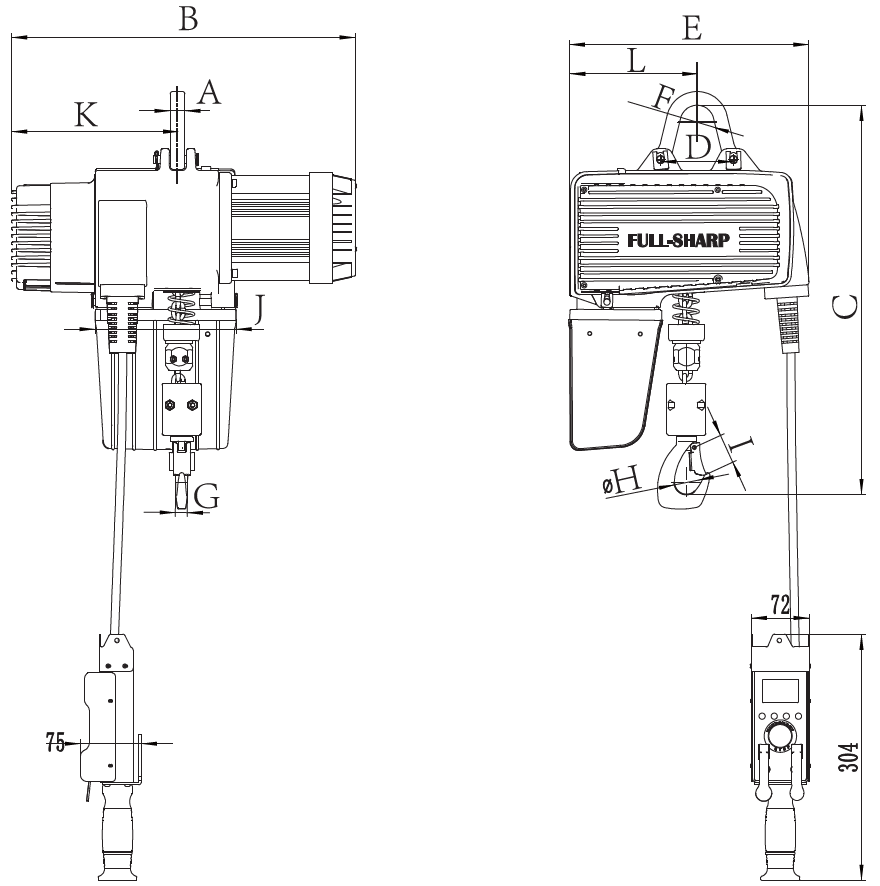

Dimension Drawing
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS-42C012 | 18 | 424 | 473 | 90 | 296 | R21 | 15 | Φ30 | 36 | 174 | 205 | 158 |
| FS-42C025 | 18 | 424 | 473 | 90 | 296 | R21 | 15 | Φ30 | 36 | 174 | 205 | 158 |
| FS-42C050 | 18 | 468 | 478 | 90 | 313 | R21 | 17.5 | Φ35 | 46 | 192 | 208 | 171 |
| FS-42C100 | 24 | 546 | 592 | 124 | 349 | R30 | 23 | Φ44 | 50 | 227 | 243 | 184 |
| FS-42C202 | 24 | 546 | 643 | 124 | 349 | R30 | 31 | Φ52 | 52 | 227 | 243 | 184 |
| FS-42C160 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 178 |
| FS-42C200 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 178 |
| FS-42C250 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 211 |
| FS-42C320 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 211 |
| FS-42C500 | 33 | 669 | 836 | 170 | 401 | R74 | 34 | Φ58 | 67 | 260 | 339 | 211 |
All dimensions are in millimetres (mm) and may vary with the selected lifting height and trolley type. Please confirm the certified drawing before installation design.

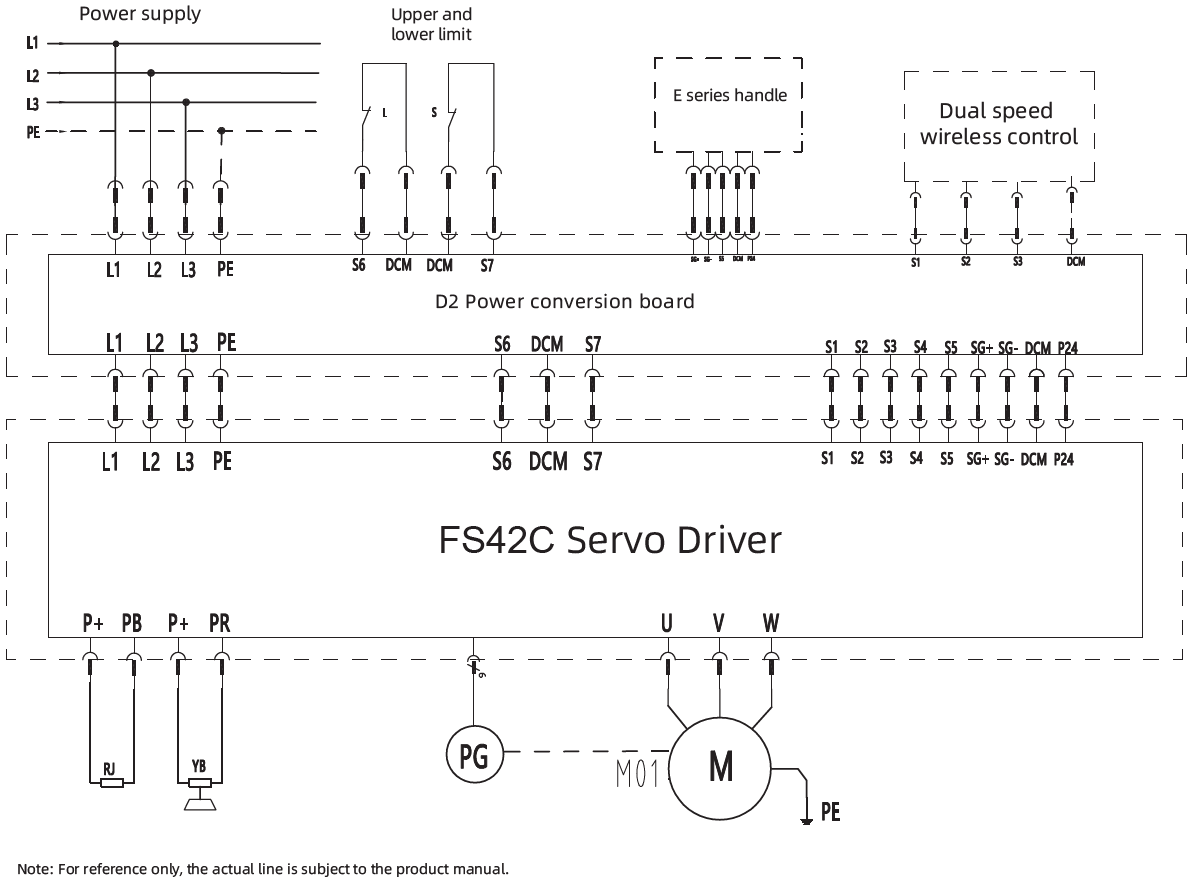

Wiring Diagram
Wiring must be carried out by a qualified electrician in accordance with the manual supplied with the hoist. Check the supply voltage and phase sequence before switching on.
