Description
VACUUM CUPS FOR EGGS & OTHER ROUND OBJECTS
Special applications series bellows cups – food grade silicone or nitrile, 33 to 35 mm
Product Overview

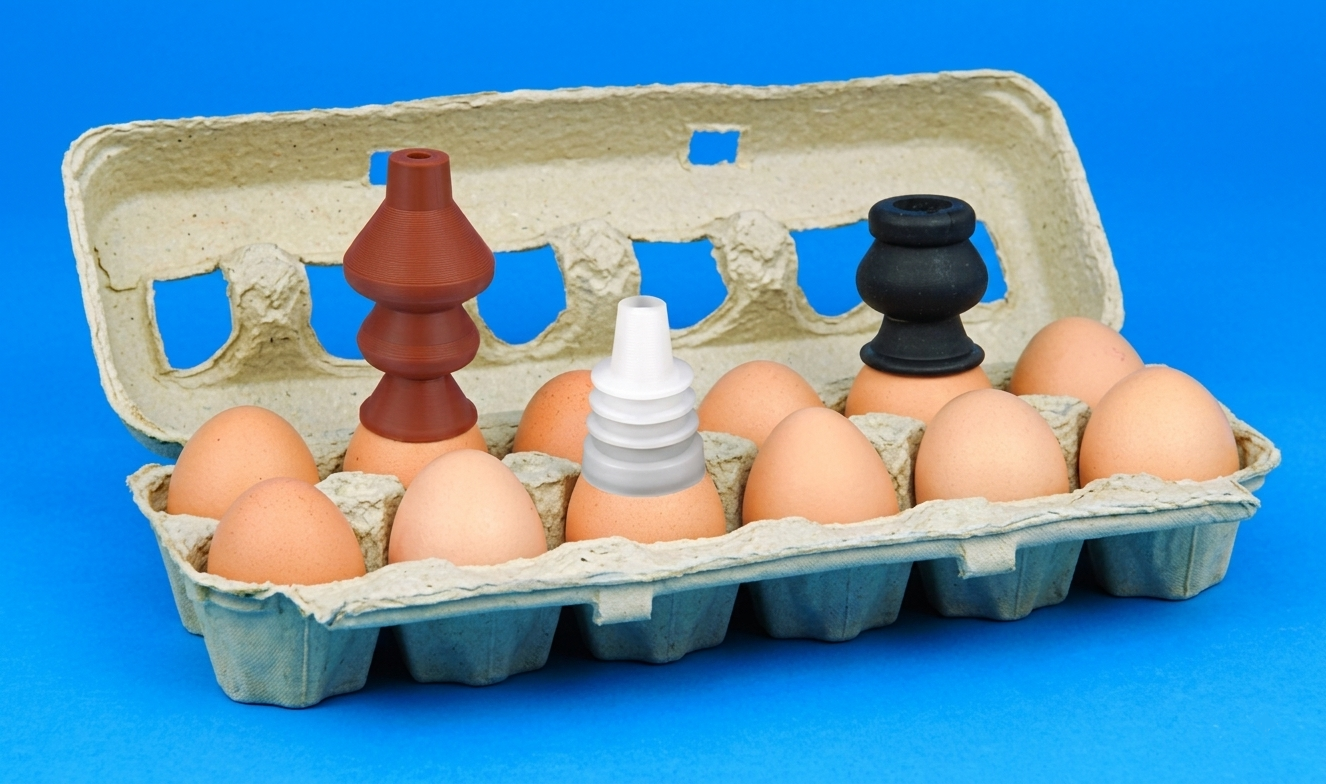

Specially designed vacuum cups that handle eggs and other round objects, such as golf balls. They come in various sizes and materials.
Food grade white or red silicone, as well as black nitrile rubber, are all available.
The deep bellows profile lets the cup wrap around a curved surface and seal on a shape that a flat cup cannot hold.
Cup materials – the standard materials are silicone (SIT) and nitrile (NBR). Choose silicone for food contact and for a non-marking grip; nitrile where oil resistance and wear life matter more.
Product Information
| Part number and material | Description | Diameter in. (mm) |
|---|---|---|
 BE34-SIT (silicone) – RoHS compliant |
Silicone bellows vacuum cup | 1.34 (34) |
 BE33-SIT (translucent silicone) – RoHS compliant |
Silicone bellows vacuum cup | 1.30 (33) |
 BE35-NBR (nitrile) – RoHS compliant |
Nitrile bellows vacuum cup | 1.38 (35) |
All three cups are compliant with the RoHS 2011/65/EU Directive. Hover a thumbnail to enlarge it, or click to open the full size image.
Typical Applications
Egg handling
Grading, packing and transfer lines, with a food grade silicone cup that will not mark the shell.
Golf balls and spheres
Round objects that a flat cup cannot seal against.
Curved and domed parts
Small components with a convex face, in pick and place machinery.
