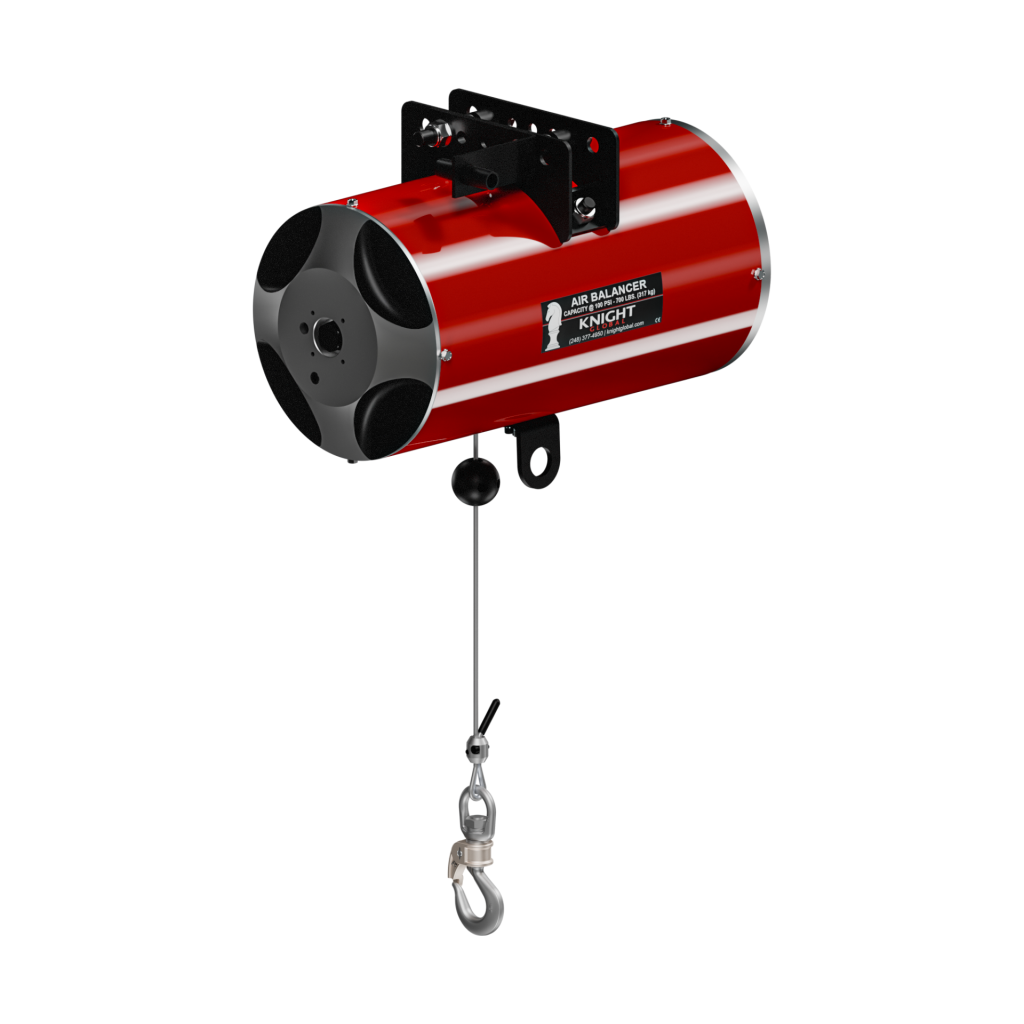

Single Cable / Chain Pneumatic Balancers
KBA & KBC Single Pneumatic Balancer Series
Series: KBA (Cable) / KBC (Chain)
Knight single pneumatic balancers are used where the application calls for a float mode – letting the operator make the final placement of the load hands-free. Raising and lowering is faster than a conventional hoist, and the load can be “feathered” into position. The ergonomic control handle uses a colour-coded thumb lever.
When selecting a pneumatic balancer, the working load should be sized at 80% of the rated capacity to allow for normal fluctuation in the plant air system. The working load includes both the part and the end effector holding it. Balancers are rated at a supply pressure of 100 psi [6.8 bar].
Worked example: plant air at 60 psi, a 350 lbs model, 80% factor → (0.60 × 350) × 0.80 = 168 lbs of actual working capacity.
*Single chain models (KBC): KBC150-070, KBC200-110, KBC225-067, KBC350-067, KBC450-052 (NEW), KBC500-080 and KBC700-052.
KBA – Cable
Uses high quality stainless steel wire rope. The cable version gives the longest stroke in the range – up to 110 in [2,794 mm] – and a lighter unit weight for the same capacity. Lubricate periodically with Lubriplate® 1241 or equivalent to extend cable life.
KBC – Chain
Uses a dedicated grade 80 load chain. The chain version is more tolerant of a dirty or abrasive environment and of side loading. Lubricate periodically with SAE 50–90 EP motor or gear oil, or equivalent.
Features
- CE compliant.
- Choice of cable (KBA) or chain (KBC).
- Hands-free operation.
- Float mode as standard.
- Internal centrifugal retract control built in.
- Requires clean, dry, non-lubricated compressed air.
- Maximum balancing capacity: 700 lbs [317 kg].
- Standard stroke: up to 110 in [2,794 mm].
- Cable lubrication: high-pressure food-grade oil (Lubriplate® 1241).
- Chain lubrication: SAE 50–90 EP oil or equivalent.
Benefits & Options
- Longer stroke available on selected models.
- Optional external retract control.
- Optional travel limit switch.
- Optional high relieving and feather-touch controls.
- Optional reeved (double pulley) and tandem series.
- Suits tool-bench scale applications.
- A range of suspension kits to suit the installation.
- Integrates with Knight aluminium rail (RAD4110 / 6110 / 7510).
| Model | Capacity | Stroke | Product Weight | |||
|---|---|---|---|---|---|---|
| lbs | kg | in | mm | lbs | kg | |
| KBA150-076 | 150 | 68 | 76 | 1,930 | 49 | 22 |
| KBA225-073 | 225 | 102 | 73 | 1,854 | 61 | 28 |
| KBA225-110 | 225 | 102 | 110 | 2,794 | 88 | 40 |
| KBA350-073 | 350 | 159 | 73 | 1,854 | 76 | 34 |
| KBA450-054 New | 450 | 204 | 54 | 1,371 | 72 | 33 |
| KBA500-080 | 500 | 227 | 80 | 2,032 | 112 | 51 |
| KBA700-054 | 700 | 317 | 54 | 1,371 | 91 | 41 |
| Model | Capacity | Stroke | Product Weight | |||
|---|---|---|---|---|---|---|
| lbs | kg | in | mm | lbs | kg | |
| KBC150-070 | 150 | 68 | 70 | 1,778 | 51 | 23 |
| KBC200-110 | 200 | 91 | 110 | 2,794 | 93 | 42 |
| KBC225-067 | 225 | 102 | 67 | 1,701 | 63 | 28 |
| KBC350-067 | 350 | 159 | 67 | 1,701 | 78 | 35 |
| KBC450-052 New | 450 | 204 | 52 | 1,320 | 77 | 35 |
| KBC500-080 | 500 | 227 | 80 | 2,032 | 115 | 52 |
| KBC700-052 | 700 | 318 | 52 | 1,320 | 95 | 43 |
